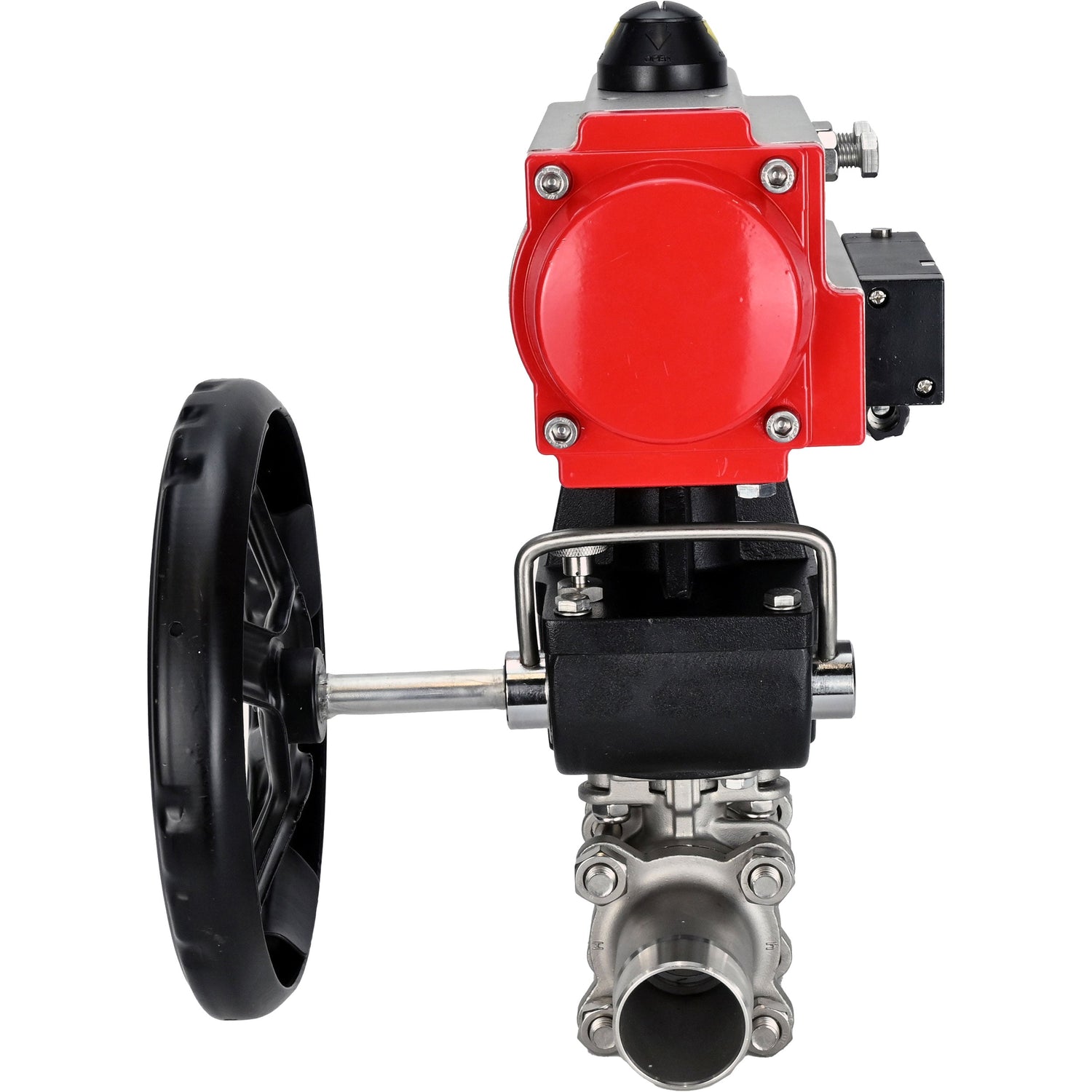

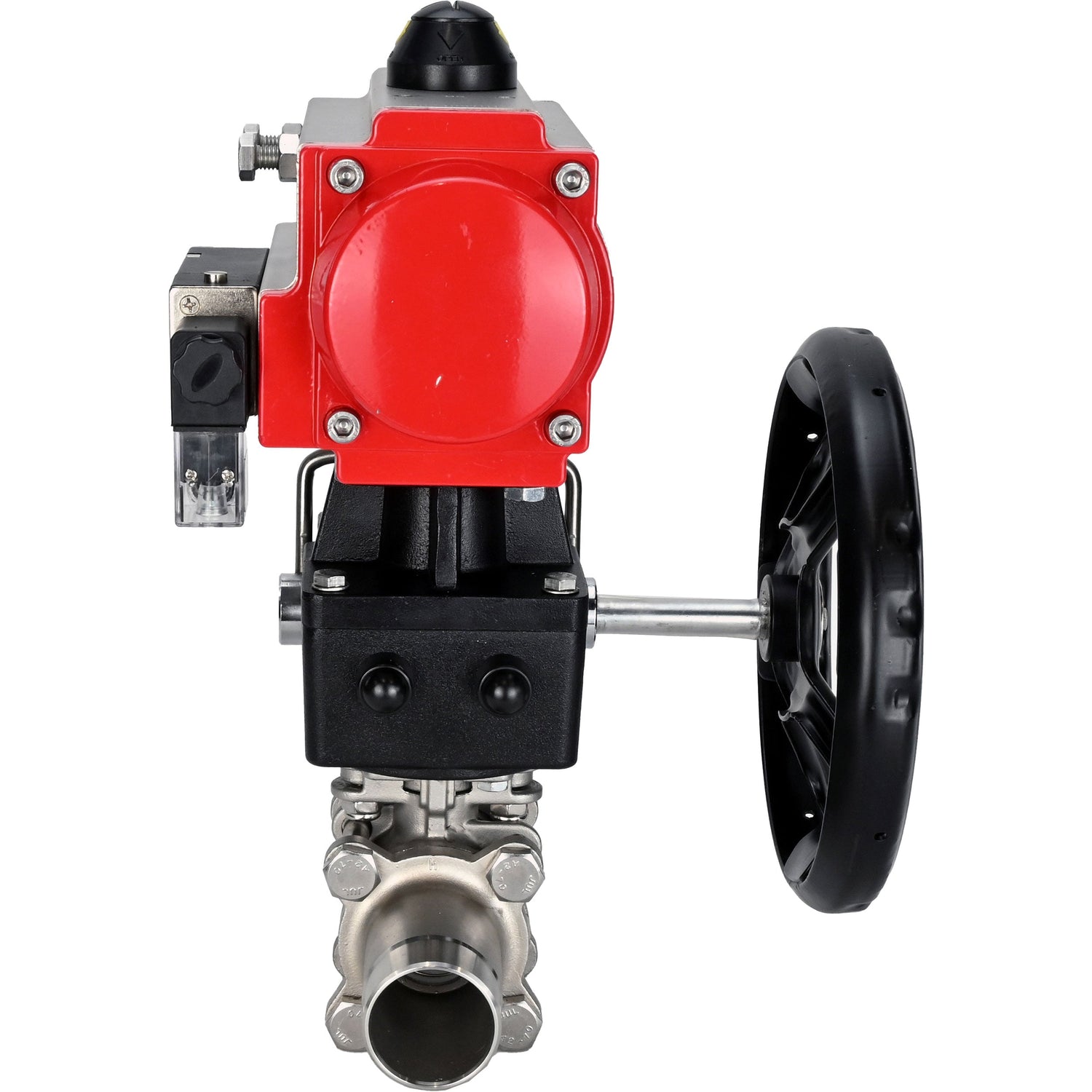

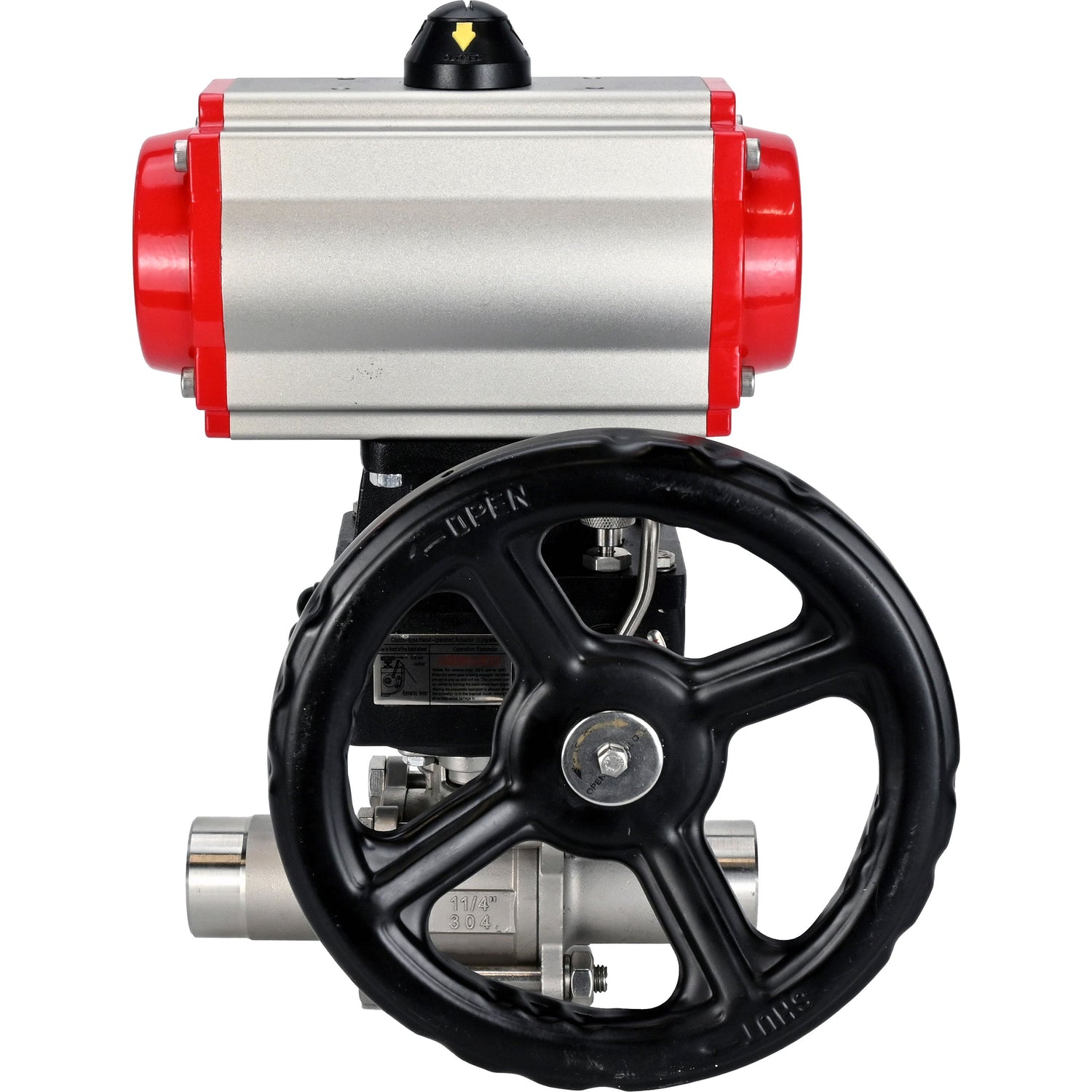

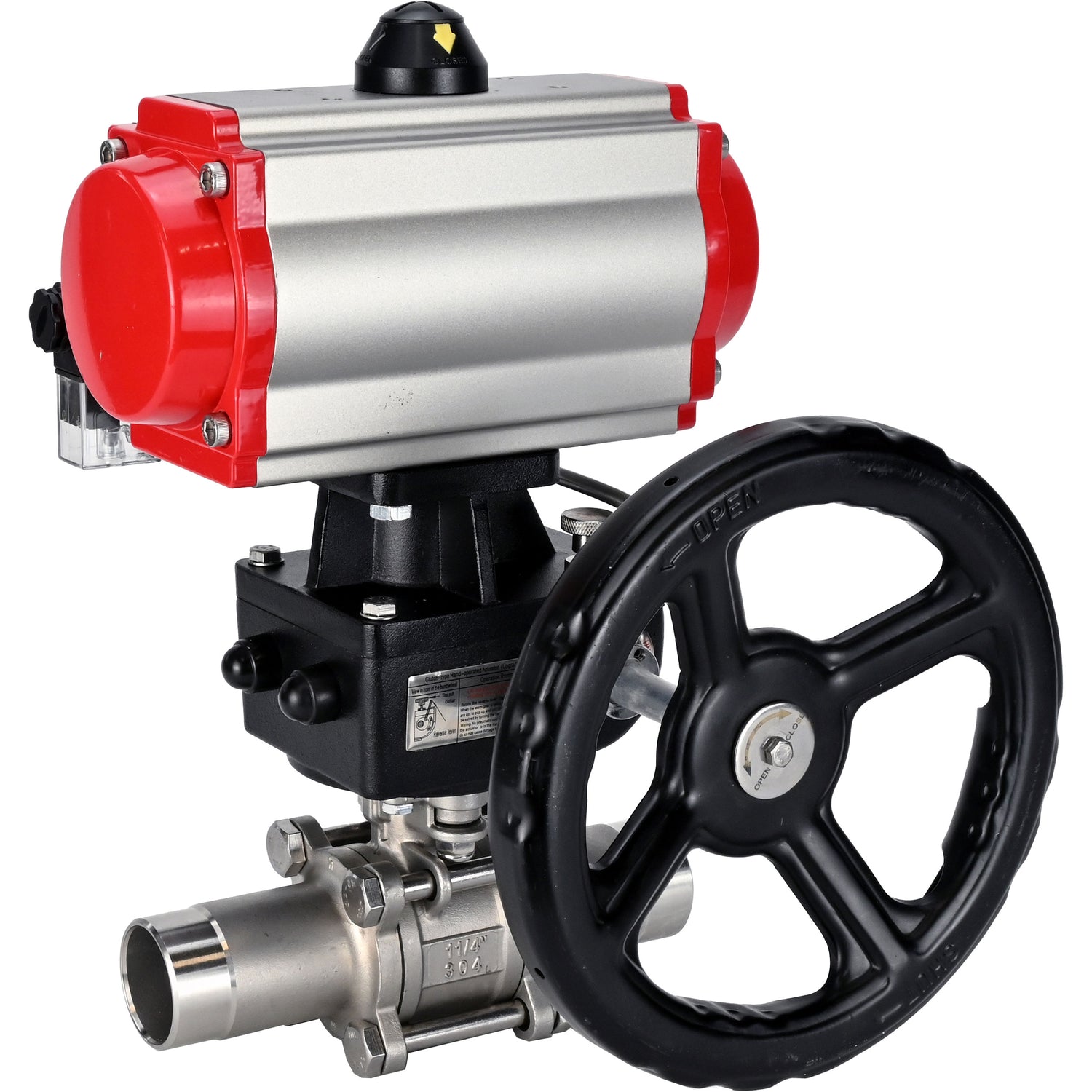

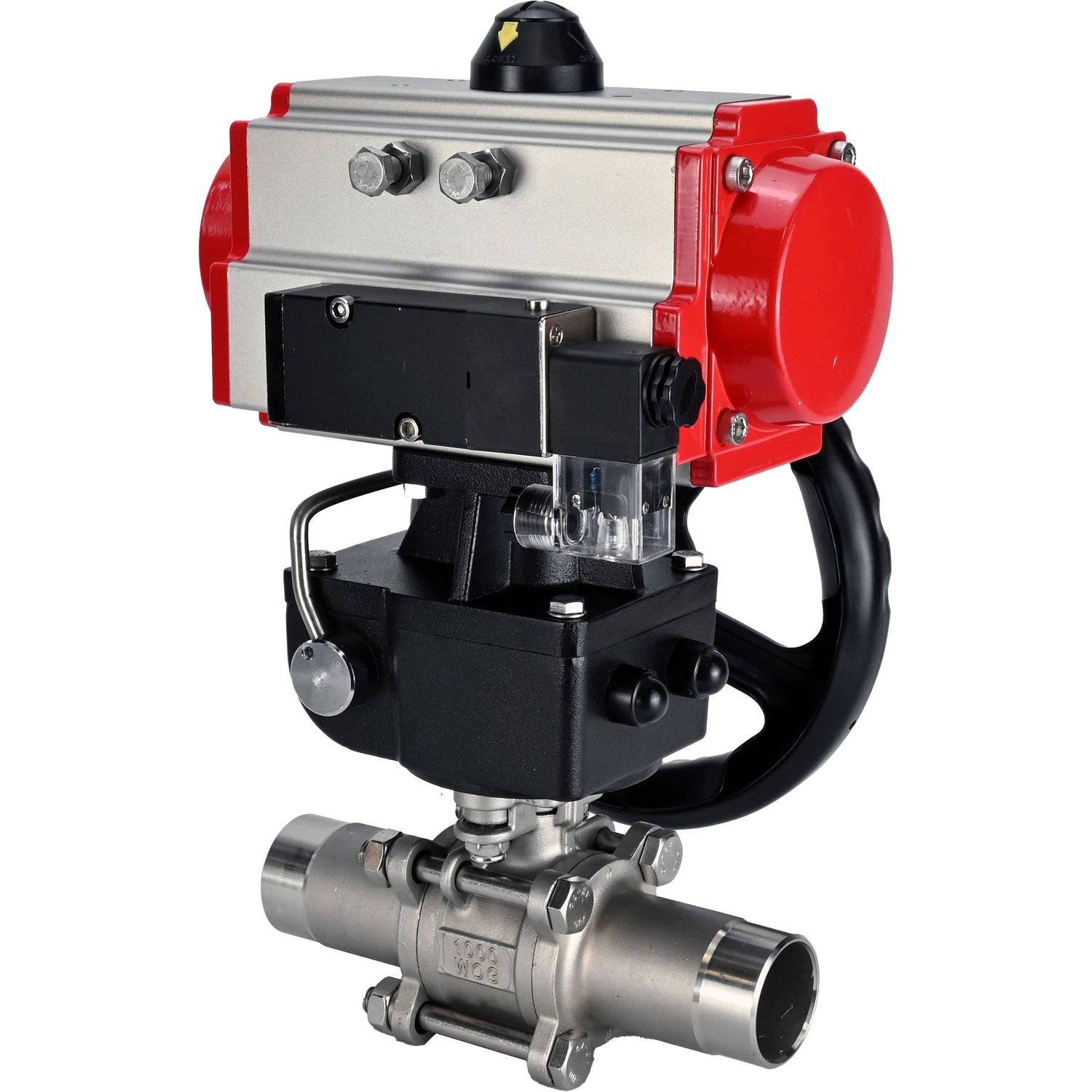

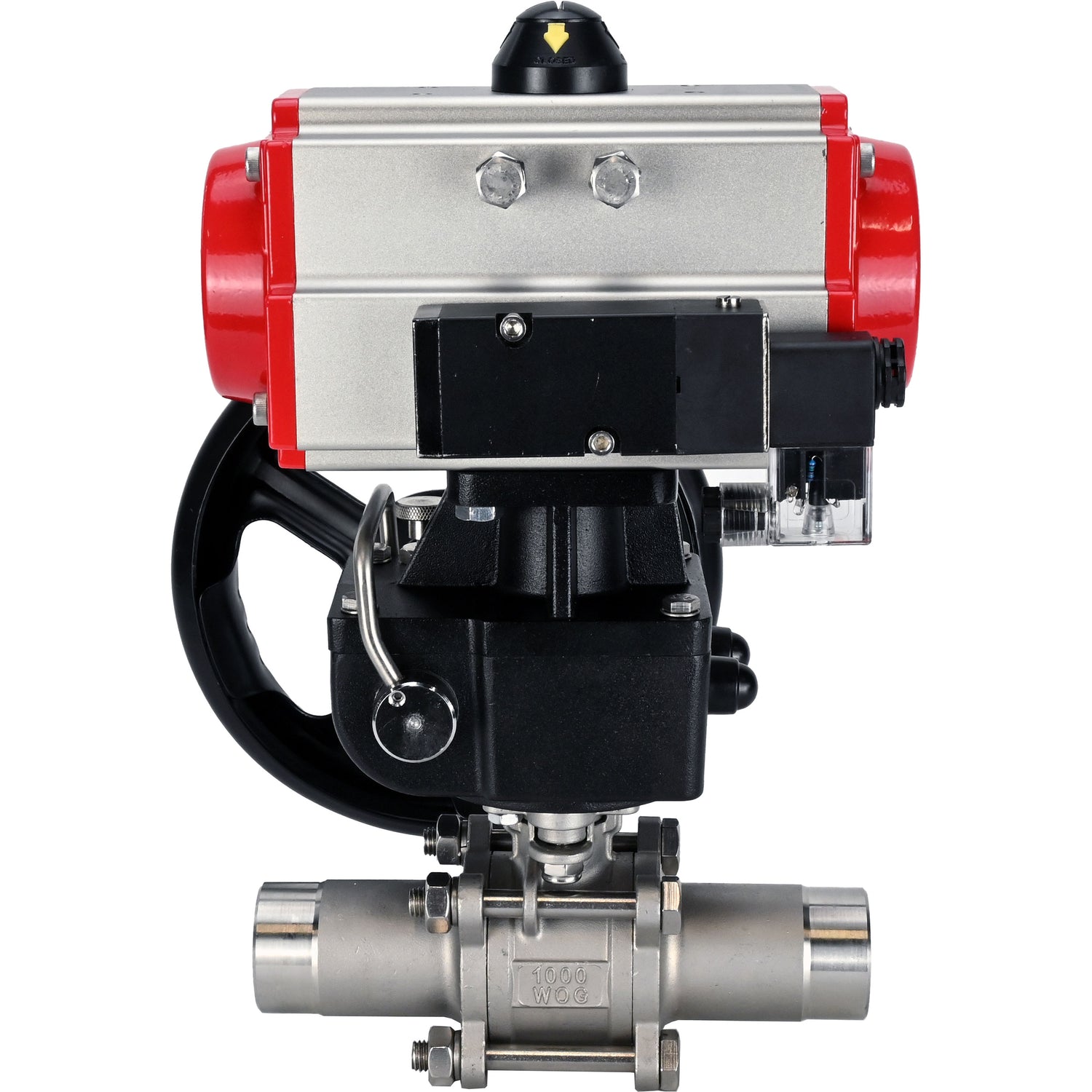

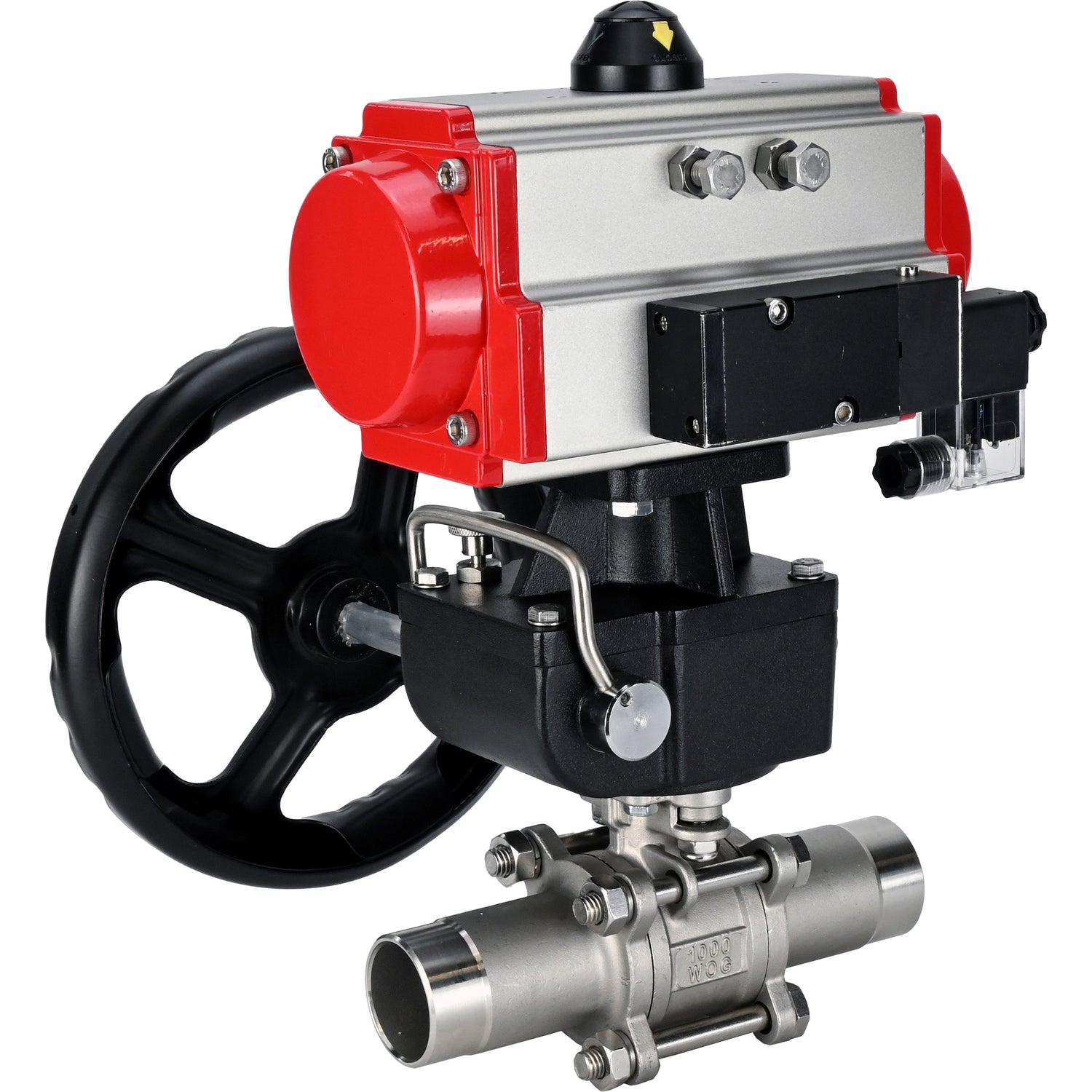

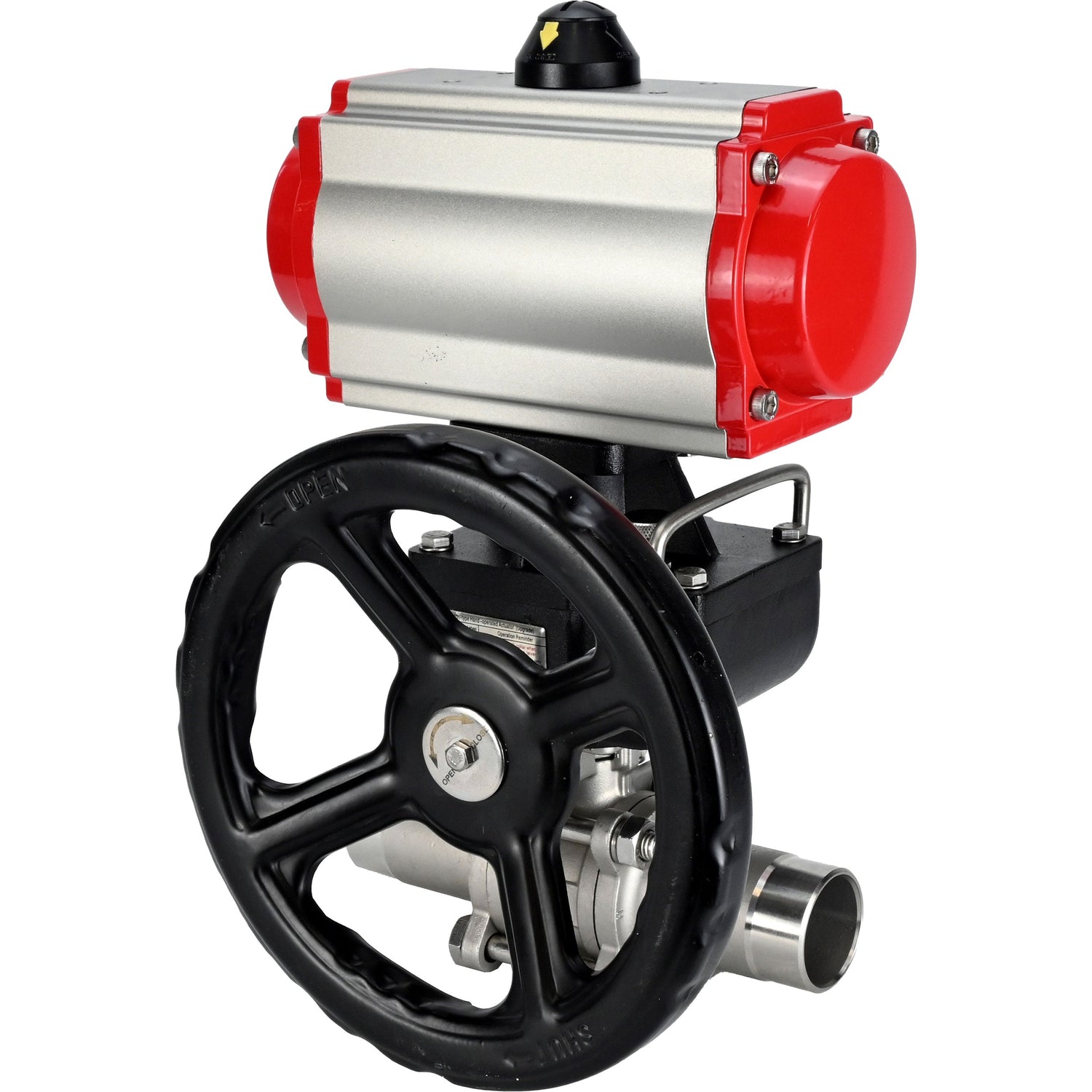

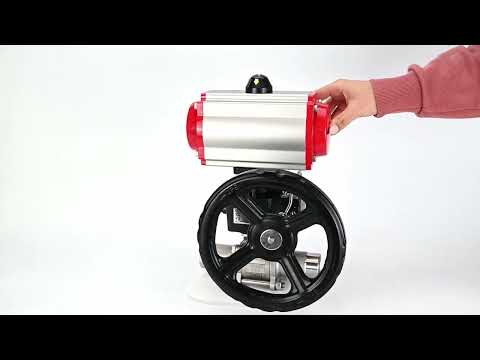

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA-XXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-sided or two-sided control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with quarter-turn pneumatic actuators.

The manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Sketch of the dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Model	L, mm	H1, mm	A, mm	E, mm
DN50	243	133	216	109
DN65	290	133	216	109
DN80	302	133	216	109
DN100	326	180	279	134
DN125	360	180	308	157
DN150	390	195	405	174





Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer



Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V and MON reducer

Item No.	Part name	Material
1	Frame	stainless steel 304
2	Side element (2 pcs)	stainless steel 304
3	Ball	stainless steel 304
4	Ball seal	PTFE
5	Rod seal	PTFE
6	Sleeve	stainless steel 304
7	Stock	stainless steel 304
8	Washer	stainless steel
9	screw	steel A2-70
10	Bolt	steel A2-70





Pneumatic drive Elephant



Technical parameters of the pneumatic drive Elephant

Name	Meaning
Design	double acting
Control pressure, bar	2 ÷ 8





Sketch of the dimensions and sizes of the pneumatic drive Elephant





Dimensions and sizes of pneumatic actuator Elephant

Model	PA-DA-83	PA-DA-105	PA-DA-130	PA-DA-140
A1, mm	152	189	210	268
B1, mm	216	279	308	405
C, mm	46	55	67.5	76
D, mm	55	64	70	77
E, mm	109	134	157	174
F, mm	26	26	36	36
G, mm	15	25	25	30
H, mm	F05	F07	F07	F10
I, mm	F07	F10	F10	F12
J, mm	4-M6x10	4-M8x12	4-M8x12	4-M10x16
K, mm	4-M8x12	4-M10x16	4-M10x16	4-M12x20
L, mm	17x17	22x22	22x22	27x27
Mmm	80	80	80	130
N, mm	30	30	30	30
F0, mm	34	41	62	62
R, mm	20	20	30	30





Table of parts and materials of pneumatic drive Elephant

No.	Name	Quantity	Material	Coating
1	Frame	1	extruded aluminum	hard anodized
2	Side plugs	2	cast aluminum
3	Gear	1	stainless steel	nickel plated
4	Piston	2	steel/aluminum	oxidation/galvanic zinc plating
5	Plugs	8	stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	spring steel	epoxy coating
8	Piston bearing	2	engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Thrust ring	2	engineering plastic
12	Ring	1	engineering plastic
13	Washer	1	stainless steel
14	Spring clamp	2	stainless steel
15	Indicator	1	plastic
16	Indicator housing	1	plastic
17	Bearing	1	engineering plastic
18	Cam	1	steel	oxidation/galvanic zinc plating
19	Bearing	1	NBR
20	Bearing	1	engineering plastic
21	Bearing	1	engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	stainless steel
25	Adjusting nut	2	stainless steel
26	Adjustment screw	2	stainless steel
27	Sleeve	2	aluminum





Pneumatic distributor Elephant 4M310-08 220V



Technical parameters of the pneumatic distributor Elephant 4M310-08 220V

Name	Meaning
Type of pneumatic distributor	spool valve
Model of pneumatic distributor	4m310-08 220v
Working pressure, bar	1.5 ÷ 1.8
Supply voltage, V	220V
Response frequency, cycles/sec	5





Sketch of dimensions and sizes of pneumatic distributor Elephant 4M310-08 220V



Dimensions and sizes of pneumatic distributor Elephant 4M310-08 220V

Model of pneumatic distributor	4M310-08
D, mm	32
E, mm	69
F, mm	40
I, mm	45
K, mm	40
L, mm	134.5
M, mm	40
N, mm	24
S, mm	27
U, mm	2.4
H, mm	17.5





Manual backup Elephant MON



Technical parameters of the manual backup Elephant MON

Name	Meaning
Manual backup model	MON
Climate performance	U, UHL, T, OM
Installation method	horizontal/vertical
Degree of protection, IP	67
Connection type	ISO 5211





Sketch of dimensions and sizes of manual backup Elephant MON



Dimensions and sizes of the manual backup Elephant MON:

Model	MON2-450-T28-ISO	MON3-700-T38-ISO	MON4-1200-T54-ISO
b1, mm	17	22	27
N, mm	22	28	32
b2, mm	17	22	27
M, mm	18	22	30
D1, mm	Ø70	Ø102	Ø102
4-M1, mm	4-M8	4-M10	4-M10
D2, mm	Ø102	Ø125	Ø125
4-M2, mm	4-M10	4-M12	4-M12
E, mm	95x95	114x114	129x129
D3, mm	Ø70	Ø102	Ø125
4-Ø1, mm	4-Ø8.5	4-Ø10.5	4-Ø12.5
D4, mm	Ø102	Ø125	Ø140
4-Ø2, mm	4-Ø10.5	4-Ø12.5	4-Ø16.5
A, mm	125	140	188.5
B, mm	64	71	93
ØC, mm	Ø110	Ø129	Ø174
F, mm	135	166	202
T, mm	62.5	70	94
Y, mm	178	212	280
H, mm	133	180	195
S, mm	56.5	68.7	84
K, mm	13	12.5	15
Ø steering wheel, mm	200	280	320



Sketch of parts and materials of manual backup Elephant MON

Table of parts and materials of the manual backup Elephant MON:

Item No.	Details	Material
1	Rod for mounting pneumatic actuator	steel 45
2, 8	Sealing ring	EPDM
3	Locking spring	spring steel
4	Top end cap	aluminum alloy
5	Screw	steel 304
6	Fixing bracket (main rod)	steel 304
7	Frame	aluminum alloy
9	Reducer	cast iron VCh50
10	Transition coupling	cast iron VCh40
11	Gearbox rod	cast iron VCh40
