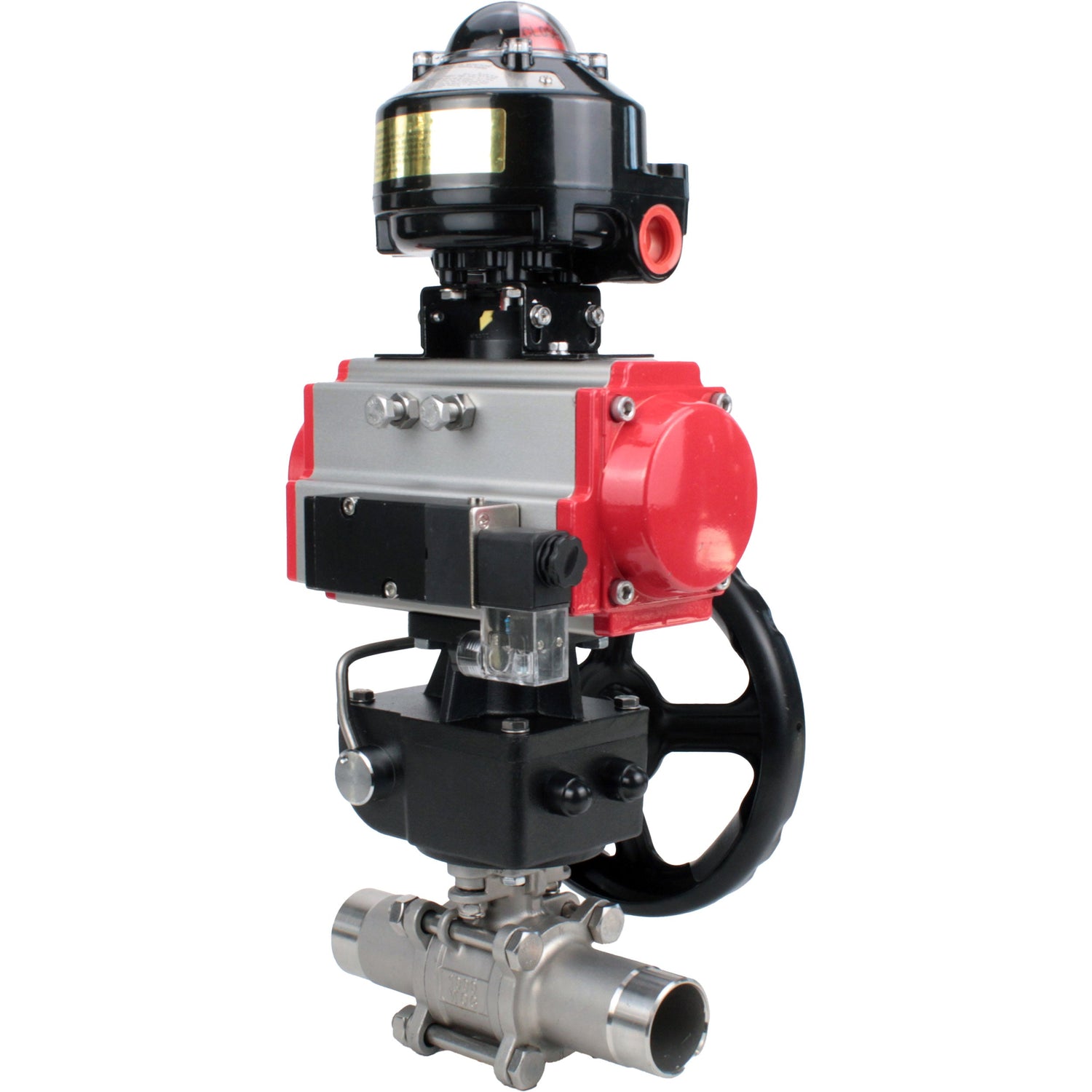

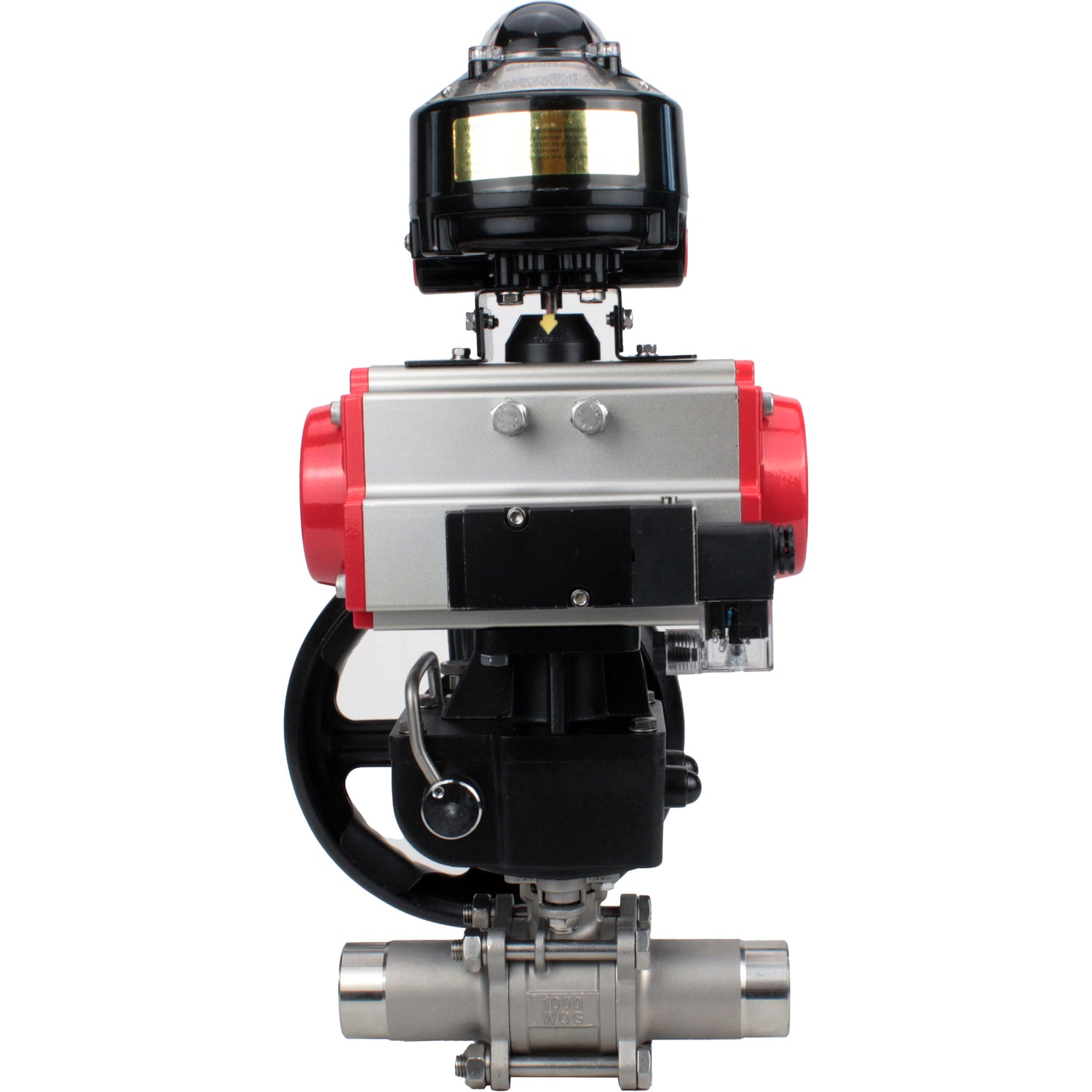

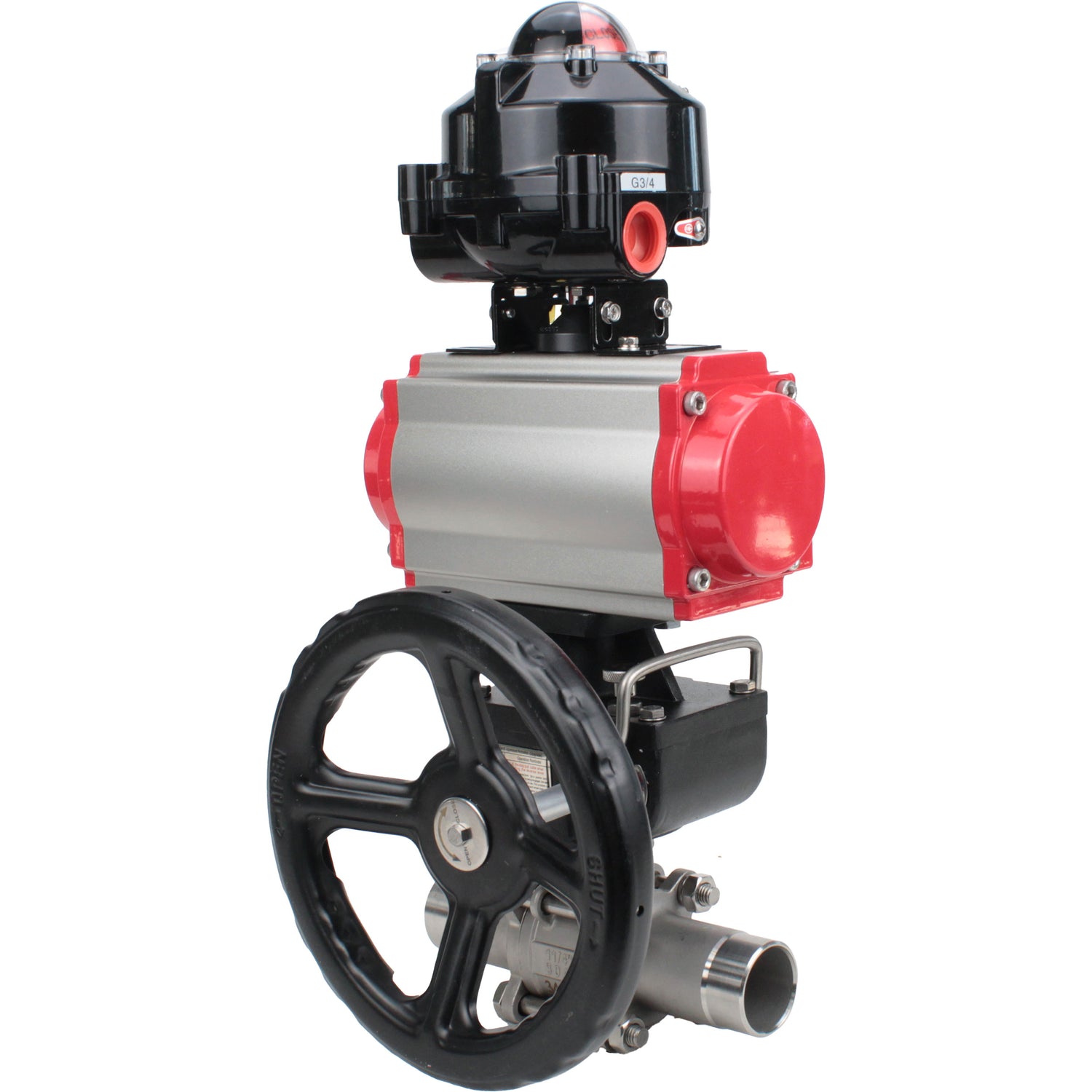

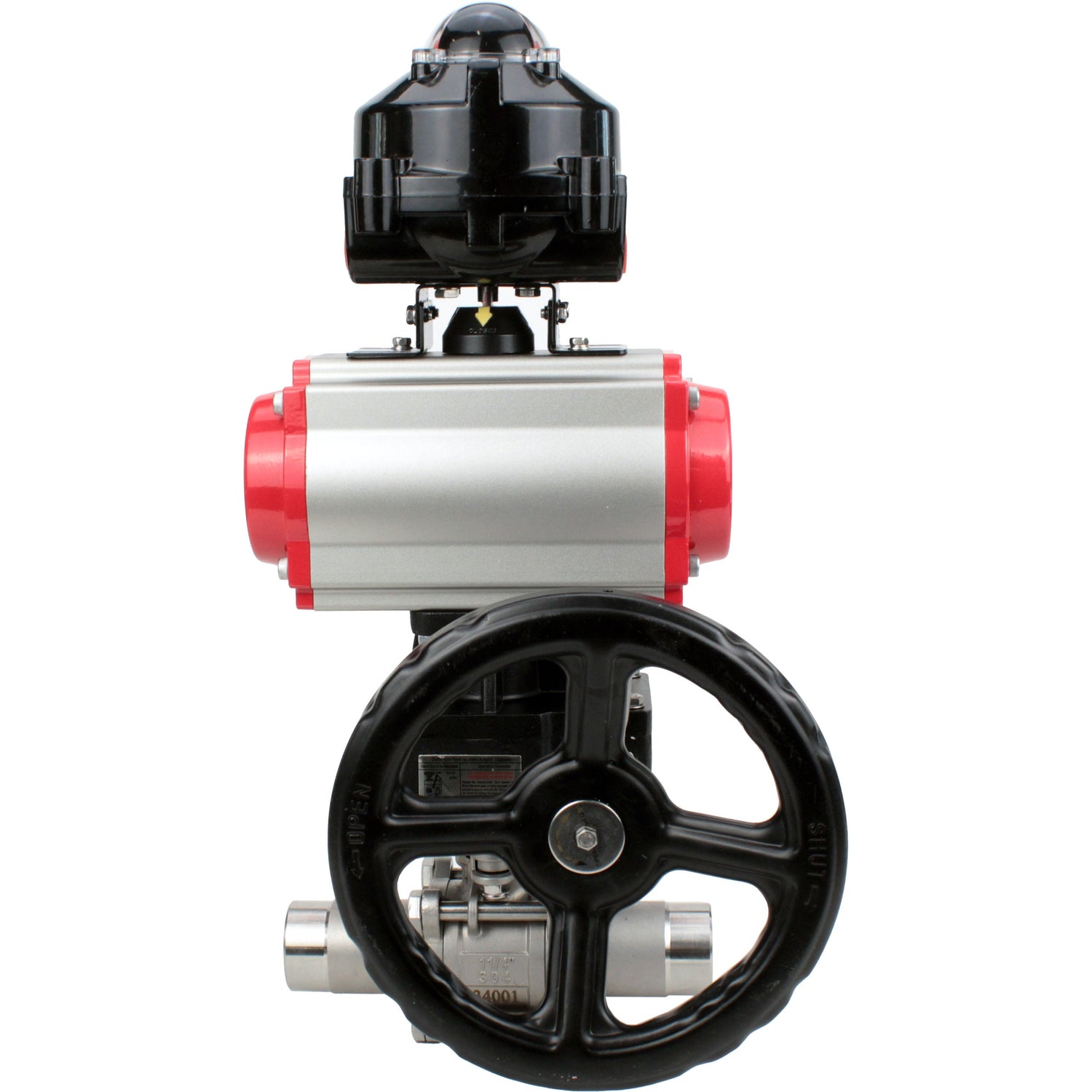

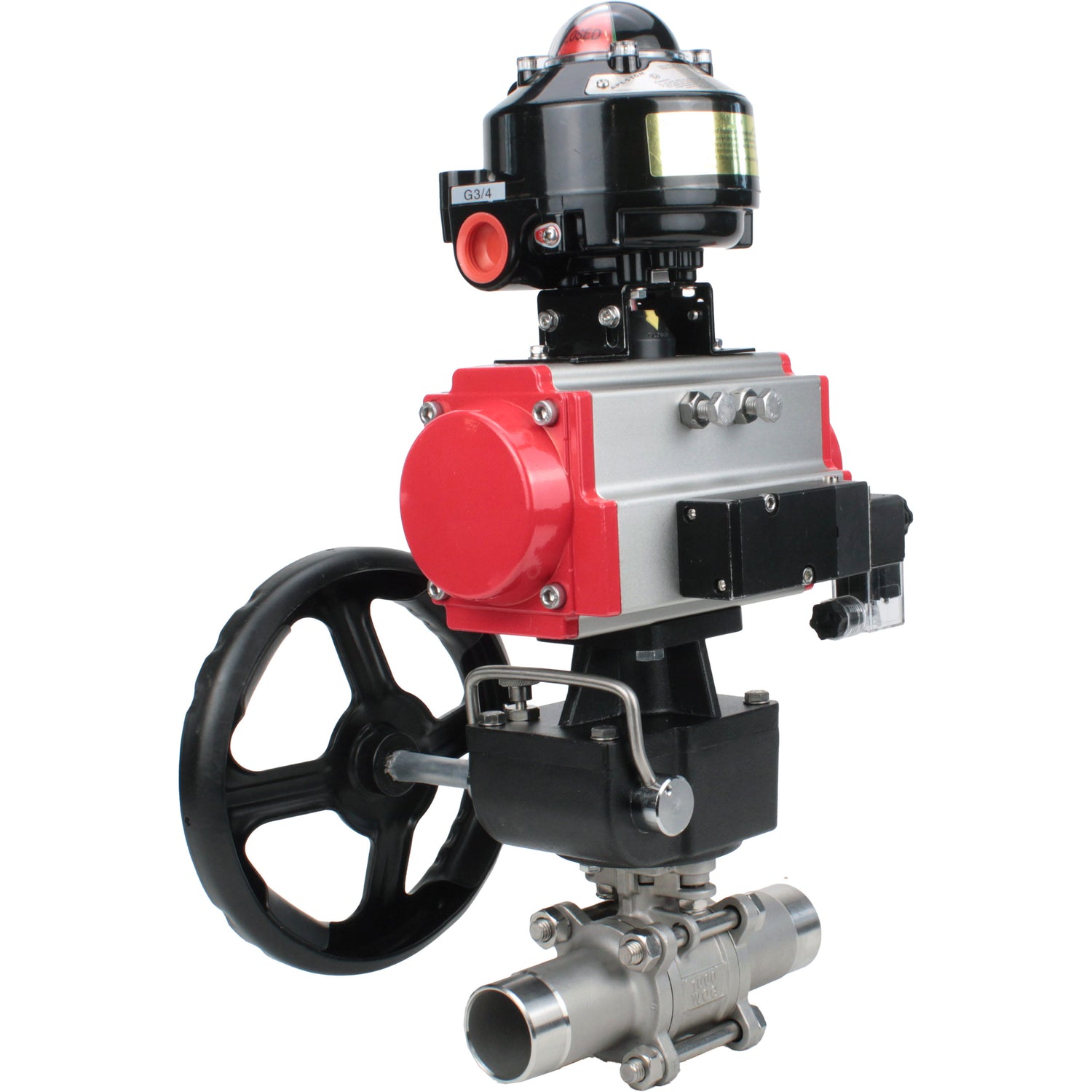

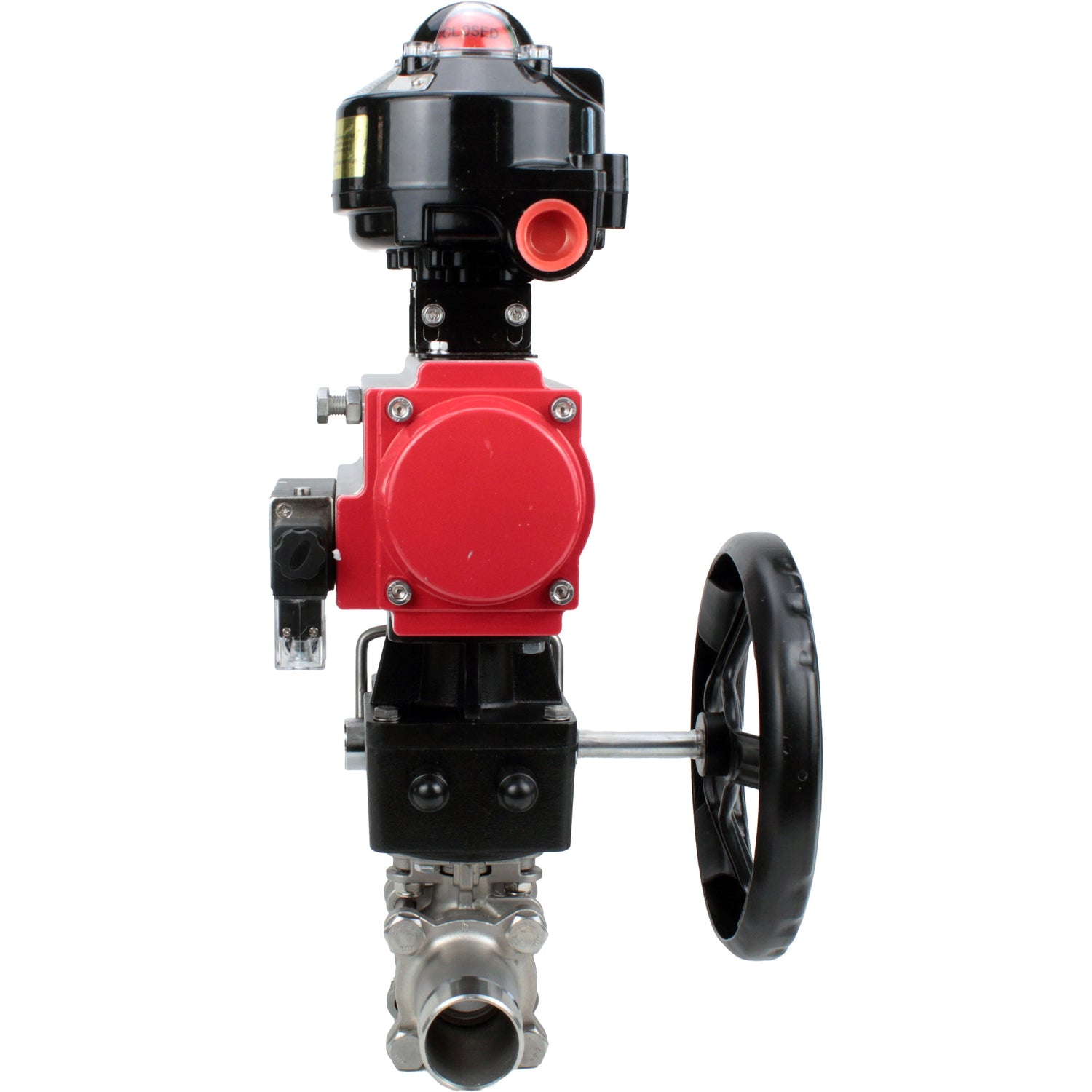

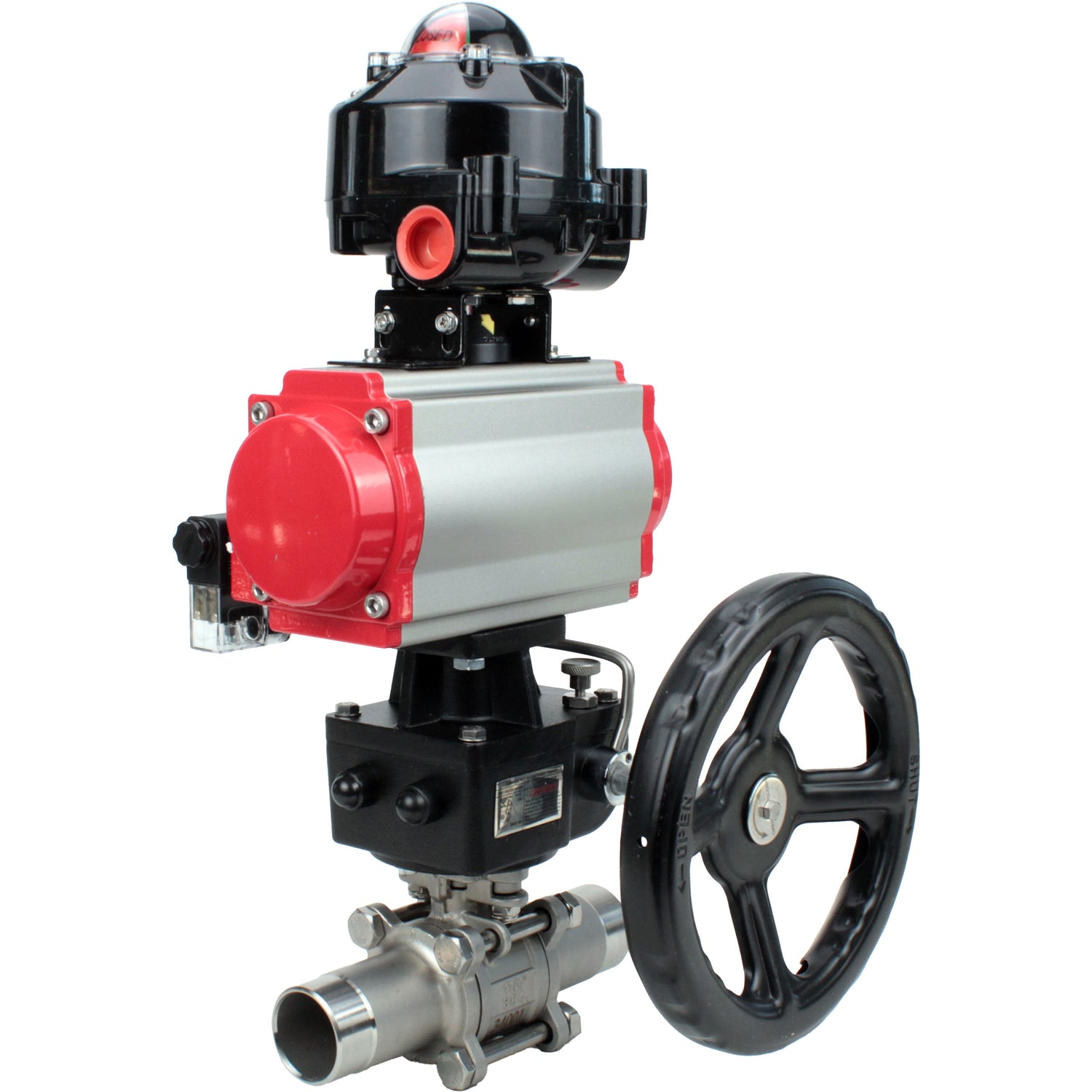

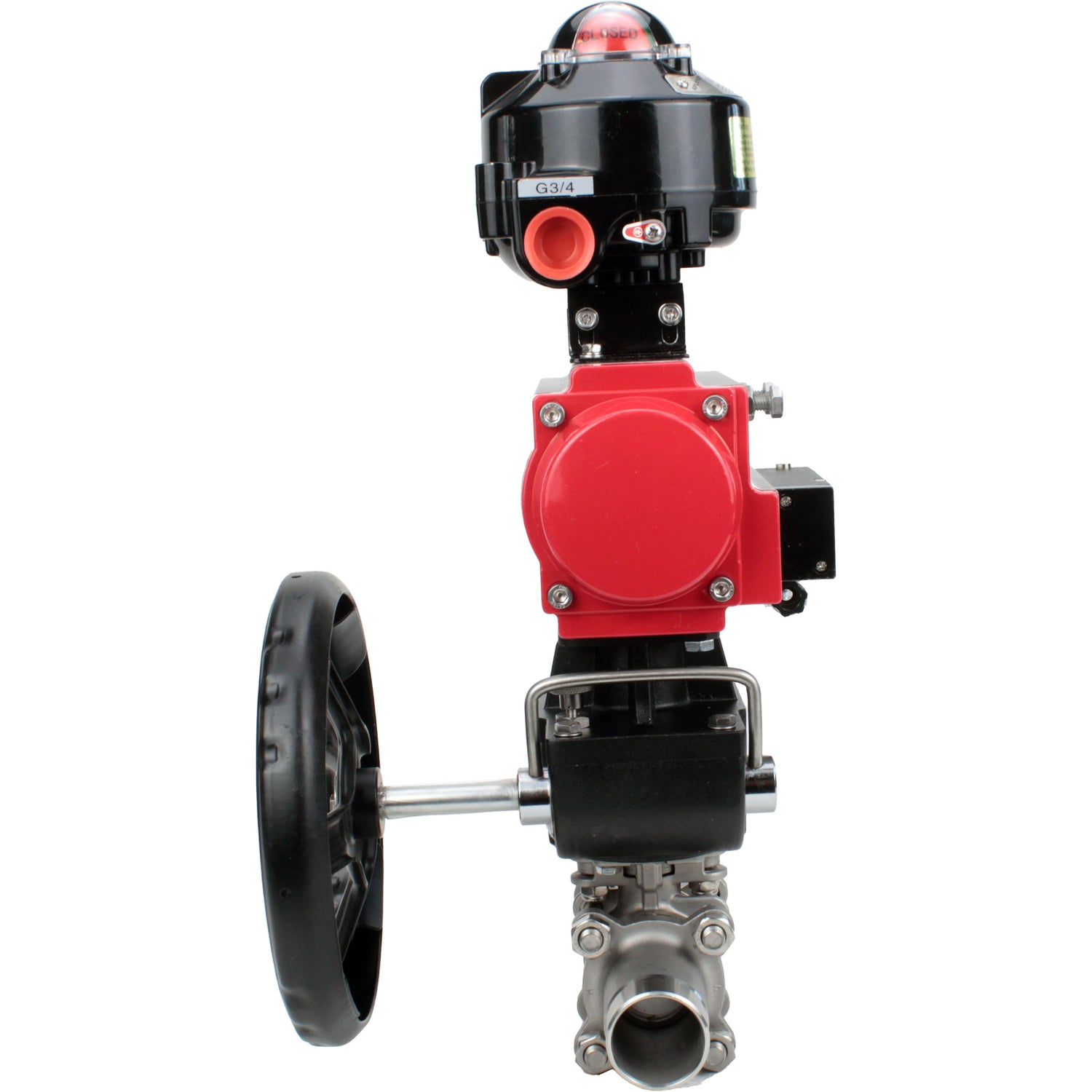

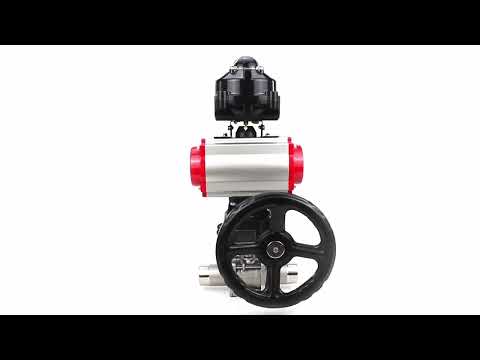

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 220V, MON gearbox and block limit switches APL-510N EX

€1.134,79
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 220V, MON gearbox and block limit switches APL-510N EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Pneumatic Elephant rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.





Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Name Value
Operating medium temperature, °C from -20 to 180
Valve type two-way
Application water supply, heating, industry
Working medium water, steam, petroleum products, neutral media, gaseous media
Pipeline connection weld-on
Water dispensing no
Bore type full bore
Sealing class A
Control type with pneumatic actuator
Connection weld-on
Control pneumatic actuator with return springs
End position switches yes
Pneumatic distributor presence yes
Electro-pneumatic positioner presence no
Average service life, years 5
Warranty, years 1
Country of origin China





Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Model L, mm H1, mm A, mm E, mm
50 243 133 216 109
65 290 133 216 109
80 302 133 216 109
100 326 180 279 134
125 360 180 308 157
150 390 195 405 174
Sketch dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304



Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

No. Part Name Material
1 Body Stainless steel 304
2 Side element (2 pcs) Stainless steel 304
3 Ball Stainless steel 304
4 Ball seal PTFE
5 Stem seal PTFE
6 Bushing Stainless steel 304
7 Stem Stainless steel 304
8 Washer Stainless steel
9 Nut Steel A2-70
10 Bolt Steel A2-70

Parts and materials sketch for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304





Technical parameters of pneumatic actuator Elephant

Name Value
Control pressure, bar 2 ÷ 8





Dimensions and dimensions of pneumatic actuator Elephant

Model PA-DA-83 PA-DA-105 PA-DA-130 PA-DA-140
A1, mm 152 189 210 268
B1, mm 216 279 308 405
C, mm 46 55 67.5 76
D, mm 55 64 70 77
E, mm 109 134 157 174
F, mm 26 26 36 36
G, mm 15 25 25 30
H, mm F05 F07 F07 F10
I, mm F07 F10 F10 F12
J, mm 4-M6x10 4-M8x12 4-M8x12 4-M10x16
К, mm 4-M8х12 4-M10х16 4-M10х16 4-M12х20
L, mm 17x17 22x22 22x22 27x27
M, mm 80 80 80 130
N, mm 30 30 30 30
f0, mm 34 41 62 62
Р, mm 20 20 30 30

Sketch of dimensions and dimensions of pneumatic actuator Elephant





Parts and materials table for pneumatic actuator Elephant

№ Name Qty Material Coating
1 Housing 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidation/Galvanic zinc coating
5 Plugs 8 Stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Stop ring 2 Engineering plastic
12 Ring 1 Engineering plastic
13 Washer 1 Stainless steel
14 Spring clamp 2 Stainless steel
15 Indicator 1 Plastic
16 Indicator housing 1 Plastic
17 Bearing 1 Engineering plastic
18 Cam 1 Steel Oxidation/Galvanic zinc coating
19 Bearing 1 NBR
20 Bearing 1 Engineering plastic
21 Bearing 1 Engineering plastic
22 Sealing ring 2 NBR
23 Sealing ring 2 NBR
24 Bearing 2 Stainless steel
25 Adjustment nut 2 Stainless steel
26 Adjustment screw 2 Stainless steel
27 Bushing 2 Aluminum





Technical parameters of pneumatic valve Elephant 4M310-08 220V

Name Value
Pneumatic distributor model 4M310-08 220V
Operating pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220V
Actuation frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4M310-08 220V pneumatic directional control valve

Model 4M310-08
D, mm 32
E, mm 69
F, mm 40
I, mm 45
K, mm 40
L, mm 134.5
M, mm 40
N, mm 24
S, mm 27
U, mm 2.4
H, mm 17.5
Sketch of dimensions and dimensions of pneumatic valve Elephant



Technical parameters of handwheels Elephant MON

Name Value
Manual Override Model MON
Climatic Version U, UHL, T, OM
Mounting Method Horizontal/Vertical
Protection Rating, IP 67
Connection Type ISO 5211



Dimensions and dimensions of Elephant MON handwheels

Model MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 17 22 27
N, mm 22 28 32
b2, mm 17 22 27
M, mm 18 22 30
D1, mm Ø70 Ø102 Ø102
4-M1, mm 4-M8 4-M10 4-M10
D2, mm Ø102 Ø125 Ø125
4-M2, mm 4-M10 4-M12 4-M12
E, mm 95х95 114х114 129х129
D3, mm Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 125 140 188.5
B, mm 64 71 93
ØC, mm Ø110 Ø129 Ø174
F, mm 135 166 202
T, mm 62.5 70 94
Y, mm 178 212 280
H, mm 133 180 195
S, mm 56.5 68.7 84
K, mm 13 12.5 15
Ø helm, mm 200 280 320

Sketch of dimensions and dimensions of Elephant MON handwheels





Parts and materials table for handwheels Elephant MON

№ Part Name Material
1 Stem for Pneumatic Actuator Installation Steel 45
2,8 Sealing Ring EPDM
3 Fixing Spring Spring Steel
4 Upper End Cover Aluminum Alloy
5 Screw Steel 304
6 Fixing Bracket (Main Rod) Steel 304
7 Housing Aluminum Alloy
9 Gear Cast Iron
10 Adapter Coupling Cast Iron
11 Gear Shaft Cast Iron
Sketch of parts and materials of manual doublers Elephant MON



Technical parameters of limit switch unit Elephant APL-510N EX

Name Value
Limit switch box model APL-510N EX
Service life, years 10





Dimensions and dimensions of limit switch unit Elephant APL-510N EX

Model APL-510N EX
A, mm 118
B, mm 118
C, mm 138,4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121,4
Ød1, mm 50
Ød2, mm 5
Sketch of dimensions and dimensions of limit switch unit Elephant APL-510N EX

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    For welding
  • Control type
    Pneumatically actuated
  • Operating environment
    water, steam, petroleum products, neutral media, gaseous media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    125 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action
