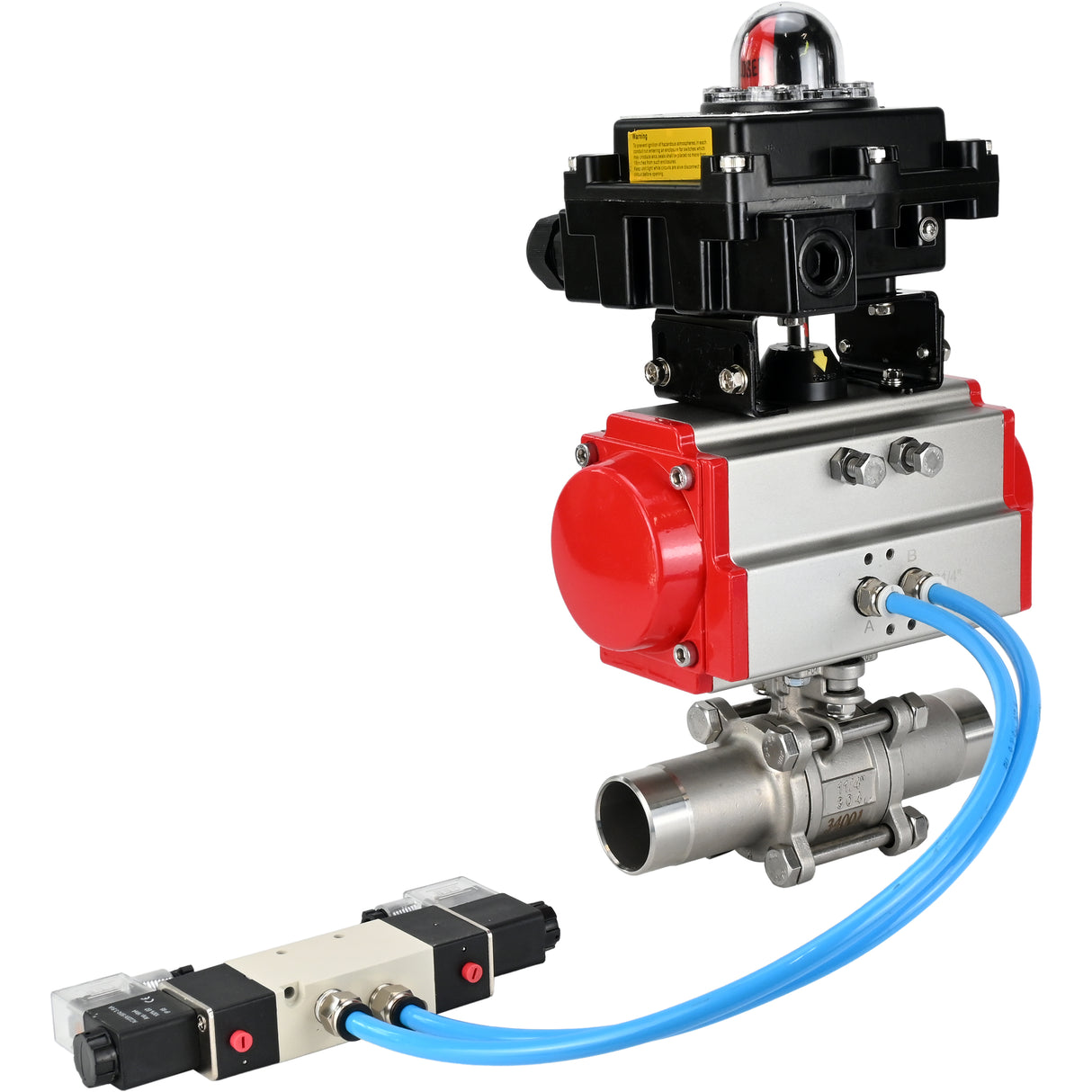

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, – Valve Elephant
Elephant  |  SKU: D160-50717

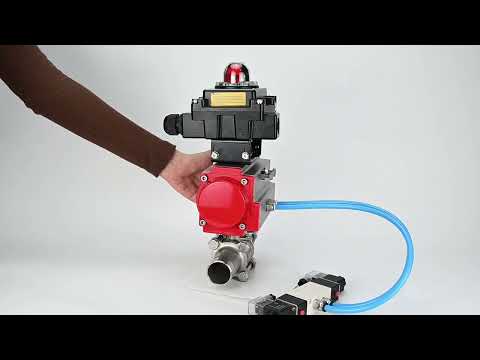

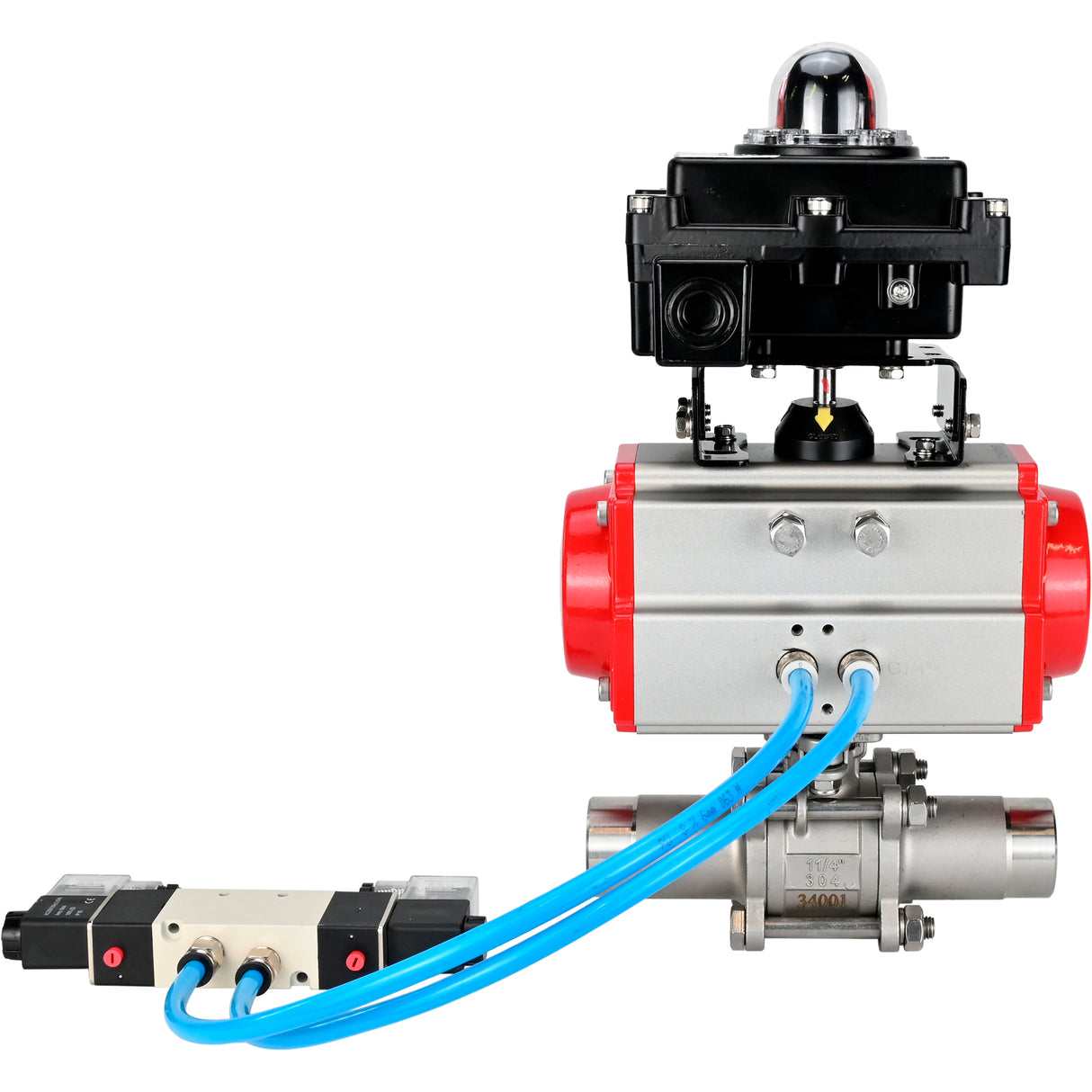

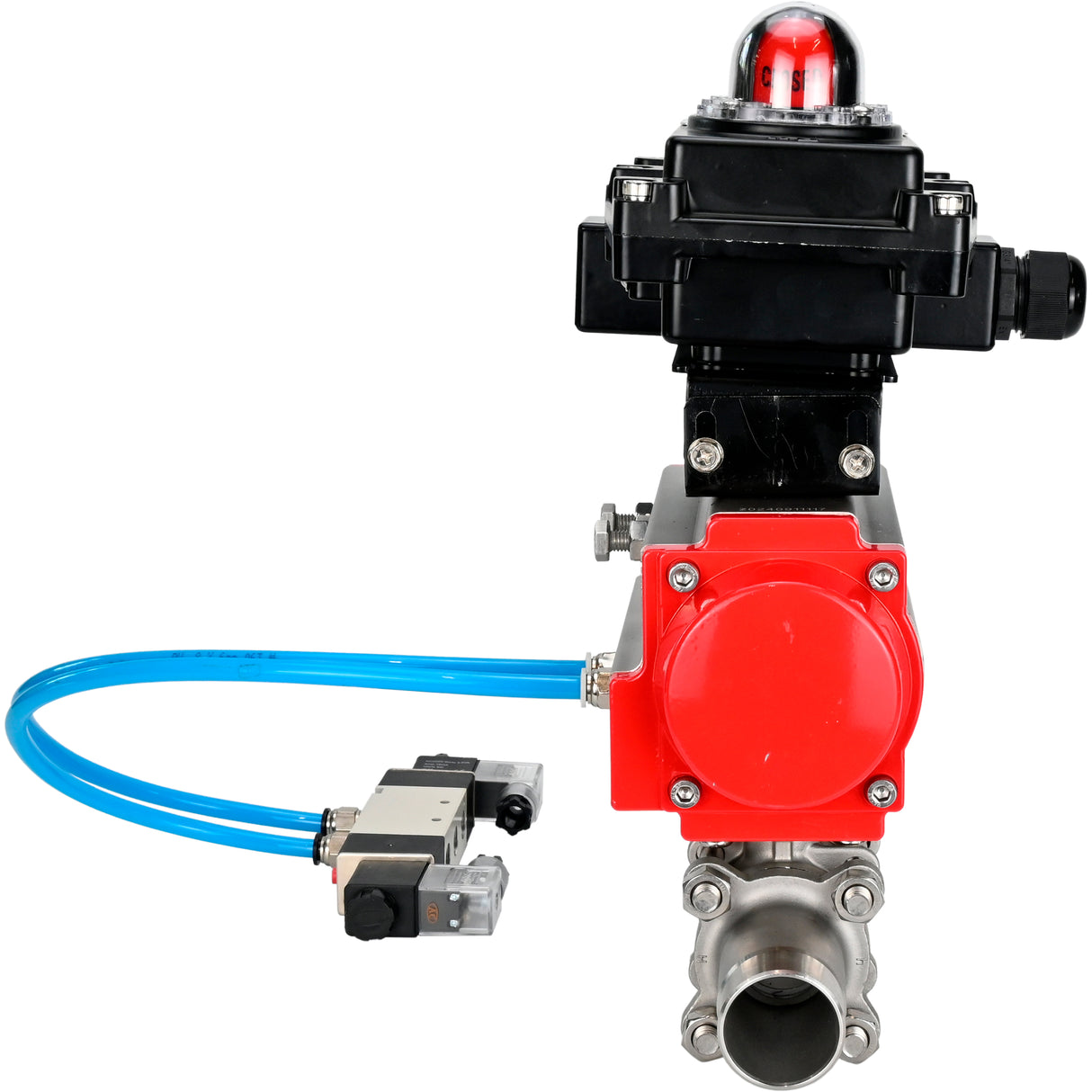

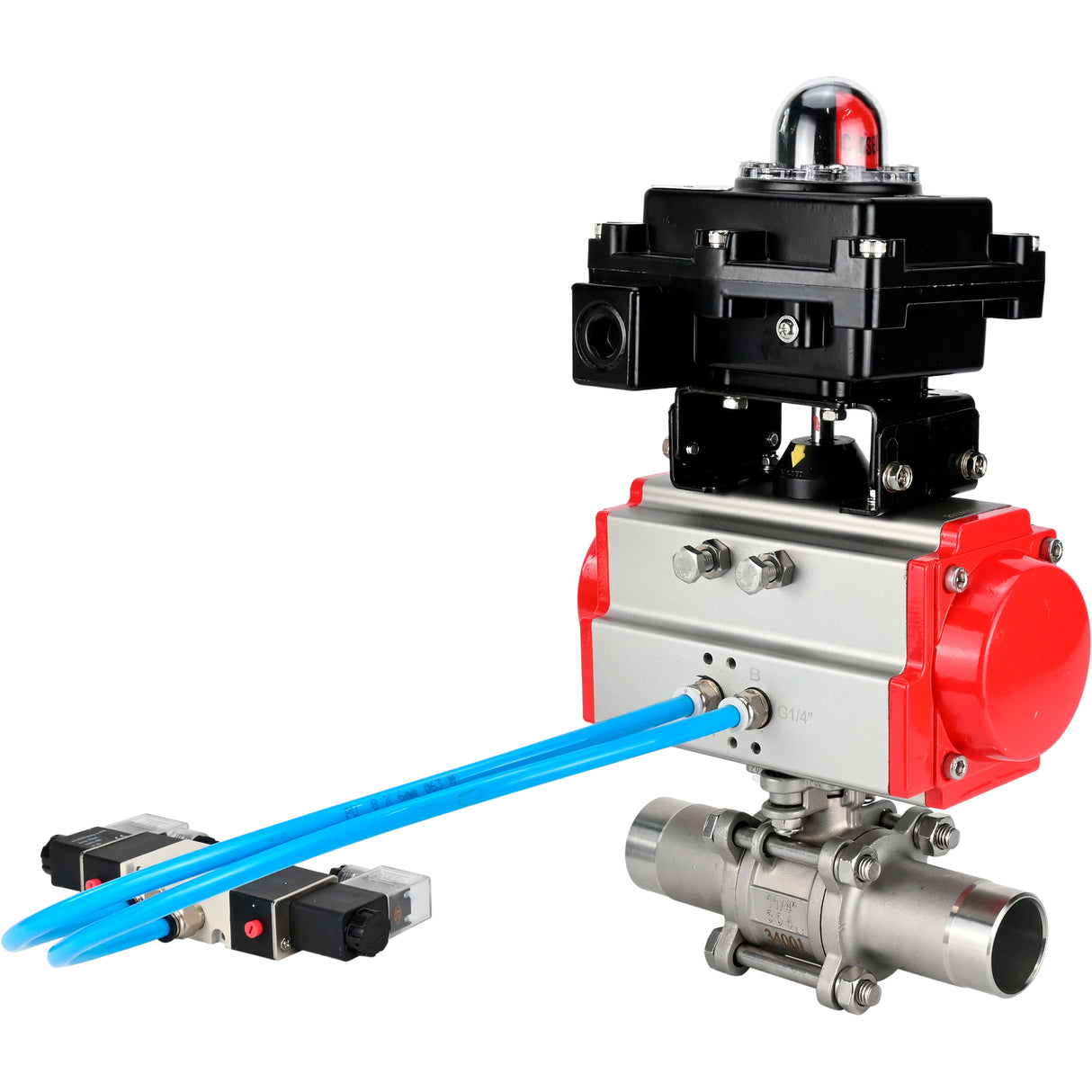

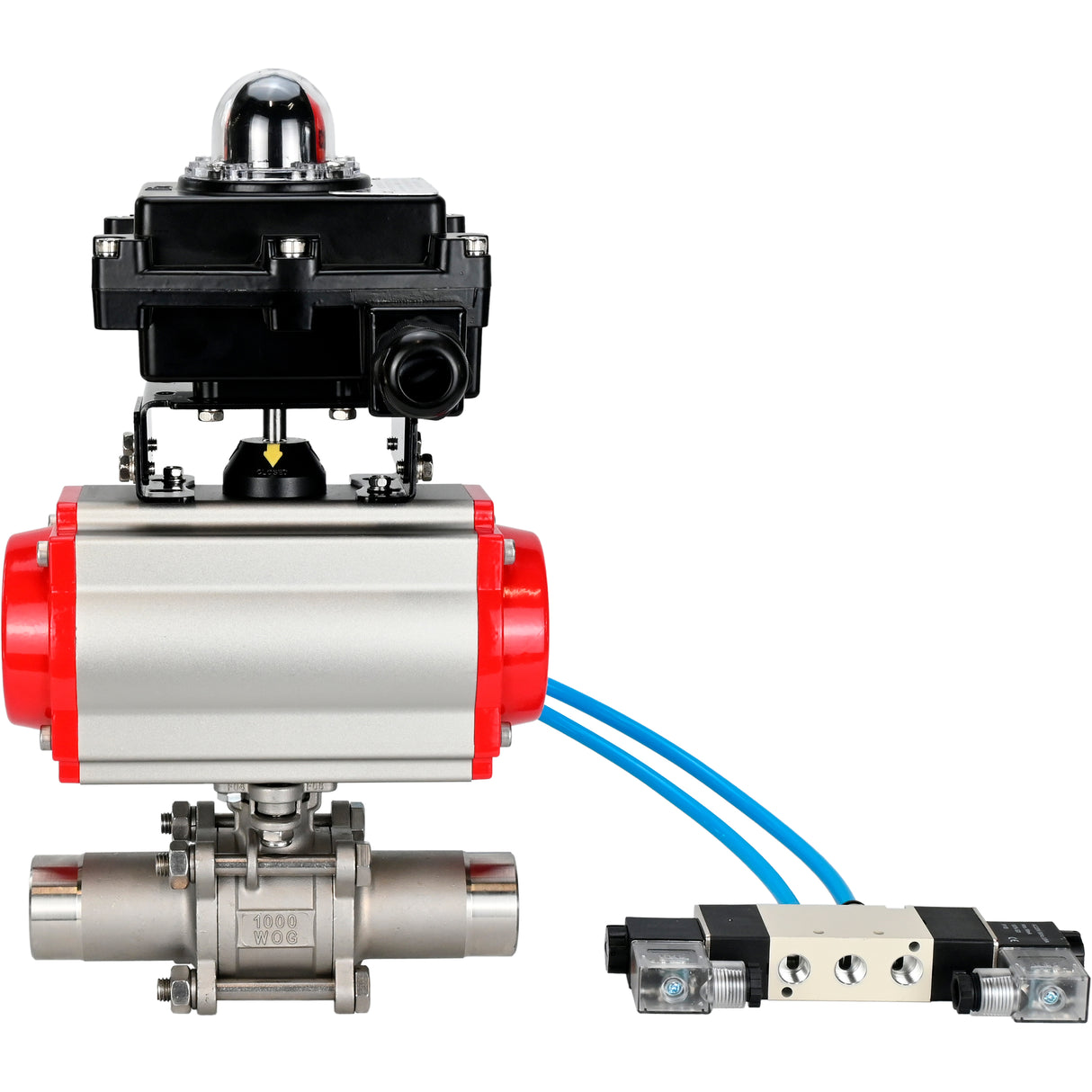

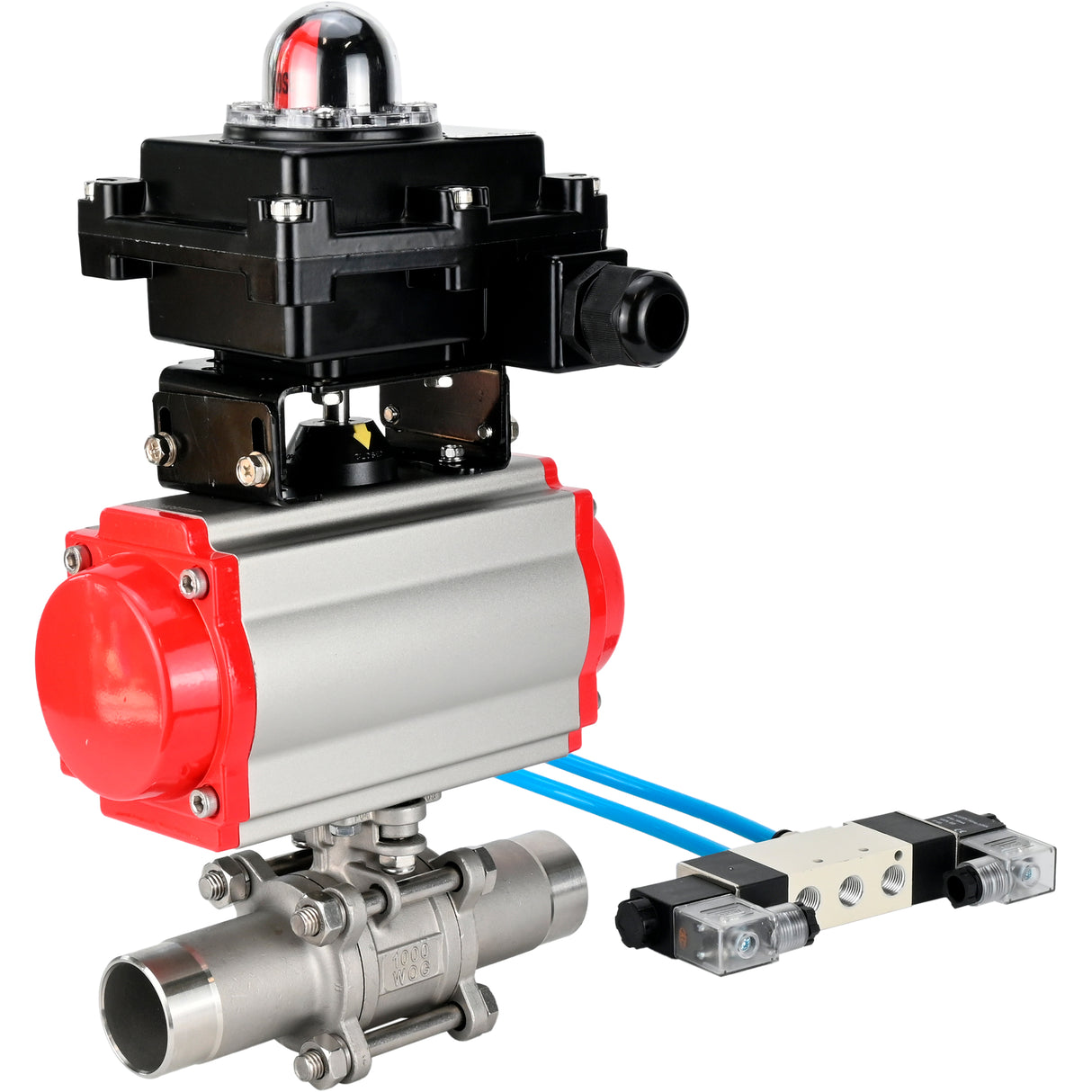

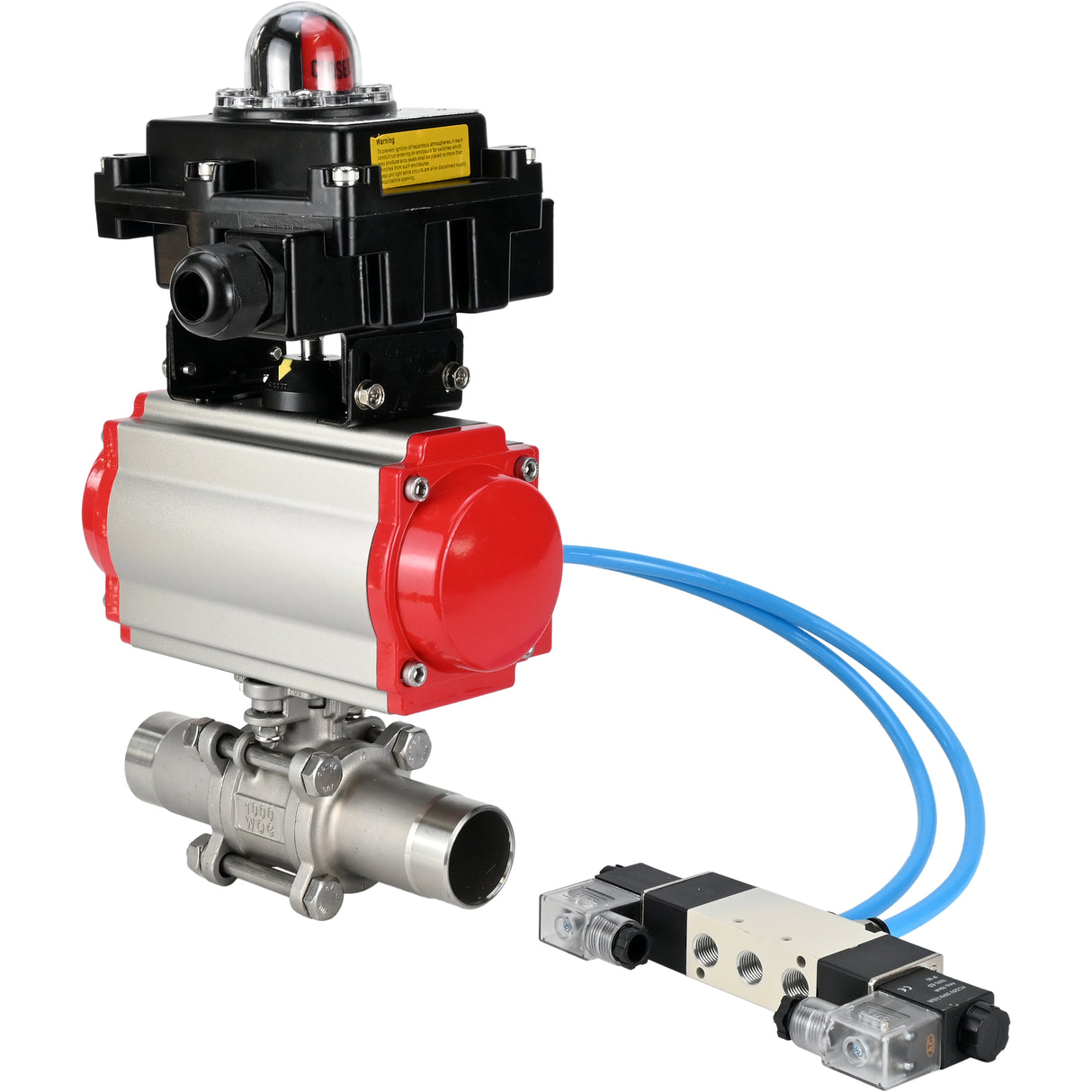

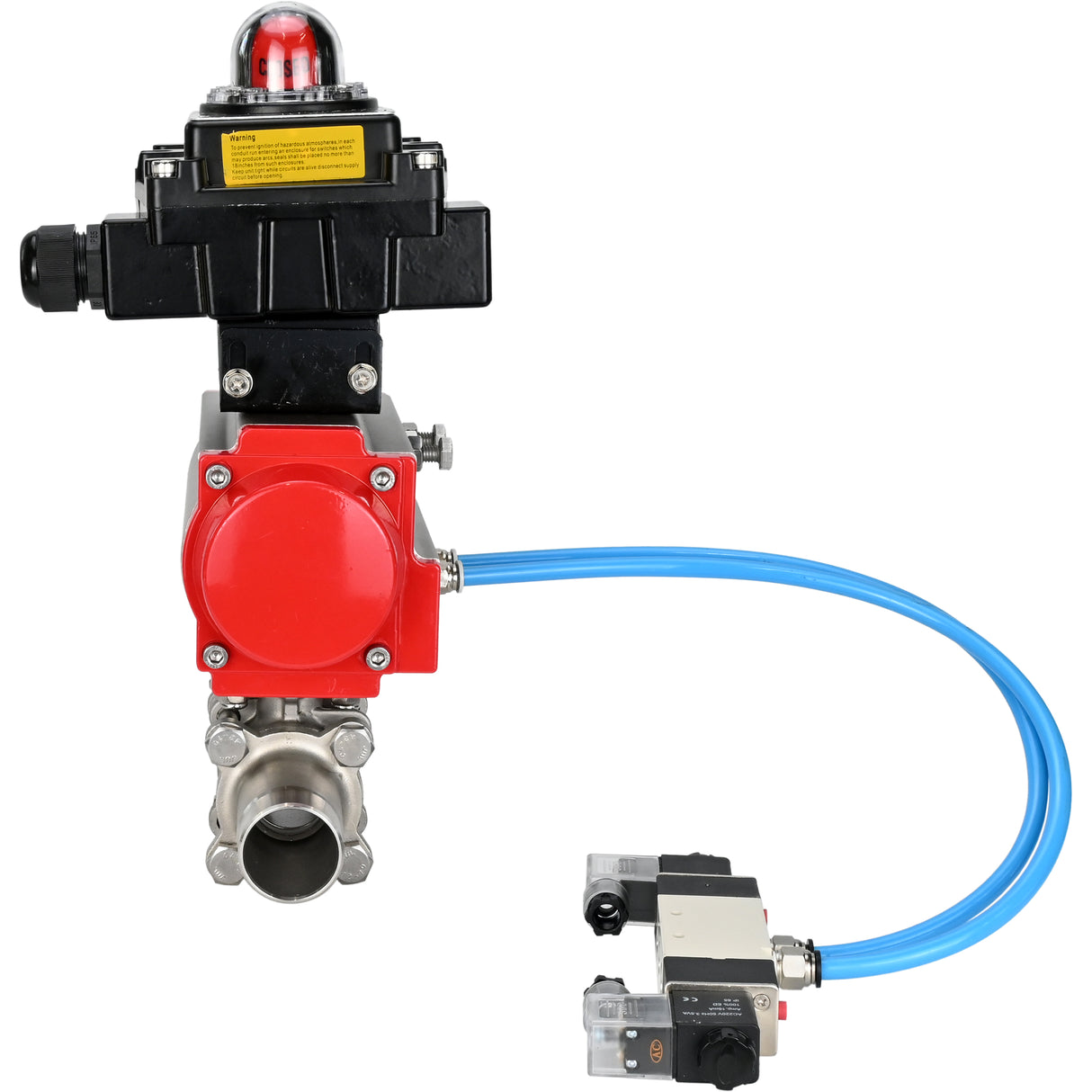

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL -410N EX

€254,33
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V and limit switch block APL -410N EX - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Elephant pneumatic double-acting rotary actuators PA-DA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.





Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Property Name Value
Operating temperature, °C from -20 to 180
Valve type Two-way
Application Water supply, heating, industry
Operating medium Water, steam, petroleum products, neutral media, gases
Pipeline connection Welded
Water draw-off No
Flow section type Full-bore
Tightness class of ball valve A
Control type With pneumatic actuator
Connection Welded
Control Double-acting pneumatic actuator
End switches presence Yes
Pneumatic distributor presence Yes
Electropneumatic positioner presence No
Average service life, years 5
Warranty, years 1
Country of manufacture China





Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Model L A E
10 130 153 72
15 150 153 72
20 155 174 89
25 186 216 109
32 195 153 72
40 231 174 89
50 243 216 109
65 290 216 109
80 302 216 109
100 326 279 134
125 360 308 157
150 390 405 174

Sketch dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304





Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

№ Part Name Material
1 Housing Stainless steel 304
2 Side element (2 pcs) Stainless steel 304
3 Ball Stainless steel 304
4 Ball seal PTFE
5 Shaft seal PTFE
6 Bushing Stainless steel 304
7 Shaft Stainless steel 304
8 Washer Stainless steel
9 Nut Steel A2-70
10 Bolt Steel A2-70
Parts and materials sketch for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304




Technical parameters of pneumatic actuator Elephant

Name Value
Construction Double acting
Control pressure, bar 2 ÷ 8
Manual override available No





Dimensions and dimensions of pneumatic actuator Elephant

Here's the translated table:

Model PA-DA-52 PA-DA-65 PA-DA-83 PA-DA-105 PA-DA-130 PA-DA-140
A1, mm 108 125 152 189 210 268
B1, mm 153 174 216 279 308 405
C, mm 30 36 46 55 67.5 76
D, mm 41 46 55 64 70 77
E, mm 72 89 109 134 157 174
F, mm 26 26 26 26 36 36
G, mm 15 15 15 25 25 30
H, mm F03 F05 F05 F07 F07 F10
I, mm F05 F07 F07 F10 F10 F12
J, mm 4-M5x8 4-M6x10 4-M6x10 4-M8x12 4-M8x12 4-M10x16
K, mm 4-M6x10 4-M8x12 4-M8x12 4-M10x16 4-M10x16 4-M12x20
L, mm 11x11 14x14 17x17 22x22 22x22 27x27
M, mm 80 80 80 80 80 130
N, mm 30 30 30 30 30 30
f0, mm 34 34 34 41 62 62
P, mm 20 20 20 20 30 30

Sketch of dimensions and dimensions of pneumatic actuator Elephant





Parts and materials table for pneumatic actuator Elephant

№ Part Name Quantity Material Coating
1 Housing 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidized / Galvanized
5 Plugs 8 Stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 Engineering plastic
12 Ring 1 Engineering plastic
13 Washer 1 Stainless steel
14 Spring clamp 2 Stainless steel
15 Indicator 1 Plastic
16 Indicator housing 1 Plastic
17 Bearing 1 Engineering plastic
18 Cam 1 Steel Oxidized / Galvanized
19 Bearing 1 NBR
20 Bearing 1 Engineering plastic
21 Bearing 1 Engineering plastic
22 O-ring 2 NBR
23 O-ring 2 NBR
24 Bearing 2 Stainless steel
25 Adjustment nut 2 Stainless steel
26 Adjustment screw 2 Stainless steel
27 Bushing 2 Aluminum





Technical parameters of pneumatic valve Elephant 4V320-08 220V

Parameter Value
Pneumatic Valve Model 4V320-08 220V
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4V320-08 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-08 220V





Technical parameters of limit switch units Elephant APL-410N EX

Parameter Value
Model of limit switch block APL-410N EX
Service life, years 10







Dimensions and dimensions of Elephant APL-410N EX limit switch units

Model APL-410N EX
A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
Ød1, mm Ø5
Ød2, mm Ø9.5
Sketch of dimensions and dimensions of Elephant APL-410N EX limit switch units





Passports and certificates

Data sheet for Elephant pneumatic valve 4m310-08

Data sheet for limit switch unit Elephant APL-410N EX

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    For welding
  • Control type
    Pneumatically actuated
  • Operating environment
    water, steam, petroleum products, neutral media, gaseous media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    3 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullData sheet for limit switch unit Elephant APL-410N EX

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-50717DN1063 bar €254,33 0 in stock
    D160-50718DN10016 bar €994,95 0 in stock
    D160-50719DN12516 bar €1.783,64 0 in stock
    D160-50720DN1563 bar €254,33 0 in stock
    D160-50721DN15016 bar €2.510,55 0 in stock
    D160-50722DN2063 bar €312,56 0 in stock
    D160-50723DN2563 bar €317,40 0 in stock
    D160-50724DN3240 bar €310,87 0 in stock
    D160-50725DN4040 bar €362,31 0 in stock
    D160-50726DN5040 bar €421,63 0 in stock
    D160-50727DN6525 bar €567,84 0 in stock
    D160-50728DN8025 bar €694,09 0 in stock
