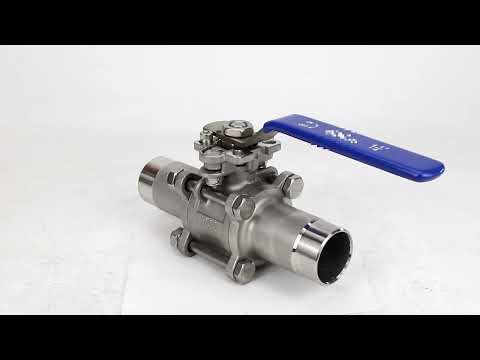

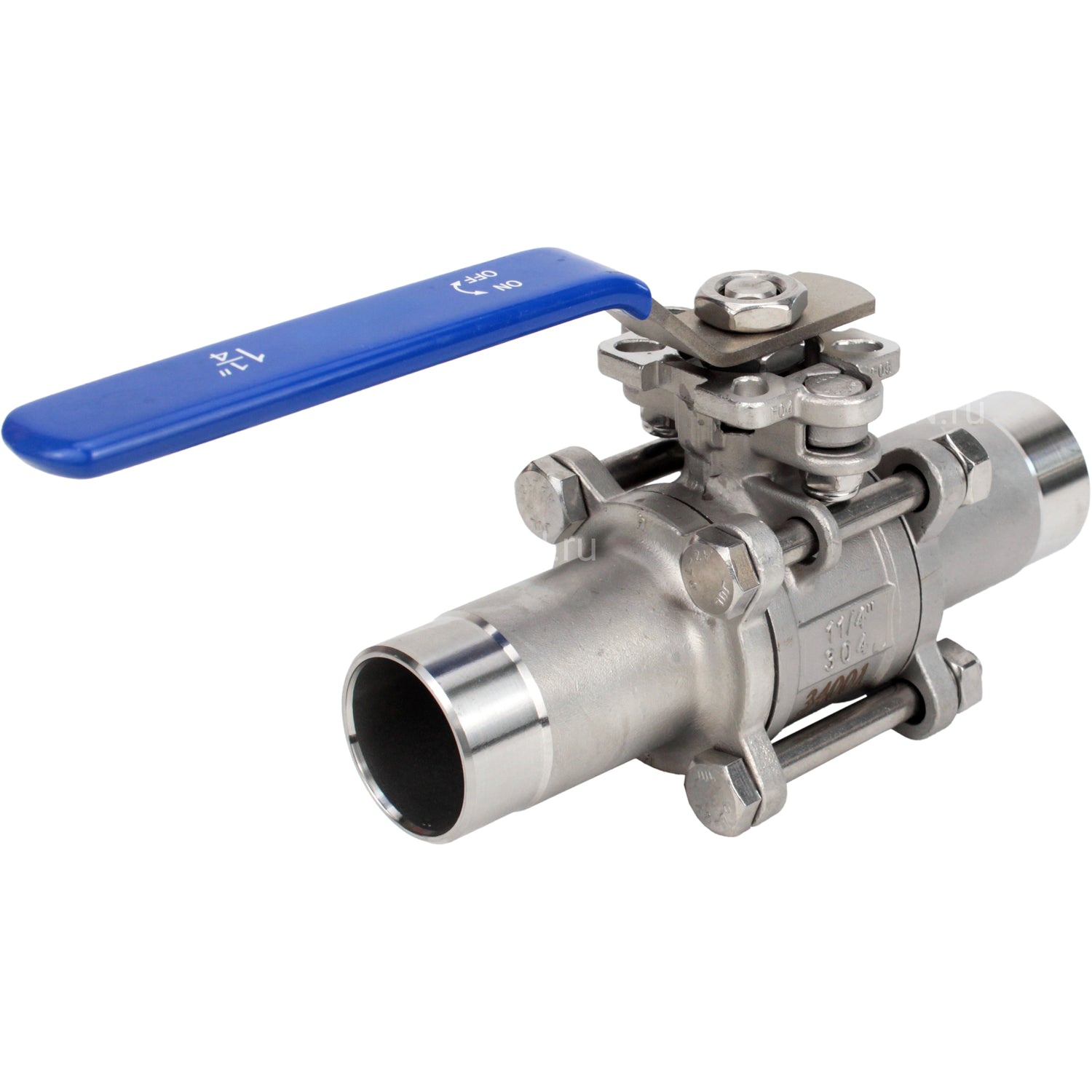

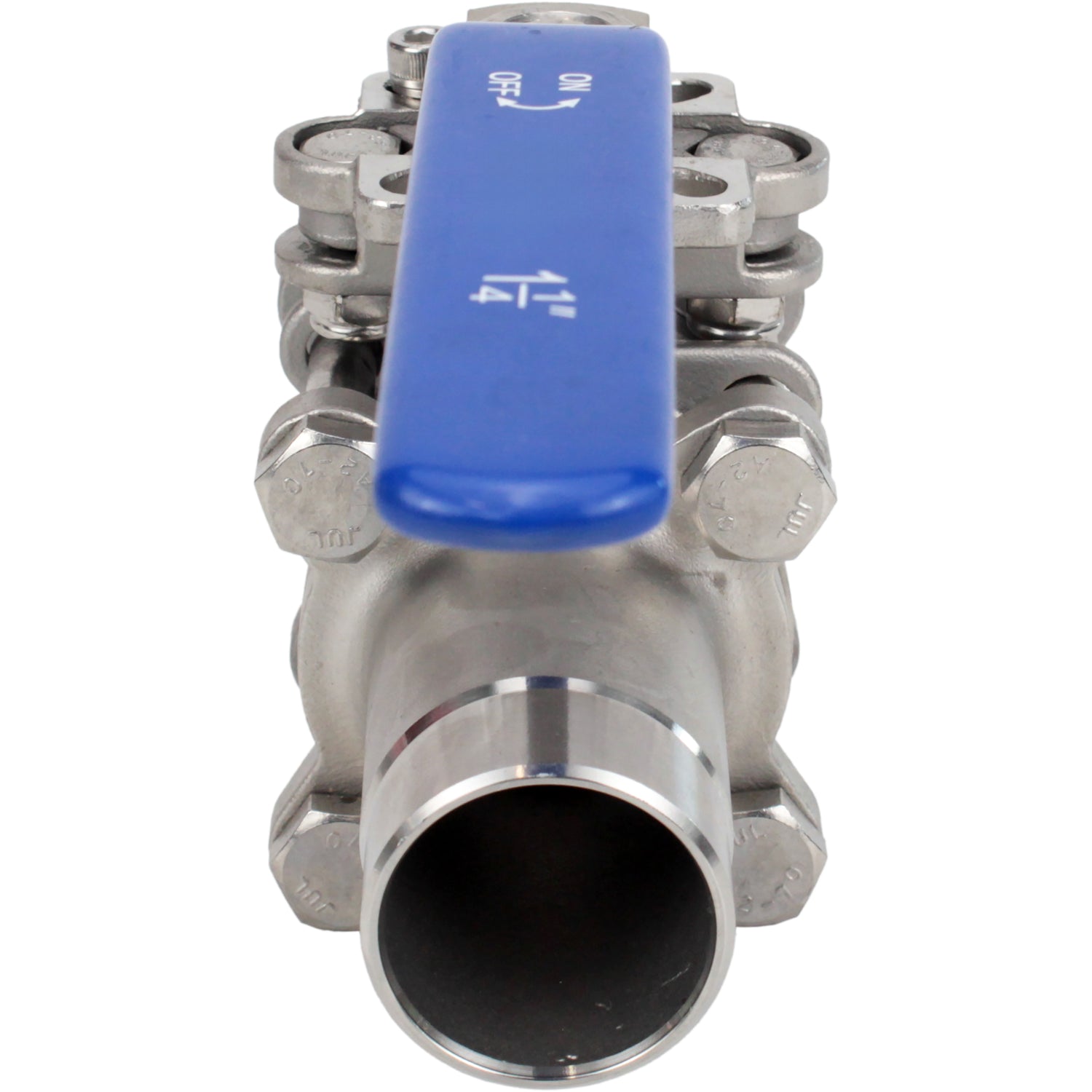

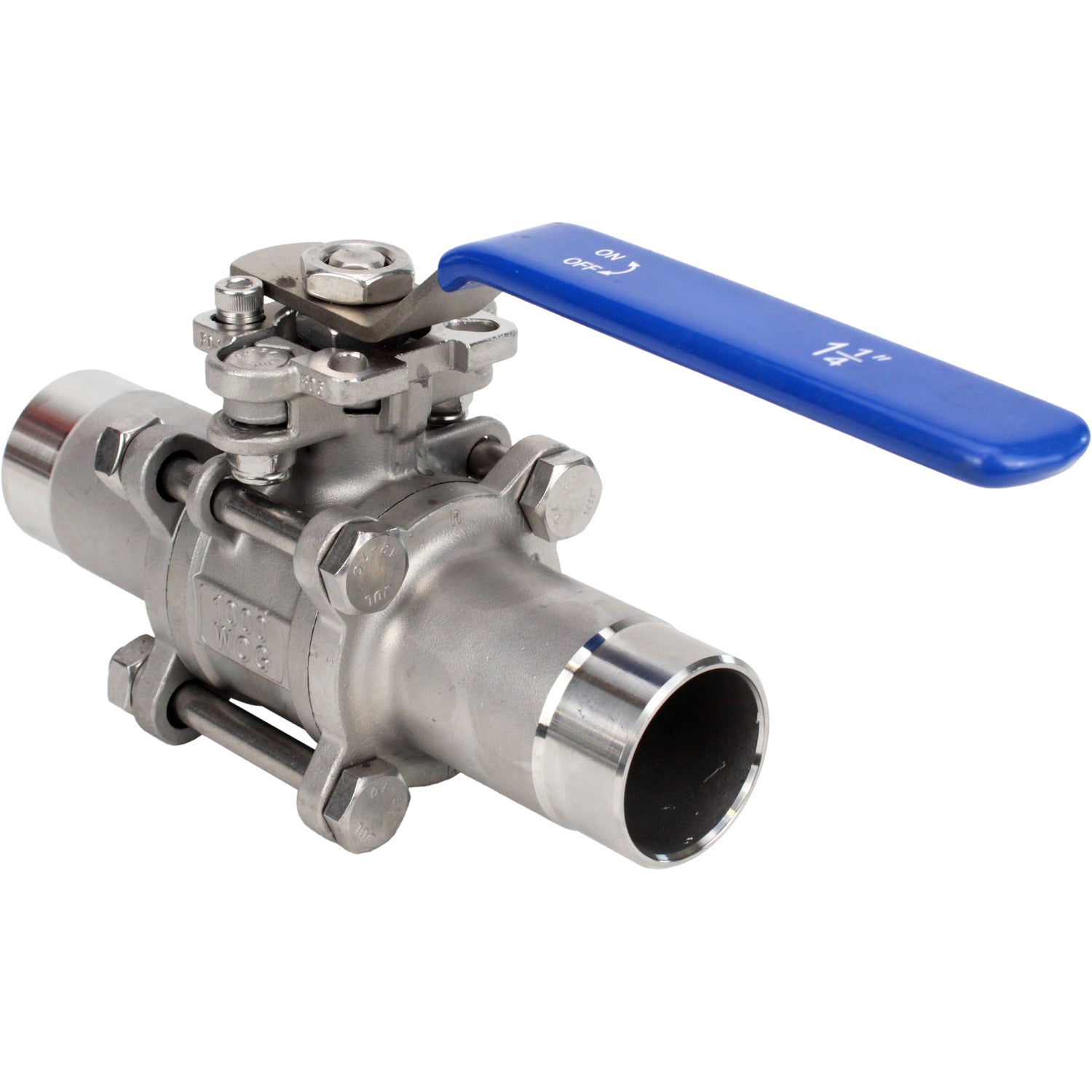

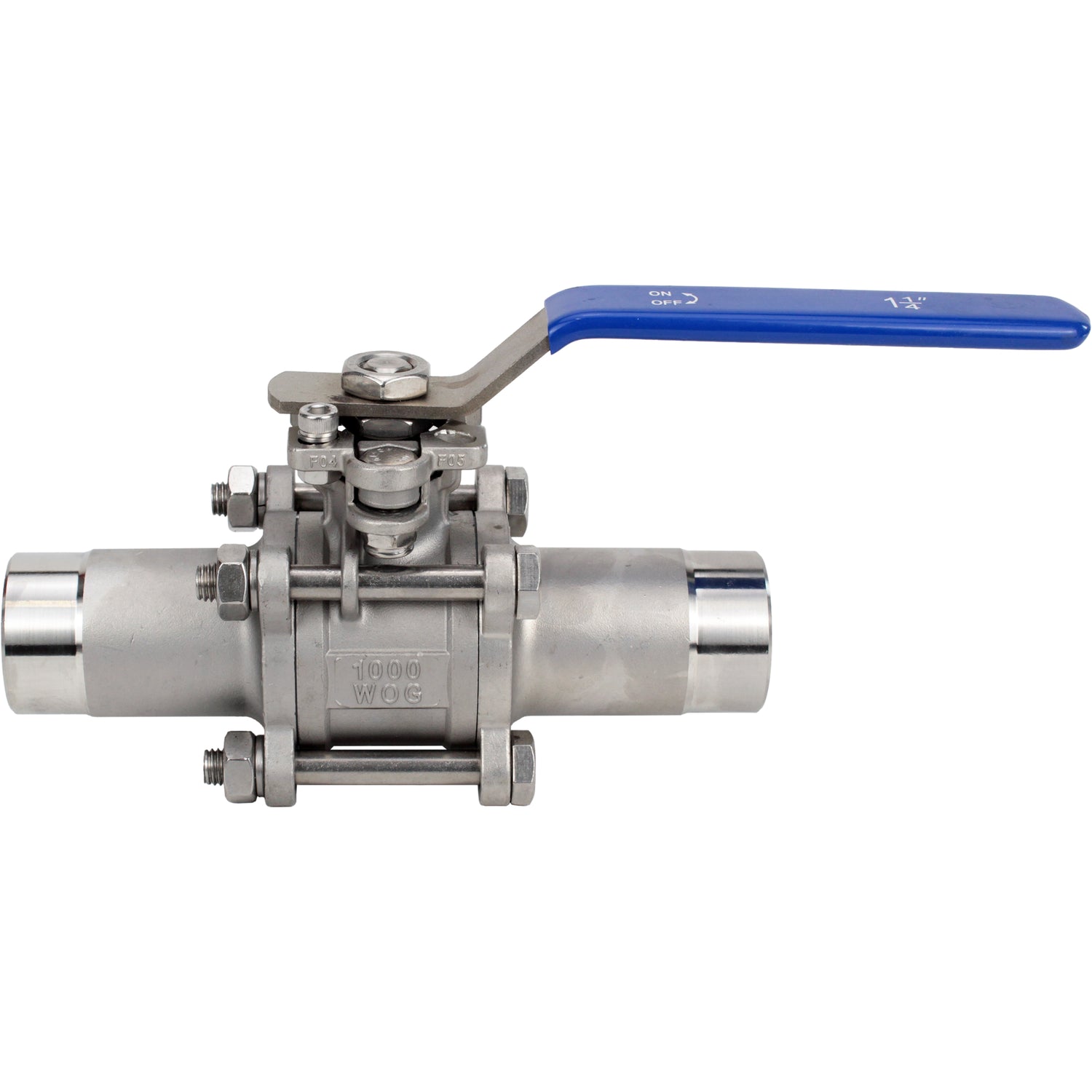

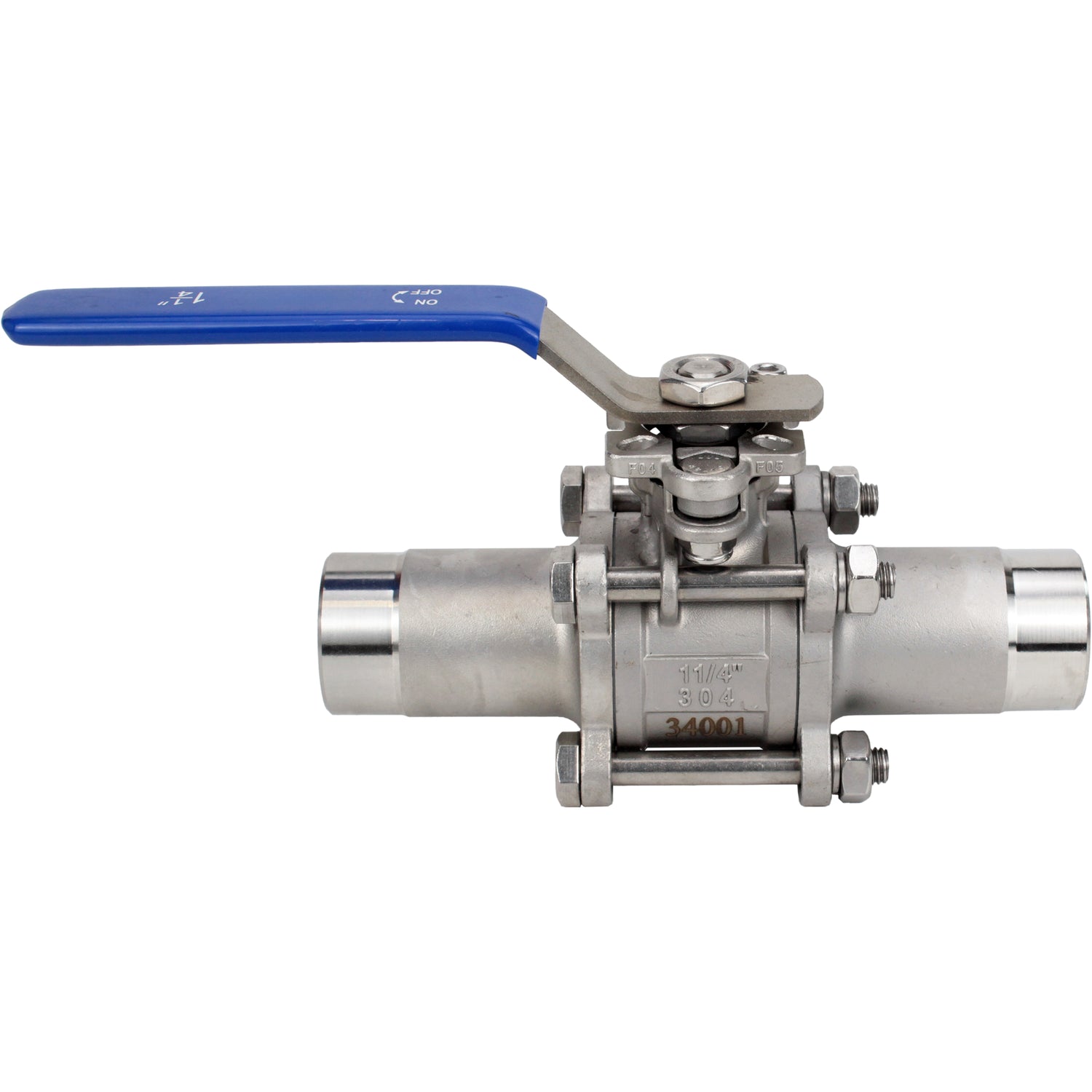

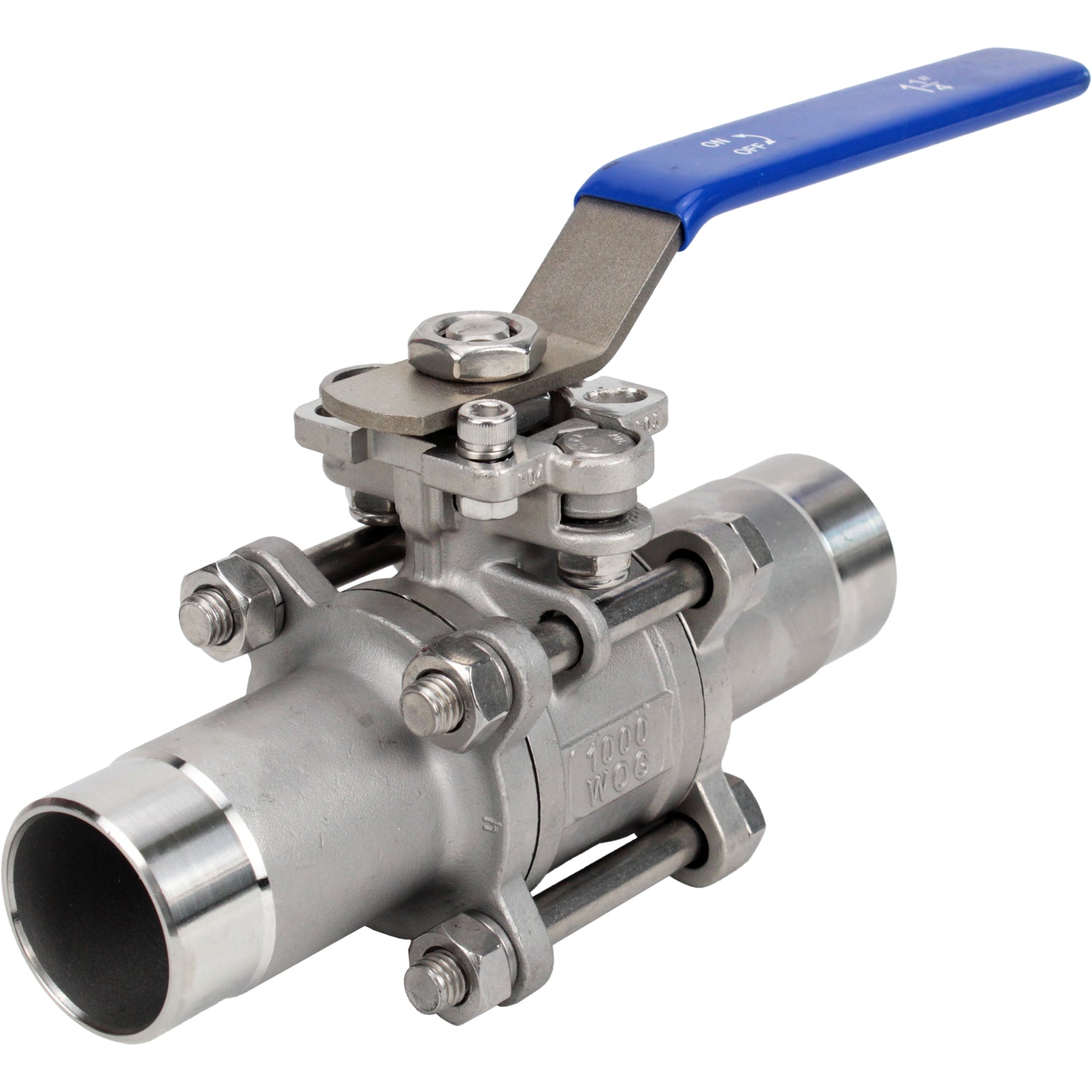

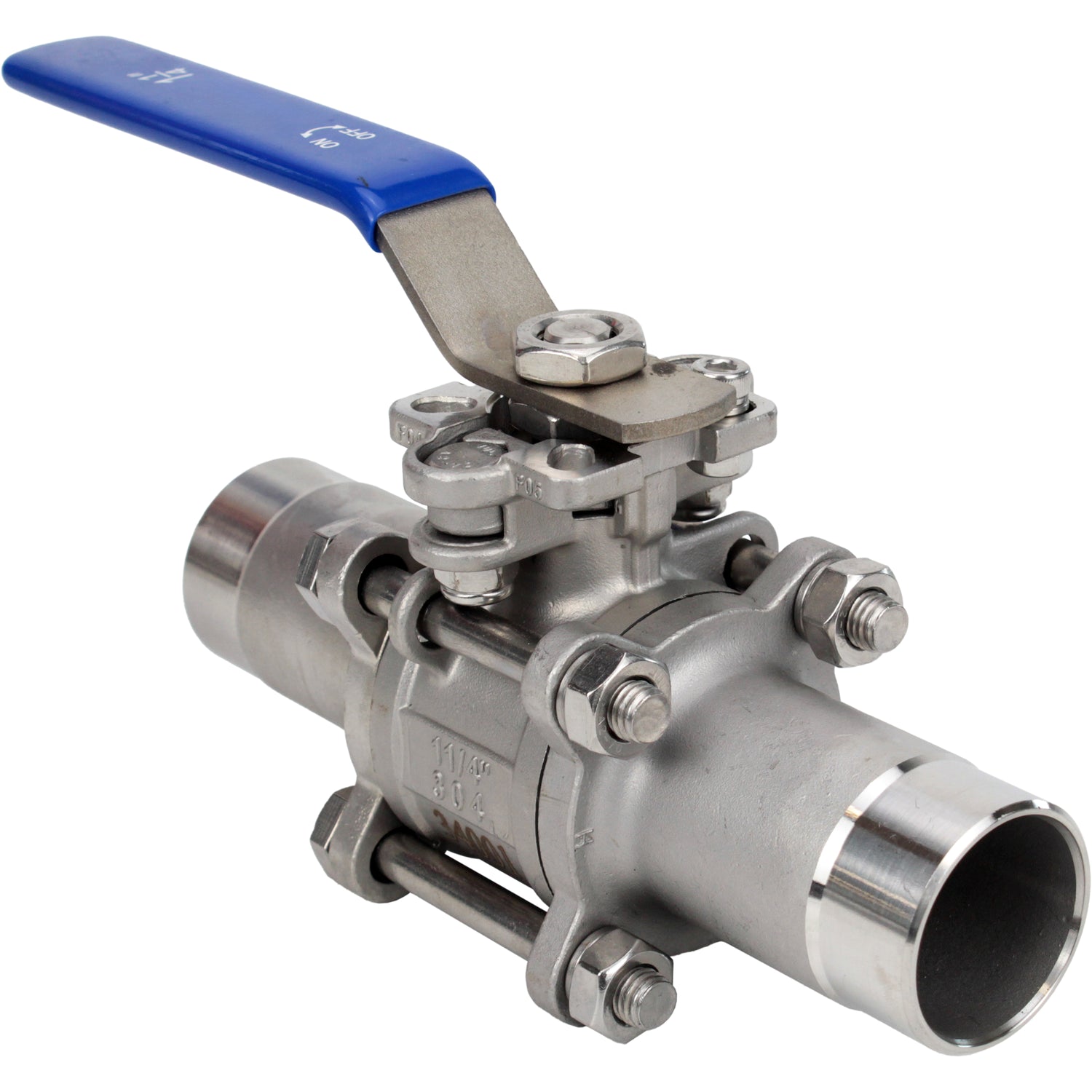

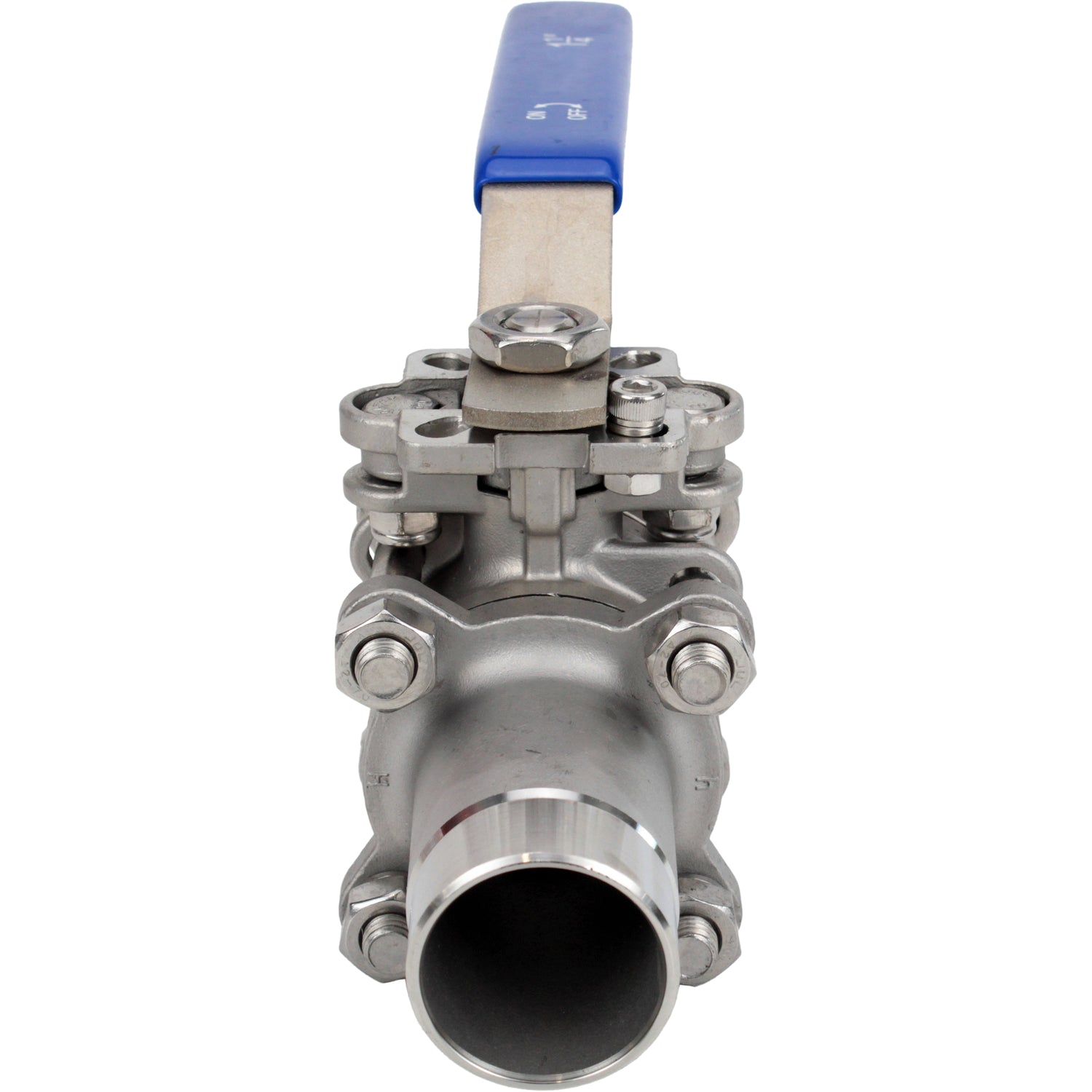

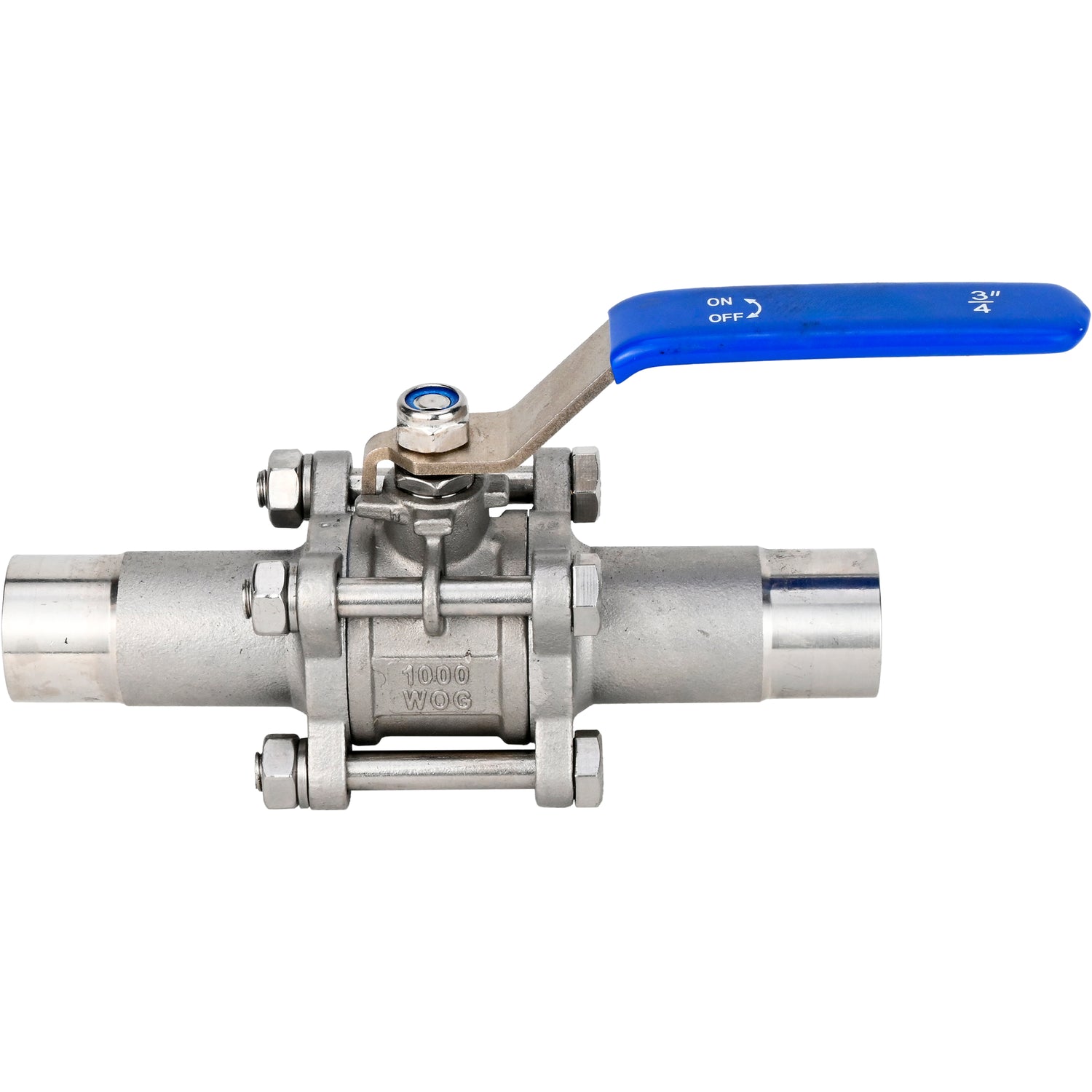

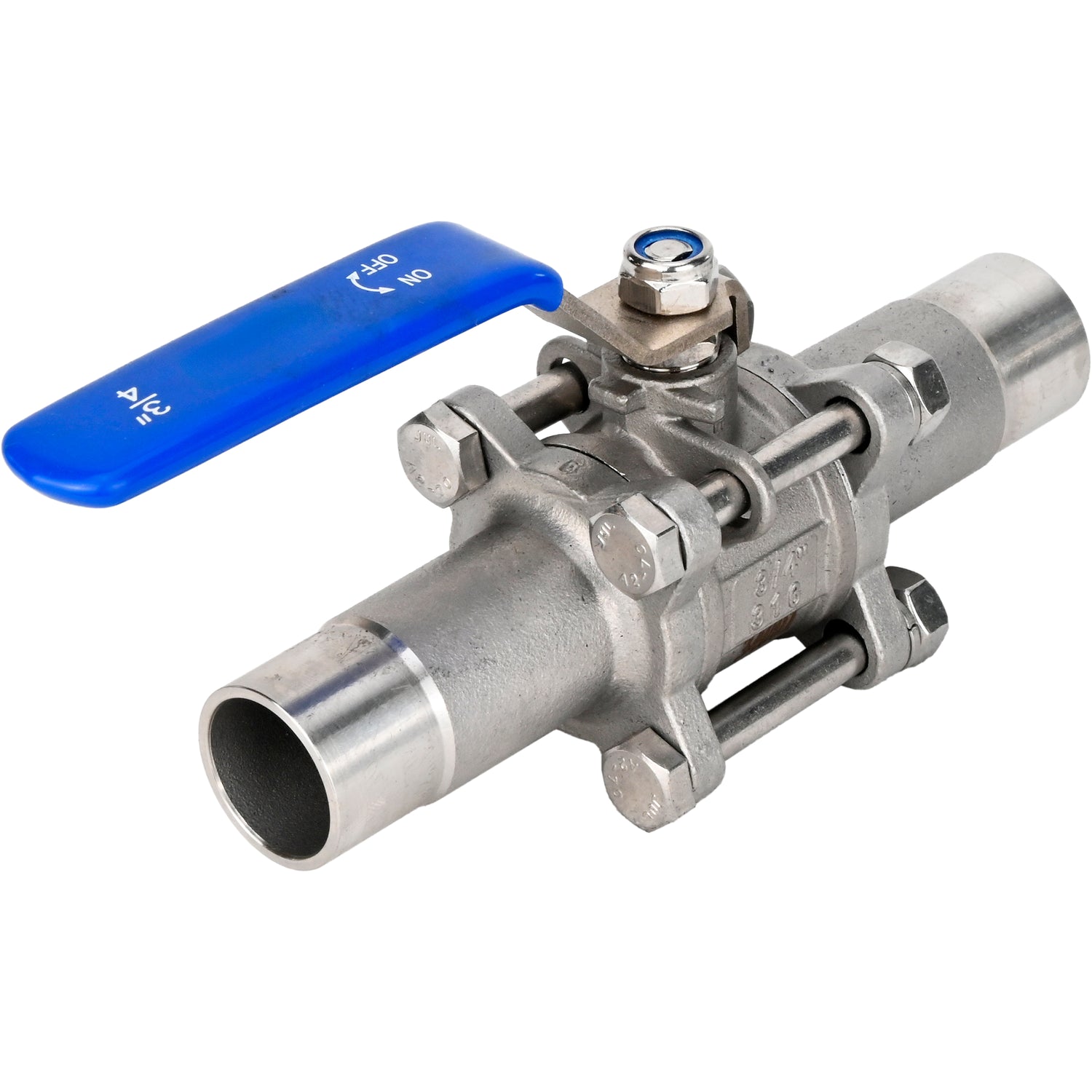

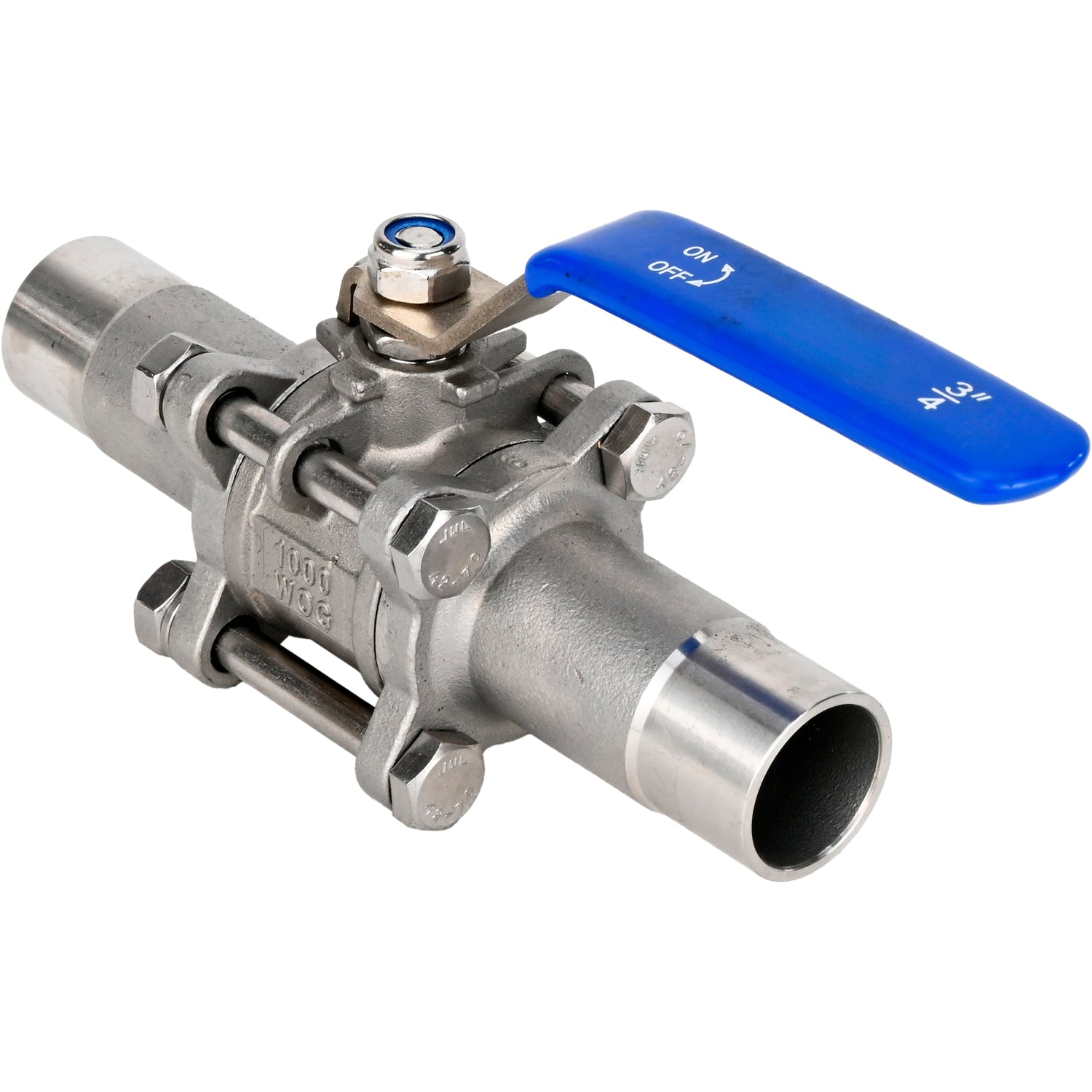

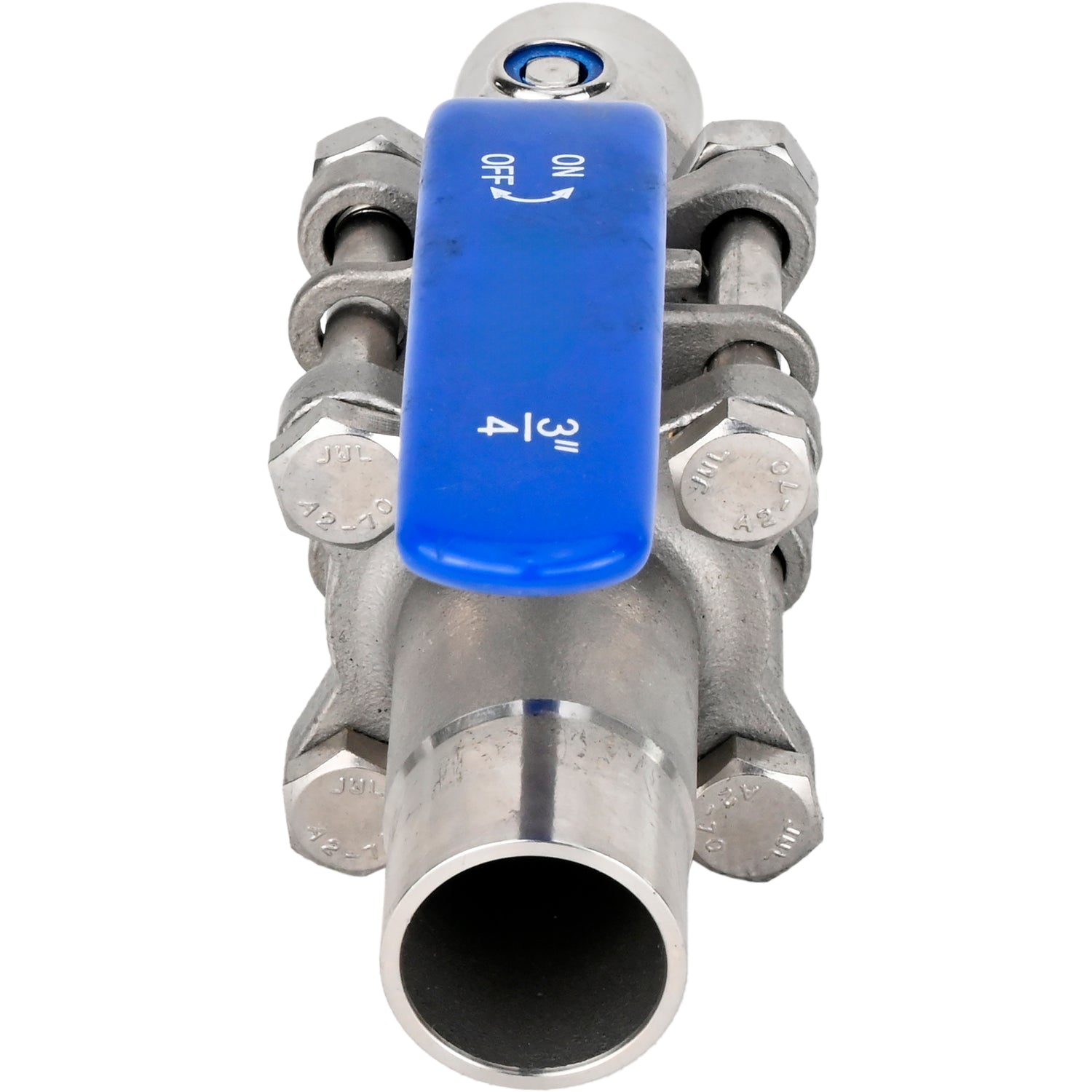

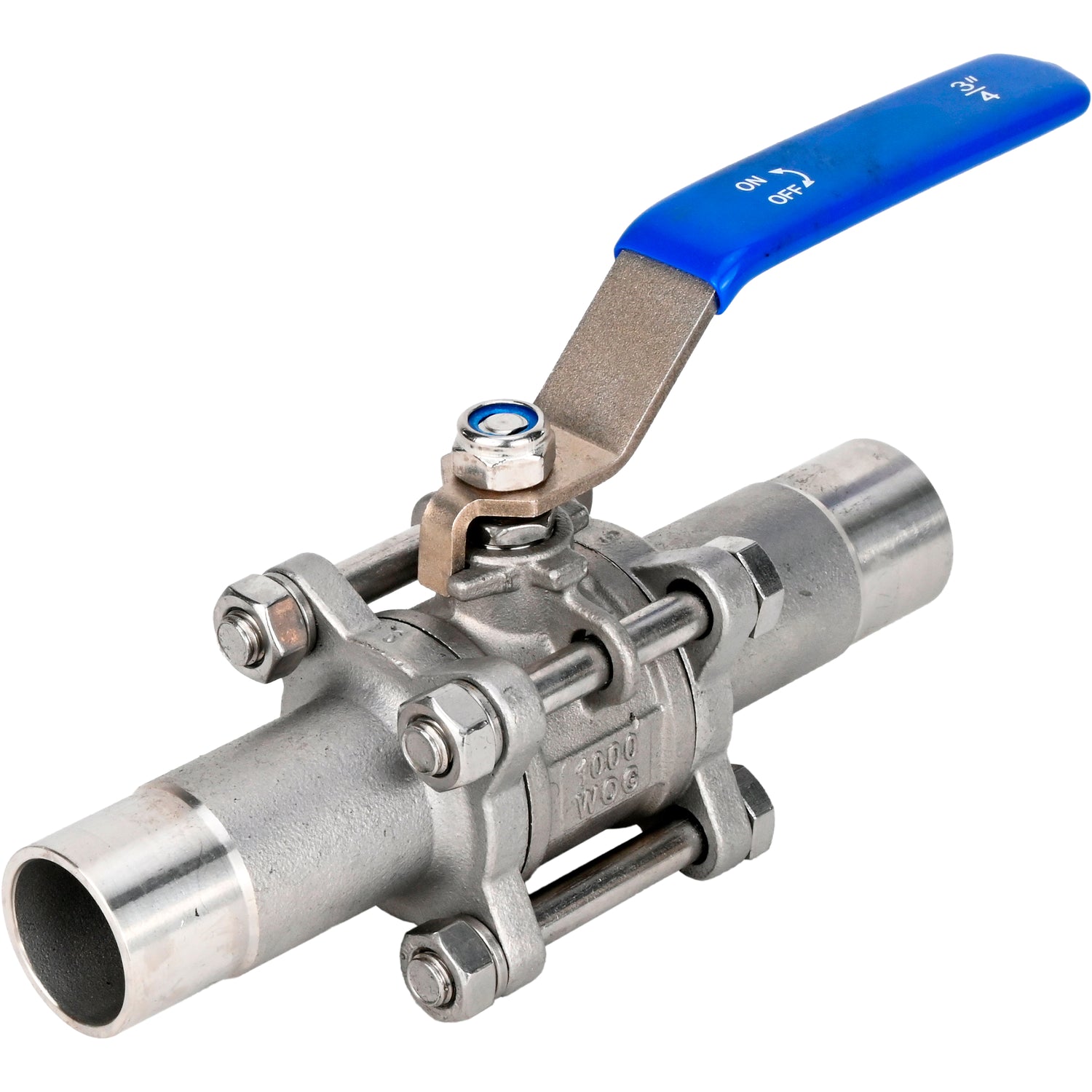

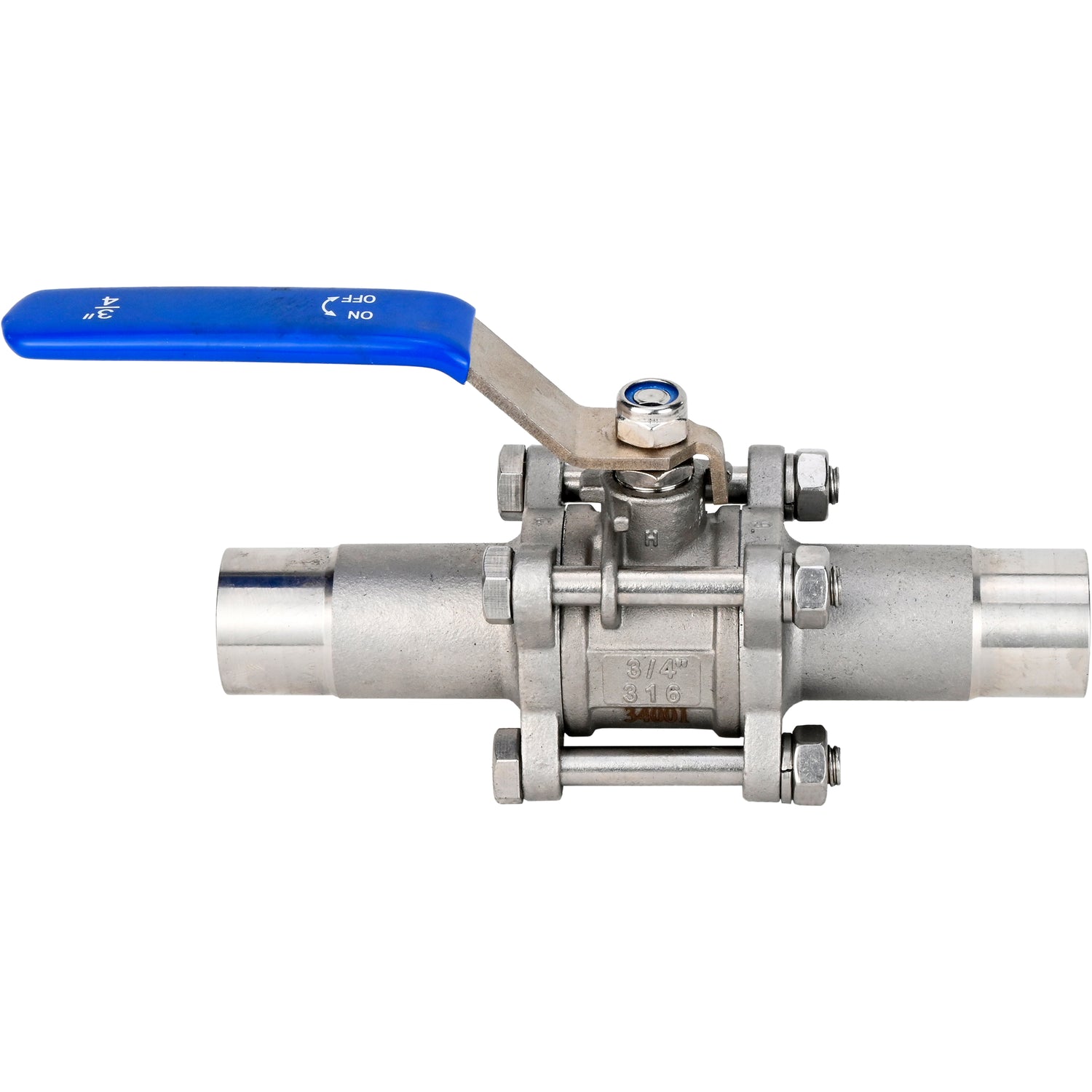

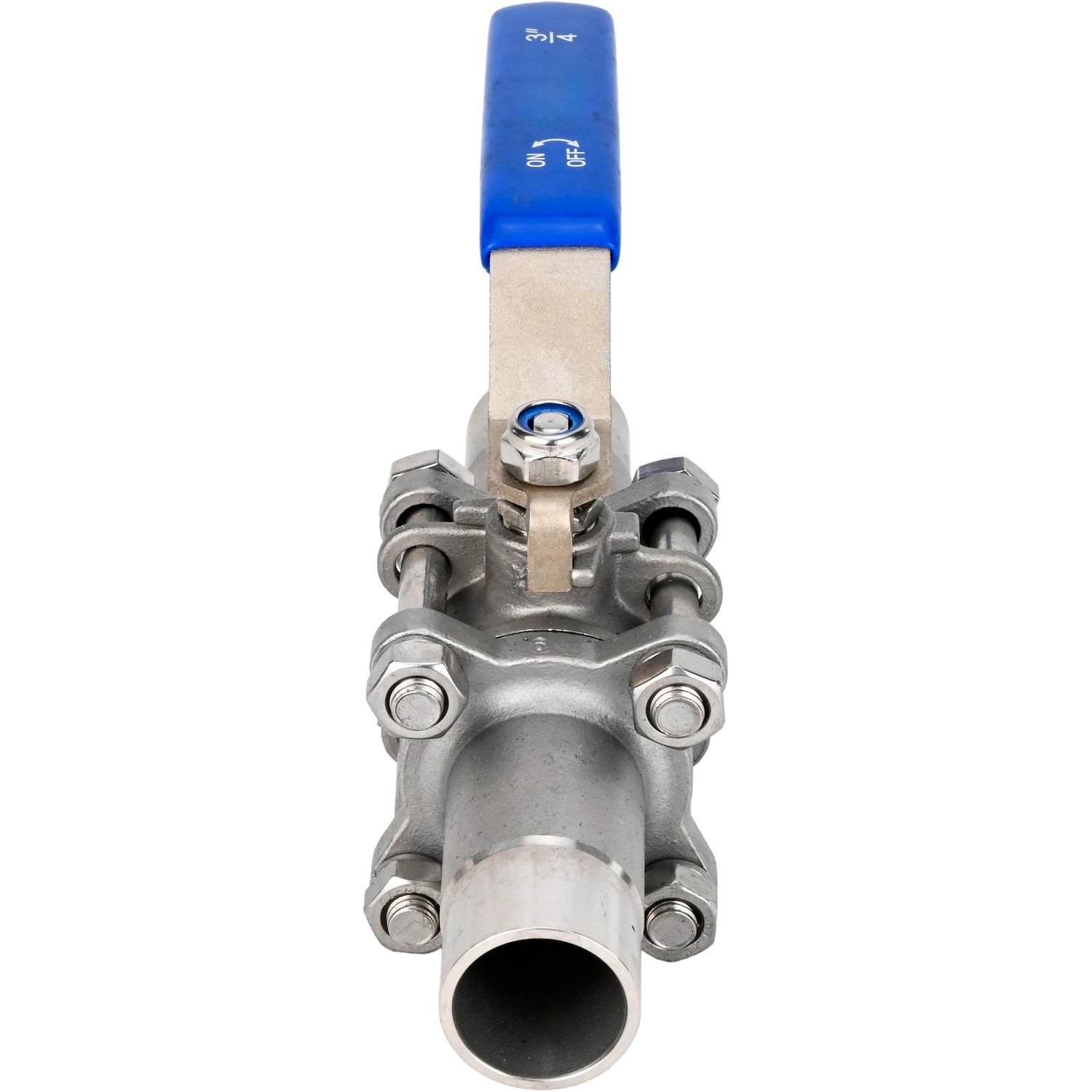

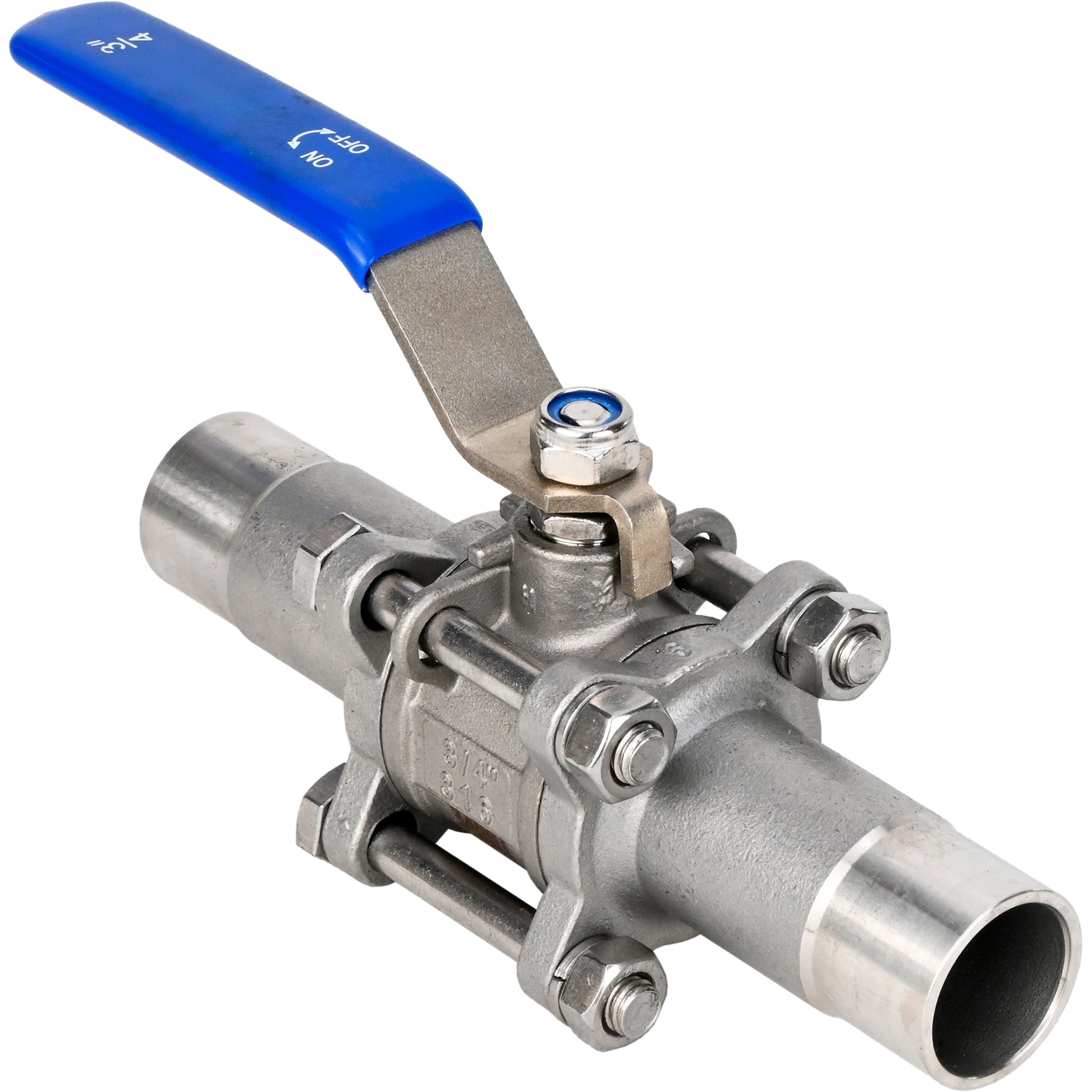

Ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle
Ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle - DN10 / 64 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle
| Model | d, mm | D, mm | B, mm | H, mm | L, mm | E, mm |
| DN10 | 12 | 17.2 | 2.1 | 50 | 130 | 120 |
| DN15 | 15 | 21.3 | 2.1 | 55 | 150 | 120 |
| DN20 | 20 | 26.9 | 2,1 | 66 | 155 | 135 |
| DN25 | 25 | 33.7 | 2.8 | 71 | 186 | 160 |
| DN32 | 32 | 42.4 | 2.8 | 81 | 195 | 170 |
| DN40 | 38 | 48.3 | 2.8 | 87 | 231 | 190 |
| DN50 | 50 | 60.3 | 2.8 | 91 | 243 | 220 |
| DN65 | 64 | 76.1 | 3 | 119 | 290 | 280 |
| DN80 | 76 | 88.9 | 3 | 125 | 302 | 280 |
| DN100 | 100 | 114.3 | 3 | 159 | 326 | 330 |
| DN125 | 125 | 141.3 | 3.4 | 186 | 360 | 330 |
| DN150 | 150 | 168.3 | 3.4 | 207 | 390 | 330 |
Sketch of dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle
Parts and materials table for ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle
| № | Part name | Material |
| 1 | Case | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Char | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Stem seal | PTFE |
| 6 | bushing | stainless steel 304 |
| 7 | Stem | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | Nut | steel A2-70 |
| 10 | Bolt | steel A2-70 |
| 11 | Handle | stainless steel |
| 12 | Handle coating | PVC |
| 13 | Nut | steel A2-70 |
Detail and material sketch of ball valves Elephant BV3131P(3pc)-FP-W-H stainless steel SS304, full bore, three-piece, seal - PTFE, welded, with handle
