Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full – Valve Elephant
1 17
Elephant  |  SKU: D160-47132

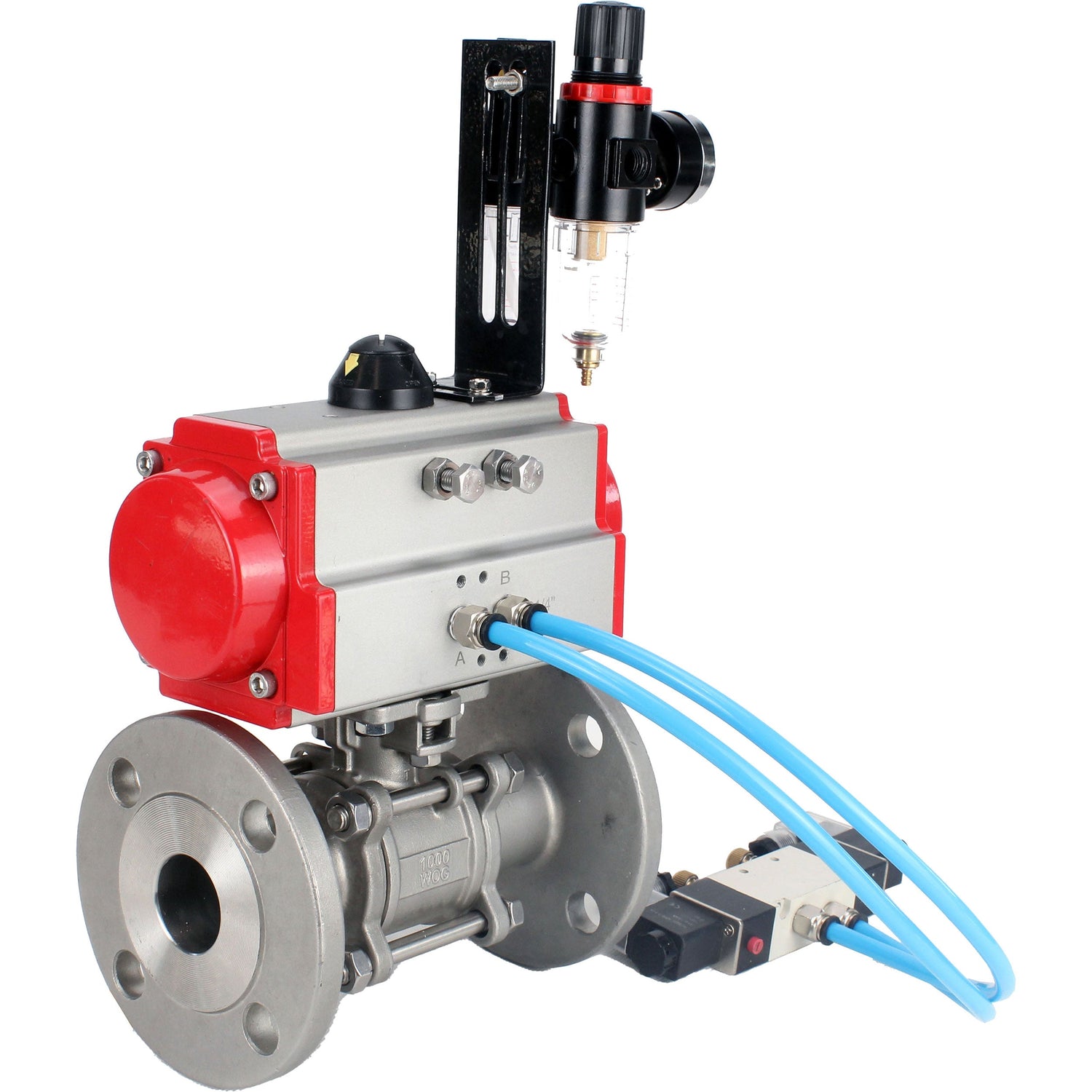

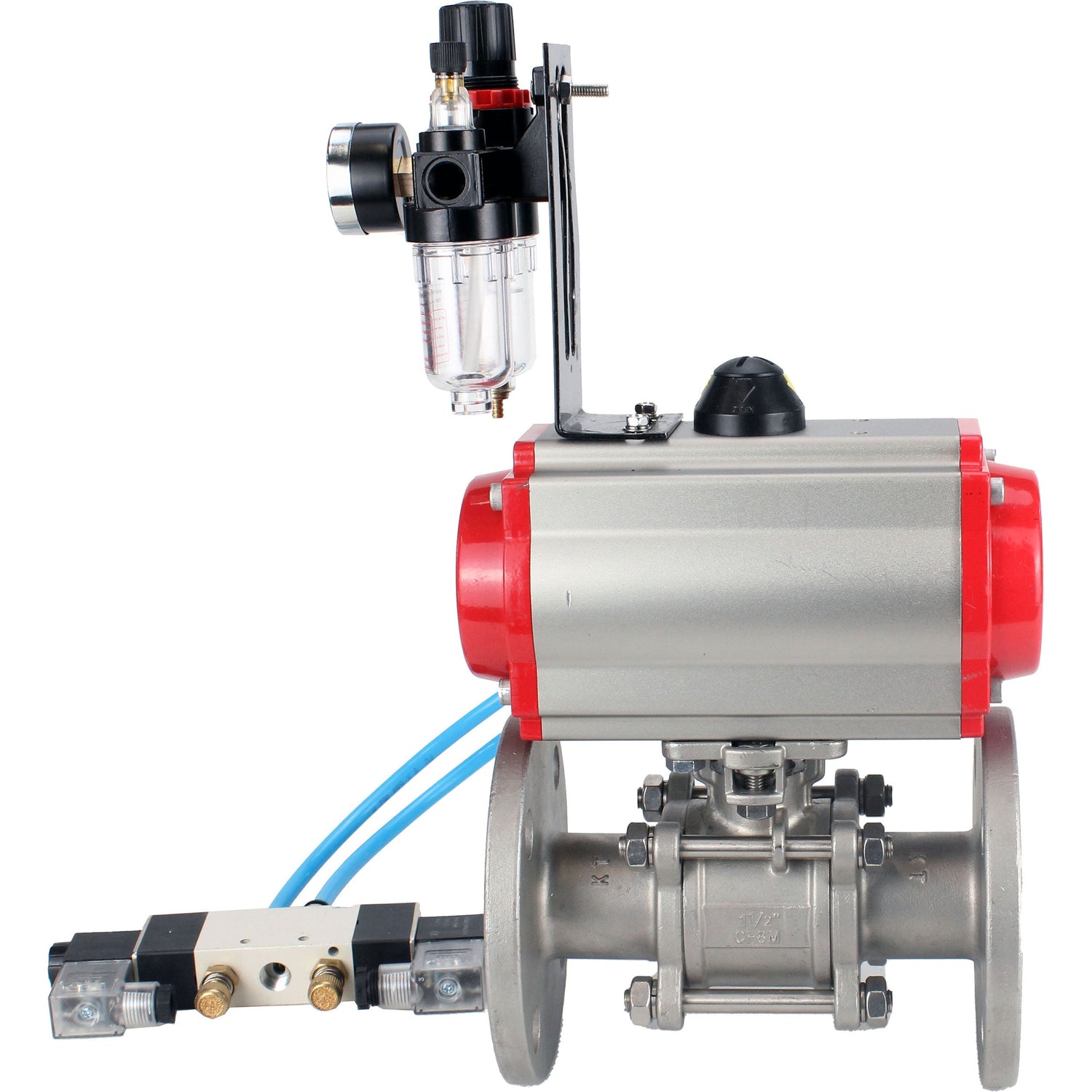

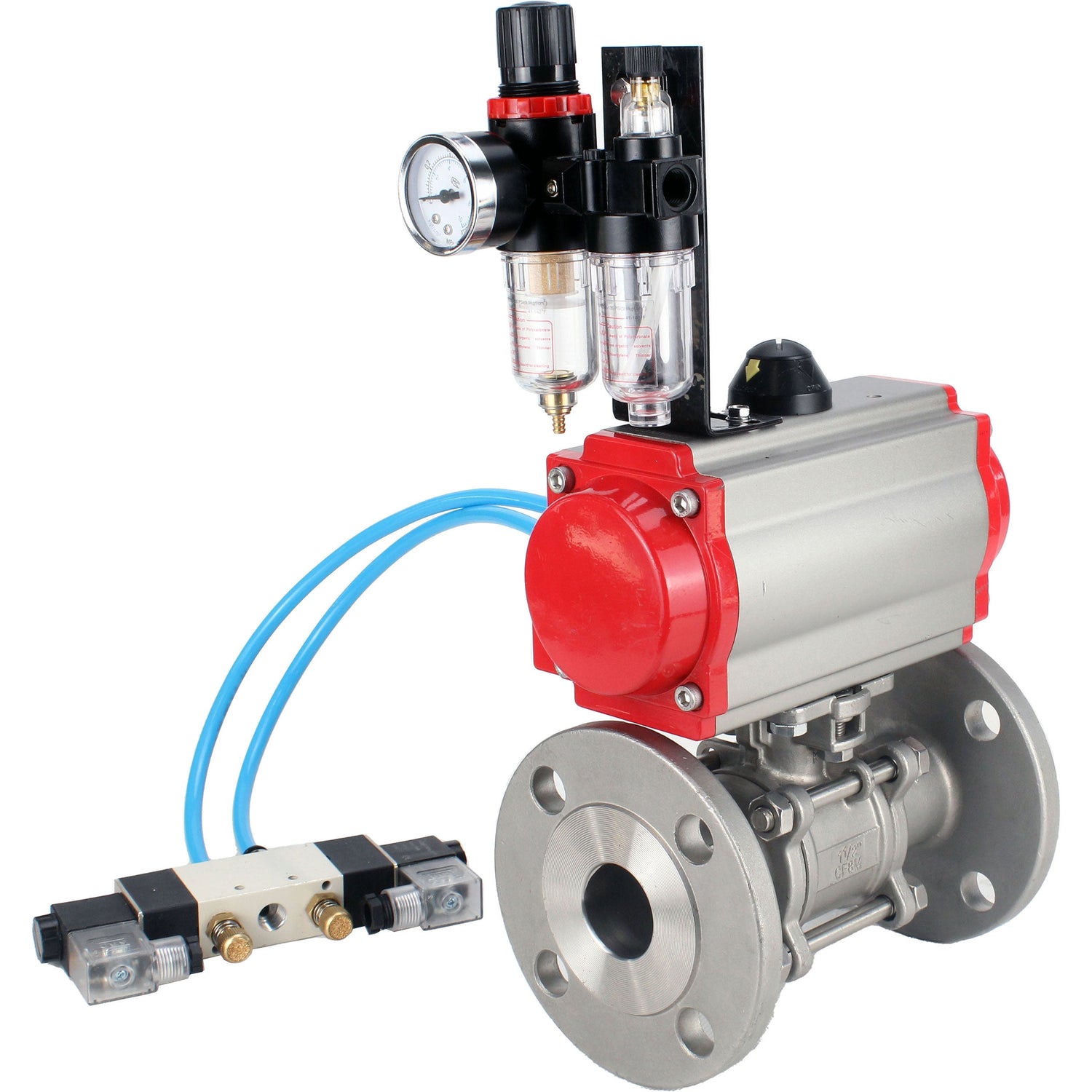

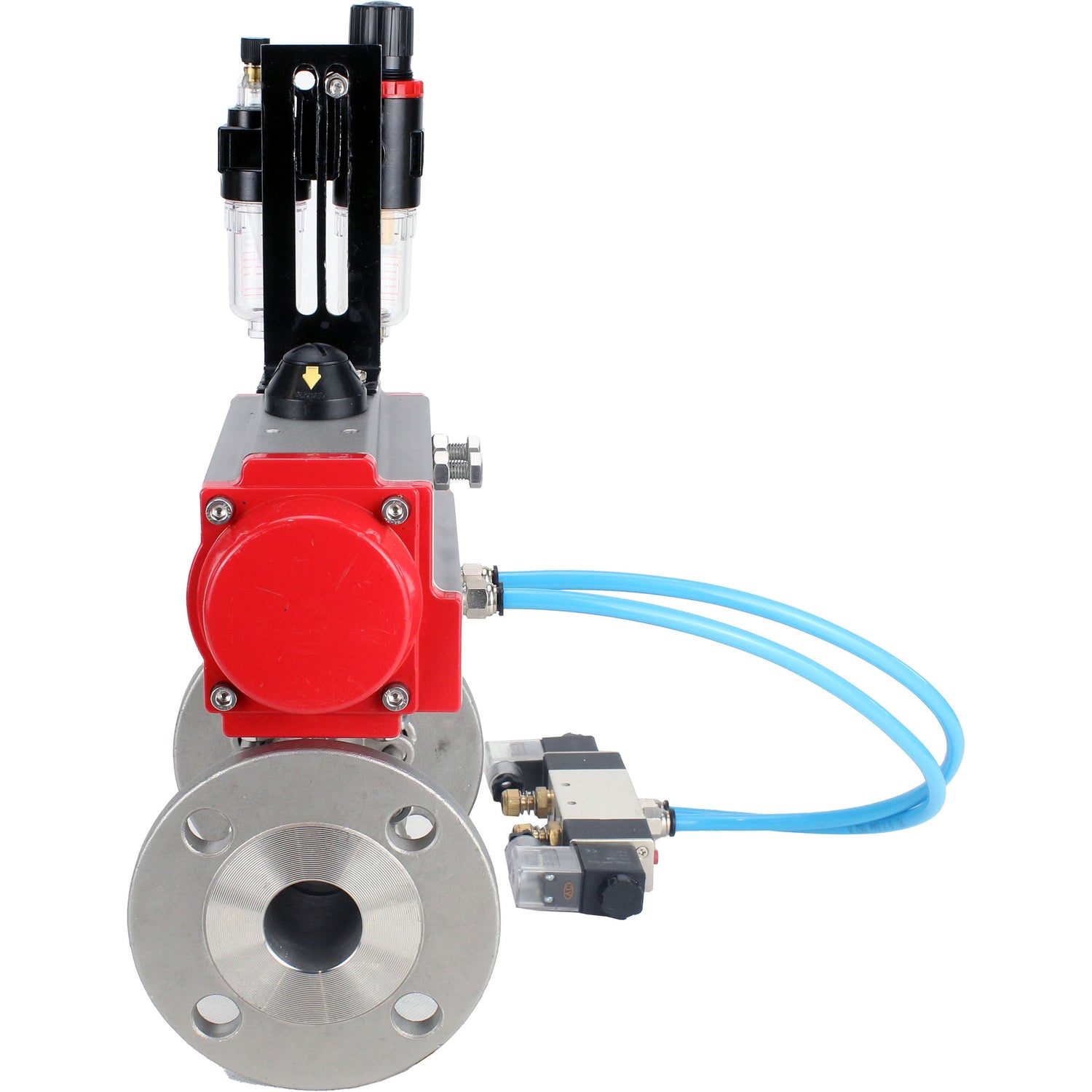

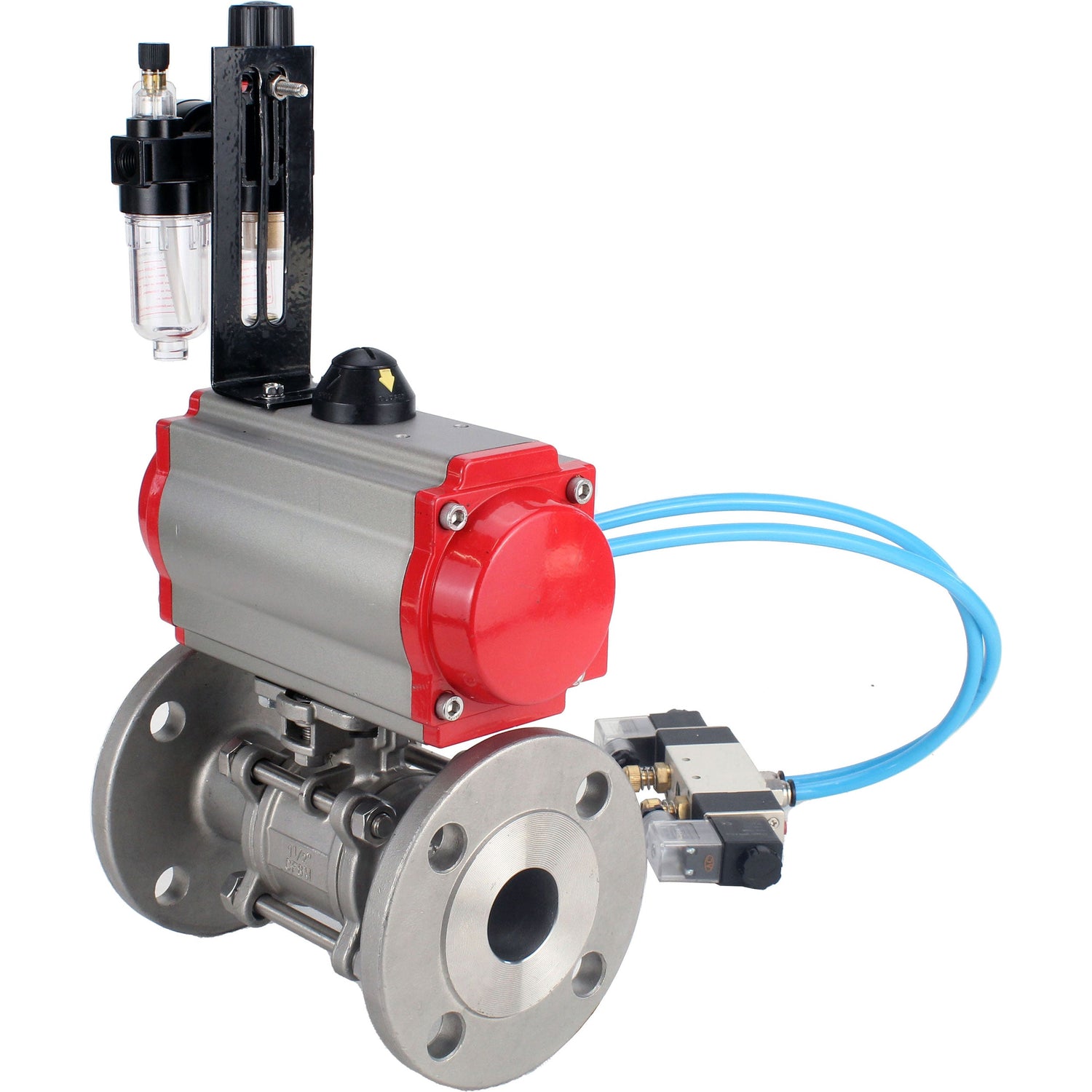

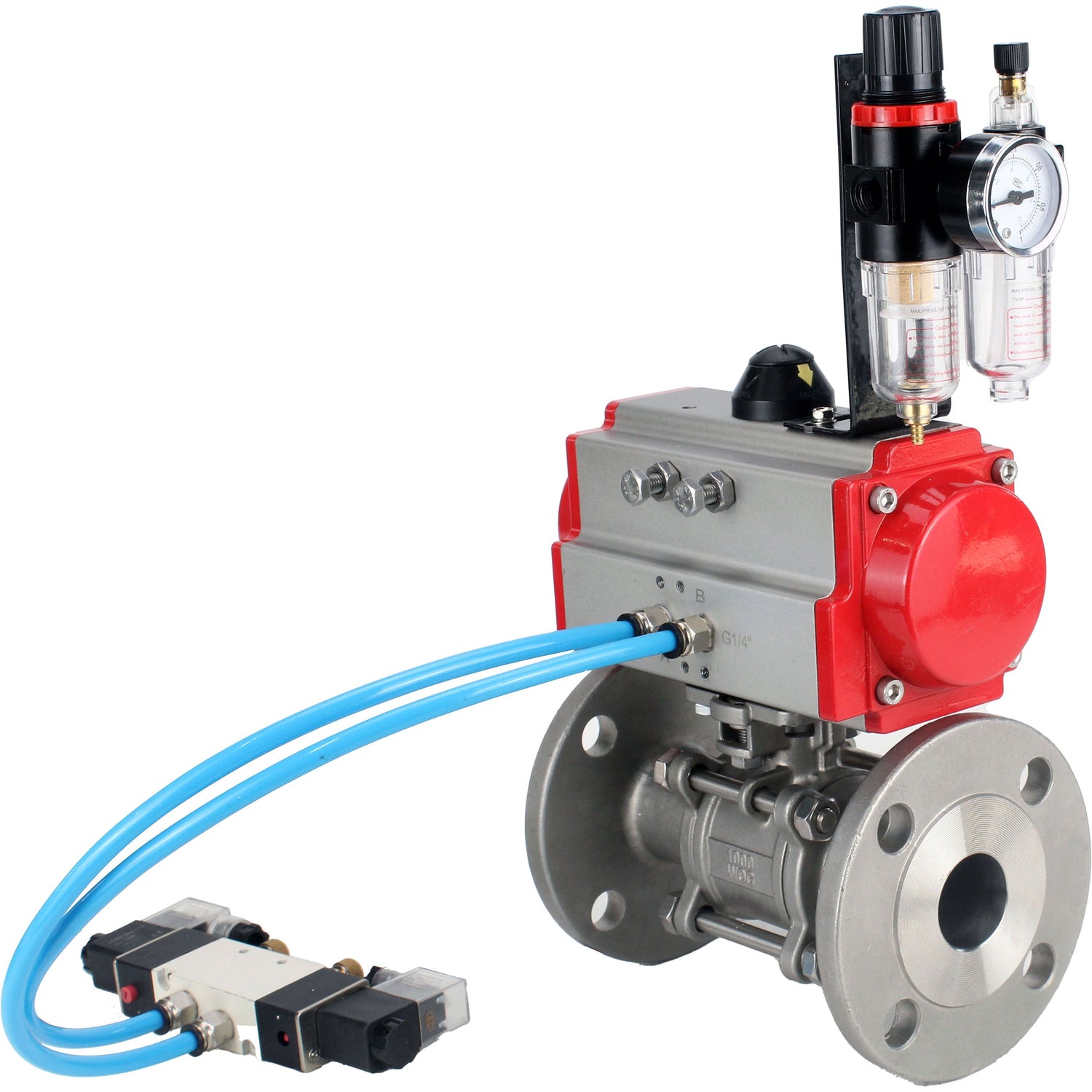

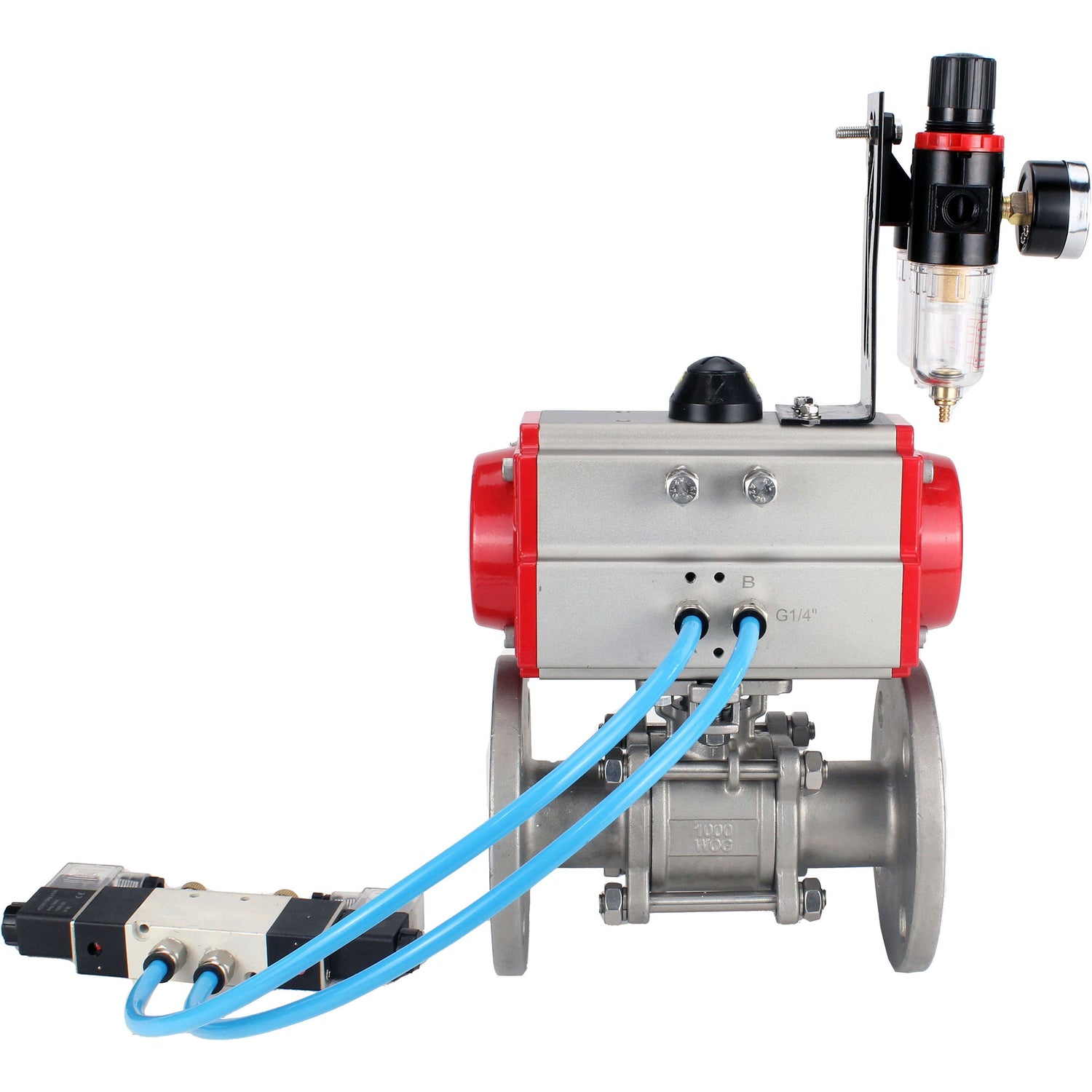

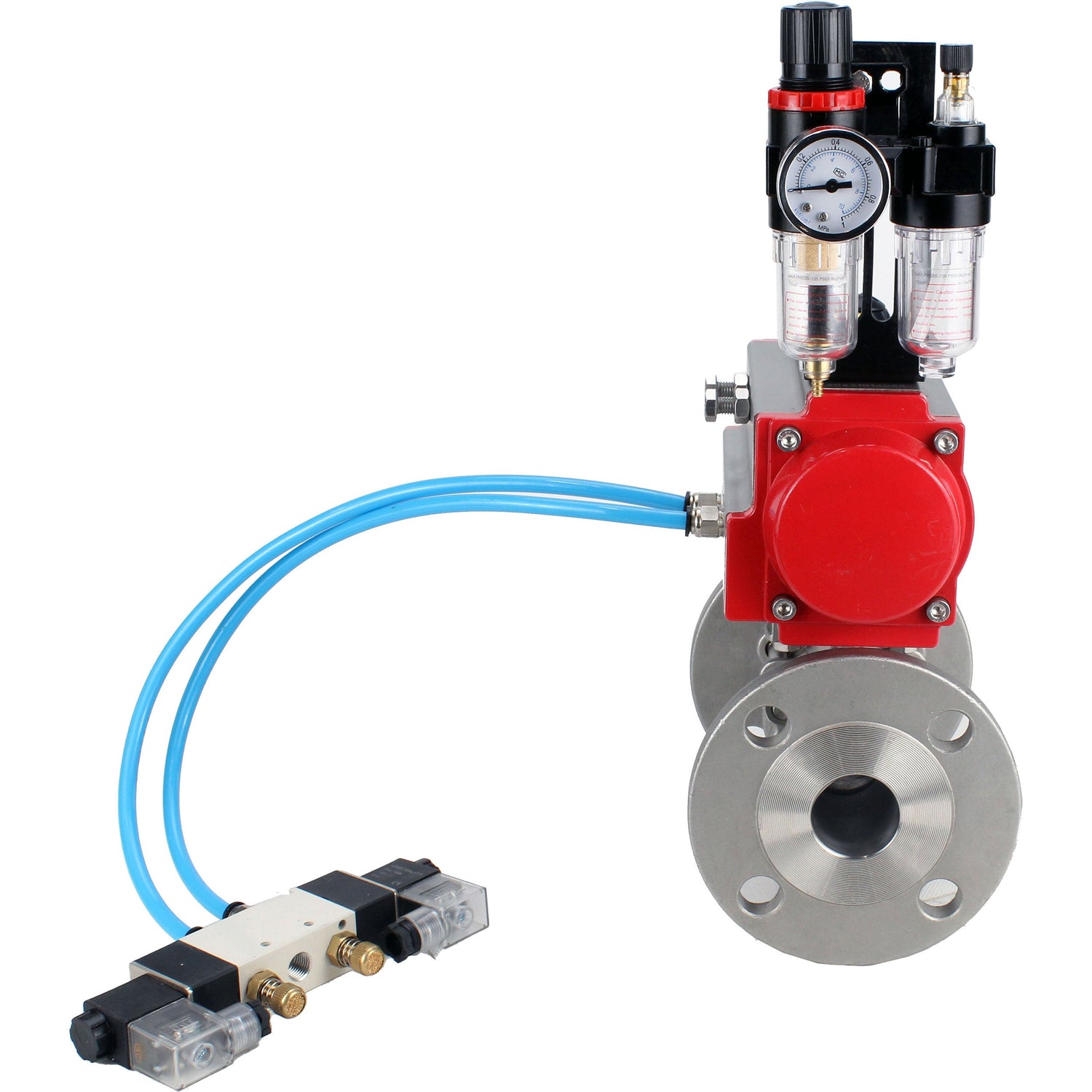

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-10 220V, with ATU AFC2000

€227,15
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.



Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE

Name Value
Operating Temperature, °C -20 to 180
Application Water supply, heating, pneumatic systems
Working Medium Water, steam, petroleum products, liquids, neutral and gaseous media
Pipeline Connection Flanged
Water-Distributing No
Bore Type Full bore
Control Type Pneumatic actuator
Connection Flanged
Actuation Double-acting pneumatic actuator
Limit Switches Yes
Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18

Sketch dimensions and dimensions of ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE





Table of parts and materials for ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE

№ Part Name Material Quantity
1 Body Stainless steel SS304 / SS316 1
2 Ball Valve Stainless steel S304 / S316 1
3 Bolt Stainless steel S201 / S304 4~6
4 Nut Stainless steel S201 / S304 6~12
5 Seal PTFE 1
6 Stem Stainless steel SS304 / SS316 1
7 Packing Stainless steel S201 / S304 1
8 Cover Steel WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1

Parts and materials sketch for ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Pneumatic Distributor Type Spool-type
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Power Consumption, VA 4.5
Control Type Double-sided electromagnetic
Actuation Frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-10 220V




Technical parameters of Elephant AFC2000 air treatment unit

Parameter Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395



Dimensions and dimensions of Elephant AFC2000 air treatment unit

Parameter Value
Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Sketch of dimensions and dimensions of Elephant AFC2000 air treatment unit



Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs







Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    235 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullAir treatment unit AFC2000 ELEPHANT
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-47132DN1540 bar €227,15 Sold out
    D160-47136DN2040 bar €239,30 Sold out
    D160-47140DN2540 bar €246,46 Sold out
    D160-47144DN3240 bar €296,57 Sold out
    D160-47148DN4040 bar €317,94 Sold out
    D160-47152DN5040 bar €402,73 Sold out
    D160-47156DN6525 bar €518,79 Sold out
    D160-47160DN8025 bar €568,92 Sold out
    D160-47128DN10016 bar €867,55 0 In stock
    D160-63265DN100 22х22 F1016 bar €844,95 0 In stock
