Ball valves Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar AISI 304 st – Valve Elephant
Elephant  |  SKU: D160-69430

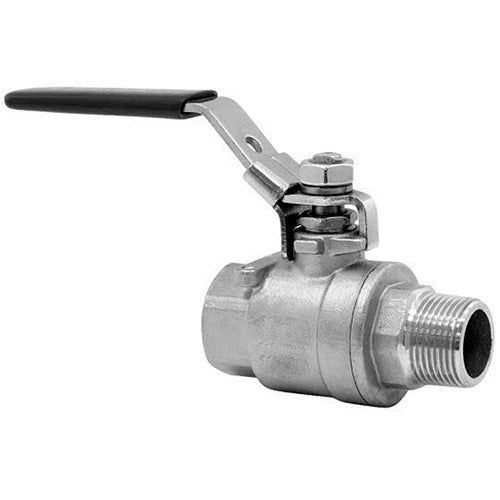

Ball valves Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar AISI 304 stainless steel, full bore, internal thread/external thread, PTFE seal, lever handle

€16,82
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.





Main technical characteristics of ball valves Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar

Name Value
Nominal diameter DN, mm 15-50
Working pressure, bar 63/40
Working fluid temperature t, °C -20 to +220
Working fluid Water, steam, petroleum products, and other liquid or gaseous media that are inert to the valve materials
Pipeline connection threaded
Flow section type full bore
Ball valve tightness class A
Control type manual (handle)





Overall and installation dimensions of ball valves Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar

DN Size
Ød L W H
15 15 65 105 50
20 20 76 115 55
25 25 90 120 63
32 32 101 128 70
40 38 110 160 80
50 49 125 165 94
Sketch of ball valve dimensions Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar

Detailing of ball valves Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar

№ Part Name Material
1 Body AISI 304 stainless steel
2 Half-body (external thread) AISI 304 stainless steel
3 Ball AISI 304 stainless steel
4 Stem AISI 304 stainless steel
5 Seal PTFE
6 Body seal PTFE
7 Thrust washer PTFE
8 Stem seal PTFE
9 Seal AISI 304 stainless steel
10 Handle AISI 201 stainless steel
11 Stud AISI 304 stainless steel
12 Nut AISI 304 stainless steel
13 Handle Stainless steel + PVC

Sketch of ball valve detailing Elephant BV3131P(2pc)-FP-T-H DN15-50 63/40 bar





Specifications
  • Operating environment
    Water, Steam, Petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
