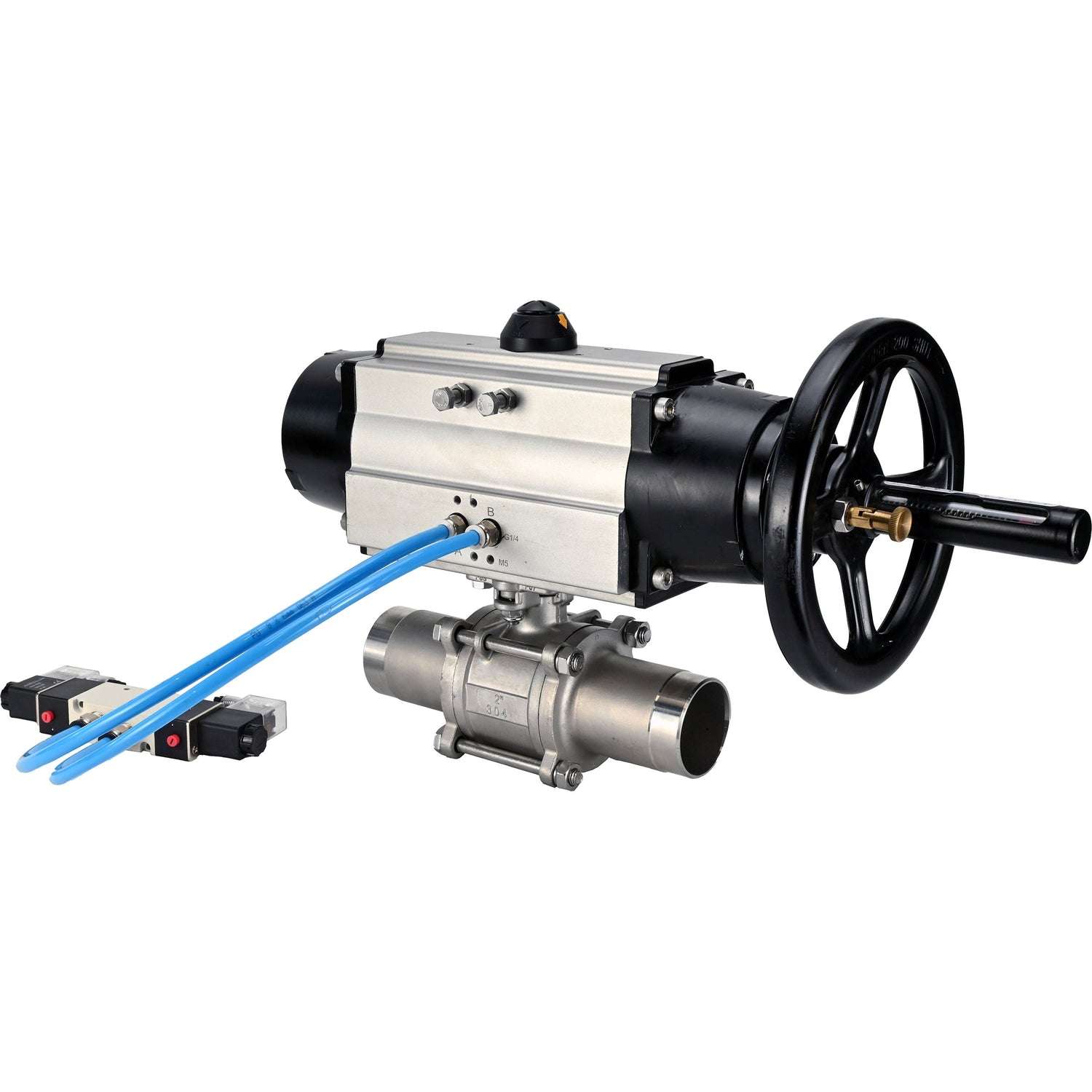

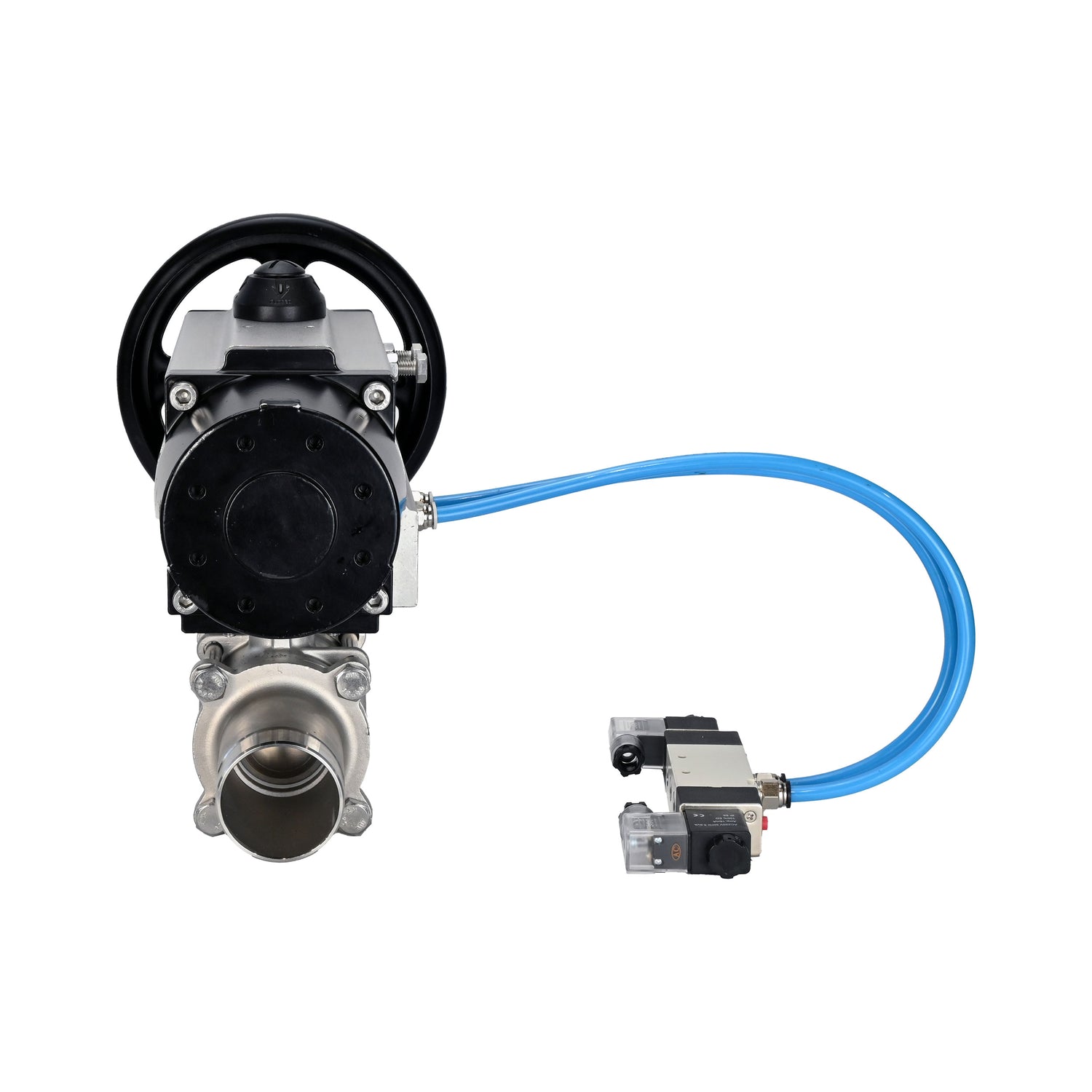

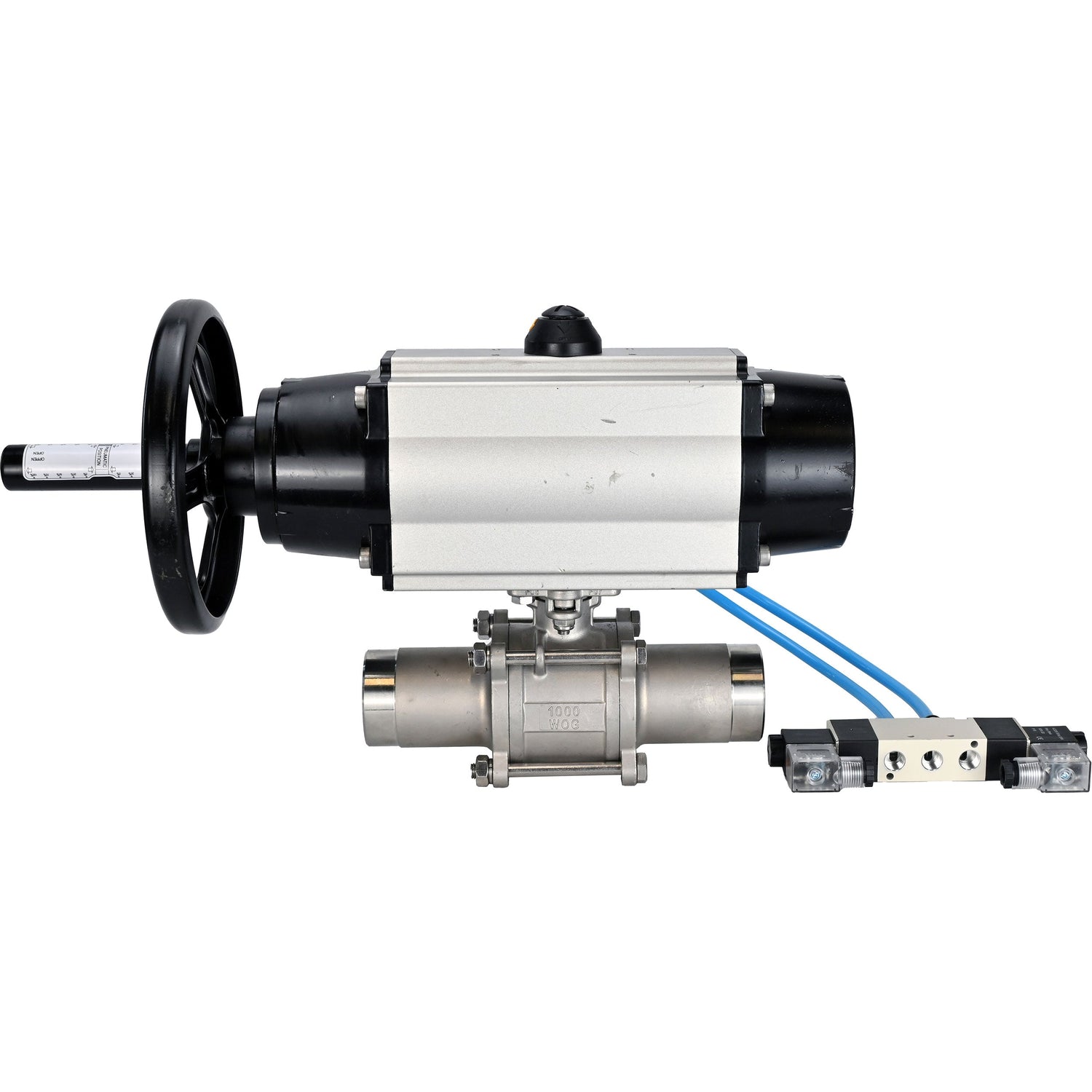

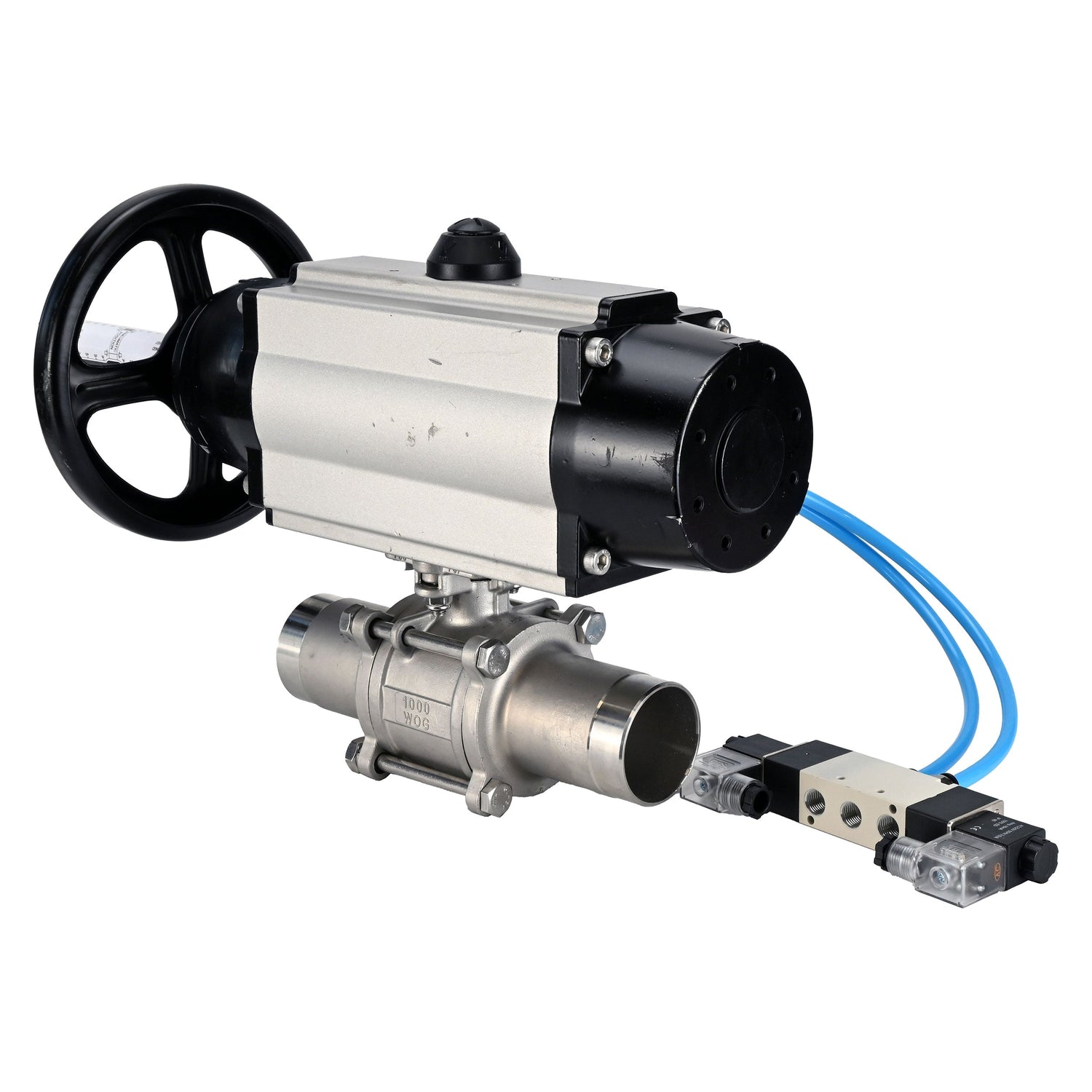

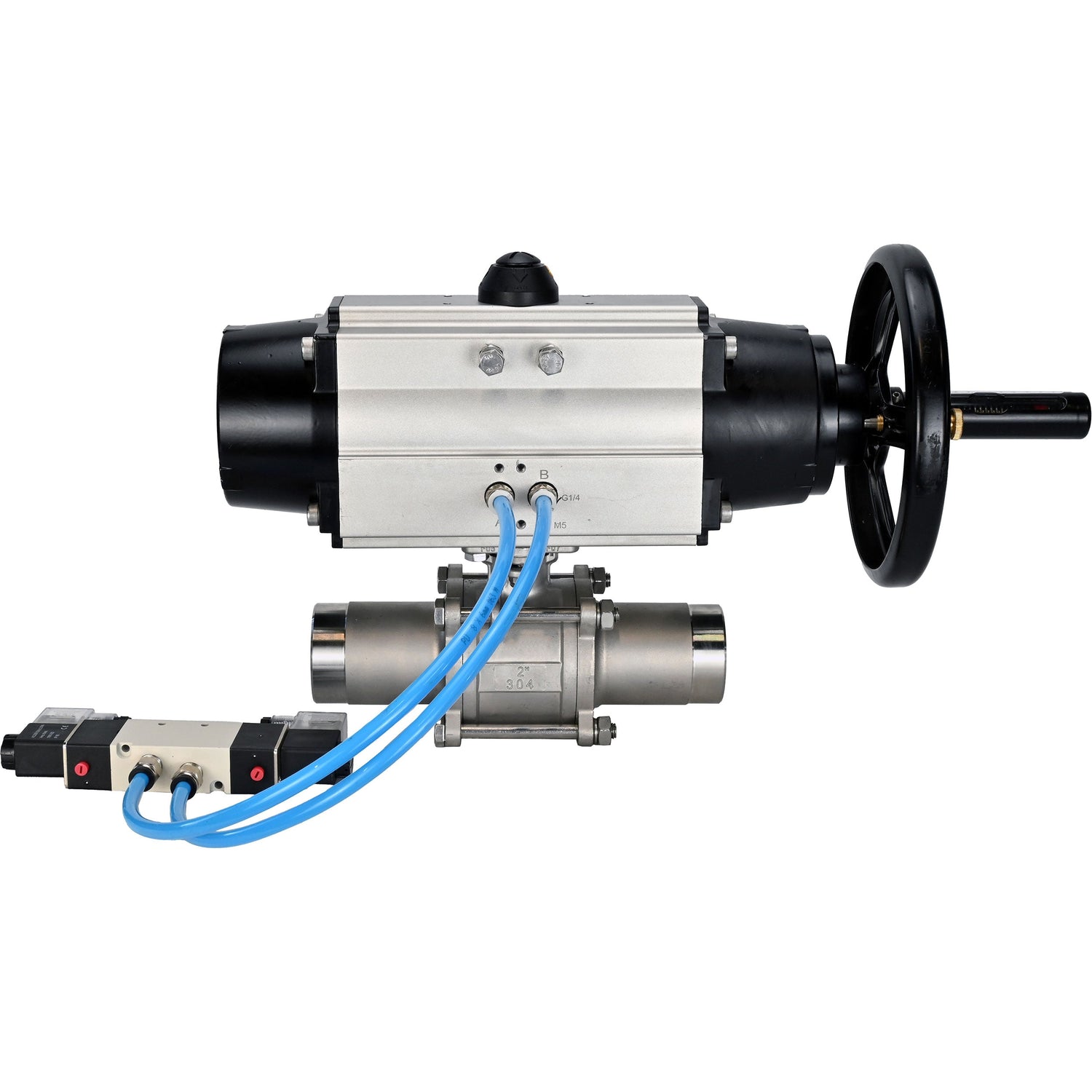

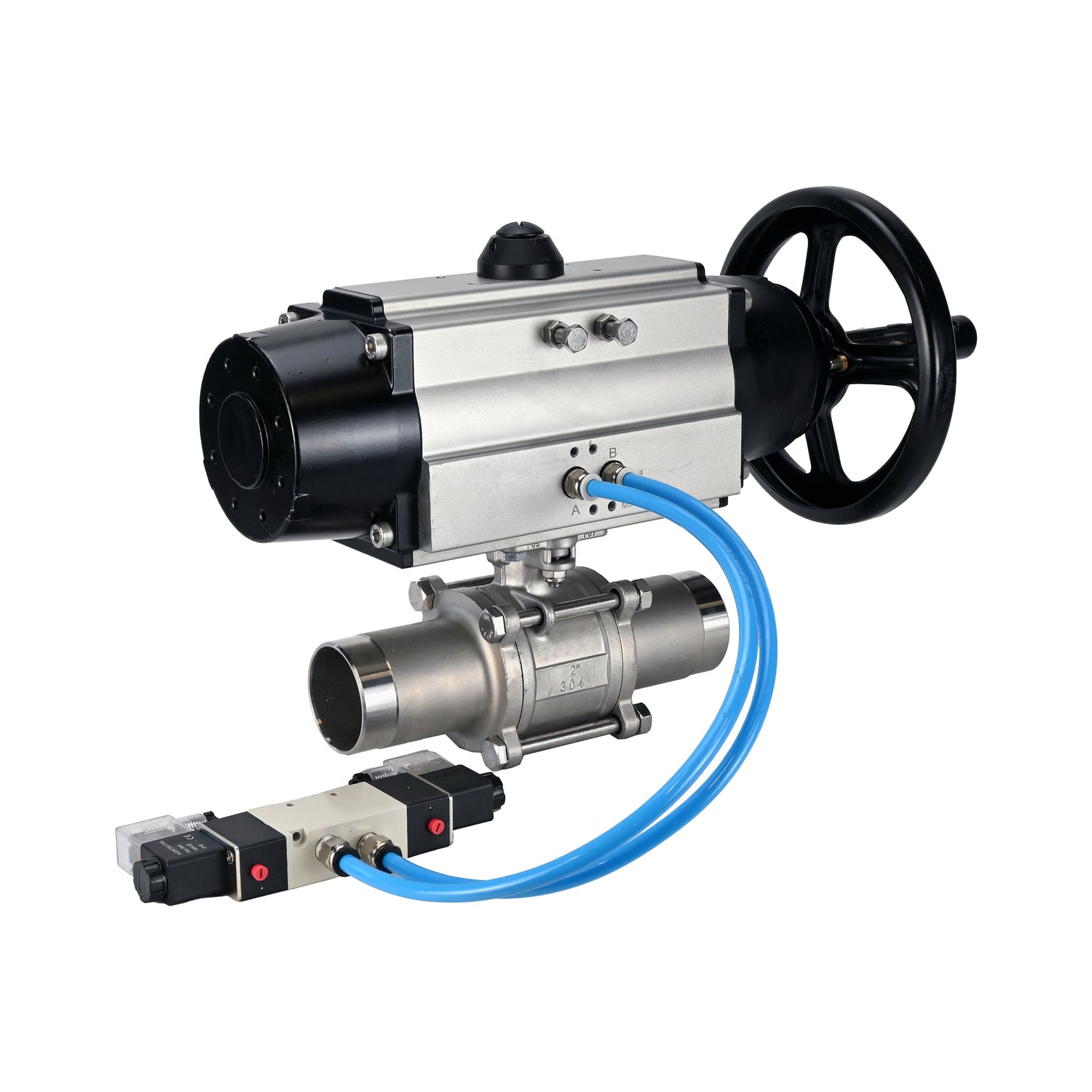

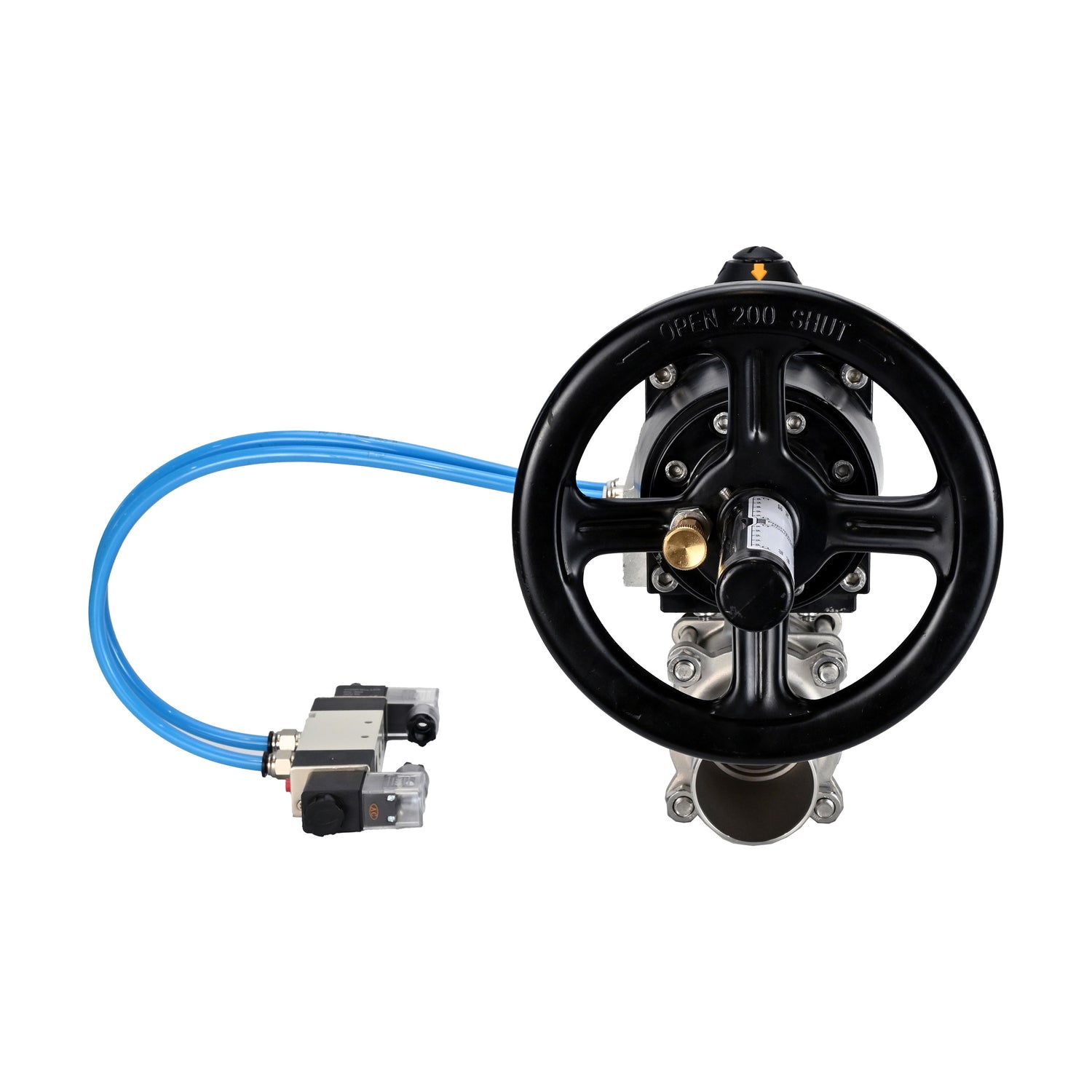

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG, body material - Stainless steel AISI 304, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA-105-1, 4V320-10 220V
Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG, body material - Stainless steel AISI 304, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA-105-1, 4V320-10 220V - DN80 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description

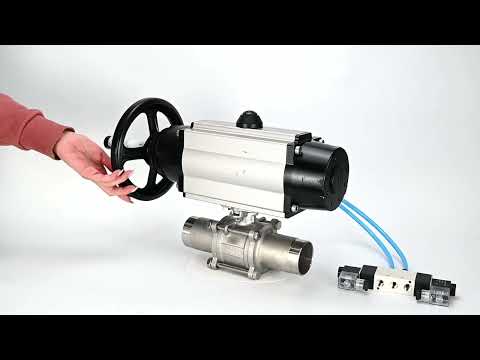

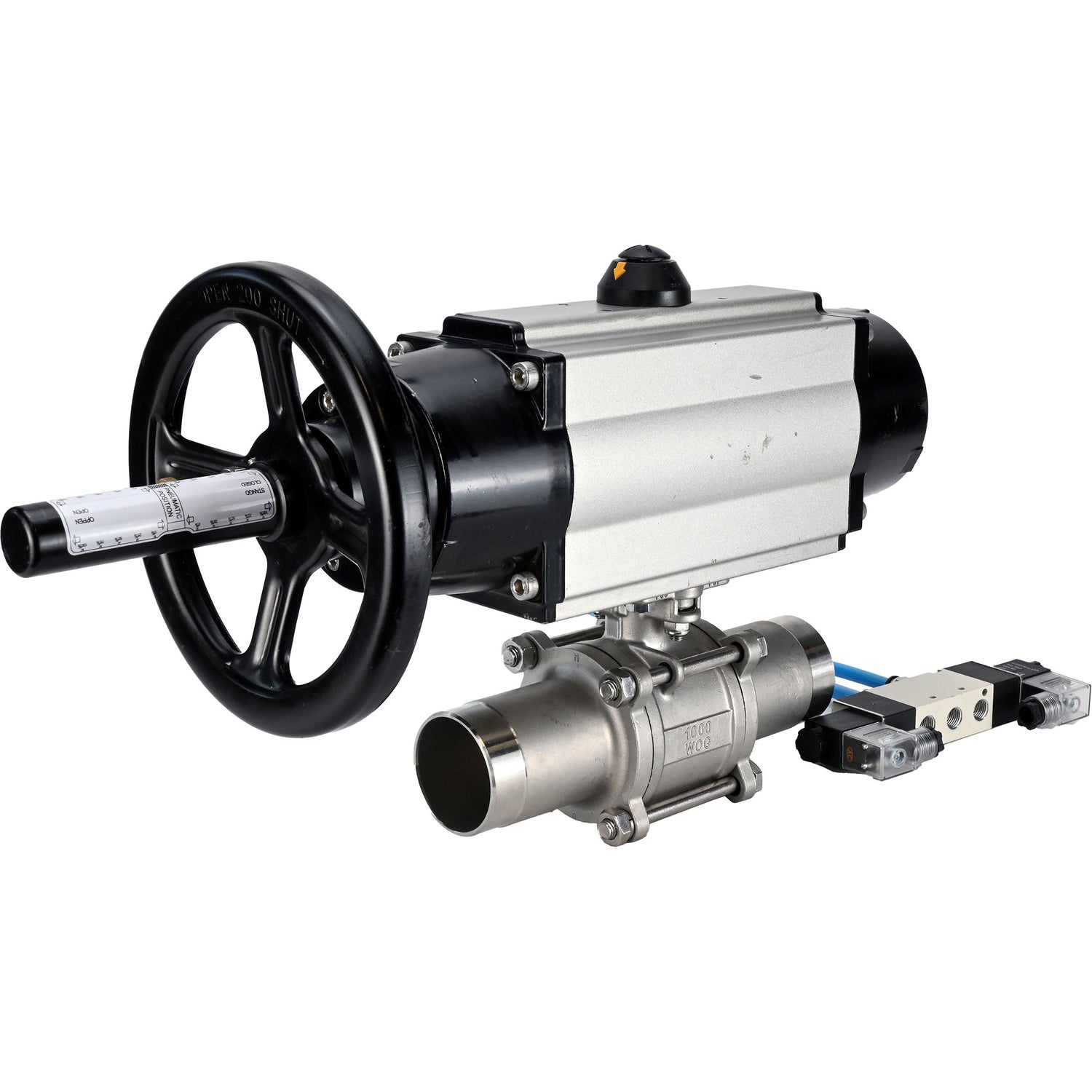

Ball valve Elephant BV3131P(3pc)-FP-W-ISO-H LONG is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3131P(3pc)-FP-W-ISO-H LONG series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuator Elephant PA-DA-105-1 of double action is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valve Elephant 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA-105-1, pneumatic valve 4V320-10 220V:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 180 |
| Type of crane device | two-way |
| Application | water supply, heat supply, industry |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | double acting pneumatic actuator |
| Availability of pneumatic distributor | There is |
Sketch of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA-105-1, pneumatic valve 4V320-10 220V
Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG c pneumatic actuator PA-DA-105-1 double-acting, pneumatic valve 4V320-10 220V:
| DN, mm | L, mm | D, mm | F, mm | L1, mm |
| 80 | 302 | 88.9 | 153 | 495 |
| 100 | 326 | 114.3 | 153 | 495 |
Detail and material sketch of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG
Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG:
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Elephant PA-DA-105-1 double-acting pneumatic actuator
Technical parameters of the PA-DA-105-1 double-acting pneumatic actuator:
| Name | Meaning |
| Model | PA-DA-105-1 |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Sketch of parts and materials of Elephant PA-DA-105-1 double-acting pneumatic actuator
Parts and materials table for double-acting pneumatic actuator Elephant PA-DA-105-1:
| No. | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clamp | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | Outer washer | Engineering plastic |
| 6 | Adjusting screw | Stainless steel 304 |
| 7 | screw | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Frame | Extruded aluminum |
| 10 | Piston | Aluminum, die casting |
| 11 | Piston sealing ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End Cap O-Ring | NBR |
| 14 | End cap | Cast aluminum coated with polyester paint |
| 15 | Fastening screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Fixator | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Technical parameters of the Elephant 4V320-10 220V pneumatic valve
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-08 220V |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
