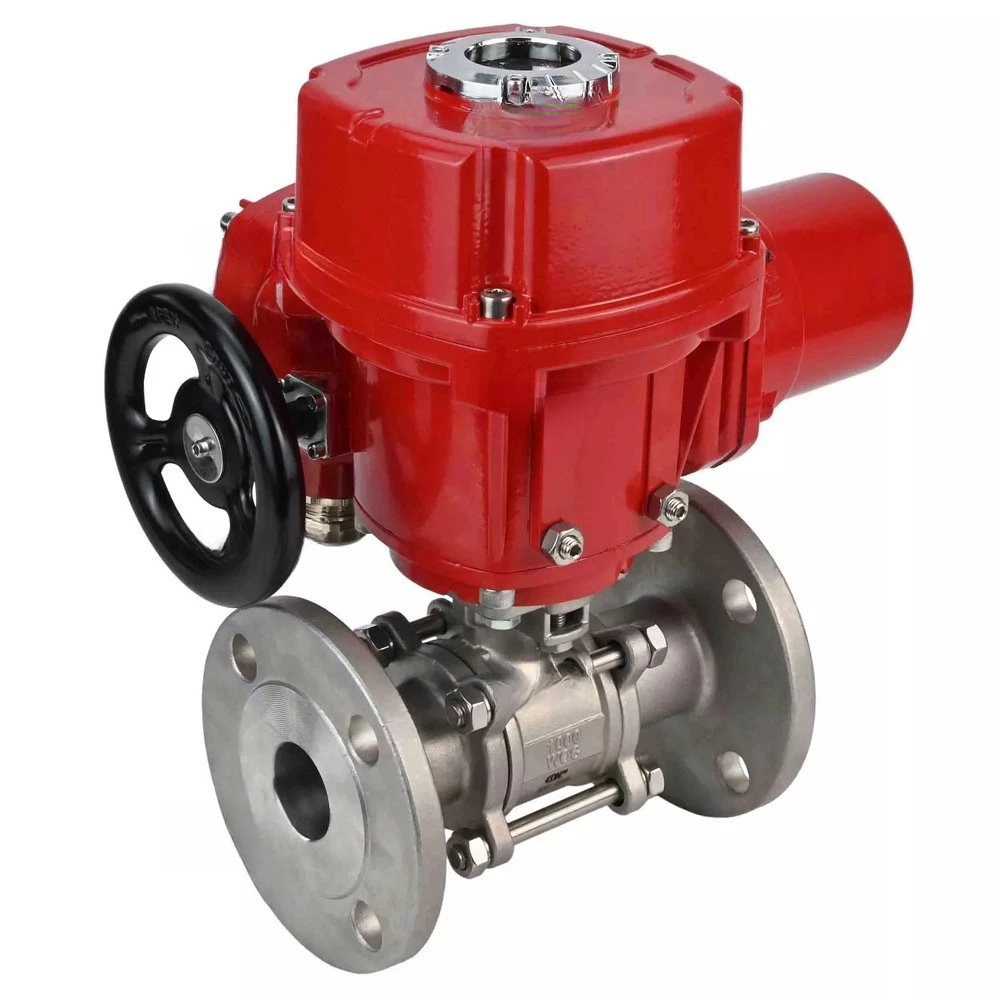

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16 bar full-bore three-piece, flanged, 304 stainless steel, seal - PTFE, with electric quarter-turn drive Elephant explosion-proof QT-EX-EM-O2-220VAC-U1

€1.066,72
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.

Explosion-proof quarter-turn electric actuators are designed for remote and local control of 90° rotation of shut-off valves such as ball valves. They are widely used in various industries, including gas, oil, metallurgy, food processing, housing and utilities, and more. They are suitable for use in industrial explosion-hazardous areas.





Technical characteristics of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar

Name Value
Nominal pressure, bar DN15-50 – 40
DN65-80 – 25
DN100 – 16
Working fluid from -20 to +180
Pipeline connection water, steam, petroleum products, and other liquid or gaseous media neutral to valve materials
Ball valve bore type flanged
Ball valve tightness class full bore
Service life, years A according
Average life, opening/closing cycles 10
Average resource, opening/closing cycles 60000





Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar

DN L, mm D, mm L1, mm H, mm
Ду15 130 95 240 270
Ду20 150 105 240 270
Ду25 160 115 240 270
Ду32 180 140 240 270
Ду40 200 150 240 270
Ду50 230 165 240 270
Ду65 290 185 240 270
Ду80 310 200 240 270
Ду100 350 234 240 270
Ду100 22х22, F10 350 220 260 280

Sketch of the overall dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar





Table of parts and materials for ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar

№ Part Name Material Quantity
1 Body CF8M stainless steel / AISI 304 1
2 Ball AISI 304 stainless steel 1
3 Bolt SS 201 stainless steel 4~6
4 Nut SS 201 stainless steel 6~12
5 Seal PTFE 1
6 Stem AISI 304 stainless steel 1
7 Seal SS 201 stainless steel 1
8 Cover CF8M stainless steel / AISI 304 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1
11 Nut SS 201 stainless steel 1
Sketch of parts and materials of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar



Technical parameters of Elephant QT-EX-xEM-O2-220VAC-U1 electric drives

Name Значение
Supply voltage 220V
Availability of a manual backup steering wheel
Limit switches Yes





Dimensions and sizes of electric drives Elephant QT-EX-xEM-O2-220VAC-U1

Model QT-EX-010EM-O2-220VAC-U1 QT-EX-015EM-O2-220VAC-U1 QT-EX-020EM-O2-220VAC-U1
W 160 160 160
K 70 70 80
K1 230 230 250
A Ø90 Ø90 Ø120
B Ø70 Ø70 Ø102
D Ø50 Ø50 Ø70
F Ø16 Ø16 Ø30
L 240 240 260
L1 68 68 75
Н 270 270 280
n-C 4-M8 4-M8 4-M10
n-E 4-M6 4-M6 4-M8

Sketch of the overall dimensions and sizes of the Elephant QT-EX-xEM-O2-220VAC-U1 electric drives





Table of parts and materials for electric drives Elephant QT-EX-xEM-O2-220VAC-U1

№ Name Material
1 Drive Housing Aluminum
2,23,33, 38,40,64 Shaft 45 steel
3,39, 46,48, 51,66 O-Ring Oil-resistant rubber
4,27 Bracket Q235 steel
5 Insulation Gasket Textile laminate
6,9, 16 Bracket Mounting Screw 1Cr18Ni9Ti steel
7,1 Plate Q235 steel
8 Plug Screw Aluminum
11,14 Limit Switch Cam Q235 steel
12,13 Limit Switch Group XK06-101-2530
15,32 Bushing H62 brass
16,30, 35,41, 44,61 Screw 1Cr18Ni9Ti steel
17,18 Disc Q235 steel
19 Mechanical Limit Cam Q235 steel
20 Drive Housing Aluminum
21,25 Mounting Screw 35 steel
22 Sight Glass Seal 1Cr18Ni9Ti steel
24 Indication Plate Aluminum
26 Capacitor CEM 2GR 220nJ
28 Terminal Block 1Pcs TX-1502 6
29 Heater Element NTA-1/005
31,36 Washer Stainless steel
34 Through Cover MHQ50
37,39 Locking Washer, O-Ring 1Cr18Ni9Ti steel
42 Torque Switch Group XK06-101-2530
43,48 Torque Switch Mechanism Q235 steel
45 Flywheel Cover Aluminum
47,69 First Stage Gear ZQAL10-5-5 zinc alloy
49 Limit Screw steel 35
50 Stud 1Cr18Ni9Ti steel
52 Coupling Handle 45 steel
53 Yoke Block aluminum
54 Thrust Washer zinc alloy ZQAL10-5-5
55,56 Separator Yoke zinc alloy ZQAL10-5-5
57 Snap Ring 1Cr18Ni9Ti steel
58,6 Disc, Main Gear zinc alloy ZQAL10-5-5
59,68 Second and First Worm steps 40Cr steel
62,67 Oil seal aluminum
63 Motor -
65 Clutch ZG20 steel

Sketch of parts and materials for electric drives Elephant QT-EX-xEM-O2-220VAC-U1



Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Electric drive
  • Operating environment
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Applications
    Water Supply, Heat supply, Pneumatic systems
  • Type of seal
    PTFE / Fluoroplastic / Teflon
  • Locking material
    Stainless steel
  • Limit switches
    Yes
  • Angle of rotation
    90°
