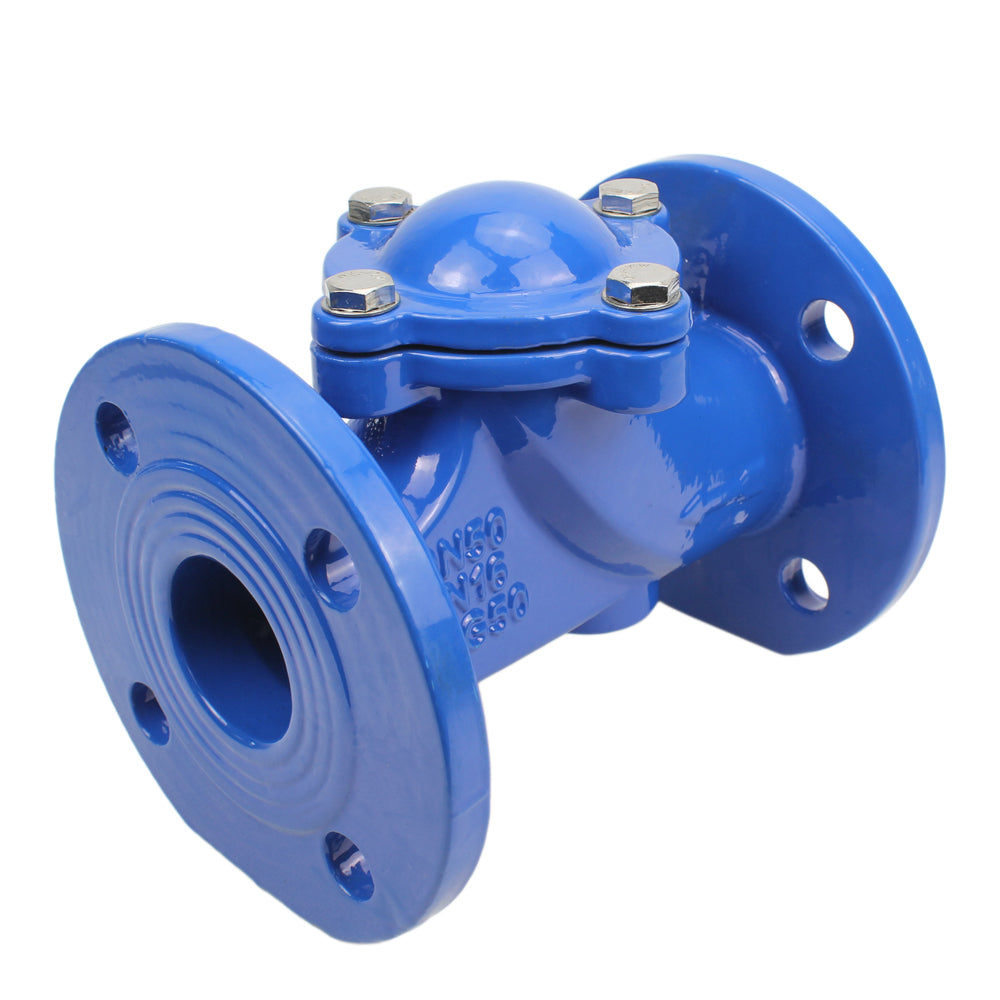

Ball check valve Elephant PN16-NBR without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
Ball check valve Elephant PN16-NBR without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Ball check valve Elephant PN16-NBR without drain plug, body materia...
Description
Description
Check valve is a device in a pipeline that allows fluids or gases to flow in only one direction. When the pressure of the fluid or gas in the pipeline exceeds a certain value, the valve opens, allowing the substance to pass through. However, when the pressure drops or tries to move in the opposite direction, the valve closes, preventing backflow. Check valves are widely used in various industrial and commercial applications to ensure safety and control the flow in pipeline systems.
Overall dimensions of the ball check valve Elephant PN16-NBR without drain plug, body material - cast iron GGG50
Sketch of ball check valve dimensions Elephant PN16-NBR without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
| DN | L | D | С | D1 | n - d | b | f | Weight,kg |
| 40 | 180 | 150 | 110 | 84 | 4 – Ø19 | 18 | 3 | 6 |
| 50 | 200 | 165 | 125 | 99 | 4 – Ø19 | 19 | 3 | 9 |
| 65 | 240 | 185 | 145 | 118 | 8 – Ø19 | 19 | 3 | 12 |
| 80 | 260 | 200 | 160 | 132 | 8 – Ø19 | 19 | 3 | 15.5 |
| 100 | 300 | 220 | 180 | 156 | 8 – Ø19 | 19 | 3 | 23.5 |
| 125 | 350 | 250 | 210 | 184 | 8 – Ø19 | 19 | 3 | 29.5 |
| 150 | 400 | 285 | 240 | 211 | 8 – Ø23 | 19 | 3 | 45.5 |
| 200 | 500 | 340 | 295 | 266 | 12 – Ø23 | 20 | 3 | 72.5 |
| 250 | 600 | 405 | 355 | 319 | 12 – Ø28 | 22 | 3 | 120 |
| 300 | 700 | 455 | 410 | 370 | 12 – Ø28 | 24.5 | 4 | 195 |
Materials of ball check valves Elephant PN16-NBR without drain plug, body material - cast iron GGG50
Detailed sketch of ball check valves Elephant PN16-NBR without drain plug, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
| № | Part name | Material |
| 1 | Body | Cast iron GGG50 |
| 2 | Char | Cast iron GGG50 + NBR |
| 3 | Sealing | NBR |
| 4 | Cover | Cast iron GGG50 |
| 5 | Bolt | SS304 steel |
| 6 | Washer | SS304 steel |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Check valve type
