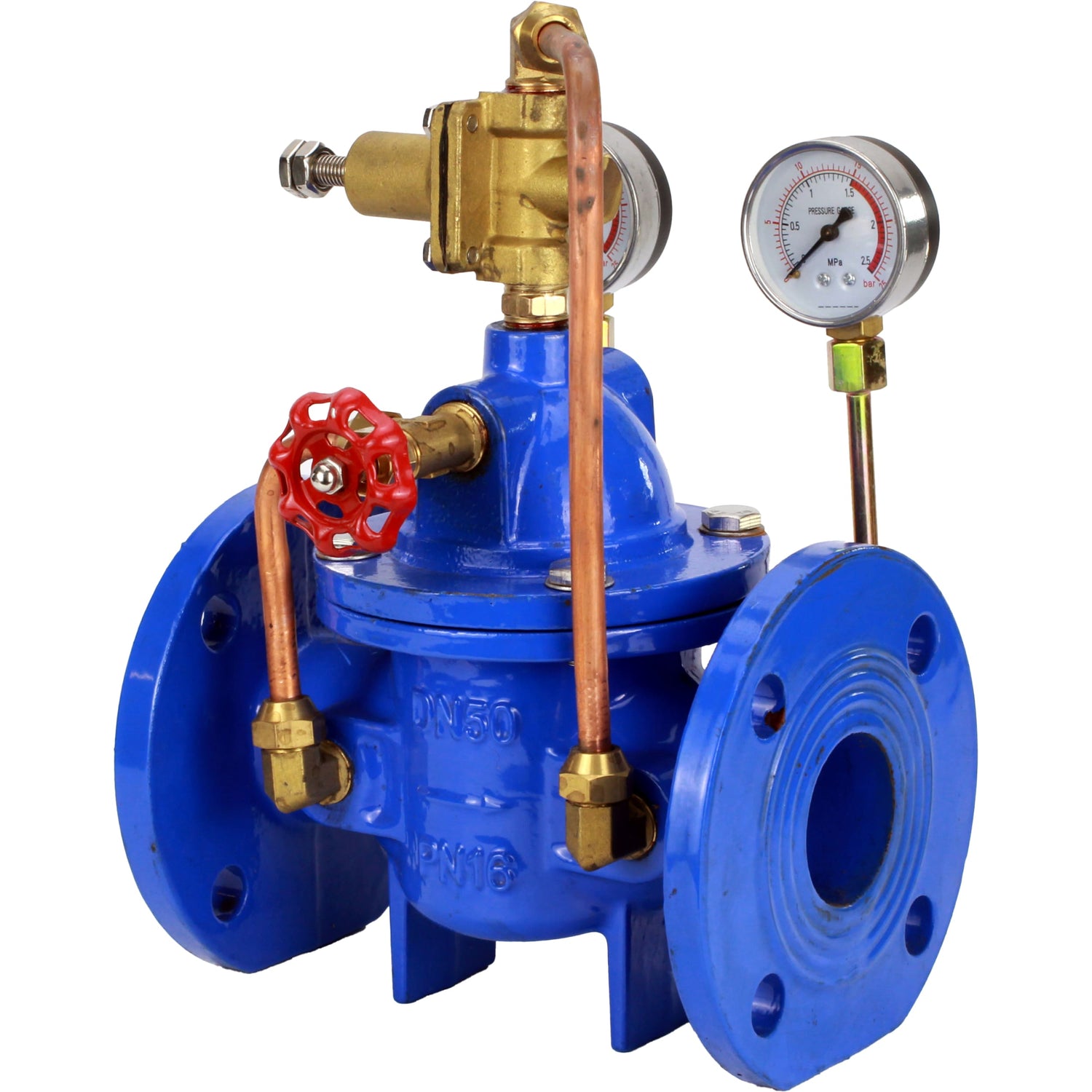

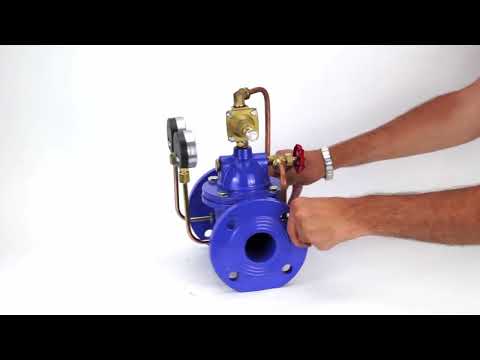

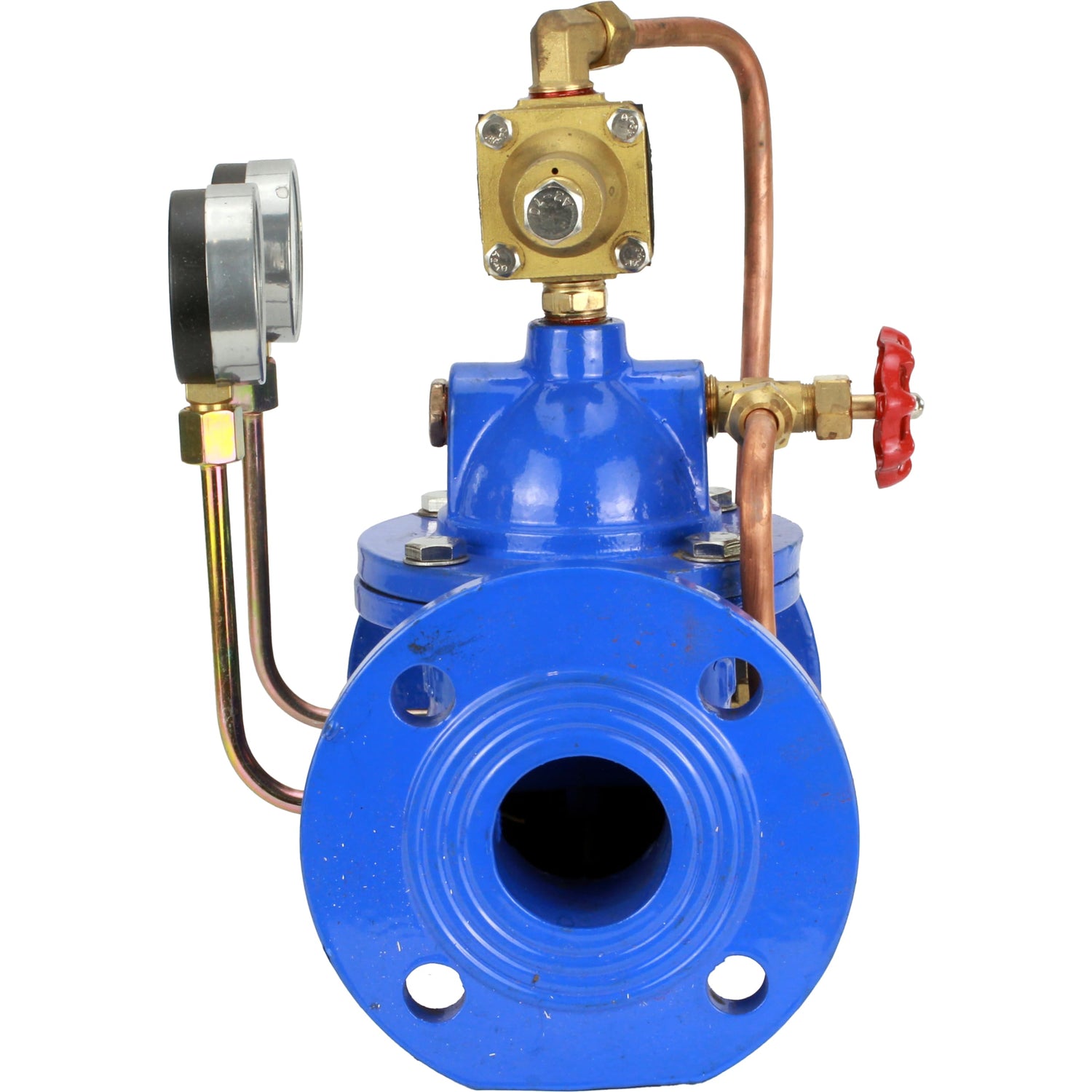

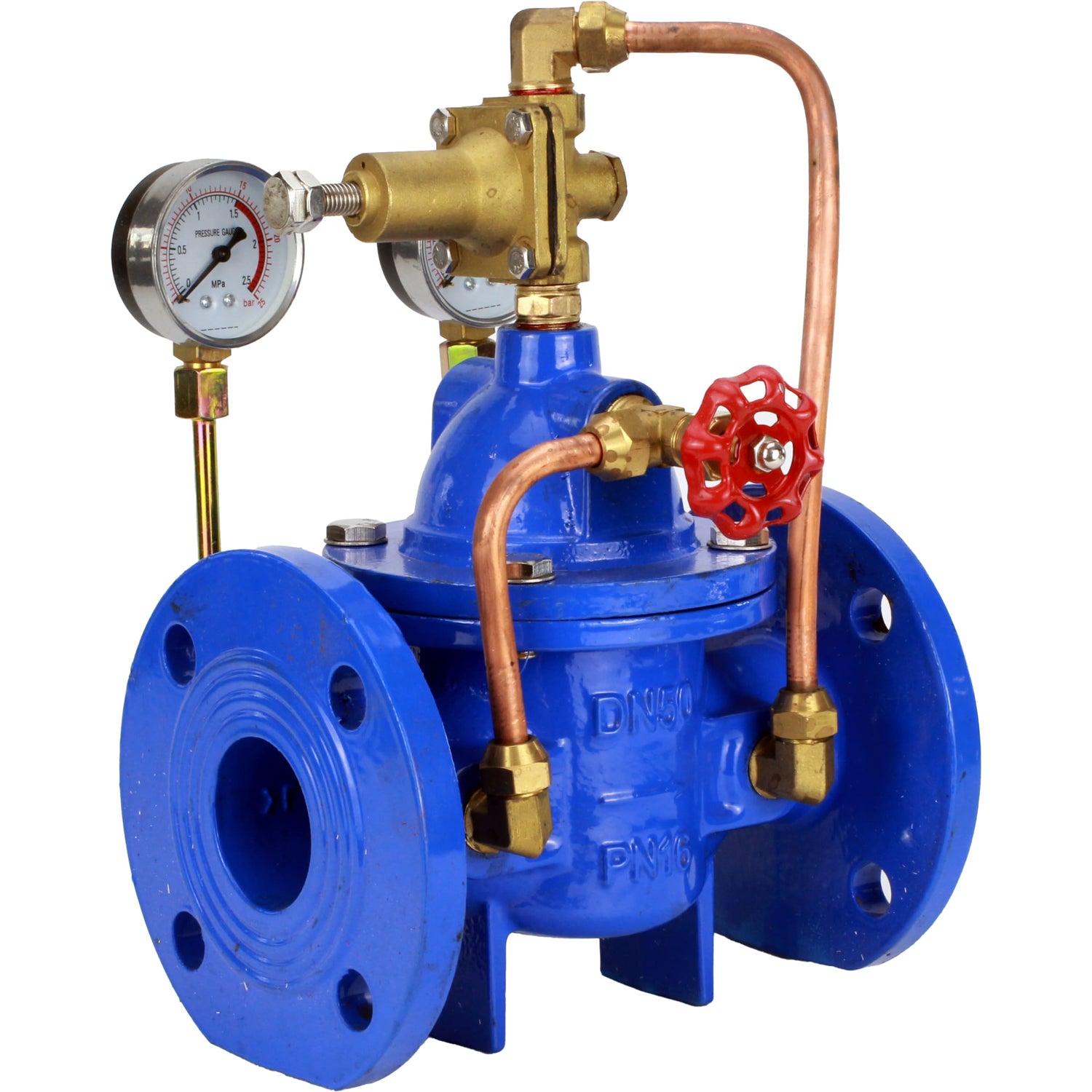

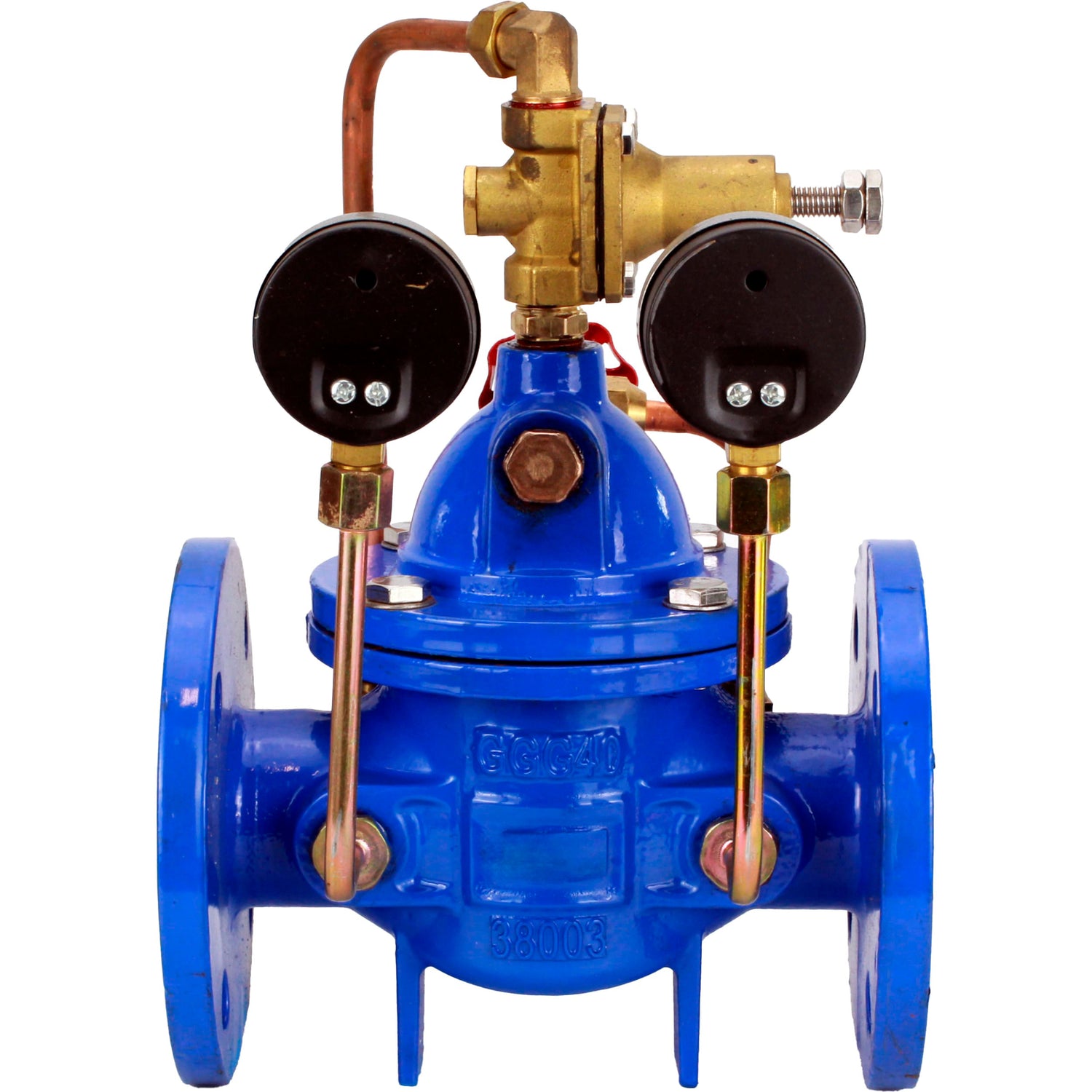

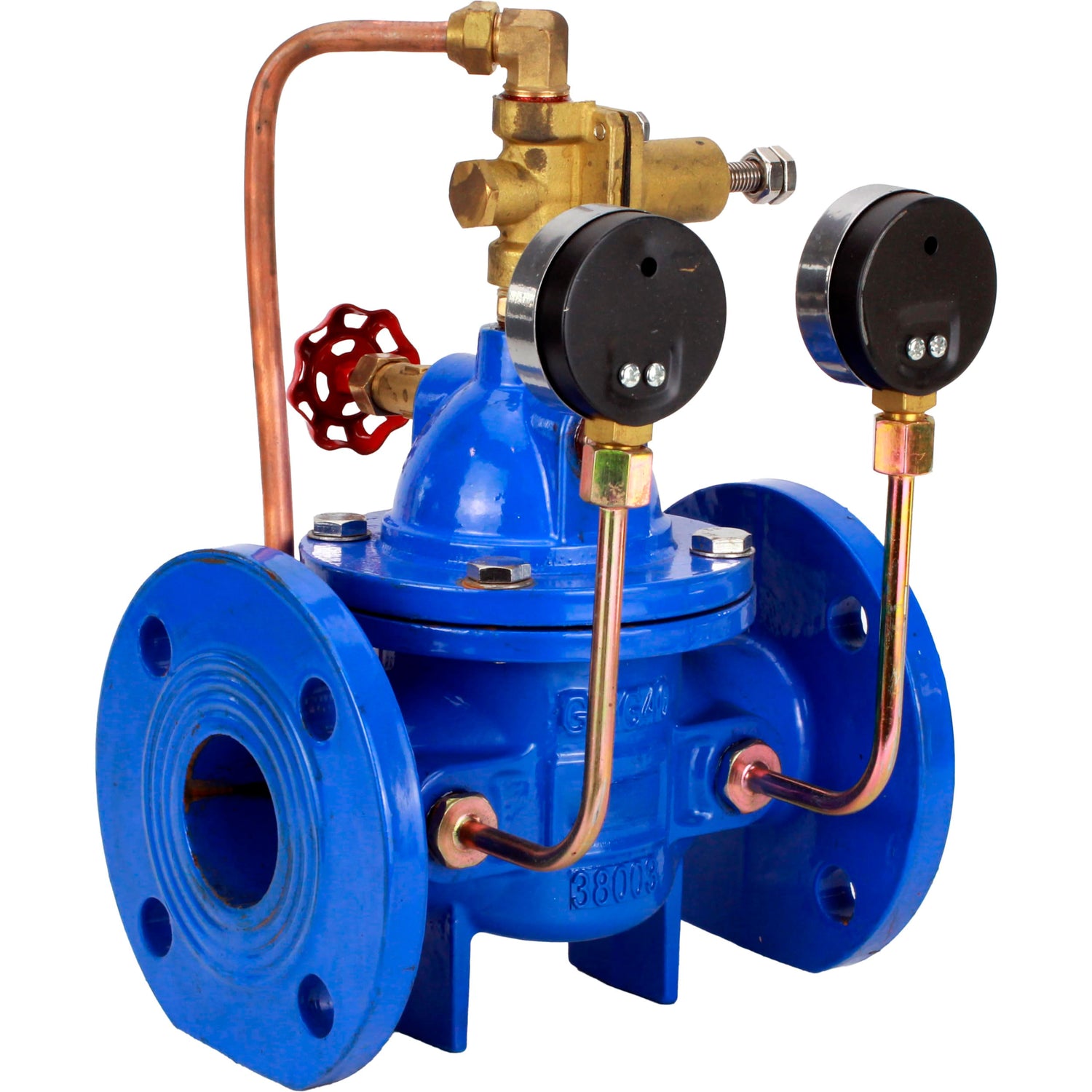

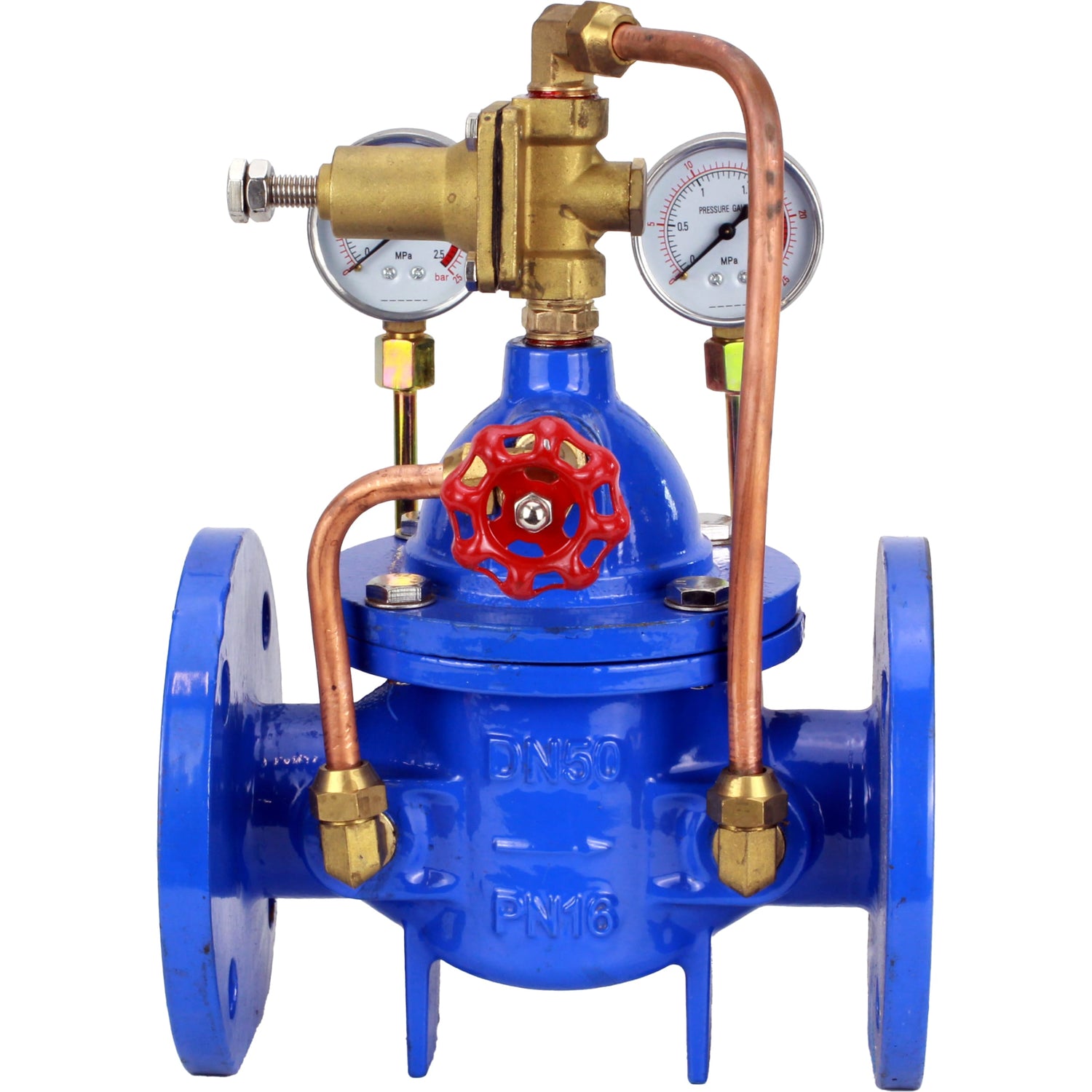

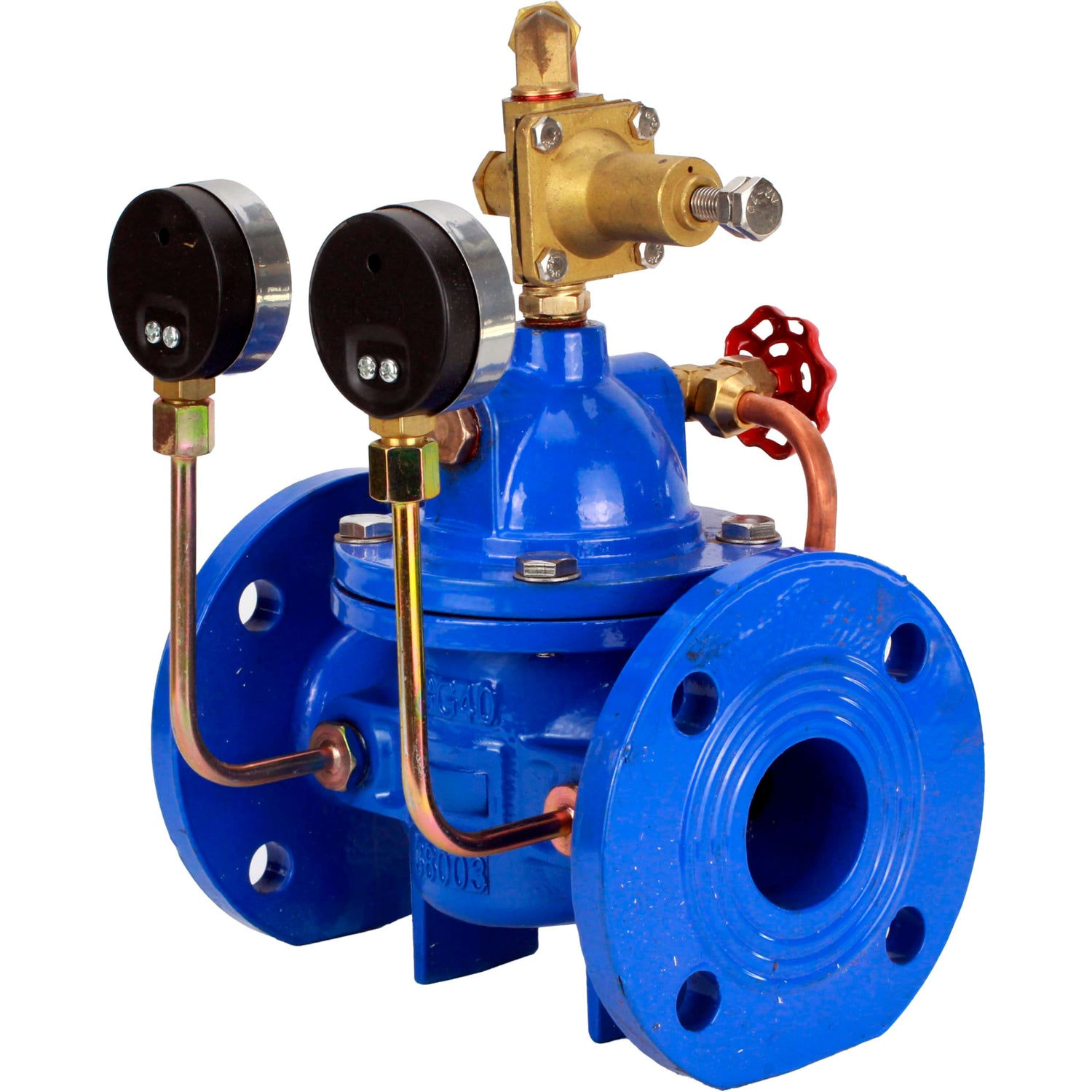

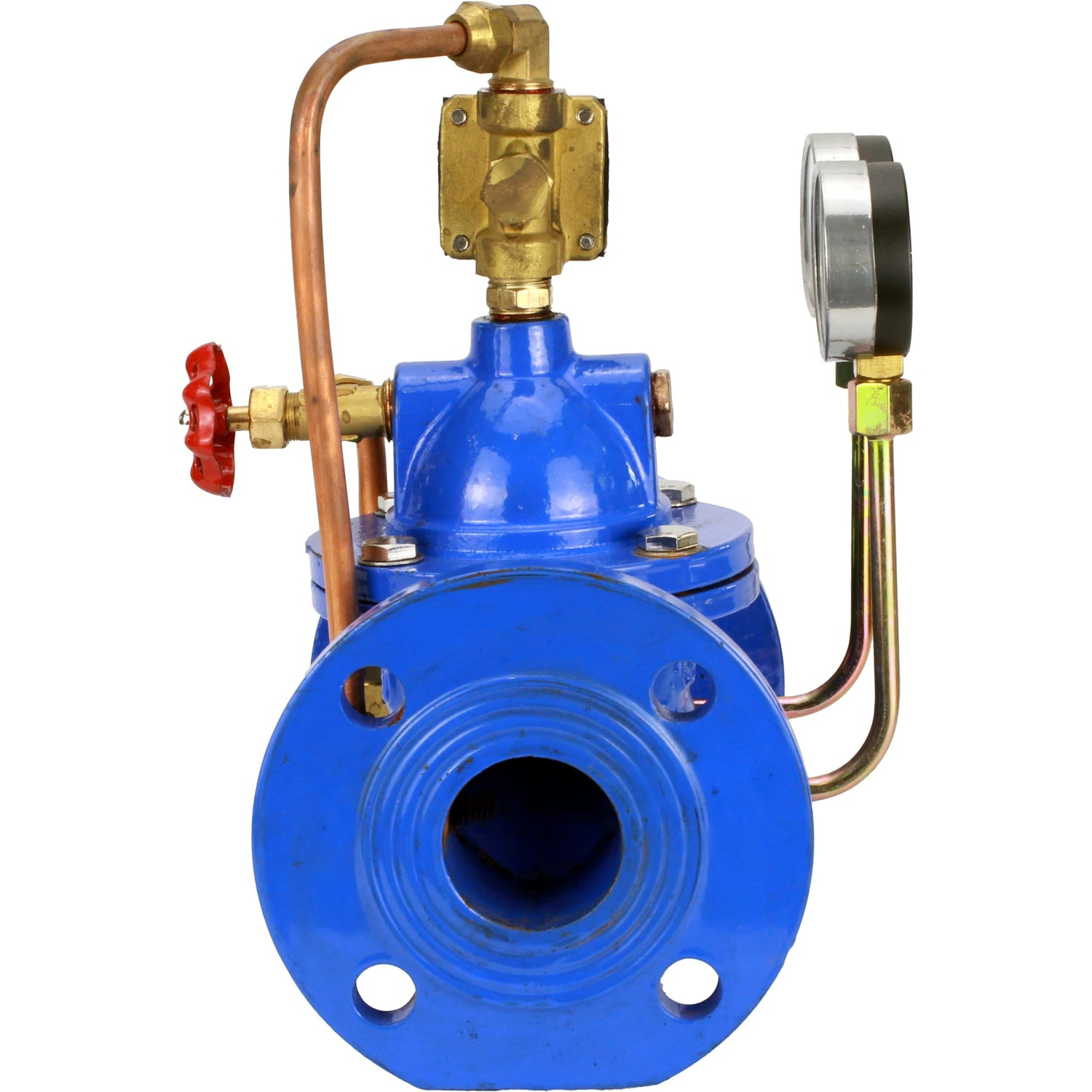

After-self regulators with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - reinforced natural rubber, flanged connection

€287,39
Tax included Shipping calculated at checkout.

After-self regulators with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - reinforced natural rubber, flanged connection - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The pilot-controlled diaphragm pressure regulator is designed to maintain a constant, pre-set pressure at the outlet (“downstream”), regardless of inlet pressure and flow fluctuations. The MPPP operates automatically from the pressure in the pipeline, without external energy sources.



Main technical data and characteristics

Parameter Value
Nominal Diameter DN, mm 50 ÷ 200
Nominal Pressure PN, bar 16
Setting Pressure, bar 0.5 ÷ 10
Working Temperature, °C -10 to +80
Working Medium Cold and hot water, steam, air
Flow Direction Arrow on the valve body
Sealing Class A
Pipeline Connection Flanged
Mounting Position Horizontal / Vertical
Body Material Cast iron GGG40
Disc Material Cast iron GGG40
Application Fields Heating, water and heat supply systems,
ventilation and air conditioning
Average Service Life, years 10
Completeness Main valve; Pilot valve;Impulse tubes; 2 manometers (unverified)





Dimensions and dimensions of regulators “after-self” with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - reinforced natural rubber, connection - flange connection

Model DN L H H1 D D1 n–Ød
DN50 50 190 265 200 165 125 4–Ø18
DN65 65 210 310 205 185 145 4–Ø18
DN80 80 240 350 245 200 165 8–Ø18
DN100 100 272 460 305 220 180 8–Ø18
DN150 150 325 570 415 285 240 8–Ø22
DN200 200 380 840 510 340 295 12–Ø22



Sketch of dimensions and dimensions of regulators “after-self” with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - reinforced natural rubber, flange connection





Table of parts and materials of regulators “after-self” with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - natural reinforced rubber, connection - flanged.

No. Part Name Material
1 Body Cast iron GGG40
2 Seat Stainless steel AISI 304
3 Stem Stainless steel AISI 304
4 Sealing Washer Cast iron GGG40
5 O-ring Seal NBR
6 O-ring Seal NBR
7 Disc Cast iron GGG40
8 Diaphragm Reinforced natural rubber
9 Diaphragm Washer Cast iron GGG40
10 Screw Bronze
11 Spring Stainless steel AISI 304
12 Cover Cast iron GGG40
13 Crane -
14 Pressure gauge -
15 Pilot valve bronze
16 Suspension ring stell
17 Pressure gauge -



Sketch of parts and materials of regulators “after-self” with pilot control Elephant PVA1-1313RR-F, diaphragm regulators, body - cast iron GGG40, disk - cast iron GGG40, seal - natural reinforced rubber, connection - flanged
