Spring loaded safety relief valves Elephant VR2130M-F full-lift, flang – Valve Elephant
Elephant  |  SKU: D120-01944

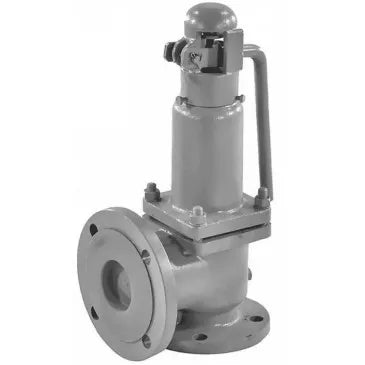

Spring loaded safety relief valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal

€587,42
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Spring safety valves are designed to discharge the working medium into the atmosphere or into the outlet pipeline when the set pressure of the working medium in the inlet pipeline is exceeded. These valves belong to direct acting safety valves. The direction of medium flow is under the spool. Exceeding the setting pressure causes compression of the valve spring and opening of the spool with medium discharge through the outlet pipe.





Technical characteristics of safety spring valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal

Characteristic Value
Valve Type Safety Valve
Nominal Pressure 16 bar
Operating Temperature -40°C to +300°C
Working Medium Water, Air, Steam
Application Water Supply, Steam Installations, Compressed Air Transportation, Heating Systems, Process Pipelines
Body Material Carbon Steel A216 Gr WCB/25L
Shut-off Element Material Steel 20X13
Seal Material Metal
Connection Type Flanged
Installation Method Vertical
Country of Manufacture China
Brand Elephant





Dimensions of safety spring valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal

mm Model
DN25 DN32 DN40 DN50 DN65 DN80 DN100
DN 25 32 40 50 65 80 100
DN1 40 50 65 80 100 100 150
D 115 135 145 160 180 195 215
D1 85 100 110 125 145 160 180
D2 68 78 88 102 122 133 158
D3 130 140 160 185 205 205 260
D4 100 110 130 150 170 170 225
D5 80 90 110 128 148 148 202
dc 16 16 20 25 33 40 48
L 100 105 115 130 140 150 160
L1 70 75 85 90 120 135 200
H 385 390 395 420 510 530 620
dc 16 16 20 25 33 40 48
n–Ød 4–14 4–18 4–18 4–18 4–18 8–18 8–22
n1–Ød1 4–14 4–14 4–14 4–18 4–18 4–18 8–18

Dimensional sketch of safety spring valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal





Details of safety spring valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal

№ Part Name
1 Body
2 Cover
3 Cap
4 Seat
5 Disc
6 Disc Holder
7 Guide Bushing
8 Gasket
9 Adjustment Ring
10 Gasket
11 Lock Bolt
12 Gasket
13 Ball
14 Stem
15 Adjustment Screw
16 Nut
17 Support
18 Spring
19 Lever
20 Shaft
21 Washer
22 Bolt
23 Nut
24 Washer
25 Stud
26 Cotter Pin
27 Nut
28 Seal
29 Washer

Detail sketch of spring loaded safety relief valves Elephant VR2130M-F full-lift, flanged, body - steel 25L, disc - steel 20X13, seal - metal

Specifications
  • Country of origin
    China
  • Body material
    Carbon steel A216 Gr WCB
  • Connection type
    Flanged
  • Operating environment
    Water, Air, Steam
  • Applications
    Water supply, Steam plants, Compressed air transport, Heating systems, Process pipework
  • Nominal pressure
    16 bar
  • Type of seal
    METAL
  • Disc material
    Steel AISI 420

Reviews (0)

Documentation
nullsafety spring safety valve ELEPHANT VR2130M-F DN25-100 16 bar full-lift steel

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D120-01944DN25 0.6-116 bar €587,42 Sold out
    D120-01945DN32 0.6-116 bar €605,22 Sold out
    D120-01946DN40 0.6-116 bar €694,22 Sold out
    D120-01947DN50 0.6-116 bar €890,03 Sold out
    D120-01948DN65 0.6-116 bar €1.228,24 Sold out
    D120-01949DN80 0.6-116 bar €1.326,15 Sold out
    D120-01950DN100 0.6-116 bar €2.153,87 Sold out
    D120-01951DN25 1-1.616 bar €587,42 Sold out
    D120-01952DN32 1-1.616 bar €605,22 Sold out
    D120-01953DN40 1-1.616 bar €694,22 Sold out
    D120-01954DN50 1-1.616 bar €890,03 Sold out
    D120-01955DN65 1-1.616 bar €1.228,24 Sold out
    D120-01956DN80 1-1.616 bar €1.326,15 Sold out
    D120-01957DN100 1-1.616 bar €2.153,87 Sold out
    D120-01958DN25 1.6-2.516 bar €587,42 Sold out
    D120-01959DN32 1.6-2.516 bar €605,22 Sold out
    D120-01960DN40 1.6-2.516 bar €694,22 Sold out
    D120-01961DN50 1.6-2.516 bar €890,03 Sold out
    D120-01962DN65 1.6-2.516 bar €1.228,24 Sold out
    D120-01963DN80 1.6-2.516 bar €1.326,15 Sold out
    D120-01964DN100 1.6-2.516 bar €2.153,87 Sold out
    D120-01965DN25 2.4-416 bar €587,42 Sold out
    D120-01966DN32 2.4-416 bar €605,22 Sold out
    D120-01967DN40 2.4-416 bar €694,22 Sold out
    D120-01968DN50 2.4-416 bar €890,03 Sold out
    D120-01969DN65 2.4-416 bar €1.228,24 Sold out
    D120-01970DN80 2.4-416 bar €1.326,15 Sold out
    D120-01971DN100 2.4-416 bar €2.153,87 Sold out
    D120-01972DN25 4-816 bar €587,42 Sold out
    D120-01973DN32 4-816 bar €605,22 Sold out
    D120-01974DN40 4-816 bar €694,22 Sold out
    D120-01975DN50 4-816 bar €890,03 Sold out
    D120-01976DN65 4-816 bar €1.228,24 Sold out
    D120-01977DN80 4-816 bar €1.326,15 Sold out
    D120-01978DN100 4-816 bar €2.153,87 Sold out
    D120-01979DN25 8-1016 bar €587,42 Sold out
    D120-01980DN32 8-1016 bar €605,22 Sold out
    D120-01981DN40 8-1016 bar €694,22 Sold out
    D120-01982DN50 8-1016 bar €890,03 Sold out
    D120-01983DN65 8-1016 bar €1.228,24 Sold out
    D120-01984DN80 8-1016 bar €1.326,15 Sold out
    D120-01985DN100 8-1016 bar €2.153,87 Sold out
    D120-01986DN25 10-1316 bar €587,42 Sold out
    D120-01987DN32 10-1316 bar €605,22 Sold out
    D120-01988DN40 10-1316 bar €694,22 Sold out
    D120-01989DN50 10-1316 bar €890,03 Sold out
    D120-01990DN65 10-1316 bar €1.228,24 Sold out
    D120-01991DN80 10-1316 bar €1.326,15 Sold out
    D120-01992DN100 10-1316 bar €2.153,87 Sold out
    D120-01993DN25 13-1616 bar €587,42 Sold out
    D120-01994DN32 13-1616 bar €605,22 Sold out
    D120-01995DN40 13-1616 bar €694,22 Sold out
    D120-01996DN50 13-1616 bar €890,03 Sold out
    D120-01997DN65 13-1616 bar €1.228,24 Sold out
    D120-01998DN80 13-1616 bar €1.326,15 Sold out
    D120-01999DN100 13-1616 bar €2.153,87 Sold out
