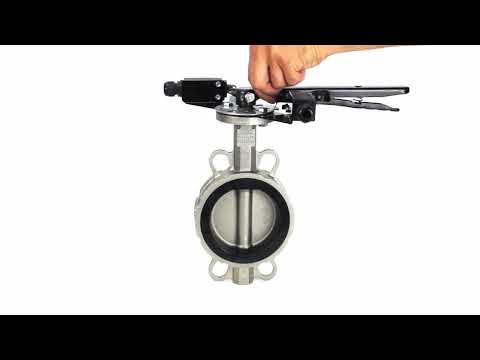

Water butterfly valve Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches
Water butterfly valve Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Butterfly valve Elephant is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should only be installed between collar flanges.
General parameters of Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:
|
Range of sizes DN, mm |
40-150 |
|
Nominal pressure PN, bar |
16 |
|
Flow direction |
Two-way |
|
Ambient temperature t, °C |
From -20 to +200 |
|
Connection to pipeline |
Interflange |
Dimensions of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:
| DN | H1, mm | H2, mm | H3, mm | Dm, mm | Dk, mm | L, mm | ØC, mm |
| DN40/50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN65 | 72 | 133 | 25 | 85 | 103 | 46 | 145 |
| DN80 | 91 | 142 | 25 | 100 | 116 | 46 | 160 |
| DN100 | 107 | 165 | 25 | 131 | 151 | 52 | 180 |
| DN125 | 121 | 183 | 25 | 155 | 174 | 56 | 210 |
| DN150 | 134 | 195 | 25 | 184 | 205 | 56 | 240 |
| DN200 | 171 | 236 | 35 | 234 | 255 | 60 | 295 |
| DN250 | 197 | 276 | 35 | 288 | 315 | 68 | 355 |
| DN300 | 240 | 315 | 35 | 340 | 375 | 78 | 410 |
Table of parts and materials of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
Sketch of specification water Butterfly Valve Elephant
Hydraulic tests of the housing are carried out with a pressure 1.5 times the working pressure.
Hydraulic tests of the packing gland and seat seal are carried out with pressure exceeding the working pressure by 1.1 times.
