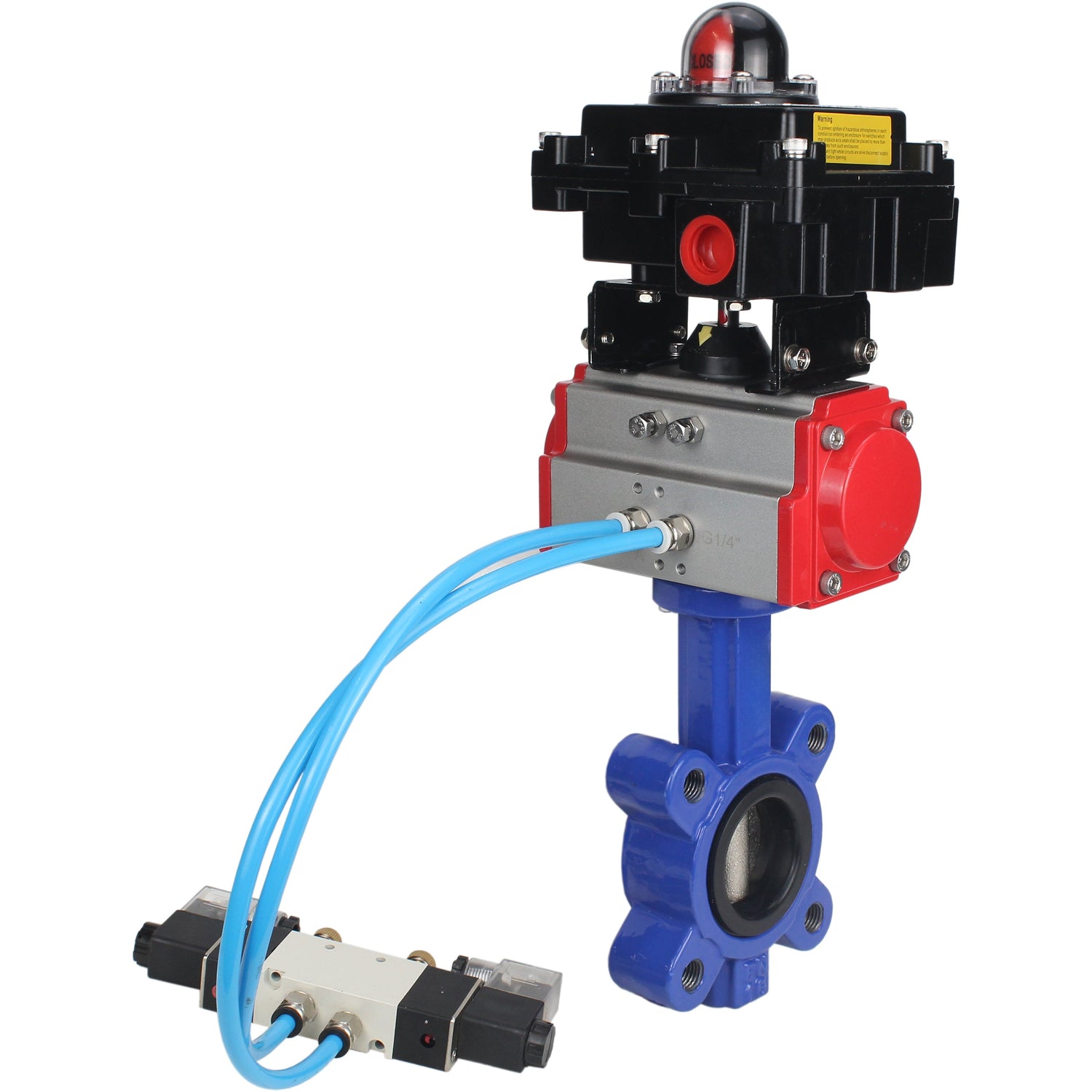

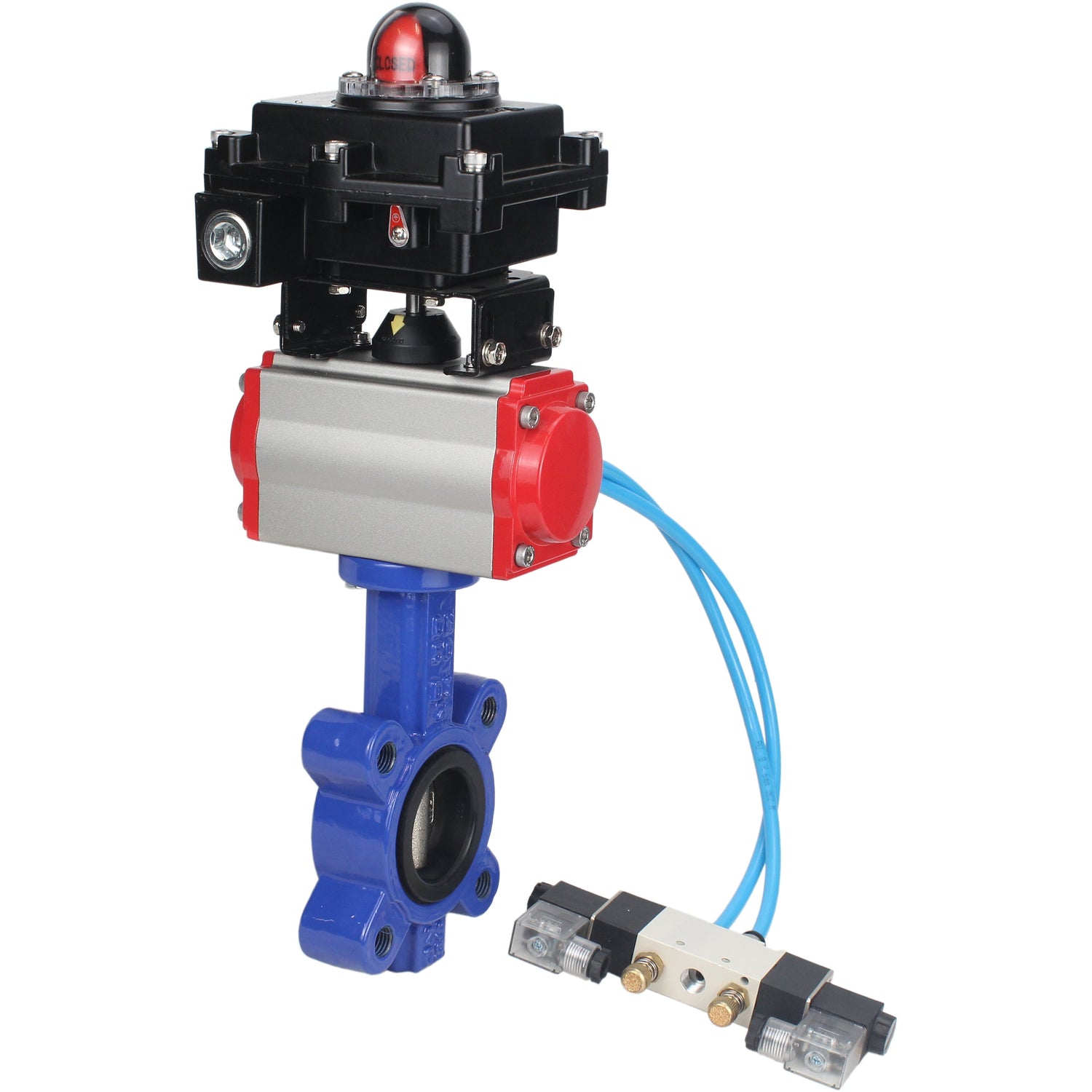

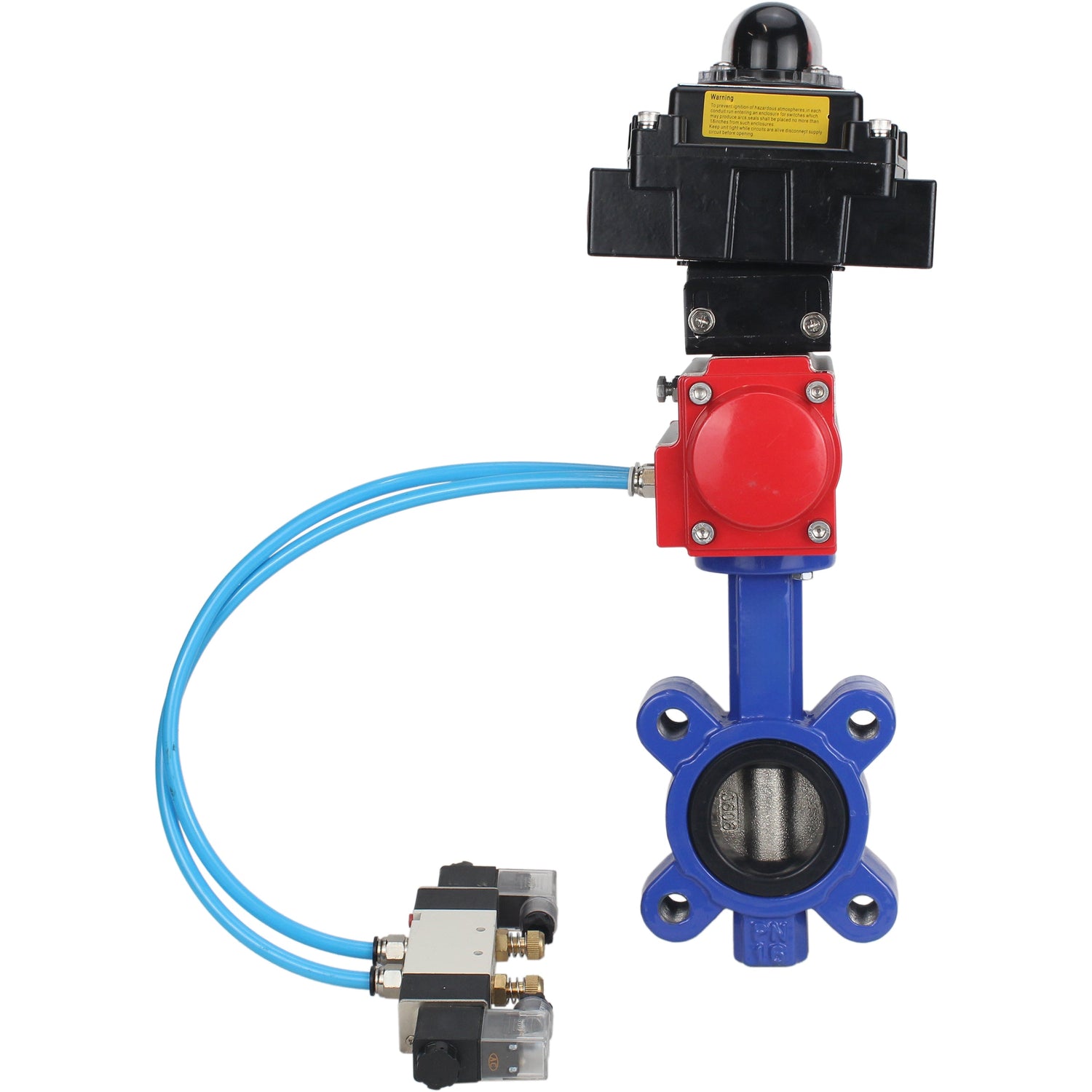

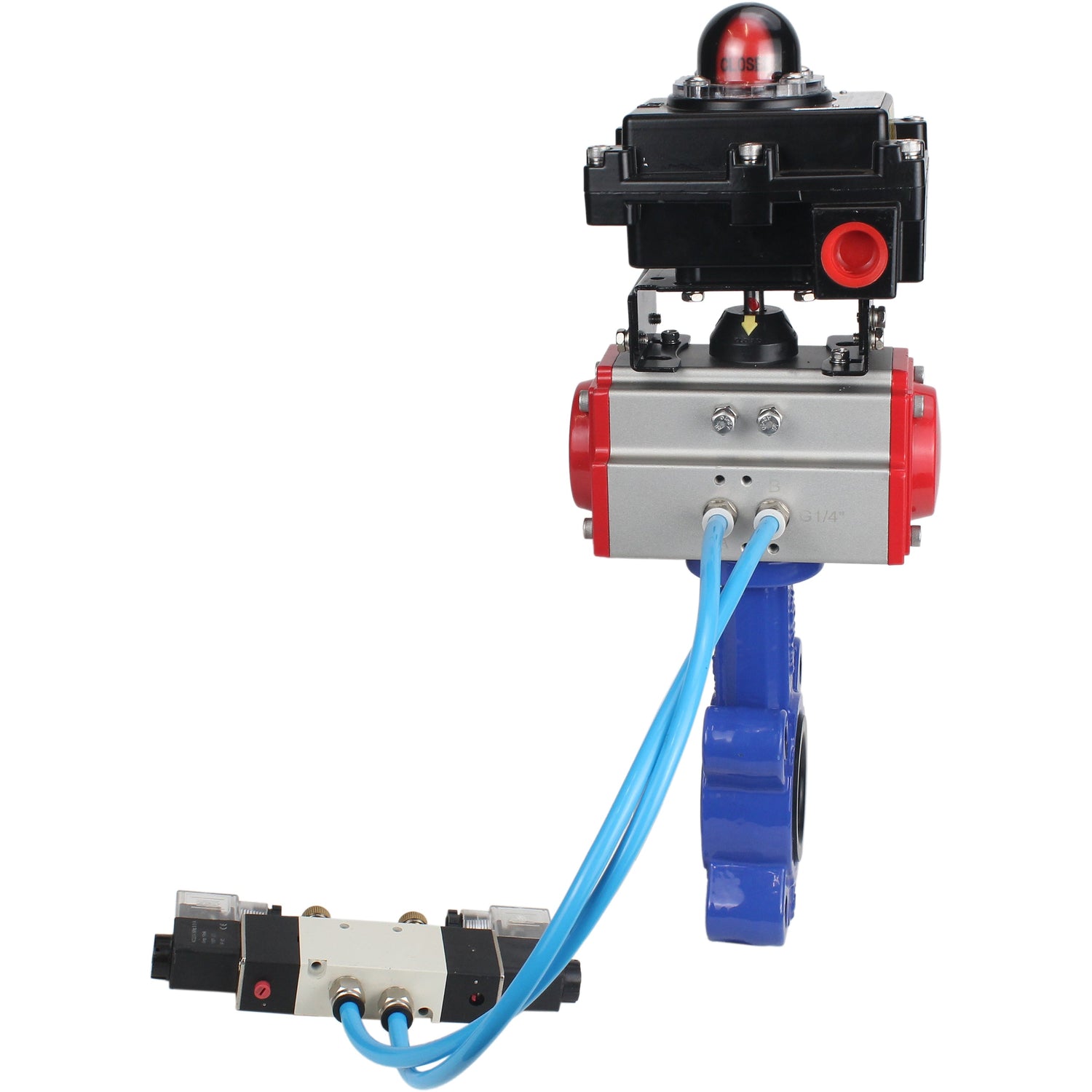

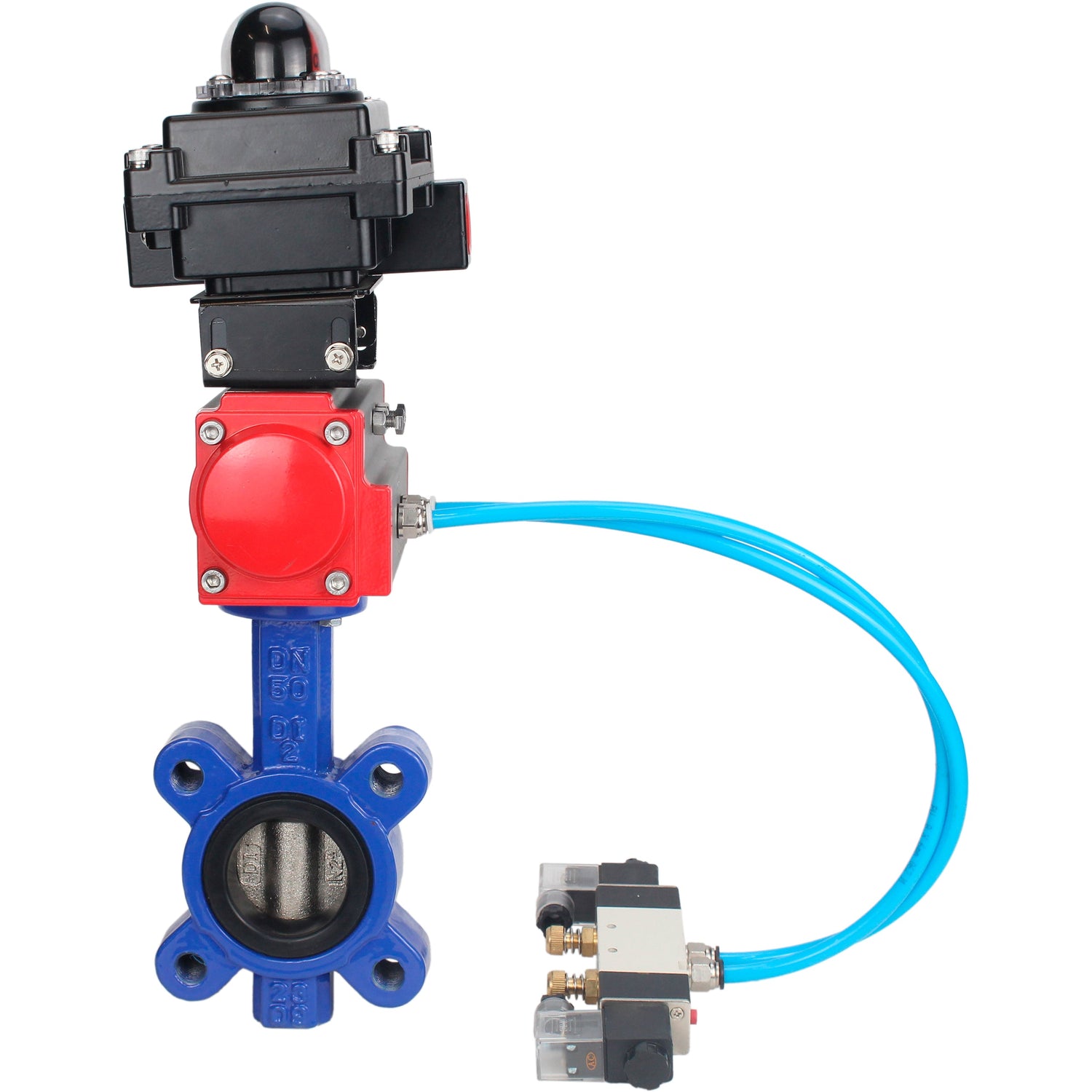

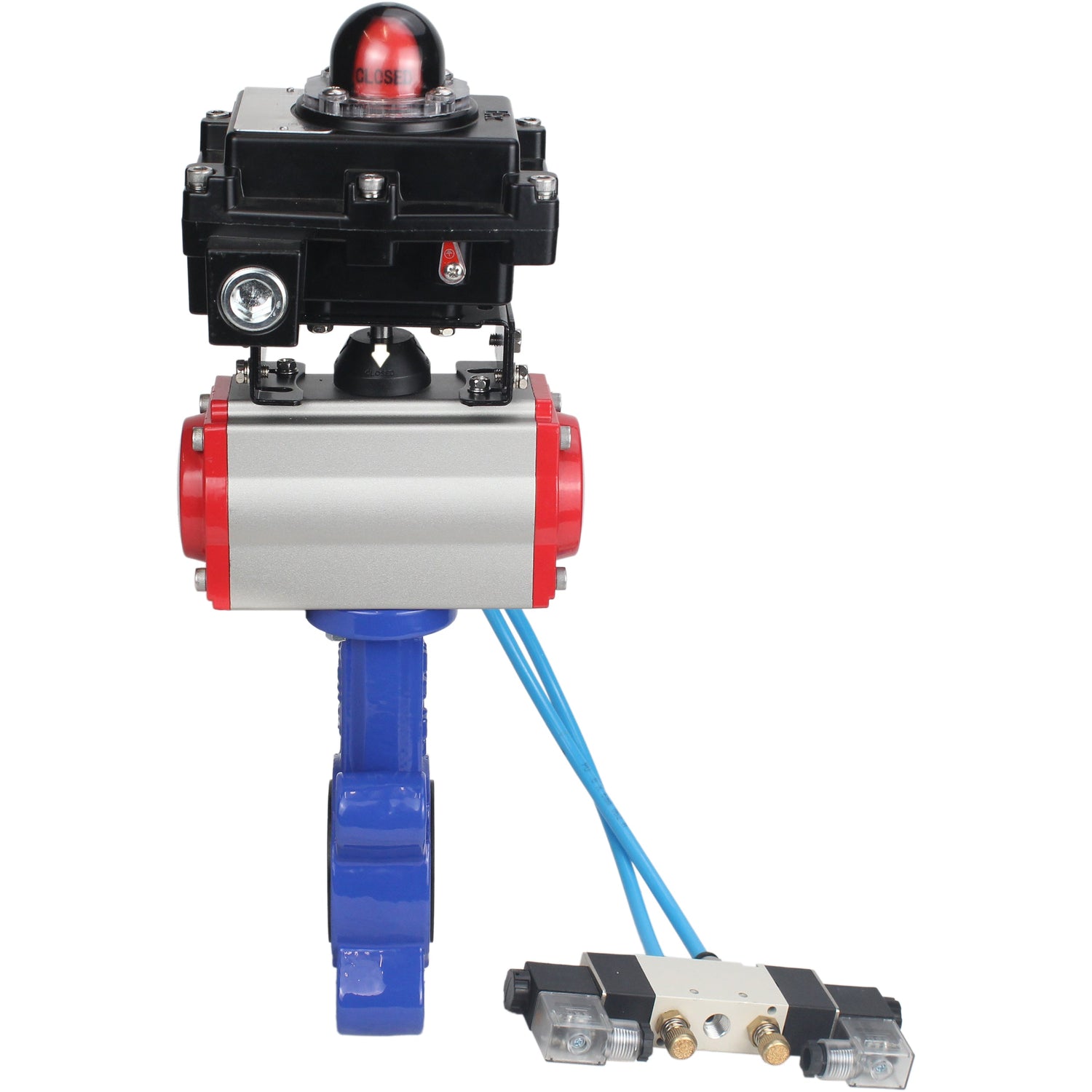

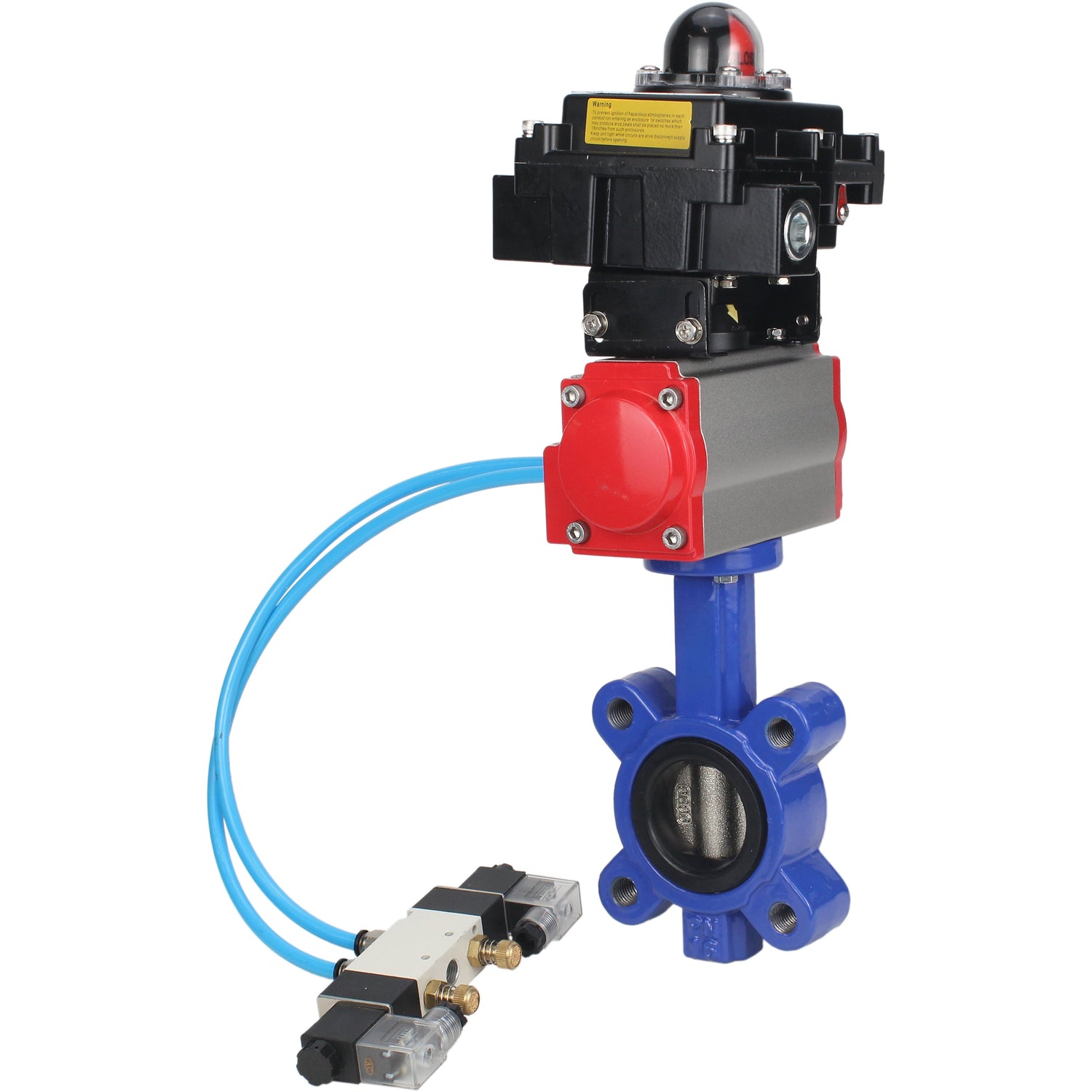

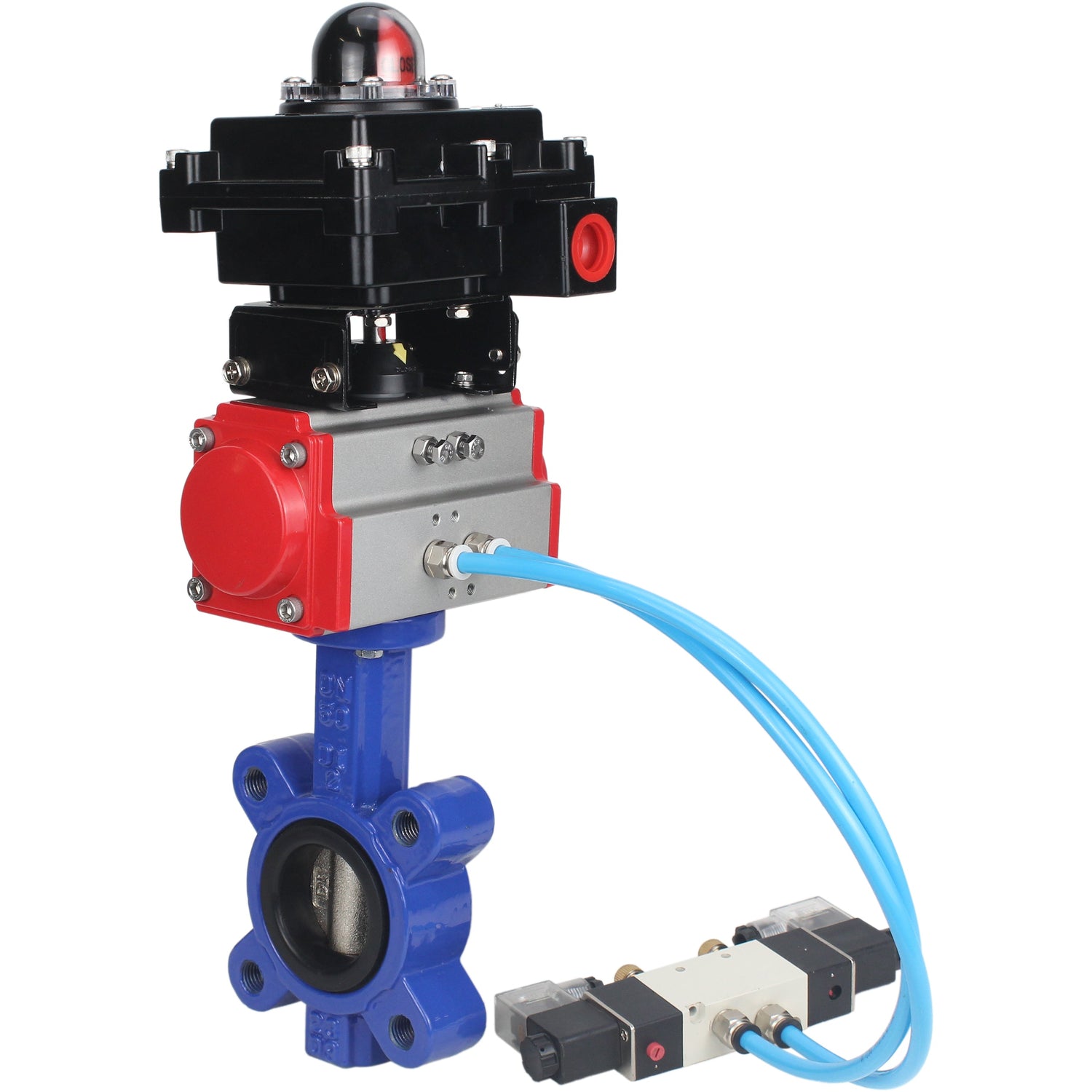

Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX

€348,34
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA double-acting pneumatic rotary actuators are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

Limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.





Technical parameters of Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

Nominal diameter DN, mm 50-150
Nominal pressure PN, bar 16
Working medium temperature t, ⁰C NBR - -10 to +90
EPDM - -20 to +150
Working medium NBR - water, mineral oils,
hydrocarbons, oils, fats
EPDM - cold and hot water, air without oil and grease impurities, other media.
oil and grease impurities, other environments
material neutral
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron QT450
Disk material cast iron QT450 / stainless steel 304
Seal material NBR / EPDM
Service life, years 10

Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX





Dimensions and dimensions of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

DN A, mm B, mm C, mm D, mm

N-M
(threaded holes)

 H, mm Square
rod		 ISO
5211		 Weight, kg
50 72,5 130,5 43 125 4-М16 220 9х9 F05 3,8
65 77,5 146,5 46 145 4-М16 220 9х9 F05 4,2
80 92 156 46 160 8-М16 220 9х9 F05 4,7
100 109 168,5 52 180 8-М16 260 11х11 F07 9,0
125 127 190,5 56 210 8-М16 260 14х14 F07 10,9
150 141 213,5 56 240 8-М20 260 14х14 F07 14,2
Sketch Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX





Materials of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX:

№ Details Material
1 Body cast iron QT450
2 Disk cast iron QT450
3 Seat seal NBR
4 Rod stainless steel SS 316

Sketch of parts and materials Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N EX





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX





Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8


Sketch of dimensions and dimensions of limit switch unit APL-410N EX

Specifications
  • Country of origin
    China
  • Body material
    cast iron QT450
  • Maximum allowable temperature
    90 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    cast iron QT450
  • Explosion-proof
    Yes
  • Torque
    24.2 Nm
  • Manual override
    No
  • Limit switches
    Yes
  • Feedback sensor
    Limit switches
  • Control signal
    ON/OFF
  • Supply voltage
    220 V
  • Type of pneumatic actuator
    double action
  • Angle of rotation
    90°
