Quarter-turn electric actuator Elephant 005-060 24V
Quarter-turn electric actuator Elephant 005-060 24V - 50 Nm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Quarter-turn electric actuator Elephant 005-060 24V is designed for remote and local control of valves. It is widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -4…+158°F. The housing has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Mounting dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with a squirrel-cage induction motor, automatic position locking of the electric drive, mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent duty S2. Actuator stroke 90° with adjustment range ±10°. Restriction of the course of the electric drive - trailer switches. Power is supplied by a constant voltage of 24 V.
Overall and installation dimensions of the actuator Elephant 005-060 24V
Dimensional sketch of the actuator Elephant 005-060 24V
Model | L | H | A |
QT-003 | 140 | 118 | 109 |
QT-005 | 166 | 122 | 118 |
QT-008 | 200 | 128 | 133 |
QT-010 | 200 | 128 | 133 |
QT-015 | 200 | 128 | 133 |
QT-020 | 269 | 155 | 174 |
QT-030 | 269 | 155 | 174 |
QT-040 | 269 | 155 | 174 |
QT-060 | 269 | 155 | 174 |
QT-080 | 268 | 212 | 164 |
QT-100 | 309 | 178 | 200 |
QT-200 | 309 | 178 | 200 |
Drive design Elephant 005-060 24V

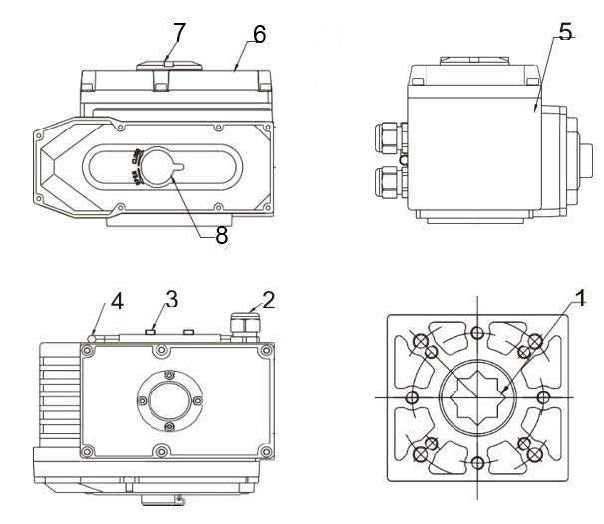

Drive detail sketch Elephant 005-060 24V
№ | Part name |
1 | output shaft |
2 | cable lock |
3 | mechanical stop |
4 | hand wrench |
5 | body |
6 | cover |
7 | viewing window |
8 | dust protection |
Specifications
Specifications
-
Country of origin
-
Actuator cycle time
-
Explosion-proof
-
Thermal protection
-
Type of electric actuator
-
Feedback sensor
-
Control signal
-
Shaft shape rod
-
Shaft shape square
-
ISO - flange type
-
Rated current consumption
-
Power consumption
-
Supply voltage
