Introduction
In industrial systems, ensuring unidirectional fluid flow is paramount to maintaining operational efficiency and preventing equipment damage. Check valves, also known as non-return valves, play a crucial role in this aspect by allowing fluid to flow in one direction while preventing backflow. Selecting the appropriate check valve involves understanding various factors, including the application's requirements, fluid characteristics, and system dynamics.
This guide delves into the critical considerations for choosing the right check valve for your industrial system.
1. Understanding Check Valves
1.1 What is a Check Valve?

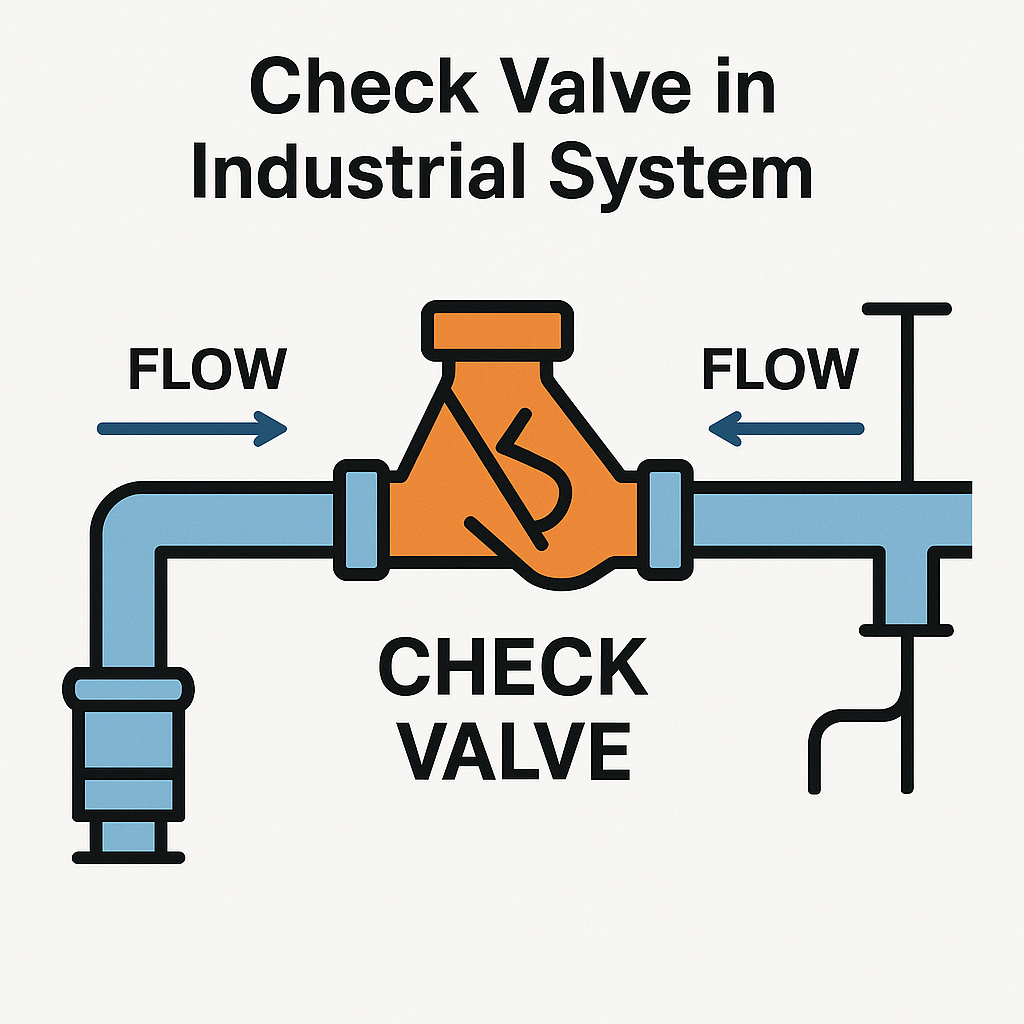

A check valve is a mechanical device that permits fluid flow in one direction and automatically prevents backflow when the fluid in the line reverses direction. They are essential in preventing issues such as water hammer, contamination, and equipment damage.
1.2 Common Types of Check Valves
- Swing Check Valves: Feature a hinged disc that swings open with forward flow and closes against reverse flow. Suitable for low-velocity applications.
- Lift Check Valves: Utilize a disc that lifts off the seat to allow flow and returns to the seat when flow ceases. Ideal for high-velocity systems.
- Ball Check Valves: Employ a ball that moves within a chamber to block reverse flow. Common in low-pressure applications.
- Piston Check Valves: Use a piston mechanism to control flow, offering tight sealing capabilities. Suitable for high-pressure systems.
- Spring-Loaded Check Valves: Incorporate a spring to assist in closing the valve quickly, reducing the risk of water hammer.
Table 1: Comparison of Check Valve Types
| Valve Type | Suitable Applications | Advantages | Limitations | Installation Orientation | Product Example |
|---|---|---|---|---|---|
| Swing Check Valve | Water systems, low-velocity flows | Simple design, low cost | Not suitable for vertical installations | Horizontal | Elephant 302A |
| Lift Check Valve | High-pressure systems, clean fluids | Good sealing, compact size | Requires clean fluids to prevent blockage | Horizontal or Vertical | Elephant 287A |
| Ball Check Valve | Viscous fluids, wastewater systems | Self-cleaning, minimal maintenance | Less precise sealing compared to other types | Any | Elephant VCB1433N-T |
| Spring Check Valve | Systems with pulsating flow, gas lines | Fast closing, reduces water hammer | Slight pressure drop due to spring resistance | Any | Elephant VCS3232P-T |
| Piston Check Valve | High-pressure, high-temperature applications | Excellent sealing, durable construction | Higher cost, complex design | Any | Elephant VCS3232-Fb |
2. Key Factors in Selecting a Check Valve
2.1 Fluid Characteristics
Understanding the fluid's properties is essential:
-
Viscosity: Thicker fluids may require valves with larger passages.
-
Corrosiveness: Aggressive fluids necessitate corrosion-resistant materials like stainless steel.
-
Temperature: High-temperature fluids demand valves constructed from materials that can withstand thermal stress.
2.2 Pressure and Flow Conditions
-
Operating Pressure: Ensure the valve can handle the system's maximum pressure.
-
Cracking Pressure: The minimum upstream pressure at which the valve opens. Select a valve with an appropriate cracking pressure for your application.
-
Flow Rate: Valves should accommodate the system's flow rate without causing significant pressure drops.
2.3 Installation Orientation
Some check valves are designed for horizontal installation, while others can be installed vertically. Ensure compatibility with your system's layout.
2.4 Maintenance and Reliability
Consider valves that are easy to maintain and have a proven track record of reliability to minimize downtime and maintenance costs.
3. Application-Specific Considerations
3.1 Water and Wastewater Treatment
In these systems, swing check valves are commonly used due to their simplicity and effectiveness in preventing backflow.
3.2 Chemical Processing
For handling corrosive chemicals, valves made from materials like stainless steel or those with special coatings are preferred.
3.3 Oil and Gas Industry
High-pressure and high-temperature conditions require robust valves, such as piston or spring-loaded check valves, designed for such demanding environments.
3.4 Food and Beverage Industry
Sanitary check valves that are easy to clean and made from food-grade materials are essential to prevent contamination.
Table 2: Application-Based Valve Recommendations
| Industry/Application | Recommended Valve Type | Material Recommendation | Product Example |
|---|---|---|---|
| Water Supply Systems | Swing or Spring Check Valve | Brass or Stainless Steel | Elephant 302A |
| Chemical Processing | Spring or Piston Check Valve | Stainless Steel 316 | Elephant VCS3232-Fb |
| Food & Beverage Industry | Lift or Sanitary Spring Valve | Stainless Steel (Food-grade) | Elephant VCS3232P-T |
| Oil & Gas Industry | Piston or Lift Check Valve | Stainless Steel or Alloy | Elephant VCS3232-Fb |
| HVAC & Boiler Systems | Spring Check Valve | Brass or Bronze | Elephant 287A |
4. Product Recommendations
Based on the considerations above, here are some check valves suitable for various industrial applications:
4.1 Spring Check Valve Elephant VCS3232P-T
- Material: Stainless Steel AISI 316
- Seal: PTFE
- Connection: Threaded NPT/BSP
- Pressure Rating: 16 bar
- Sizes Available: DN15 to DN50
5. Conclusion
Selecting the right check valve is crucial for the efficiency and safety of industrial systems. By understanding the specific requirements of your application and the characteristics of different valve types, you can make an informed decision that ensures optimal performance and longevity.
