Water Butterfly Valve Elephant WBV3434Pf-2W-Fb-H, body material - Carb
Elephant  |  SKU: D050-53488

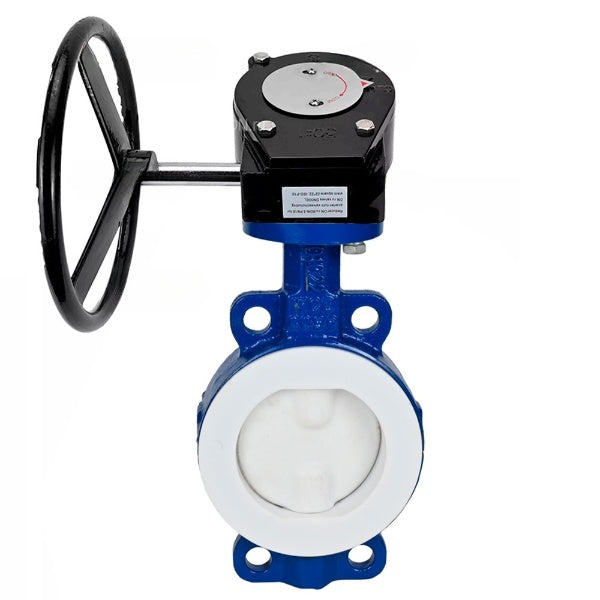

Water Butterfly Valve Elephant WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE, coated PTFE, gearbox RDN RQN

€586,69
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise. A special feature of the valves of this series is the complete coating of the flow part and the disk with PTFE material, which eliminates contact of the working medium with the materials of the main parts.
The Elephant RDN reducer allows you to manually set the required positioning of the shut-off element by a quarter of a turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn drives.

A distinctive feature of this series of valves is that the flow path and disc are completely coated with PTFE, which prevents the working medium from coming into contact with the materials of the main components.



Technical characteristics of butterfly valves Elephant WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:

Characteristic Meaning
Shutter type rotary disc
Diameter 50-250 mm
Nominal pressure 16 bar
Working environment temperature from -10 to +150°C
Application water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry
Connection type interflange
Control type Manual (handle, gearbox)
Sealing class A
Service life 10 years
Guarantee 12 months





Reducers Elephant RDN RQN




Technical characteristics of Elephant RDN RQN gearboxes:

Characteristic Meaning
Working environment temperature from -40 to +120 °C
Application water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry
Connection type ISO 5211





Sketch of dimensions of butterfly valves Elephant WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE





Overall and installation dimensions of butterfly valves Elephant WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:

Diameter L, mm D1, mm D2, mm Z-Ød, mm H1, mm
DN50 43 125 100 2-Ø18 80
DN65 46 145 120 2-Ø18 90
DN80 46 160 135 4-Ø18 100
DN100 52 180 155 4-Ø18 110
DN125 56 210 185 4-Ø18 120
DN150 56 240 210 4-Ø18 150
DN200 60 295 265 4-Ø18 170
DN250 68 355 320 4-Ø18 190
DN300 78 410 375 4-Ø18 230





Sketch of the dimensions of the gearboxes Elephant RDN RQN




Overall and installation dimensions of Elephant RDN RQN gearboxes:

Model A, mm B, mm ØC, mm D, mm J, mm G, mm T, mm ØF, mm 4M, mm HxH, mm
RDN-1 170 130 160 100 45 120 50 50 4-M8 9x9
RDN-2 170 130 160 100 45 120 50 50 4-M8 11x11
RDN-3 170 130 160 100 45 120 50 50 4-M8 14x14
RDN-4 240 160 260 130 55 150 70 100 4-M10 17x17
RDN-5 240 160 260 130 55 150 70 100 4-M12 22x22





Sketch of materials of butterfly valves Elephant WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE





Materials of parts of butterfly valves Elephant WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:


№ Part Name Material
1 Body

DN50÷200 – Carbon steel WCB, lined with PTFE;
DN150÷200 – Carbon steel WCB, lined with PTFE;
DN250÷300 – Carbon steel WCB, lined with PFA (enhanced PTFE)
2 Disc DN50÷200 – Carbon steel WCB, lined with PTFE;
DN150÷200 – Carbon steel WCB, lined with PTFE;
DN250÷300 – Carbon steel WCB, lined with PFA (enhanced PTFE)
3 Shaft DN50÷200 – Stainless steel 2Cr13;
DN150÷250 – Stainless steel 2Cr13;
DN300 – Steel 45
4 Seat seal PTFE



Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    compact flanged
  • Control type
    Gearbox
  • Operating environment
    Water, Acids, Alkalis, Chemical Environment
  • Applications
    Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, Pulp And Paper Industry
  • Nominal pressure
    16 bar
  • Type of seal
    PTFE
  • Disc material
    Carbon steel
  • Limit switches
    No
