Elephant  |  SKU: D050-80345

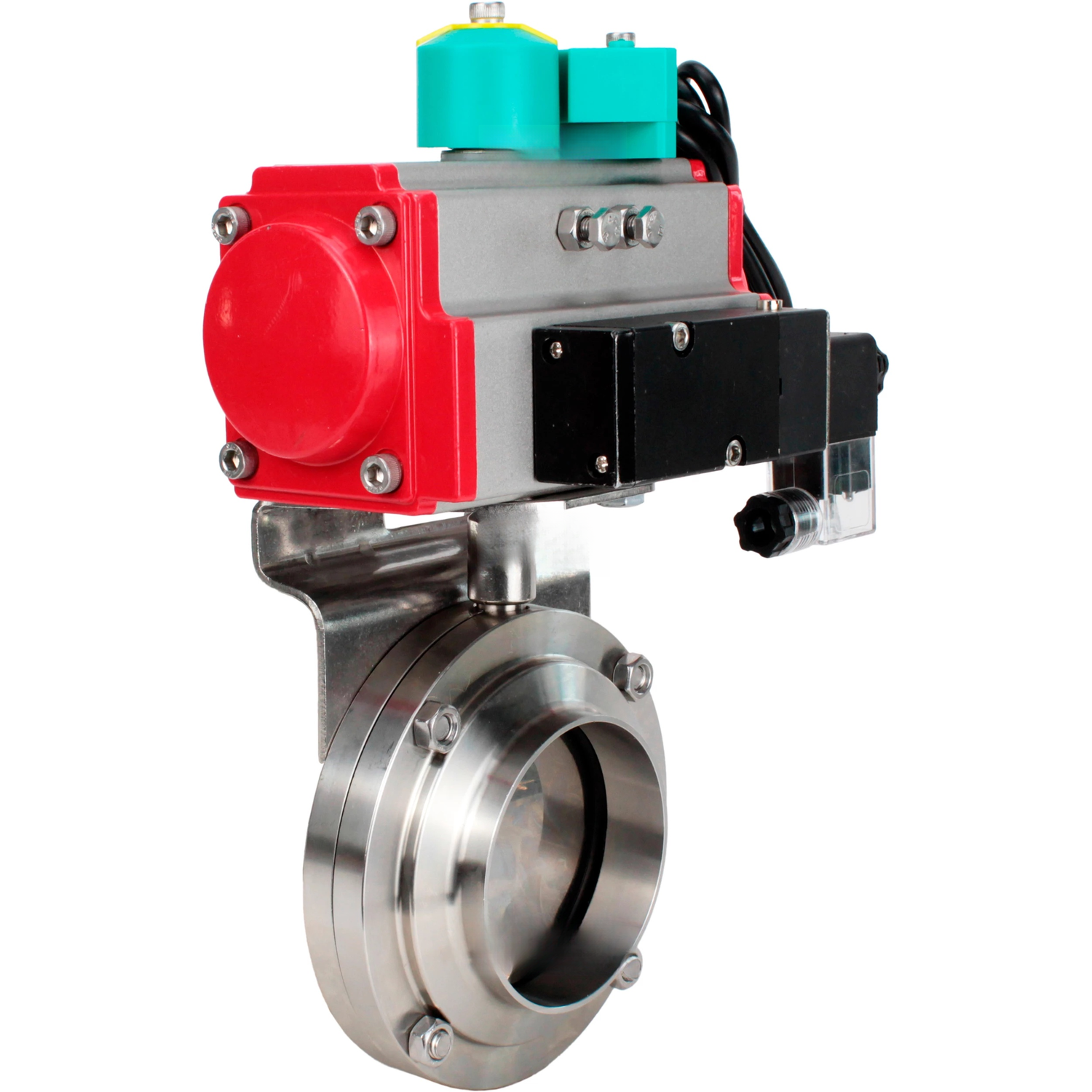

Disc rotary valves Elephant WBV3131E-2W-T-H DN15-100 10 bar threaded, food-grade stainless steel 304, seal - EPDM, with pneumatic actuator PA-DA-XXX, pneumatic distributor 4M310-08 NAMUR 24V and ALS200D magnetic switch

€324,38
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or control valves to control flows in heat and water supply systems, as well as in industrial processes in the food, chemical, oil and gas, pulp and paper, and other industries.
PA-x-x pneumatic actuators are designed to automate the control of quarter-turn valves. PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and generate movement in both directions, both opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.
The Elephant ALS200D magnetic switch is designed to convert the final shaft position values of pneumatic actuators or shut-off valves into electrical signals.





Technical characteristics of rotary disc valves Elephant WBV3131E-2W-T-H DN15-100 10 bar

Characteristics Value
Valve Type Rotary disc
Diameter 15-100 mm
Nominal Pressure 10 bar
Working Medium Temperature -20 to +135°C
Application Food industry
Connection Type threaded
Control Type Pneumatic actuator
Tightness Class A
Country of Origin China
Warranty 12 months





Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Characteristics Value
Pneumatic drive type double-acting
Nominal pressure 12 bar
Working pressure 2...8 bar
Maximum particle diameter less than 30 µm2
Working medium filtered compressed air or non-aggressive gases, oils
Adjustment range ± 5° for rotation at 0° and 90°





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design Spool-type
Test pressure (body strength test. Not for operation!), bar 10
Working pressure (recommended range for normal operation), bar 1.5 ÷ 8
Valve type 5/2 five-port, two-position
Working medium purified air (40 µm filter fineness)
Operating temperature, °C 0 to +60
Actuation frequency 5 cycles per second
Manual override yes
Protection rating/insulation class IP65/F
Connection to pneumatic actuator NAMUR-compliant mounting surface (VDI/VDE3845)
Body material anodized aluminum
Effective cross-sectional area, mm2 25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere) 2 - PT1/4”
Air inlet port size (to pneumatic valve) G1/4”
Air outlet port size (to pneumatic actuator) 2 x Ø19.2 mm
Response time, sec 0.05
Supply voltage, V 220AC/24DC
Coil power 220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg 0.35
Average service life, cycles 10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A C D E F G H I K L J N M
mm
40 24 28 32 40 21,5 69 45 17,5 135 29,3 40 27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№ Part Name Material
1 Connector Engineering plastic
2 Nut POM + carbon steel
3 Coil Copper
4 Control Elements —
5 Plate Carbon steel
6 Piston POM
7 Control Valve Seat Engineering plastic
8 Valve Body Aluminum alloy
9 Spool Aluminum alloy
10 O-Ring Seal HNBR
11 Rear Cover Engineering plastic
12 Filter Synthetic material
13 Piston POM
14 Spring Stainless steel
15 Manual Override Engineering plastic
16 Rear Seat Aluminum alloy
17 Spring Seat Aluminum alloy
18 Type C Towing Shackle 65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Technical specifications of the Elephant ALS200D magnetic switch

Characteristics Value
Housing Material PP-GF30 plastic
Housing Protection Rating IP67
Compatible Devices pneumatic actuators, any actuators with 90° shaft rotation
Shaft Angle Indicator 0-90°
Contact Type NO
Sensor Interaction Type magnetic
Sensor Interaction Distance 1÷6 mm
On/Off Switching Frequency 0÷4.8 kHz
Visual Indication two LEDs
Rated Voltage 5÷240 V AC/DC
Rated Current 0÷300 mA
Rated Power 10 W
Ambient Temperature -40 to +85 °C
Cable Terminal 4 wires (2 wires/open, 2 wires/close)
Weight 0.14 kg
Warranty 12 months
Service Life 10 years





Overall and installation dimensions of butterfly valves Elephant WBV3131E-2W-T-H DN15-100 10 bar

DN D, mm G D1, mm A, mm H, mm K, mm
DN15 15 Rd34x1/8 78 66 86 8х8
DN20 19 Rd44x1/6 78 66 86 8х8
DN25 25 Rd52x1/6 78 66 86 8х8
DN32 31 Rd58x1/6 86 70 90 8х8
DN40 37 Rd65x1/6 90 74 92 8х8
DN50 49 Rd78x1/6 106 76 104 10х10
DN65 66 Rd95x1/6 124 80 113 10х10
DN80 81 Rd110x1/4 139 84 123.5 10х10
DN100 100 Rd130x1/4 159 104 133.5 10х10

Sketch of the dimensions of rotary disc valves Elephant WBV3131E-2W-T-H DN15-100 10 bar





Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm I, mm J, mm M, mm N, mm Z, mm d, mm K L
PA-DA(SA)-052 30 41.5 65.5 72 92 65 30 80 36 50 11х11 14 147 40 M5x8 M6x10
PA-DA(SA)-065 36 47 81 88 108 72 30 80 50 70 14х14 18 168 40 M6x10 M8x13
PA-DA(SA)-083 46 57 98.5 108.7 128.7 92 30 80 50 70 17х17 21 204 40 M6x10 M8x13
PA-DA(SA)-105 57.5 64 122.5 133 153 109.5 30 80 70 102 22х22 26 268 40 M8x13 M10x16
PA-DA(SA)-130 67.5 74.5 145.5 155 185 127.5 30 130 70 102 22х22 26 301 55 M8x13 M10x16
PA-DA(SA)-140 75 77 161 172 202 137.5 30 130 102 125 27х27 31 390 55 M10x16 M12x20
PA-DA(SA)-160 87 87 184 197 227 159 30 130 102 125 27х27 31 458 55 M10x16 M12x20
PA-DA(SA)-210 113 113 235.5 255 285 210 30 130 - 140 36х36 40 532 80 - M16x25
PA-DA(SA)-270 147 147 299 326 356 273 30 130 - 165 46х46 50 718 80 - M20x25

Поворотные пневмоприводы DN.ru двойного действия PA-DA-XXX

Dimensional sketch of the Elephant double-acting rotary pneumatic actuators PA-DA-XXX





Overall and installation dimensions of the Elephant ALS200D magnetic switch

A, mm B, mm C, mm E, mm d, mm
75 30 51 40 5.5
Dimensional sketch of the Elephant ALS200D magnetic switch





Materials of parts of rotary disc valves Elephant WBV3131E-2W-T-H DN15-100 10 bar

№ Part Name Material
1 Housing AISI 304 stainless steel
2 Rotary Assembly AISI 304 stainless steel
3 Disc AISI 304 stainless steel
4 Seal EPDM
5 Nut A2~70 steel
6 Bolt A2~70 steel
7 Plug ABS plastic

Sketch of materials for rotary disc valves Elephant WBV3131E-2W-T-H DN15-100 10 bar





Design of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

№ Part Name Material
1 Indicator Screw ABS plastic
2 Position Indicator ABS plastic
3 Spring Clamp 304 stainless steel
4 Metal Washer 304 stainless steel
5 Thrust Washer Engineering plastic
6 Housing Extruded aluminum alloy with hard anodizing
7 Thrust Washer Engineering plastic
8 Stopper Alloy steel
9 Upper Shaft Seal Ring NBR
10 Upper Shaft Anti-Friction Ring Engineering plastic
11 Shaft Nickel-plated alloy steel
12 Lower Shaft Anti-Friction Ring Engineering plastic
13 Lower Shaft Seal Ring NBR
14 Plug NBR
15 Adjusting Screw Seal Ring NBR
16 Adjusting Screw Washer 304 stainless steel
17 Adjusting Screw Lock Nut 304 stainless steel
18 Adjusting Screw 304 stainless steel
19 Piston Die-cast aluminum alloy
20 Piston Guide Pad Engineering plastic
21 Piston Anti-Friction Ring Engineering plastic
22 Piston Seal Ring NBR
23 Spring Kit Spring steel
24 Cover Seal Ring NBR
25 End Cover Cast aluminum with polyester coating
26 Cover Screw 304 stainless steel
27 Locking Screw 304 stainless steel
28 Adapter Carbon steel

Sketch of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Specifications
  • Country of origin
    China
  • Body material
    Stainless Steel
  • Maximum allowable temperature
    135 °C
  • Connection type
    Threaded
  • Control type
    Pneumatic drive
  • Operating environment
    Water, Steam, Food environment, Neutral environments
  • Applications
    Food industry
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless Steel
  • Limit switches
    No
