Elephant  |  SKU: D160-37993

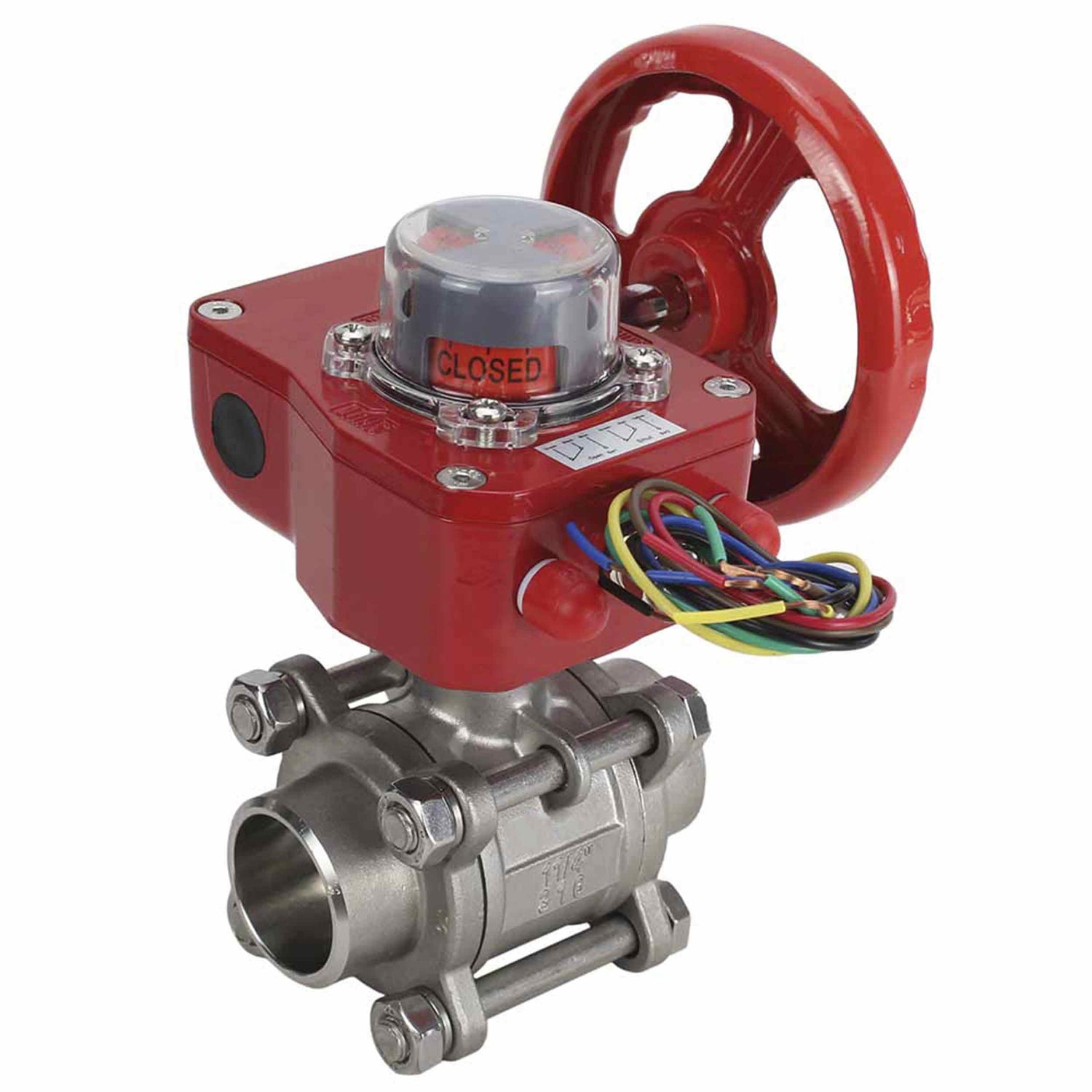

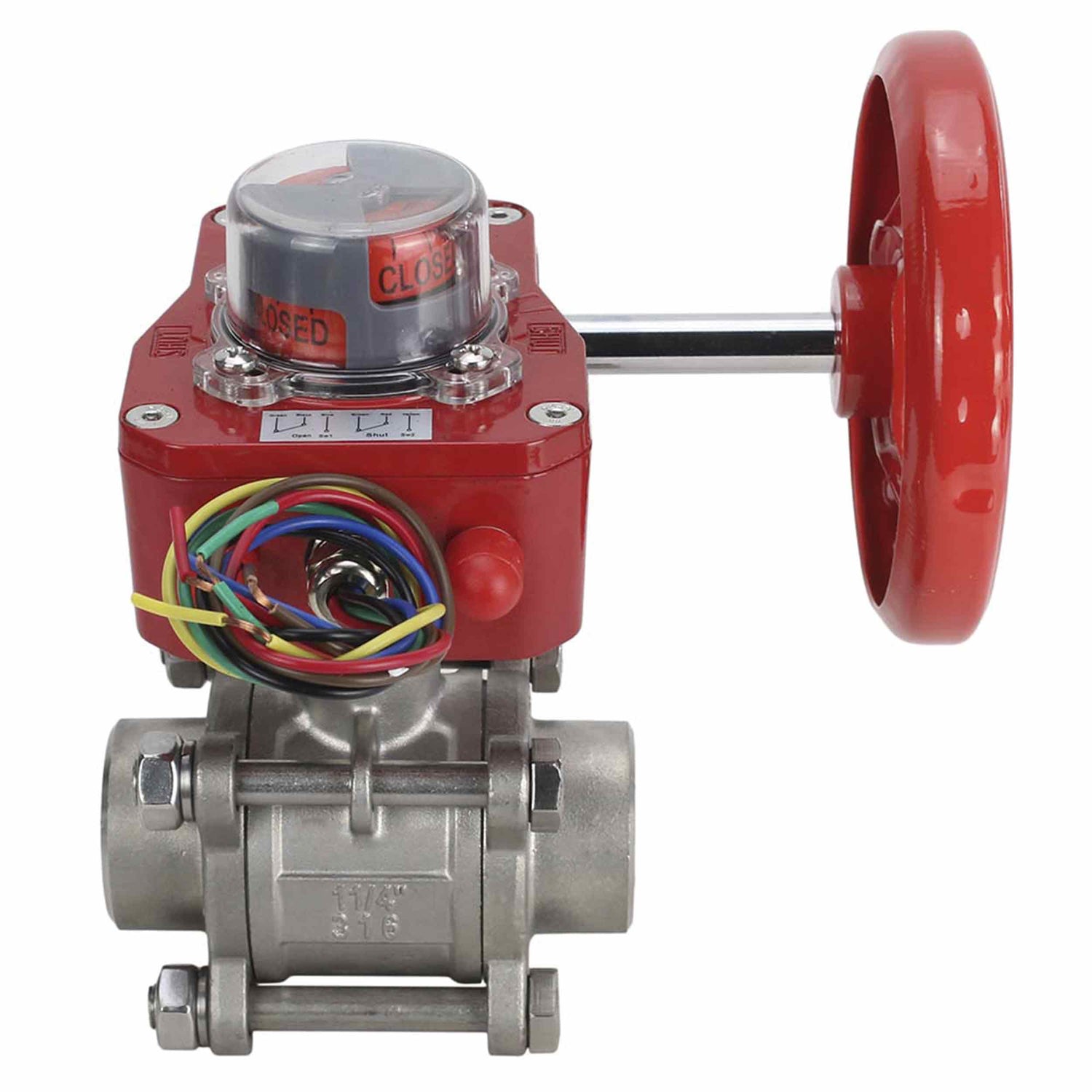

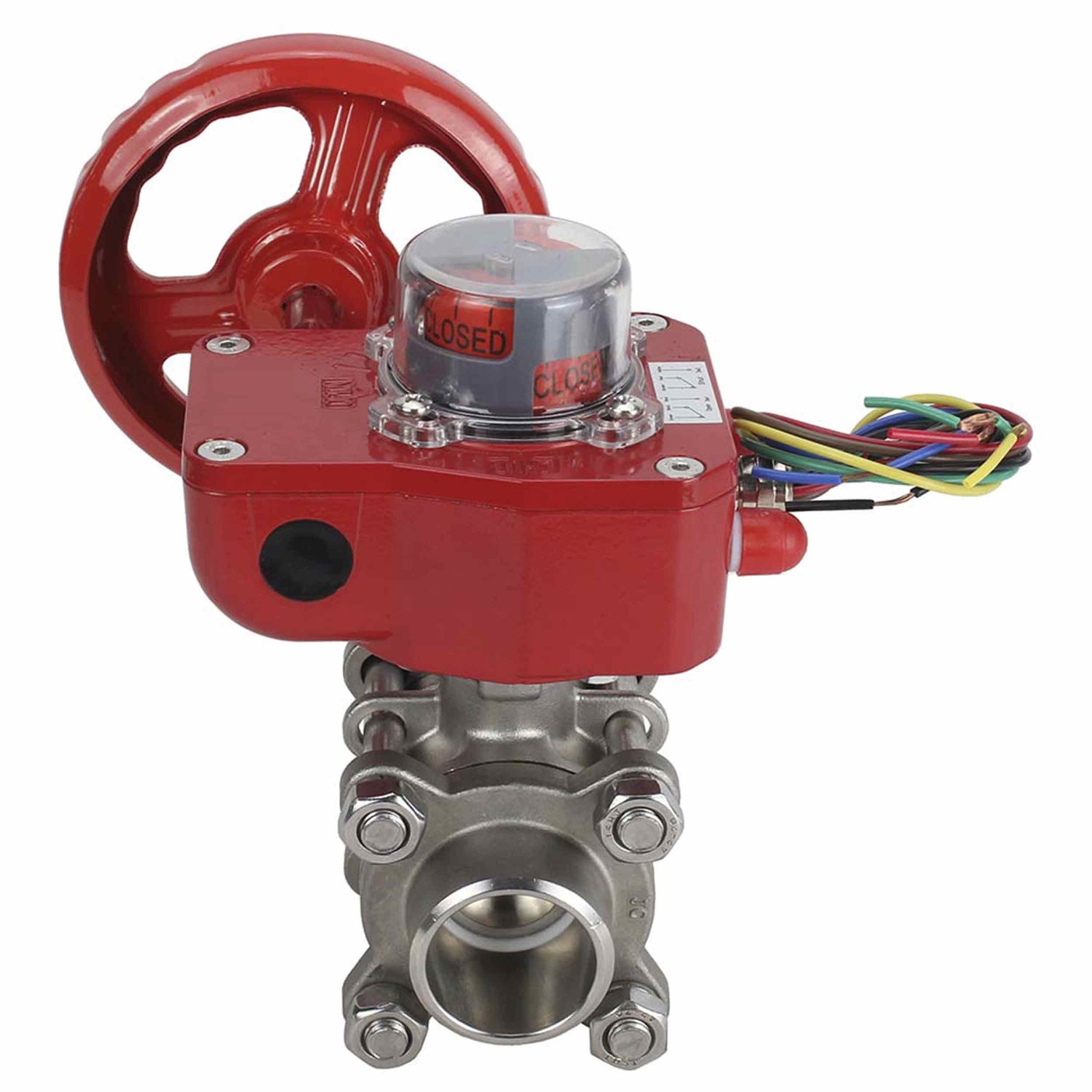

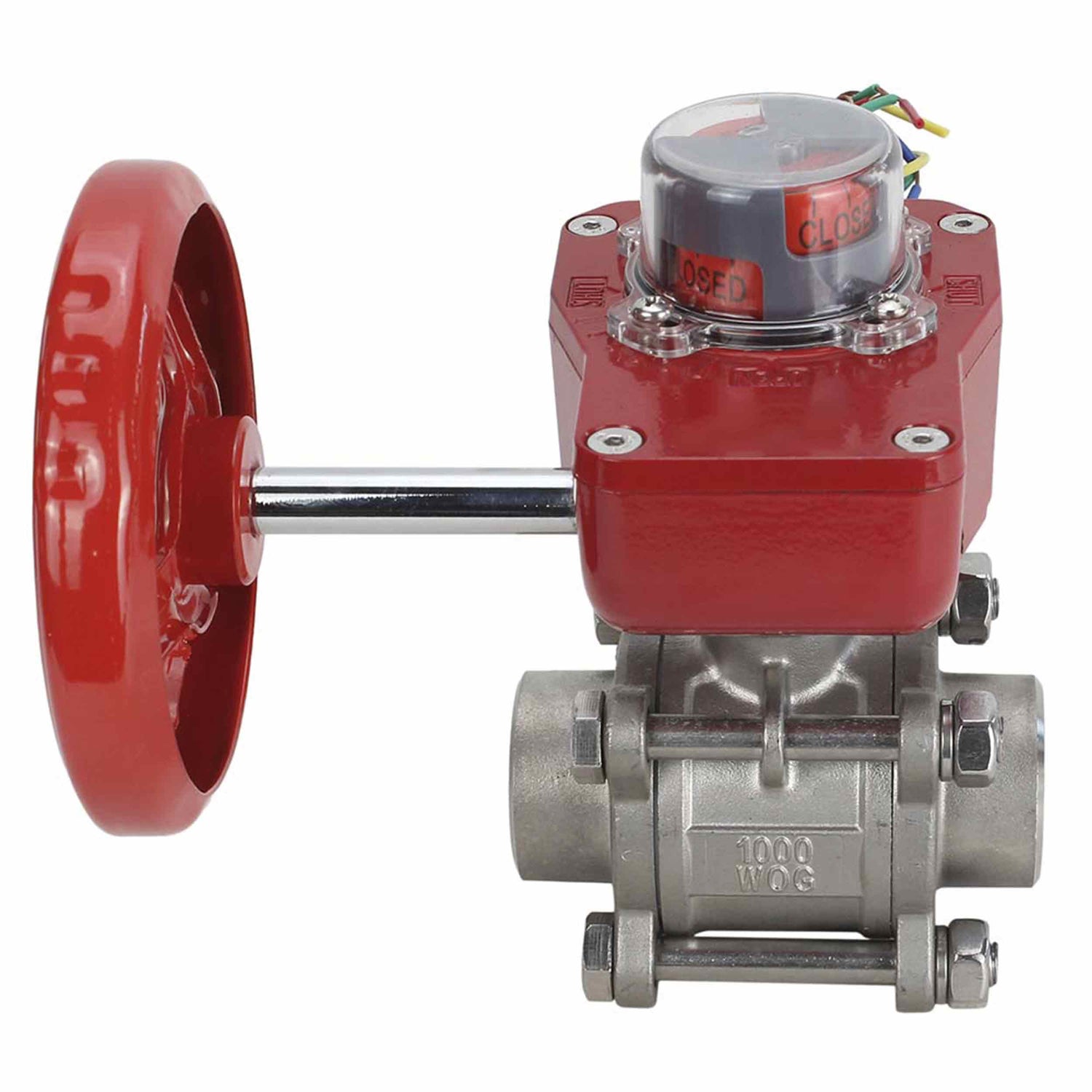

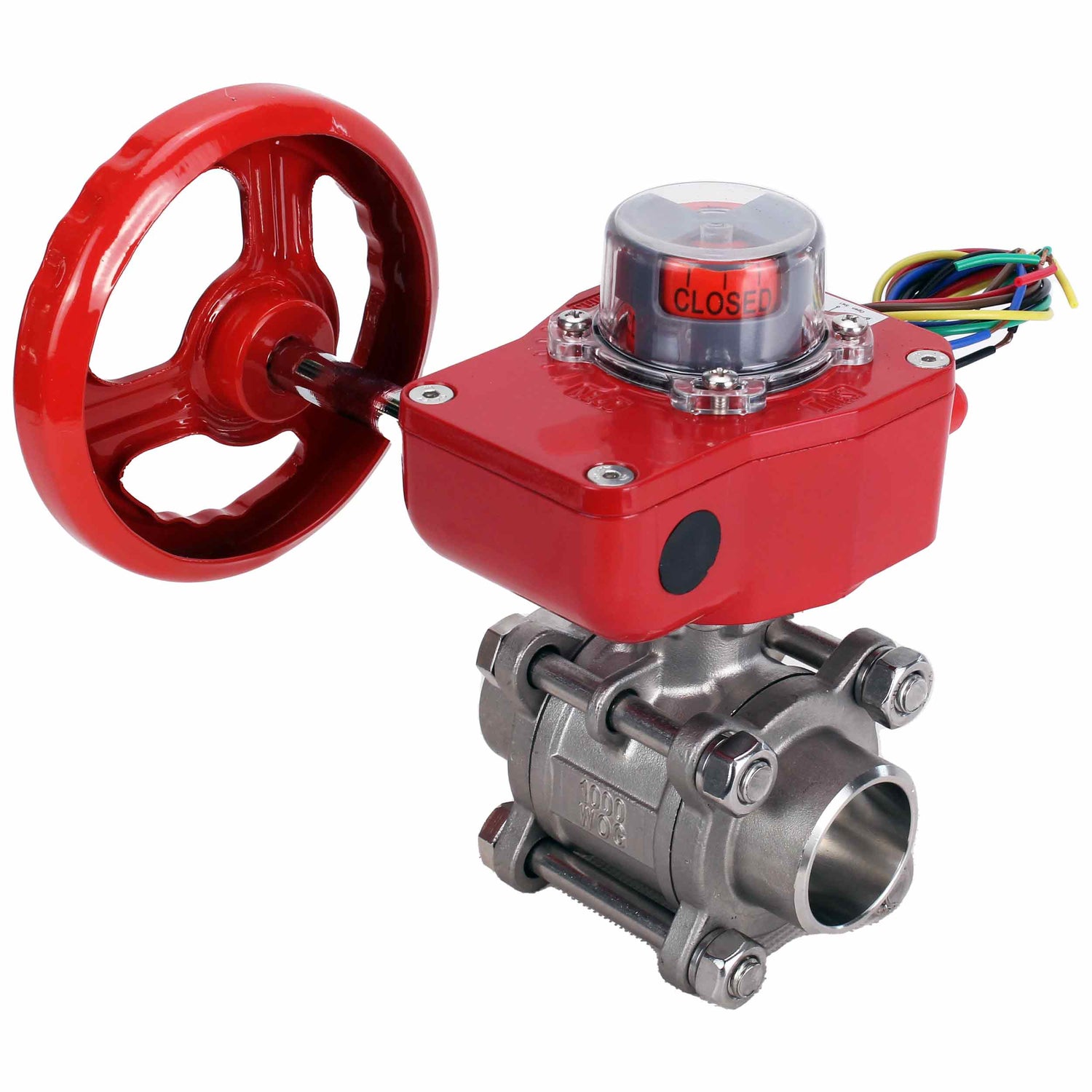

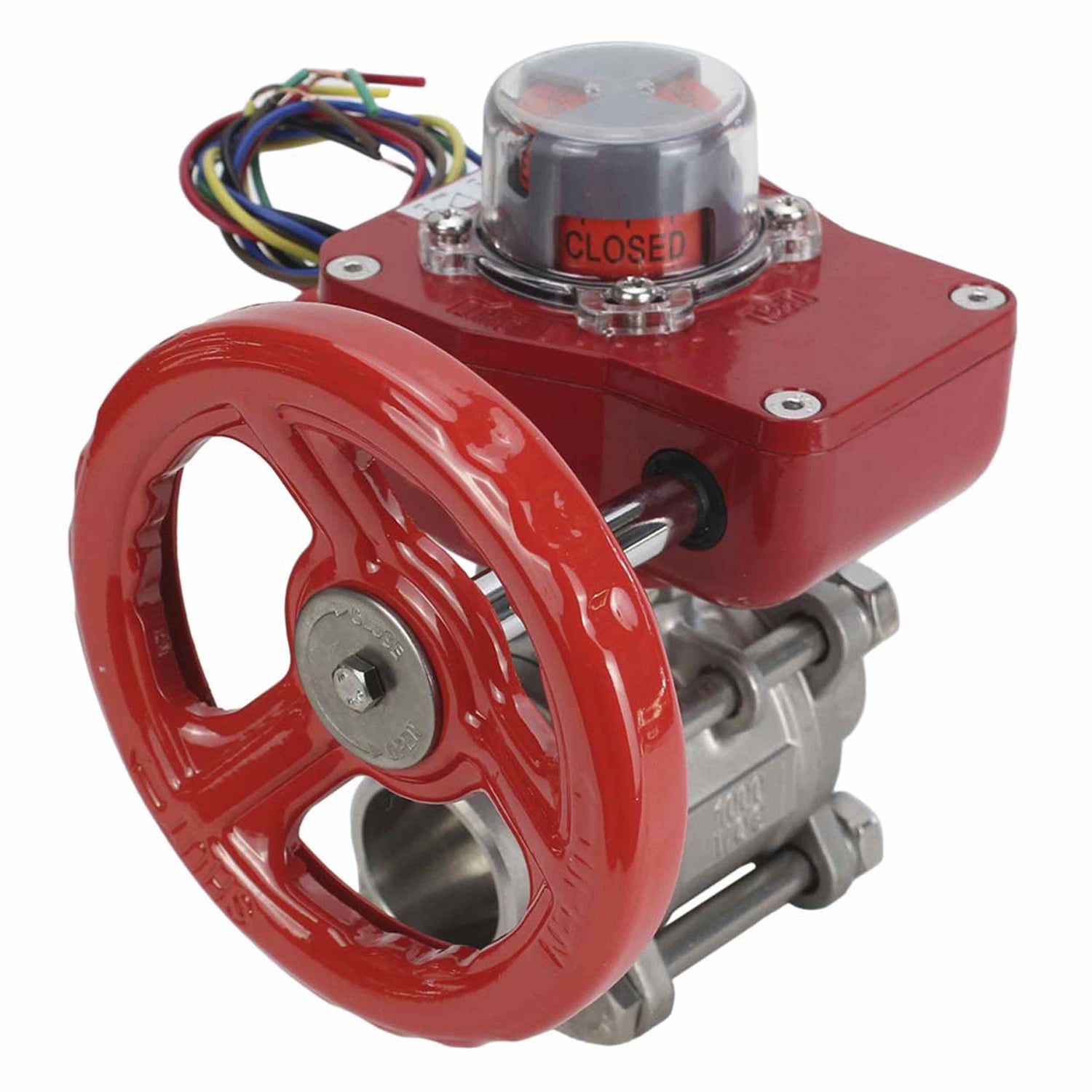

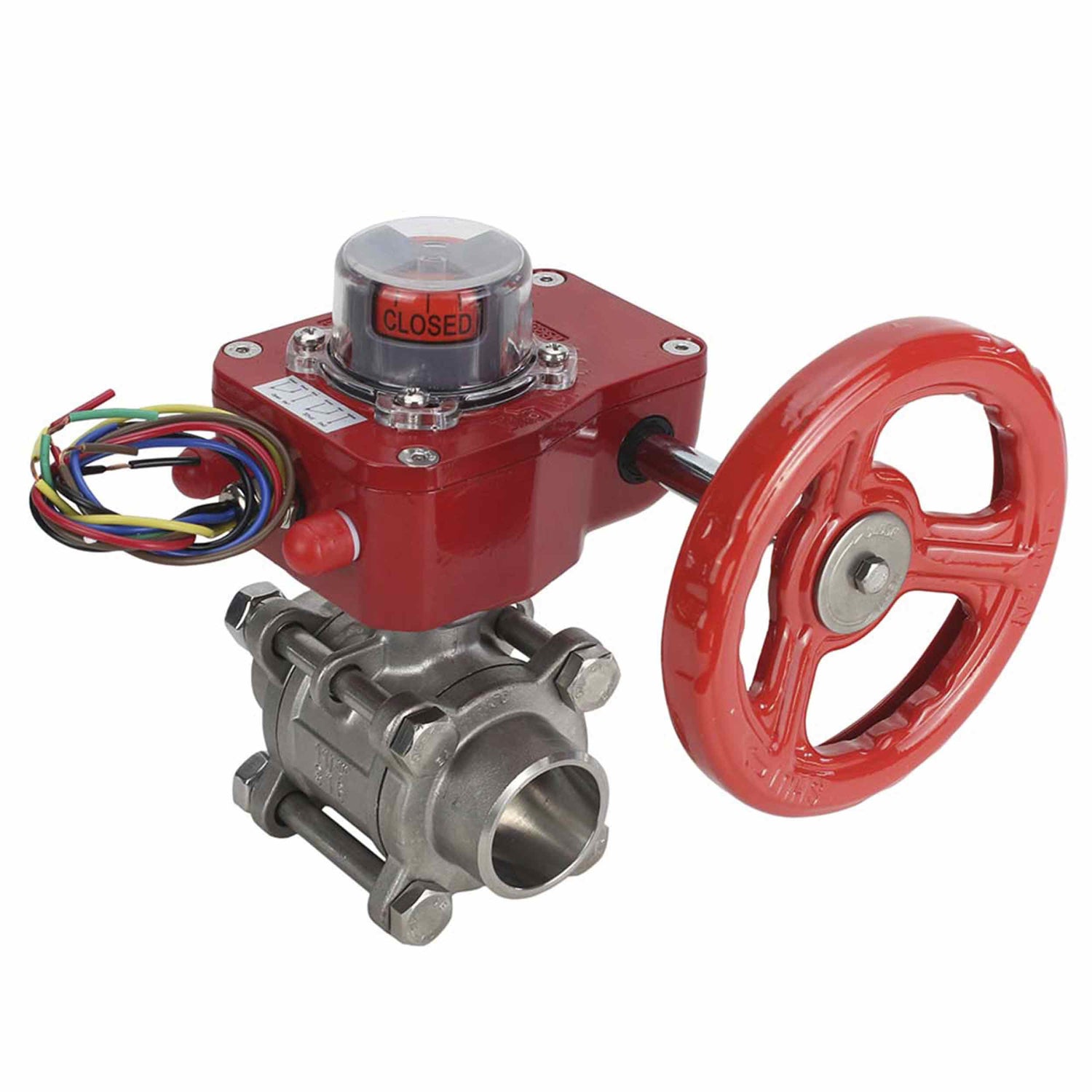

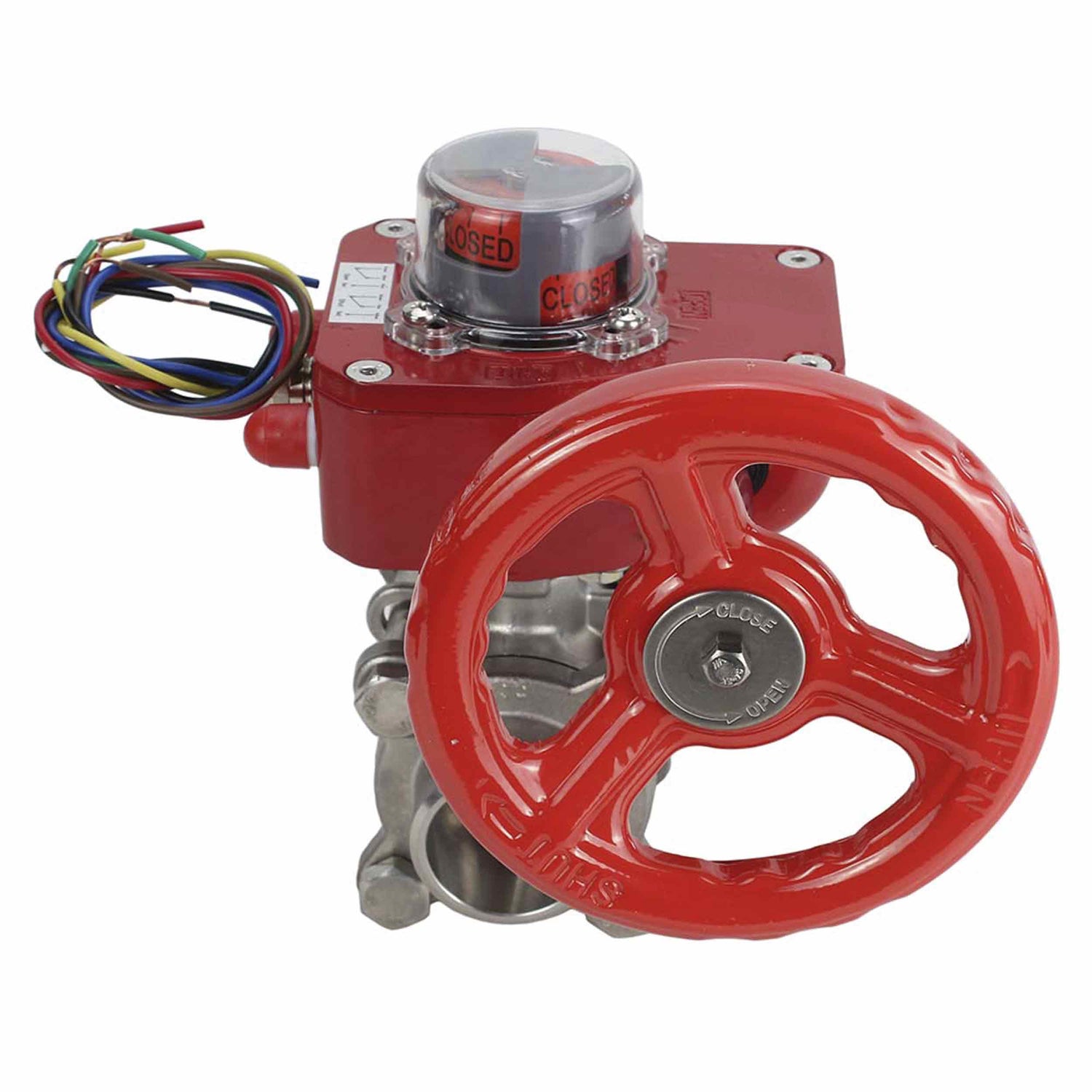

Stainless steel ball valve Elephant BVPP 316.200-ISO 63 bar for welding, full port, body material - stainless steel AISI 316, with ISO flange and gearbox Elephant GBBF with position indicator and feedback sensor

€194,49
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant BVPP 316.200-ISO 63 bar for welding, full port, body material - stainless steel AISI 316, with ISO flange and gearbox Elephant GBBF with position indicator and feedback sensor - DN15 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.



Technical data of ball valves Elephant BV3232P-FP-W-ISO DN10-100 Ru63, body SS316 with HGBF reducer

Nominal diameter DN, mm 10-100
Working pressure PN, bar 63
Temperature of working environment t, ⁰C from -20 to +200
Working environment water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline welding/welding
Type of flow section full bore
Control type manual (handle)
Addition installation of electric or pneumatic drive is possible (ISO 5211-2001)





Sketch of ball valves Elephantu BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HGBF



Overall and installation dimensions of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HGBF

D.N. D, mm L±1.5, mm L1, mm H1, mm H2, mm
10 10 63 84 73 38.9
15 15 65 84  73 40
20 20 75 84 73 43.9
25 25 83 84 73 53
32 32 98 84 73 56
40 40 112 84 73 60
50 50 135 84 73 75
65 65 175 102 78 97
80 80 198 102 78 112
100 100 246 102 78 122





Detail sketch of ball valves Elephant BV3232P-FP-W-ISO DN10-100 Ru63, body SS316 with gearbox HGBF



Materials of parts of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HGBF

Item No. Part name Material Quantity
1 Frame SS316 1
2 Ball valve S304/S316 1
3 Bolt S201/S304 4~6
4 screw S201/S304 4~6
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal S201/S304 1
8 screw S201/S304 1
9 Lid WCB/CF8/CF8M 2
10 Saddle rings PPL 2
11 Thrust washer PTFE 1
12 Lever S201/S304 1
13 Handle shell PVC 1
14 Stopper S201/S304 1
15 Sealing ring VITON 1





D.N. T, mm C, mm Torque, Nm ISO5211 Weight, kg
10 131 9 3 F03/F04 0.578
15 131 9 6 F03/F04 0.645
20 131 9 6 F03/F04 0.810
25 167 11 6 F04/F05 1,085
32 167 11 7.5 F04/F05 1.66
40 193 14 18 F05/F07 2,195
50 193 14 28 F05/F07 3,025
65 242 17 32 F07/F10 5,910
80 272 17 38 F07/F10 8,135
100 295 17 80 F07/F10 15.15

Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    For welding
  • Control type
    lever handle
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply
  • Explosion-proof
    No
  • Torque
    180 Nm
  • Electropneumatic positioner
    Gearbox
