Multi-stage inline pumps Elephant CDM/0FC surface, vertical, cast iron – Valve Elephant
Elephant  |  SKU: D330-35043

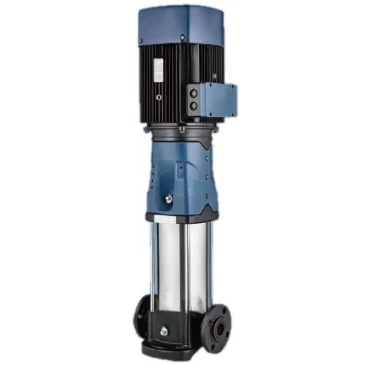

Multi-stage inline pumps Elephant CDM/0FC surface, vertical, cast iron housing, power - 0.37-4 kW, head - 23-68 m, capacity - 50-250 l/min, 380 V

€1.310,11
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Multistage vertical centrifugal pumps are designed for circulation/pumping and pressure boosting of cold or hot liquids with physical and chemical properties similar to water, low viscosity, and free of mineral oils, solid or abrasive components, or long-fiber materials. They are used in industrial circulation systems, in water supply installations as booster pumps, in process equipment, in water cooling systems, in fire extinguishing systems, in washing and sprinkler installations, and as feed pumps for boilers. Thanks to their in-line design, multistage vertical pumps can be easily integrated into existing piping systems. The principle of operation of a multistage centrifugal pump is based on increasing the pressure of the working medium moving from the inlet pipe to the outlet by passing sequentially through several impellers (stages). Each stage increases the pressure of the liquid, thus ensuring a stable high head with a relatively compact unit size.





Parameters pumps of Elephant CDM/0FC

Parameter Meaning
Equipment type Pumps
Pump type Multistage
Pump design Centrifugal, IN-Line
Purpose Water
Firefighting No
Segment Industrial
Pump housing material Cast iron HT200
Number of poles 2
Number of phases 3
Frequency 50 Hz
Housing protection rating IP55
Water quality Clean
Minimum temperature of pumped medium -15 °C
Maximum temperature of pumped medium 70 °C
Maximum ambient temperature 40 °C
Country of manufacture China







Overall dimensions of pumps Elephant CDM/0FC

Model DN L L1 L2 H H1 H2 D1 D2
CDM3-4/0FC-220/380-0.37 25 250 158 100 642 317 250 148 108
CDM3-8/0FC-220/380-0.75 25 250 158 100 642 317 250 148 108
CDM3-10/0FC-220/380-1.1 25 250 158 100 642 317 250 148 108
CDM5-4/0FC-220/380-0.55 32 250 158 100 671 346 250 148 108
CDM5-7/0FC-220/380-1.1 32 250 158 100 671 346 250 148 108
CDM5-9/0FC-220/380-1.5 32 250 158 100 671 346 250 148 108
CDM5-11/0FC-220/380-1.5 32 250 158 100 671 346 250 148 108
CDM10-3/0FC-220/380-1.1 40 280 192 130 770 397 293 172 120
CDM10-4/0FC-220/380-1.5 40 280 192 130 770 397 293 172 120
CDM10-6/0FC-220/380-2.2 40 280 192 130 770 397 293 172 120
CDM15-3/0FC-220/380-3 50 300 192 130 797 362 345 197 132
CDM15-5/0FC-380/660-4 50 300 192 130 797 362 345 197 132
Model h W W1 d d1 d2 d3 d4 Weight
CDM3-4/0FC-220/380-0.37 75 240 180 14 32 60 85 115 125
CDM3-8/0FC-220/380-0.75 75 240 180 14 32 60 85 115 150
CDM3-10/0FC-220/380-1.1 75 240 180 14 32 60 85 115 165
CDM5-4/0FC-220/380-0.55 75 240 180 18 32 60 100 140 135
CDM5-7/0FC-220/380-1.1 75 240 180 18 32 60 100 140 160
CDM5-9/0FC-220/380-1.5 75 240 180 18 32 60 100 140 190
CDM5-11/0FC-220/380-1.5 75 240 180 18 32 60 100 140 195
CDM10-3/0FC-220/380-1.1 80 290 215 18 50 80 110 150 175
CDM10-4/0FC-220/380-1.5 80 290 215 18 50 80 110 150 205
CDM10-6/0FC-220/380-2.2 80 290 215 18 50 80 110 150 230
CDM15-3/0FC-220/380-3 90 290 215 18 50 80 125 165 295
CDM15-5/0FC-380/660-4 90 290 215 18 50 80 125 165 340

Sketch of pump dimensions Elephant CDM/0FC





Pump design and materials Elephant CDM/0FC

№ Element name Material of manufacture
1 Coupling 45 steel
2 Pump head HT200 cast iron
3 Mechanical seal Combined TuC/Carbon/SS304
4 Shaft AISI 304 stainless steel
5 Impeller AISI 304 stainless steel
6 Impeller sleeve AISI 304 stainless steel
7 Diffuser AISI 304 stainless steel
8 Support diffuser AISI 304 stainless steel
9 Bearing tungsten carbide
10 Discharge chamber AISI 304 stainless steel
11 Pipe HT200 cast iron
Preliminary design and materials for pumps Elephant CDM/0FC





Specifications
  • Body material
    HT200 cast iron
  • Operating environment
    Clean water
  • Applications
    Water Supply
