Loose flange Elephant FLF1-UPVC PN10, body material - UPVC – Valve Elephant
Elephant  |  SKU: D270-17191

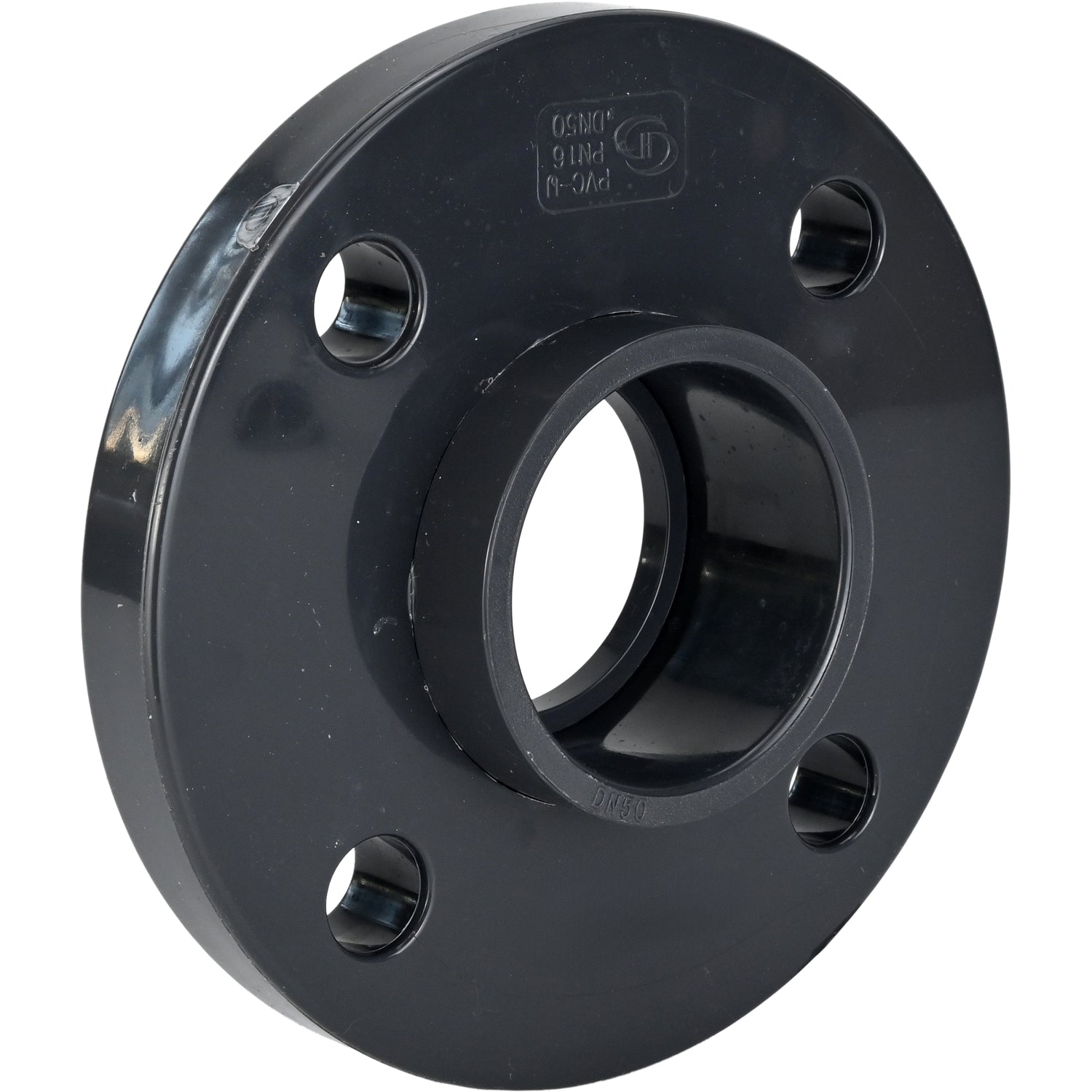

Loose flange Elephant FLF1-UPVC PN10, body material - UPVC

€11,62
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Flanges are designed to connect fittings to pipelines, connect individual sections of pipelines to each other, and connect pipelines to various equipment.



Technical parameters of Elephant loose flange FLF1-UPVC PN10, body material - UPVC:

Characteristic Meaning
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Operating environment water, air without impurities of oil
and fat, ethylene glycol, propylene glycol,
other media neutral to materials
Material UPVC
Average service life 30 yers
Manufacturer's country China
Warranty 12 months

Loose flange Elephant FLF1-UPVC PN10, body material - UPVC



Dimensions of Elephant loose flange FLF1-UPVC PN10, body material - UPVC:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
ØD1, mm 63.5 75.5 90.6 110.6 140.7 160.8 226
ØD2, mm 75.5 89 105 127 161 184 253.5
Ød1, mm 90.5 109 123.5 141 180.5 204 269
Ød2, mm 125 145 160 180 210 240 295
Ød3, mm 166 185 200 219 250 285 339
n-Ød, pcs-mm 4-18 4-18 8-18 8-18 8-18 8-22 8-22
T, mm 20 23 26 28 33 34 35
T1, mm 23 25 29 31 36 36 40
L1, mm 37.5 44 52 61 76 86 118
L, mm 44.5 51 60 70 85 95 129

Sketch Loose flange Elephant FLF1-UPVC PN10, body material - UPVC

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    glue
  • Operating environment
    Water, Air, Ethylene glycol, Propylene glycol
  • Nominal pressure
    10 bar
  • Type of seal
    None

Reviews (0)

Documentation
nullLoose flange adhesive ELEPHANT FLF1-UPVC

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D270-17191DN5010 bar €11,62 Sold out
    D270-17192DN6510 bar €15,41 Sold out
    D270-17193DN8010 bar €20,05 Sold out
    D270-17194DN10010 bar €24,69 Sold out
    D270-17195DN12510 bar €37,62 Sold out
    D270-17196DN15010 bar €51,52 Sold out
    D270-17197DN20010 bar €82,23 Sold out
