Double leaf lobe check valve Elephant VCL2-1111E-Fb, body material - c – Valve Elephant
Elephant  |  SKU: D100-03856

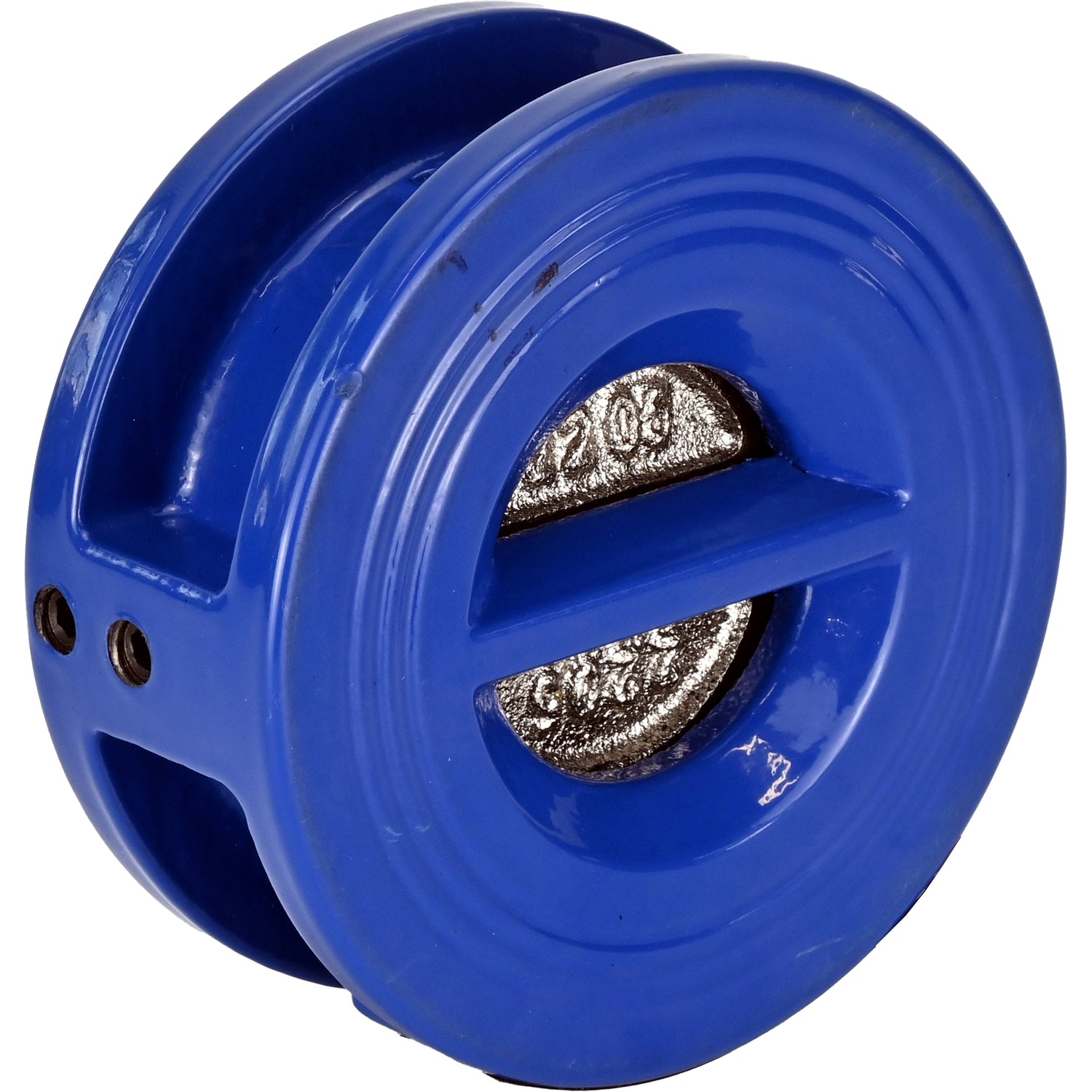

Double leaf lobe check valve Elephant VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged

€29,89
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The double-leaf check valve is designed to prevent the flow direction of the working medium in the pipeline from changing in the opposite direction.

Technical parameters of Elephant double leaf lobe check valve VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged:

Characteristic Meaning
Device type double leaf
Diameter 40-200 mm
Nominal pressure 16 bar
Working medium temperature from -20 to +120°C
Application cold and hot water supply systems;
treatment facilities;
industrial pipelines
Operating environment hot water; cold water; other liquids
that are not aggressive to
the materials of the product
Connection type compact flanged
Service life 5 yers
Sealing class A
Manufacturer's country China
Warranty 12 months

Double leaf lobe check valve Elephant VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged



Dimensions of Elephant double leaf lobe check valve VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged:

Model ØD, mm B, mm Weight, kg
DN40 92 43 1.18
DN50 107 43 1.52
DN65 127 46 2.12
DN80 142 64 3.15
DN100 162 64 4.48
DN125 192 70 5.72
DN150 218 76 8.71
DN200 273 89 14.02
DN250 328 114 25.40
DN300 382 114 36.47

Sketch Double leaf lobe check valve Elephant VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged





Materials of parts Elephant double leaf lobe check valve VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged:

№ Part Name Material
1 Body cast iron GG25
2 Disc cast iron GG25
3 Spring stainless steel AISI 304
4 Hinge pin stainless steel AISI 416
5 Cork high carbon steel
6 Housing bushing PTFE
7 Washer PTFE
8 Locking pin stainless steel AISI 416
9 Mounting hook
(for models DN200-300)		 high carbon steel
10 Sealing EPDM

Sketch of parts and materials Double leaf lobe check valve Elephant VCL2-1111E-Fb, body material - cast iron GG25, disc material - cast iron GG25, seal - EPDM, compact flanged

Specifications
  • Country of origin
    China
  • Body material
    Cast iron
  • Maximum allowable temperature
    120 °C
  • Connection type
    Сompact flanged
  • Operating environment
    Water
  • Applications
    Water Supply
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Locking material
    Cast iron

Reviews (0)

Documentation
nullDouble leaf lobe check valve Elephant VCL2-1111E-Fb

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D100-03856DN4016 bar €29,89 Sold out
    D100-03857DN5016 bar €31,86 Sold out
    D100-03858DN6516 bar €41,47 Sold out
    D100-03859DN8016 bar €44,27 Sold out
    D100-03860DN10016 bar €53,32 Sold out
    D100-03861DN12516 bar €71,70 Sold out
    D100-03862DN15016 bar €83,04 Sold out
    D100-03863DN20016 bar €122,76 Sold out
    D100-03864DN25016 bar €195,39 Sold out
    D100-03865DN30016 bar €268,67 Sold out
