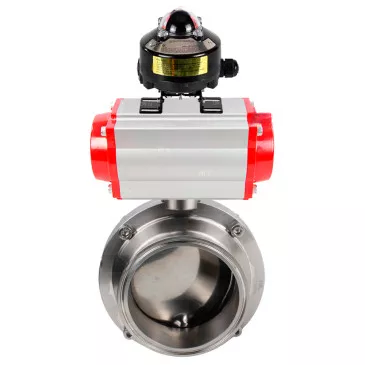

Butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and LSU Elephant APL-510N EX

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.
Limit switch unit is designed for visual and electrical signaling of end positions of the valve shut-off body: valve, tap or disk gate. It is mounted on top of the pneumatic actuator surface and is connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
Limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical characteristics of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and LSU Elephant APL-510N EX:

Technical data of SA pneumatic actuators with return springs:

SA pneumatic actuators rotary with return springs

Technical characteristics of explosion-proof limit switch units Elephant APL-510N EX:

Overall and installation sizes of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and LSU Elephant APL-510N EX:

Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Sketch of dimensions of SA pneumatic actuators with return springs

Dimensions and installation sizes of explosion-proof limit switch units Elephant APL-510N EX:

Materials of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and LSU Elephant APL-510N EX:

Materials of parts of SA pneumatic actuators with return springs:

Material sketch of SA pneumatic actuators with return springs
