Butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 3 – Valve Elephant
Elephant  |  SKU: D050-69155

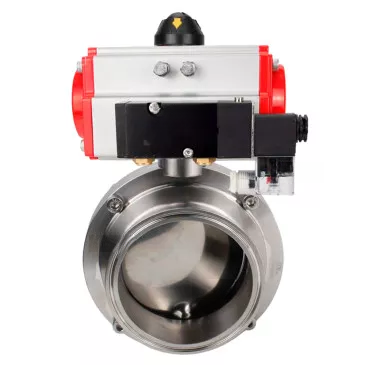

Butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and pneumatic distributor Elephant 4M310-08 220V

€344,20
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.
Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.







Technical characteristics of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and pneumatic distributor Elephant 4M310-08 220V:

Characteristic

Value

Type of valve

Rotary disc

Diameter

15–100 mm

Nominal pressure

10 bar

Working medium temperature

From -50 to +180°C

Application

Food industry

Type of connection

Coupling (threaded)

Type of control

Pneumatic actuator

Tightness class

A

Warranty

12 months


Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs



Technical characteristics of pneumatic valves Elephant 4M310-08 220V:

Characteristics Value
Model of pneumatic valve 4M310-08 220V
Supply voltage 220V
Construction Spool type
Nominal pressure 12 bar
Working pressure 1.5...8 bar
Ambient temperature From +5 to +50 ⁰C
Working medium Filtered compressed air
Response frequency 5 cycles/s
Degree of protection IP65
Fastening Through holes in the housing
Body material Anodized aluminum
Response time 0.05 sec.





Overall and installation sizes of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and pneumatic distributor Elephant 4M310-08 220V:

Diameter D, mm G, mm D1, mm A, mm H, mm J, mm K, mm
DN15 15 Rd34x1/8 78 66 86 126 8x8
DN20 19 Rd44x1/6 78 66 86 126 8x8
DN25 25 Rd52x1/6 78 66 86 126 8x8
DN32 31 Rd58x1/6 86 70 90 126 8x8
DN40 37 Rd65x1/6 90 74 92 126 8x8
DN50 49 Rd78x1/6 106 76 104 133 10x10
DN65 66 Rd95x1/6 124 80 113 144 10x10
DN80 81 Rd110x1/4 139 84 123.5 160 10x10
DN100 100 Rd130x1/4 159 104 133.5 160 10x10




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs



Overall and installation sizes of pneumatic valves Elephant 4M310-08 220V:

Depth, mm 27
Height, mm 69
Width, mm 134.5




Materials of butterfly valves Elephant WBV3131S-2W-T-H food grade stainless steel 304, seal - Silicon, with pneumatic actuator Elephant PA-SA and pneumatic distributor Elephant 4M310-08 220V:

№ Part Name Material
1 Body Stainless steel AISI 304
2 Rotary assembly Stainless steel AISI 304
3 Disc Stainless steel AISI 304
4 Seat seal EPDM or Silicon
5 Nut Steel A2~70
6 Bolt Steel A2~70
7 Plug ABS plastic
8 Handle Polyamide plastic




Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Threaded
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Neutral Media
  • Applications
    Food Industry
  • Nominal pressure
    10 bar
  • Type of seal
    Silicon
  • Disc material
    Stainless steel AISI 304
  • Voltage
    220 V

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullButterfly valve Elephant WBV3131x-2W-T-H
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
