Ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar, three- – Valve Elephant
Elephant  |  SKU: D160-61190

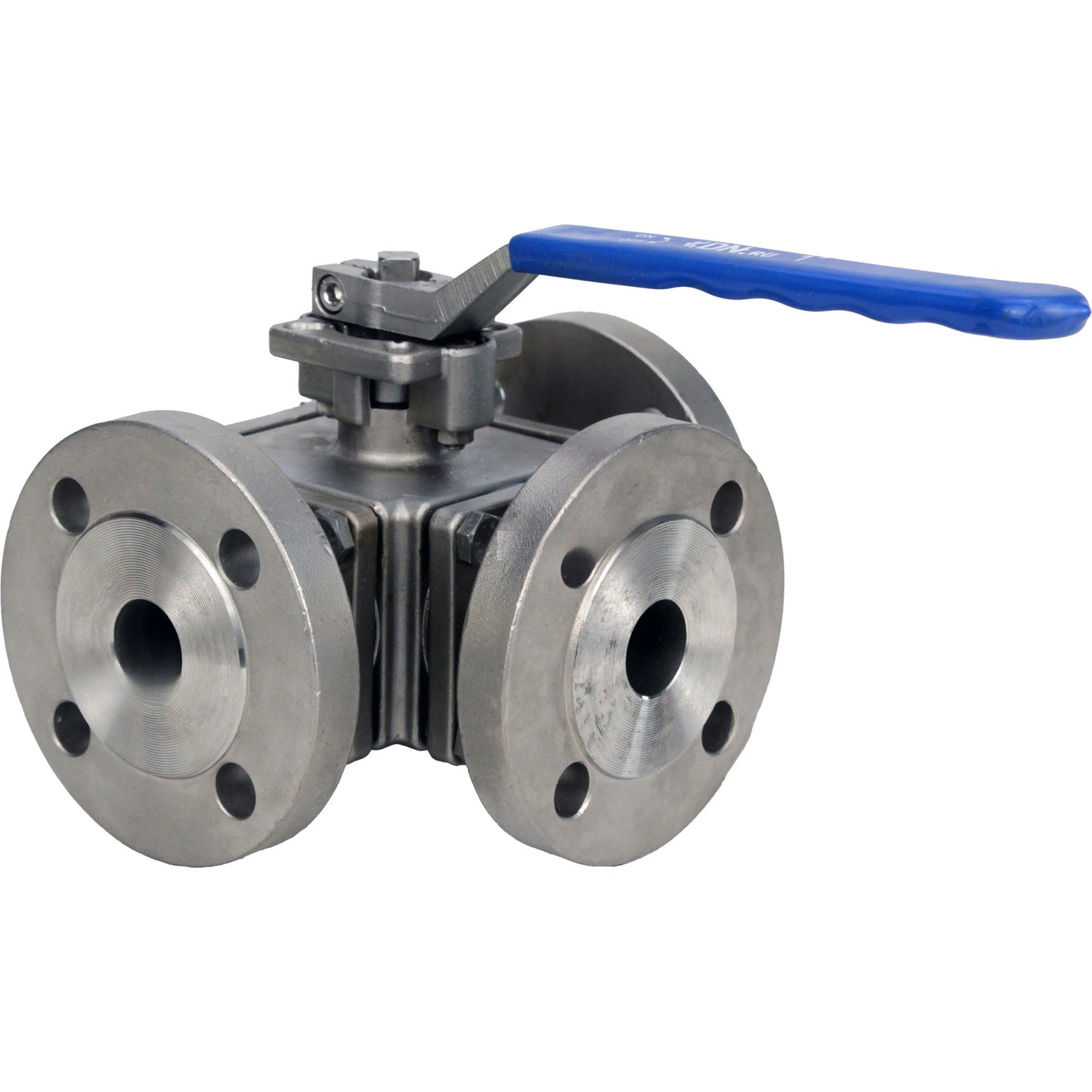

Ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar, three-way, full bore, 304 steel, seal - PPL, flanged, with ISO flange and handle

€410,29
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant ball valve is used as a shut-off valve in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.





Technical characteristics of ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar

Name Value
Nominal diameter DN, mm 25
Nominal pressure, bar 16
Working fluid temperature, °C -29 to 200
Working fluid water, steam, petroleum products, liquids, neutral media, gaseous media
Pipeline connection flanged
Flow area type full bore
Tightness class A
Control type manual (handle)
Connection type flanged
Body material Stainless steel AISI/SS 304
Ball material Stainless steel AISI/SS 304
Ambient temperature, °C -10 to 200
Applications heating and water supply systems, industrial pipelines
Service life, years 10
Average life, closing/opening cycles 60000
Valve device type three-way
Three-way valve type T
Country of manufacture China
Warranty, years 12





Dimensions and sizes of ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar

DN L L1 D2 D1 D b f n-ød Weight
25 180 90 68 85 115 14 2 4-ø14 5

Sketch of the overall dimensions and sizes of ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar





Table of parts and materials for ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar

№ Part Name Material
1 Rear Cover AISI 304 stainless steel
2 Nut ASTM A194 Gr.8M steel
3 Bolt ASTM A193 Gr.B8M Cl2 steel
4 Ball Seal PPL
5 Ball AISI 304 stainless steel
6 Cover AISI 304 stainless steel
7 Housing AISI 304 stainless steel
8 Support Ring AISI 304 stainless steel
9 O-Ring Seal VITON
10 Threaded Sleeve AISI 304 stainless steel
11 Gasket PPL
12 Stem AISI 304 stainless steel
13 Stem Seal PPL
14 Seal AISI 304 stainless steel
15 Handle WCB steel + plastic
Sketch of parts and materials of ball valves Elephant BV3131PPL(4pc)-FP-3WT-F-ISO-H DN25 16 bar

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Manual
  • Operating environment
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Applications
    Water Supply, Heat supply, Pneumatic systems
  • Nominal pressure
    16 bar
  • Type of seal
    PPL
  • Locking material
    Stainless steel
  • Explosion-proof
    No
  • Limit switches
    No
