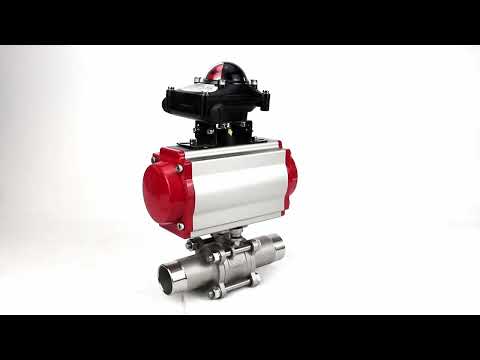

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N

€185,46
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic drive and connected to the DIN standard drive shaft. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be seen on the body of the unit there is a 3D visual indicator RED - CLOSED and GREEN - OPEN.





Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N

Name Meaning
Working environment temperature, °C from -20 to 180
Type of crane device two-way
Application water supply, heat supply, industry
Working environment water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline for welding
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining for welding
Control double acting pneumatic actuator
Availability of limit switches No
Availability of pneumatic distributor No
Availability of electropneumatic positioner No
Average service life, years 5
Warranty, g. 1





Sketch of the dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N



Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N

DN d, mm D, mm B, mm H, mm L, mm E, mm
10 12 17,2 2,1 50 130 120
15 15 21,3 2,1 55 150 120
20 20 26,9 2,1 66 155 135
25 25 33,7 2,8 71 186 160
32 32 42,4 2,8 81 195 170
40 38 48,3 2,8 87 231 190
50 50 60,3 2,8 91 243 220
65 64 76,1 3,0 119 290 280
80 76 88,9 3,0 125 302 280
100 100 114,3 3,0 159 326 330
100 100 114,3 3,0 159 326 330
125 125 141,3 3,4 186 360 330
150 150 168,3 3,4 207 390 330



Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N



Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-DA and limit switch block APL-210N

Item No. Part name Material
1 Frame stainless steel 304
2 Side element (2 pcs) stainless steel 304
3 Ball stainless steel 304
4 Ball seal PTFE
5 Rod seal PTFE
6 Sleeve stainless steel 304
7 Stock stainless steel 304
8 Washer stainless steel
9 screw steel A2-70
10 Bolt steel A2-70






Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Limit Switch Blocks Elephant APL-210N




Technical parameters of limit switch units Elephant APL-210N

Name Meaning
Limit switch block model APL-210N
Ambient temperature, °C from -40 to 80
Service life, years 10





Sketch of dimensions and sizes of limit switch blocks Elephant APL-210N




Dimensions and sizes of limit switch blocks Elephant APL-210N:

Model APL-210N
H, mm 77
L, mm 112
B, mm 88
D, mm 10
D1, mm 5
M, mm 20x1.5





Table of parts and materials of the limit switch block Elephant APL-210N:

Detail Material
Frame cast aluminum
Indicator cap polyester plastic
3D indicator ABC plastic
Cam polyester plastic
Spring stainless steel
Screws stainless steel
Sealing rings NBR
Sleeve bronze
Ground terminal stainless steel
Shaft stainless steel

Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Data sheet for limit switch unit Elephant APL-410N EX



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    For welding
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    3 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action
