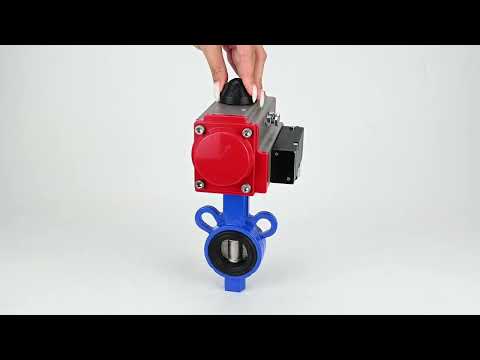

Water Butterfly Valve Elephant al-316l-epdm-elephant-da-4m310-24, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated
Water Butterfly Valve Elephant al-316l-epdm-elephant-da-4m310-24, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated - DN25 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Butterfly valves Elephant al-316l-epdm are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.
Pneumatic double-acting rotary actuators and pneumatic rotary actuators with return springs are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, to install the valves through holes in the housing.
Technical parameters of water butterfly valve Elephant al-316l-epdm-elephant-da-4m310-24, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated:
|
Nominal diameter DN, mm |
25–32 |
|
Operating pressure PN, bar |
16 |
|
Working medium temperature t, °C |
From -20 to +120 |
|
Working medium |
Cold and hot water, oil-free and grease-free air, other media neutral to the material |
|
Flow direction |
Two-way |
|
Body material |
Aluminum alloy |
|
Type of control |
Manual (handle) |
|
Additional option |
Electric or pneumatic actuator installation possible (ISO 5211-2001) |
|
Nominal pressure PN, MPa (kg/cm²) |
1.2 (12) |
|
Operating pressure, bar |
2...8 |
|
Working medium |
Filtered compressed air or non-aggressive gases, oils |
|
Maximum particle diameter |
Less than 30 µm² |
|
Operating temperature, °C |
-20 to +80 |
|
Adjustment range |
5° for rotation at 0° and 90° |
|
Manual duplication |
Yes |
|
Position indicator |
Open/closed |
|
Operating environment |
Indoors and outdoors (all internal and external parts are anti-corrosion coated) |
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
-
Voltage
-
Valve feedback
-
Explosion-proof
-
Torque
-
Pneumatic actuator
-
Manual override
-
Limit switches
