Elephant  |  SKU: D050-32495

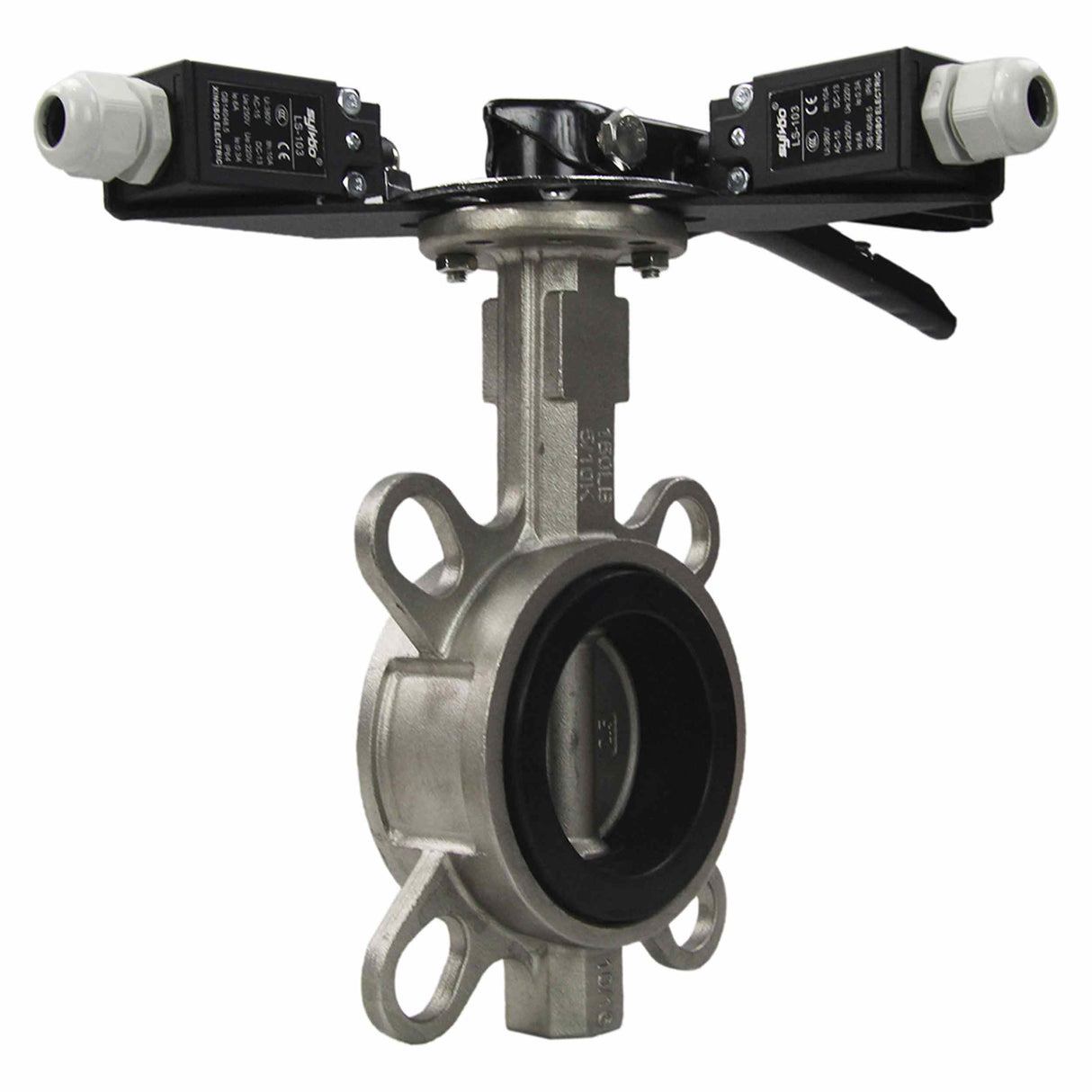

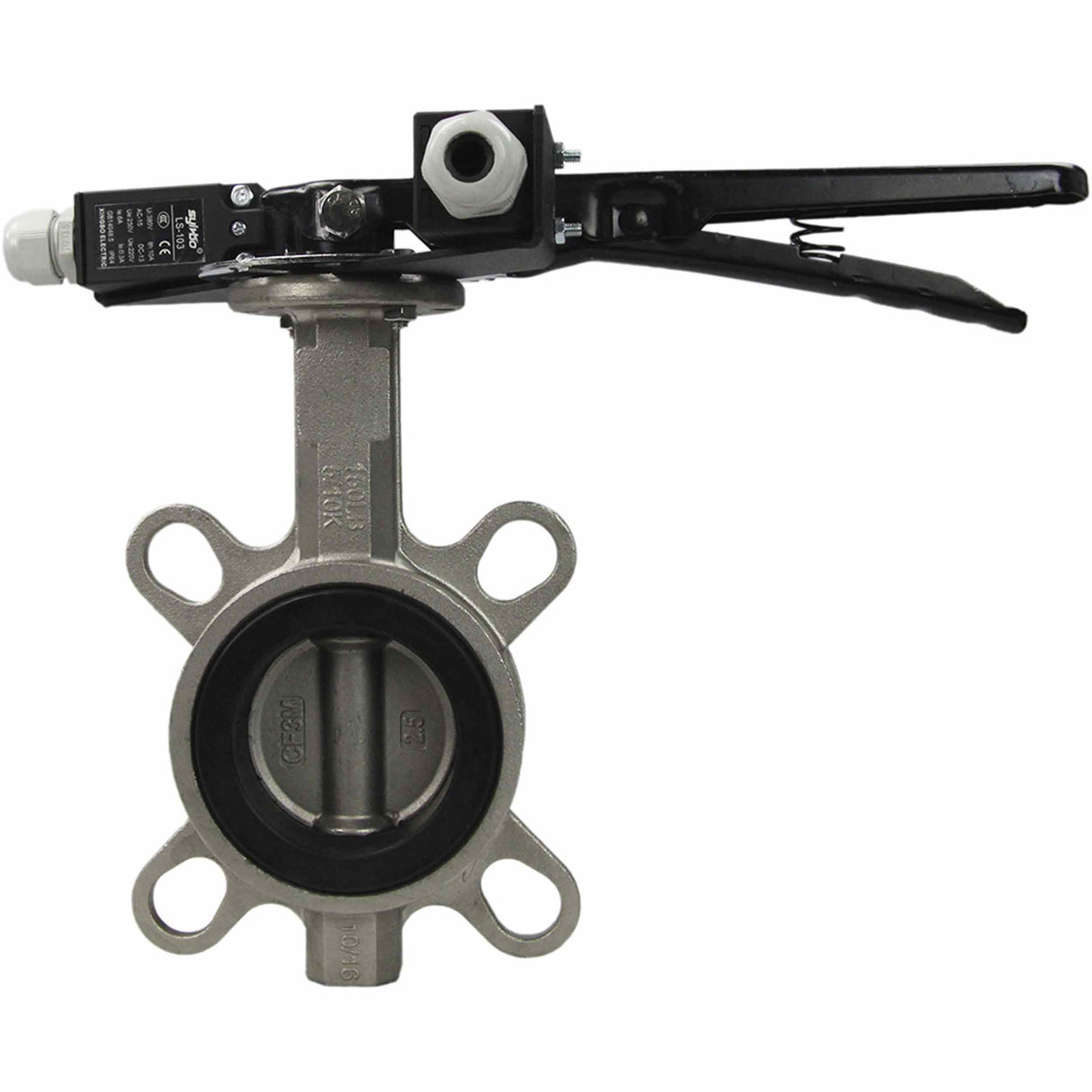

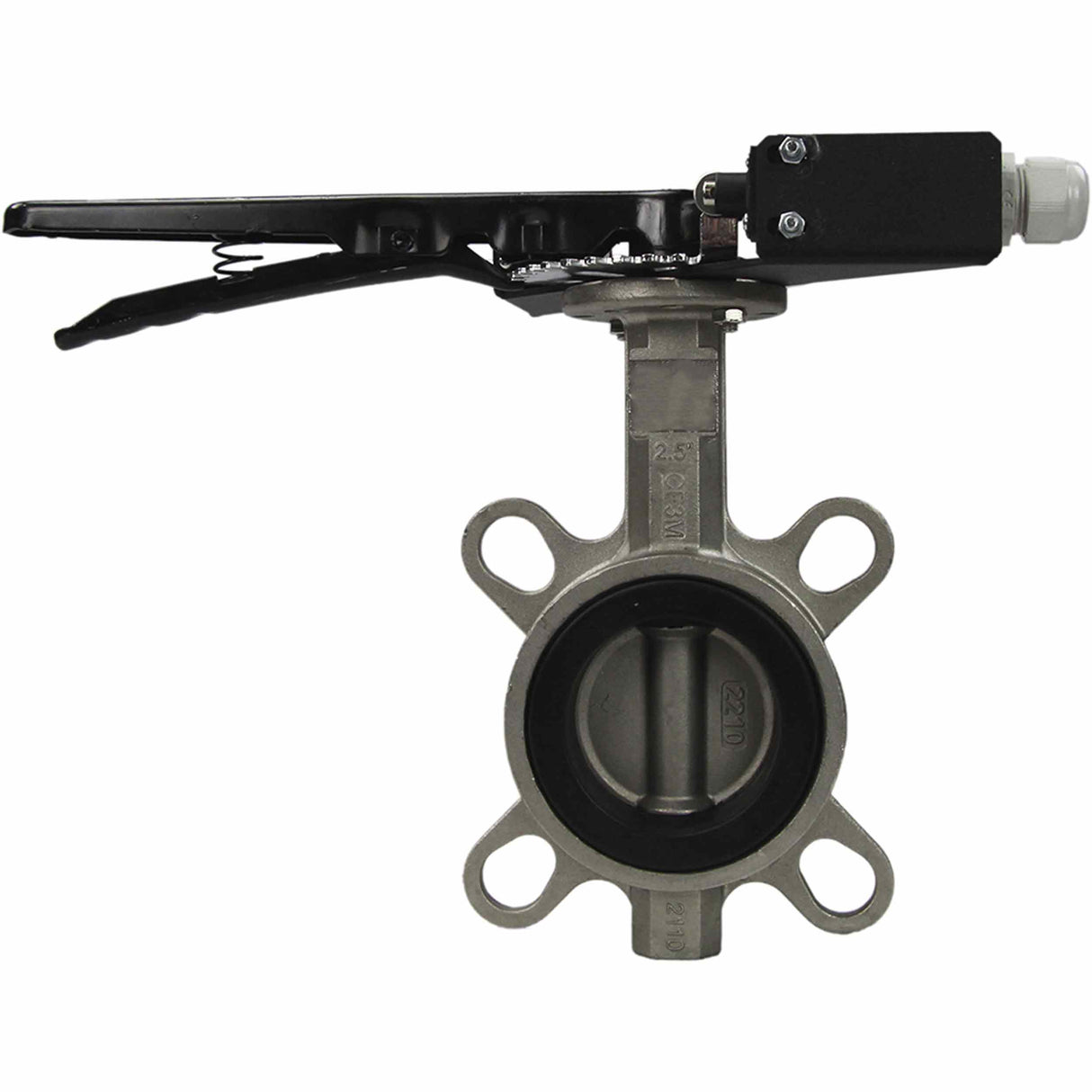

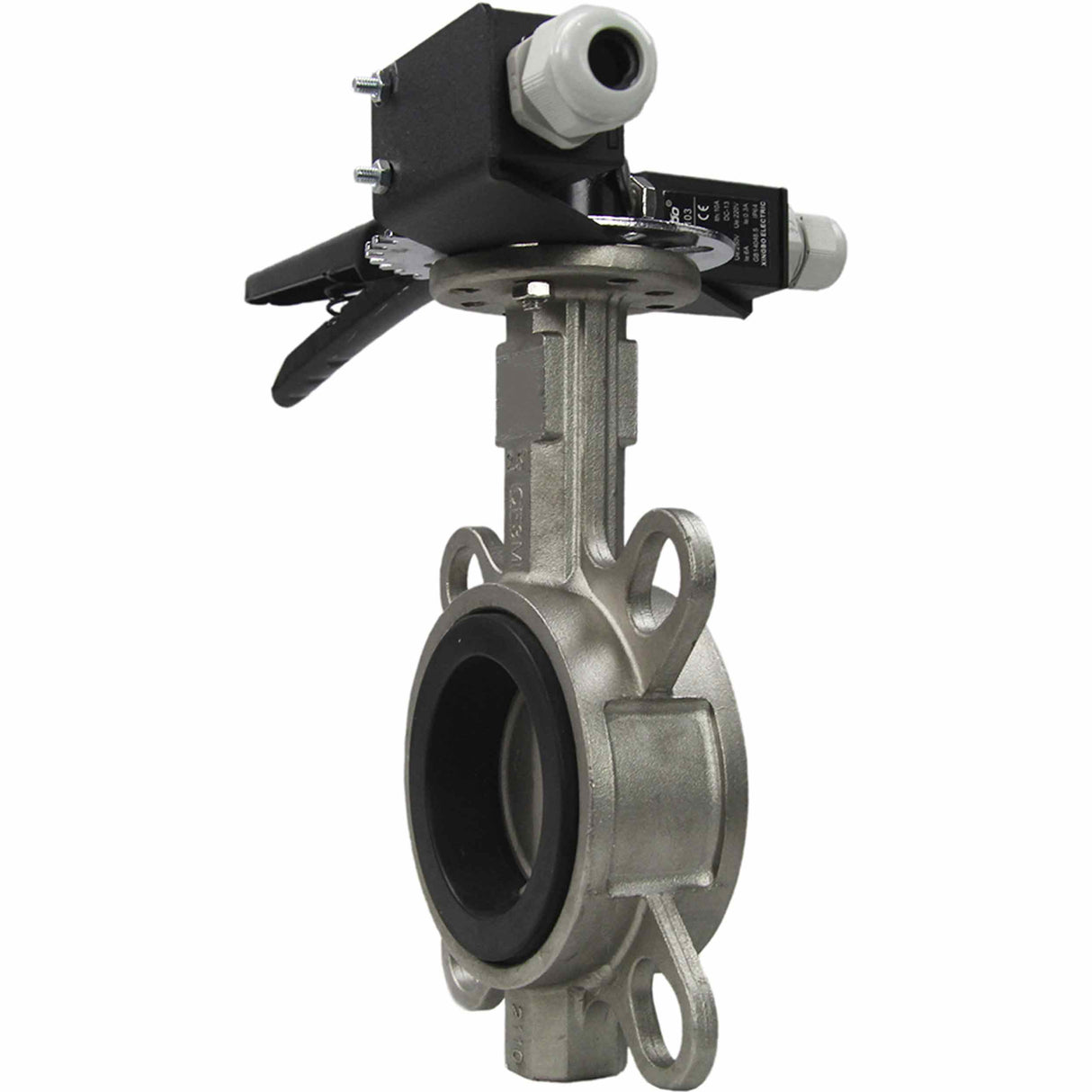

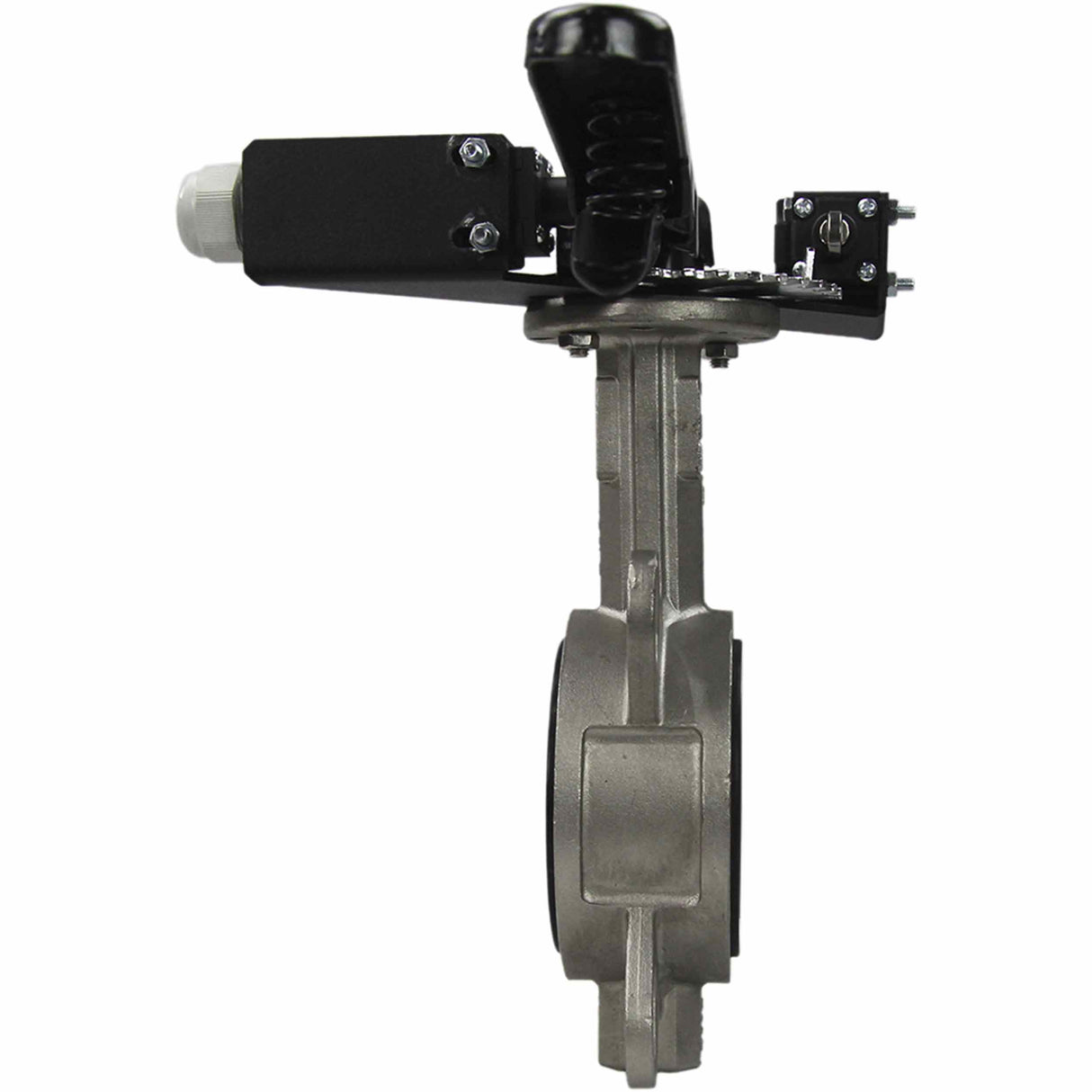

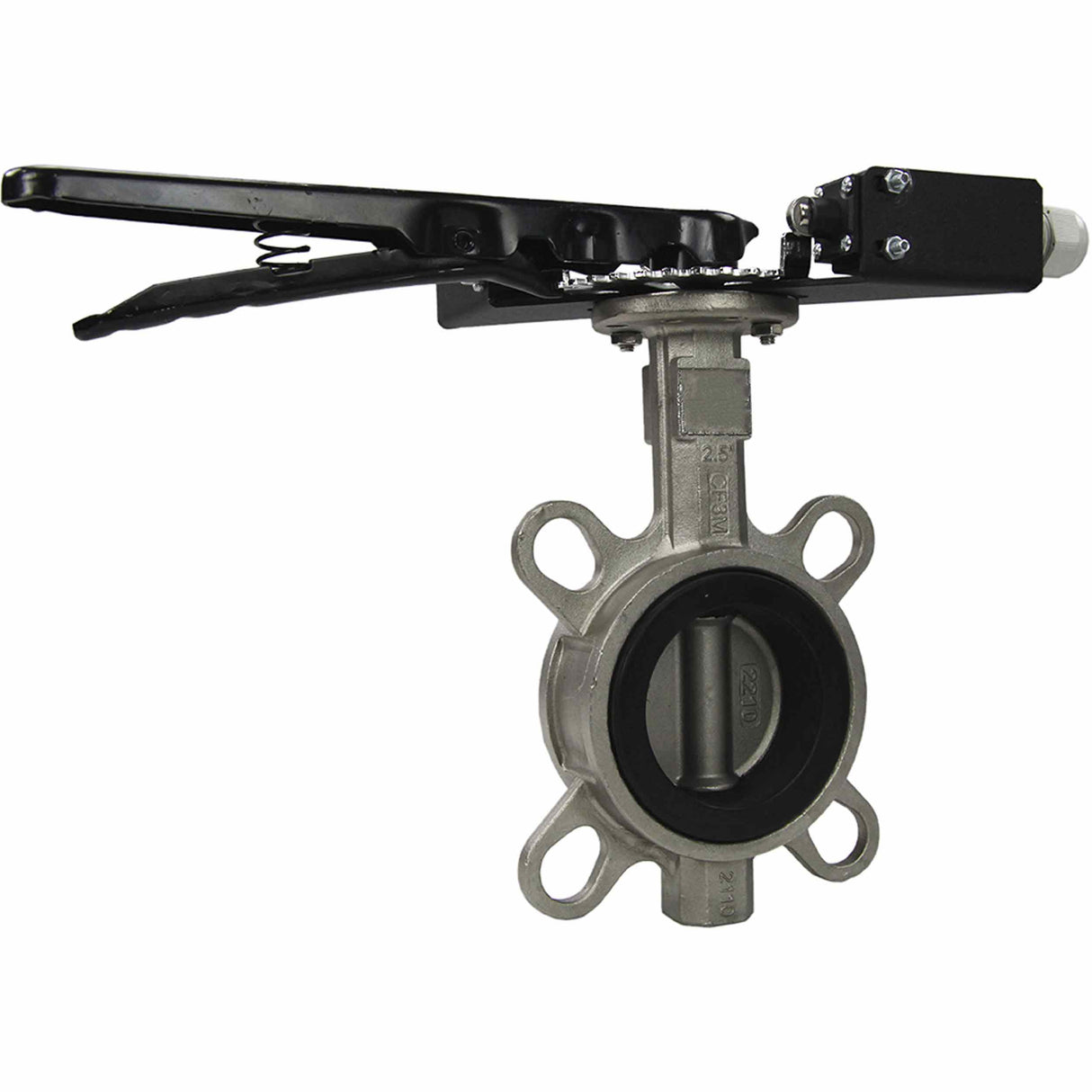

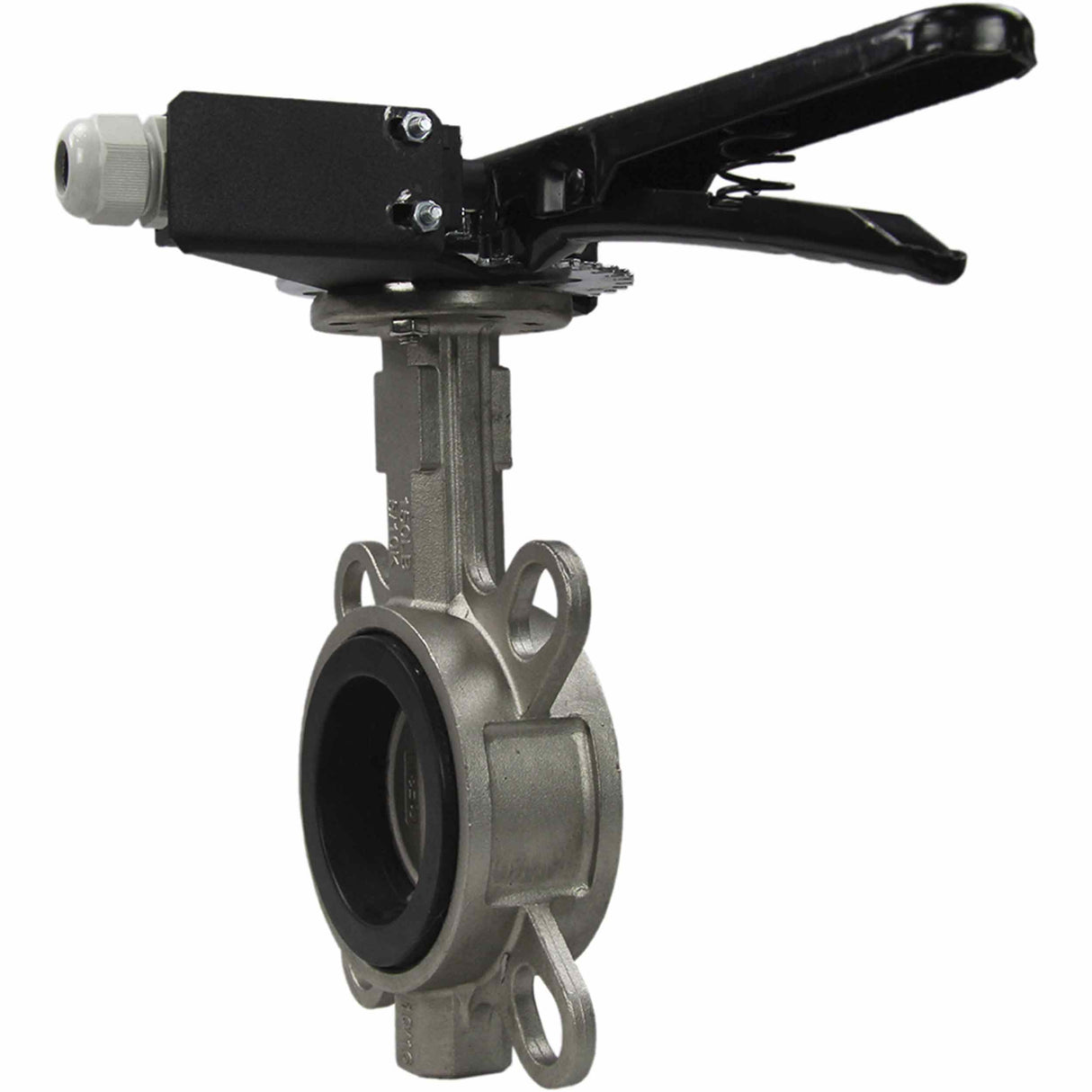

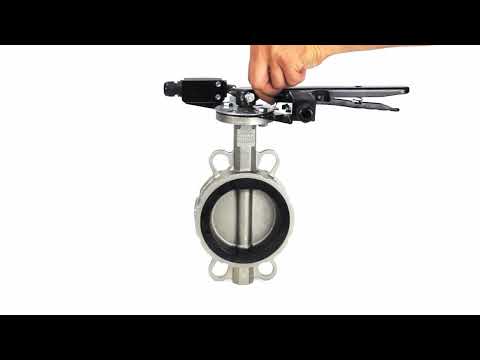

Water butterfly valve Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches

€151,67
Tax included Shipping calculated at checkout.

Water butterfly valve Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve Elephant is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should only be installed between collar flanges.







General parameters of Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

Range of sizes DN, mm

40-150

Nominal pressure PN, bar

16

Flow direction

Two-way

Ambient temperature t, °C

From -20 to +200

Connection to pipeline

Interflange



Technical characteristics of Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

DN, mm ISO-5211 Torque at ΔP=16 bar, Nm
40 F05 50
50 F05 50
65 F05 50
80 F05 50
100 F05 50
125 F07 80
150 F07 100


Dimensions of Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

DN H1, mm H2, mm H3, mm Dm, mm Dk, mm L, mm ØC, mm
DN40/50 62 126 25 73 90 43 125
DN50 62 126 25 73 90 43 125
DN65 72 133 25 85 103 46 145
DN80 91 142 25 100 116 46 160
DN100 107 165 25 131 151 52 180
DN125 121 183 25 155 174 56 210
DN150 134 195 25 184 205 56 240
DN200 171 236 35 234 255 60 295
DN250 197 276 35 288 315 68 355
DN300 240 315 35 340 375 78 410

Эскиз Затворы дисковые поворотные DN.ru WBV3232E-2W-Fb Ду40-150 Ру16, корпус - нержавеющая сталь 316L, диск - нержавеющая сталь 316L, уплотнение - EPDMс рукояткой, с двумя концевыми датчиками LS-103 250В и кронштейном для крепления концевых выключателей




Table of parts and materials of Elephant 316L-316L-EPDM body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

№ Name Material
1 Housing WCB steel or AISI 316L stainless steel
2 Cuff EPDM, PTFE, NBR
3 Disc AISI 316L stainless steel
4 Rod SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Эскиз Затворы дисковые поворотные DN.ru WBV3232E-2W-Fb-H Ду40-300 Ру16, корпус -сталь 316L, диск - сталь 316L, уплотнение - EPDM, с рукояткой

Sketch of specification water Butterfly Valve Elephant



Hydraulic tests of the housing are carried out with a pressure 1.5 times the working pressure.
Hydraulic tests of the packing gland and seat seal are carried out with pressure exceeding the working pressure by 1.1 times.

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Torque
    50 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    Yes

Reviews (0)

Documentation
nullEnd sensor ELEPHANT LS-103 250V 6A for rotary disk gates
