Elephant  |  SKU: D130-05524

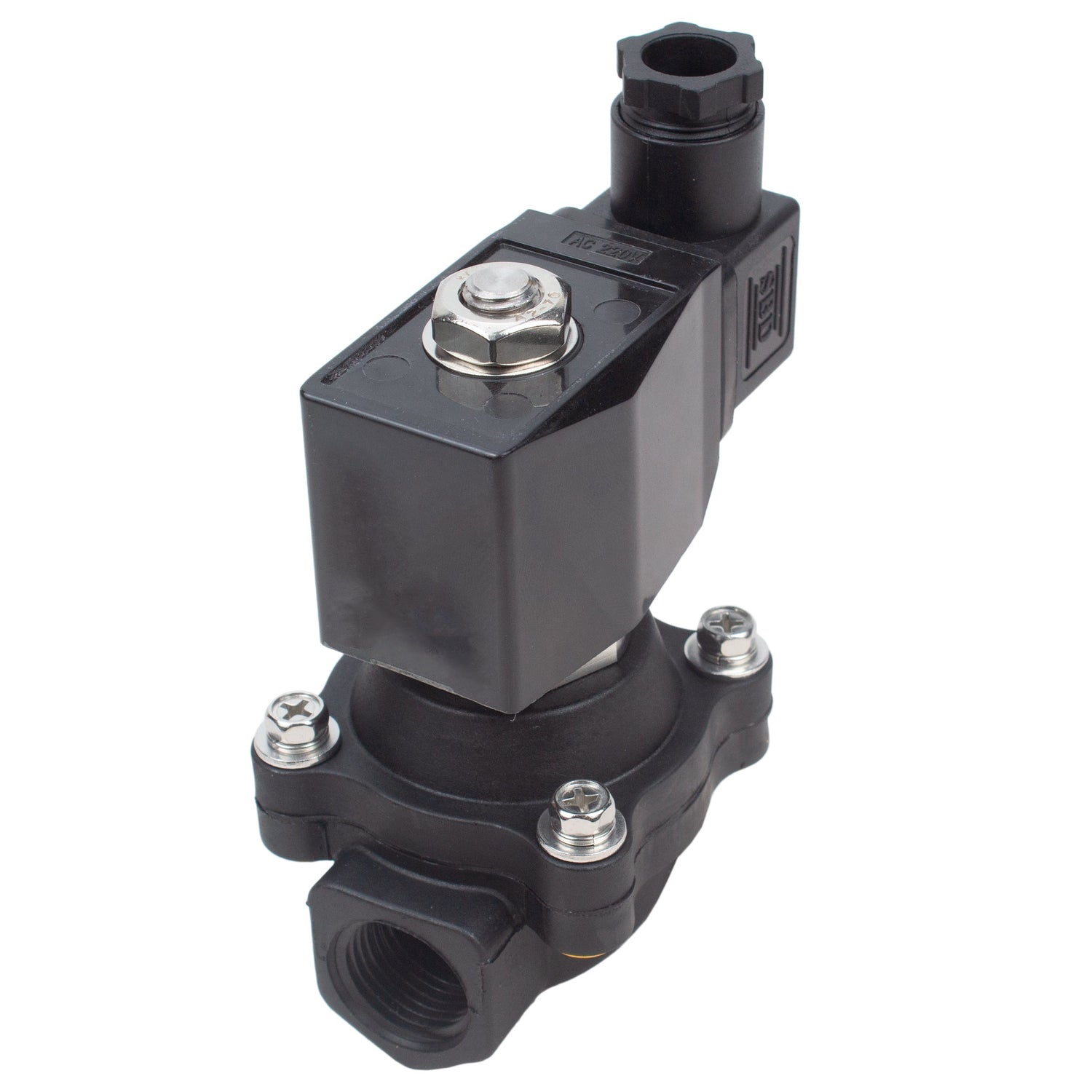

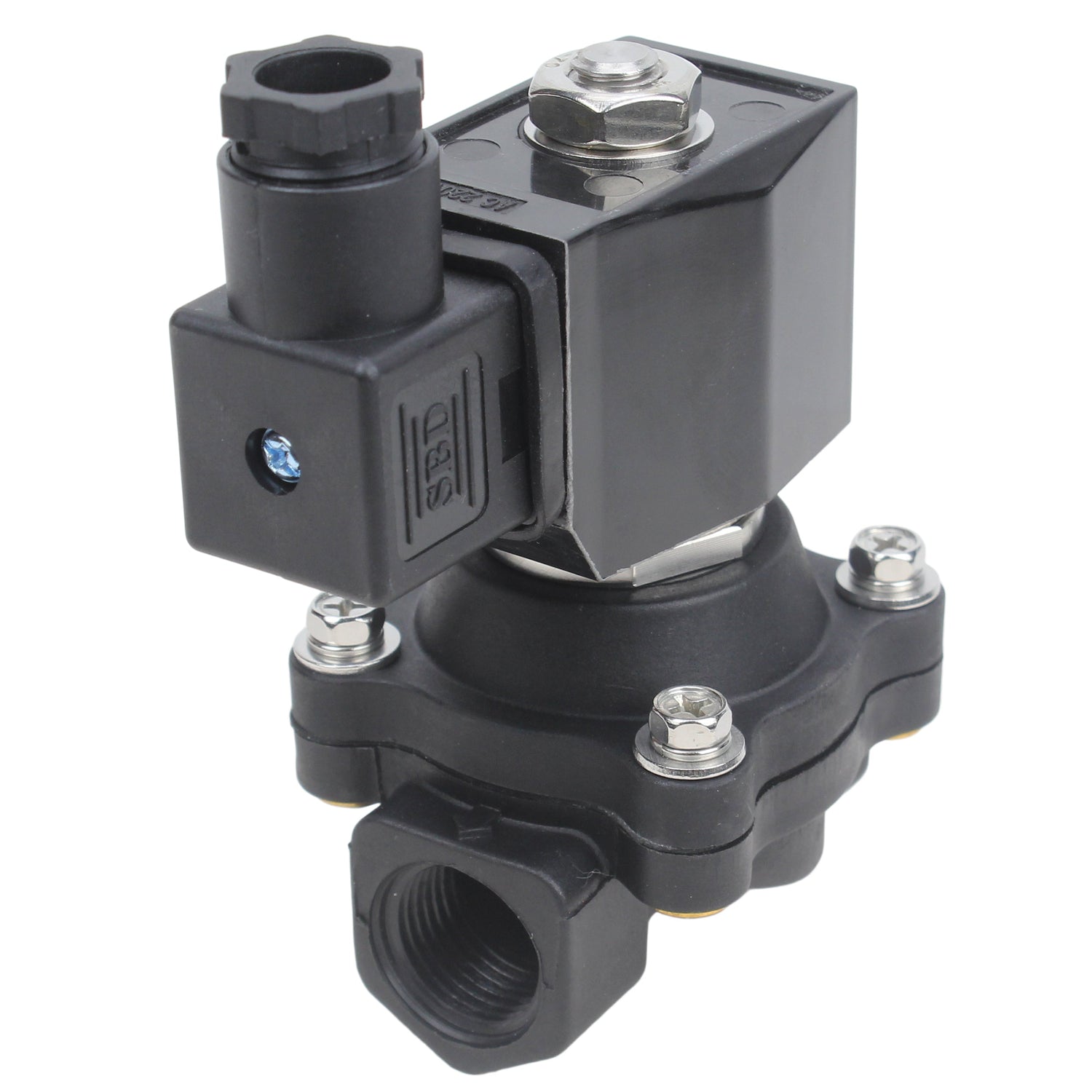

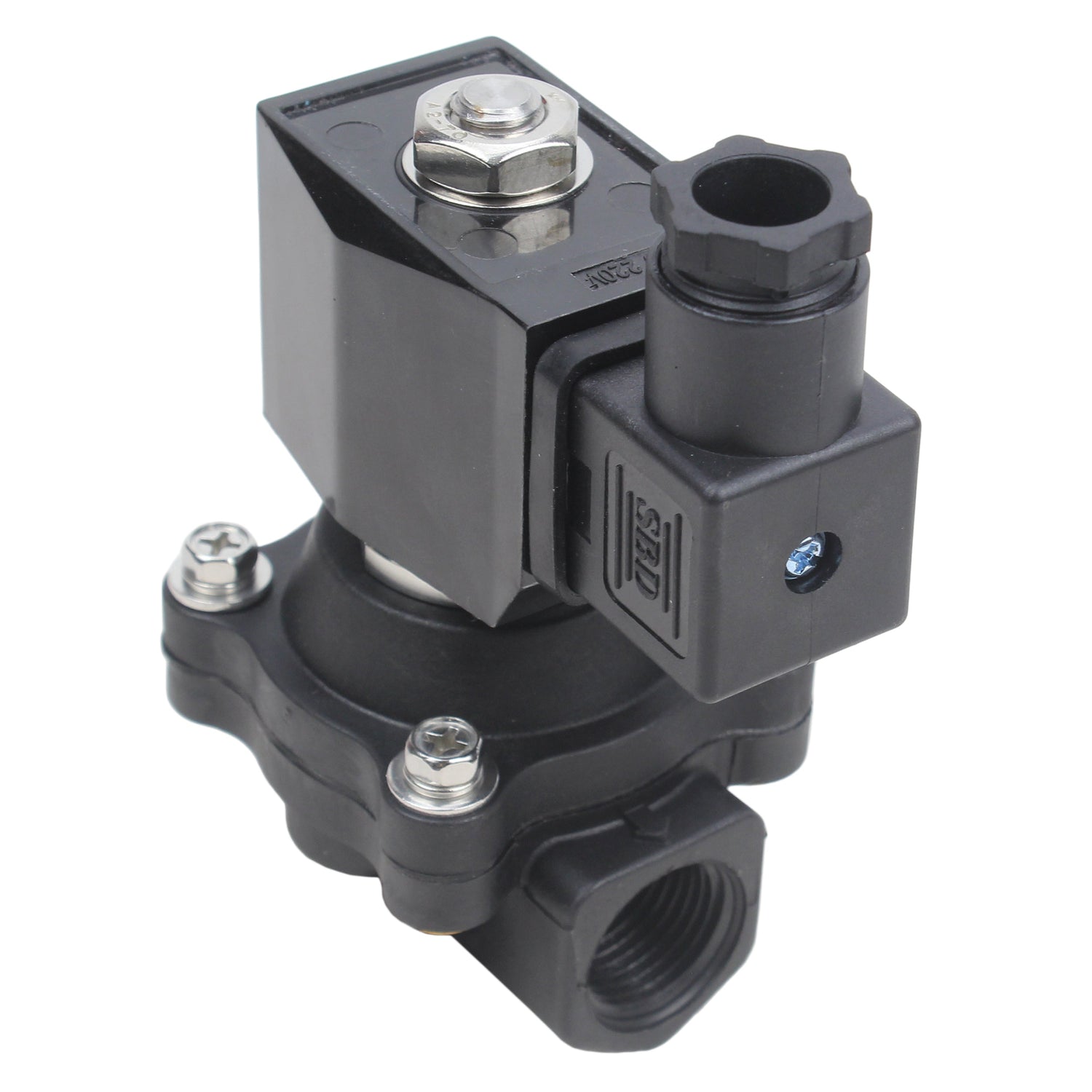

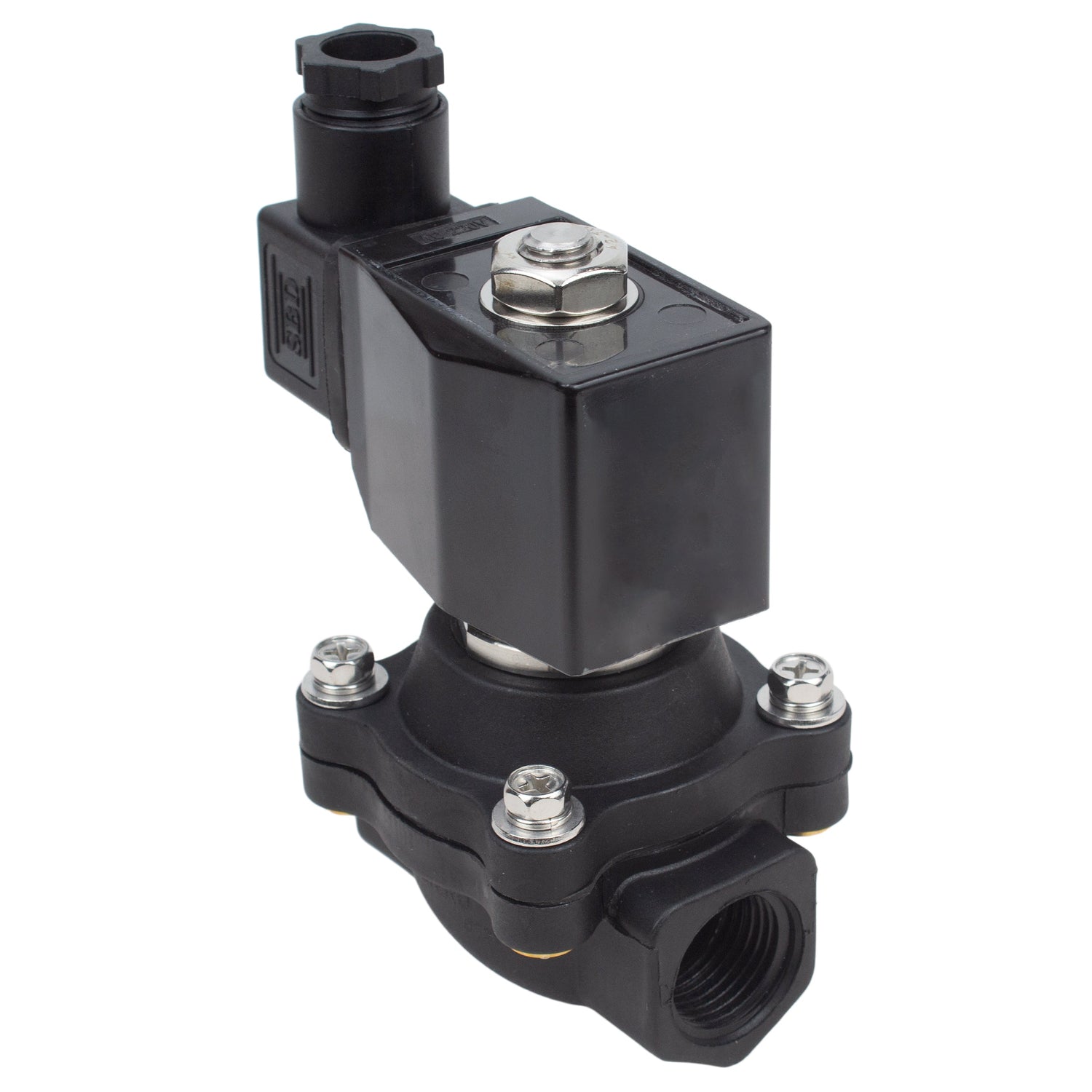

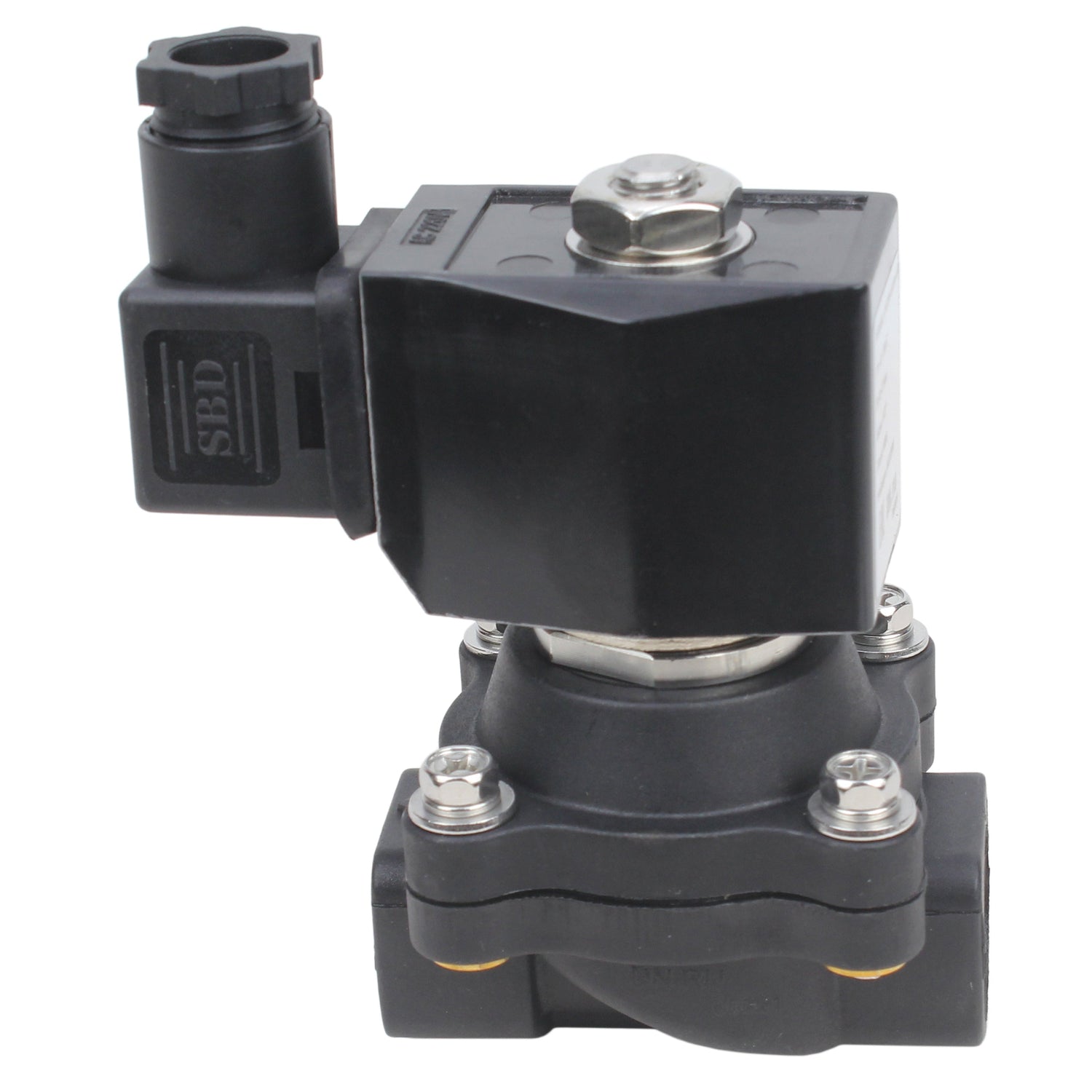

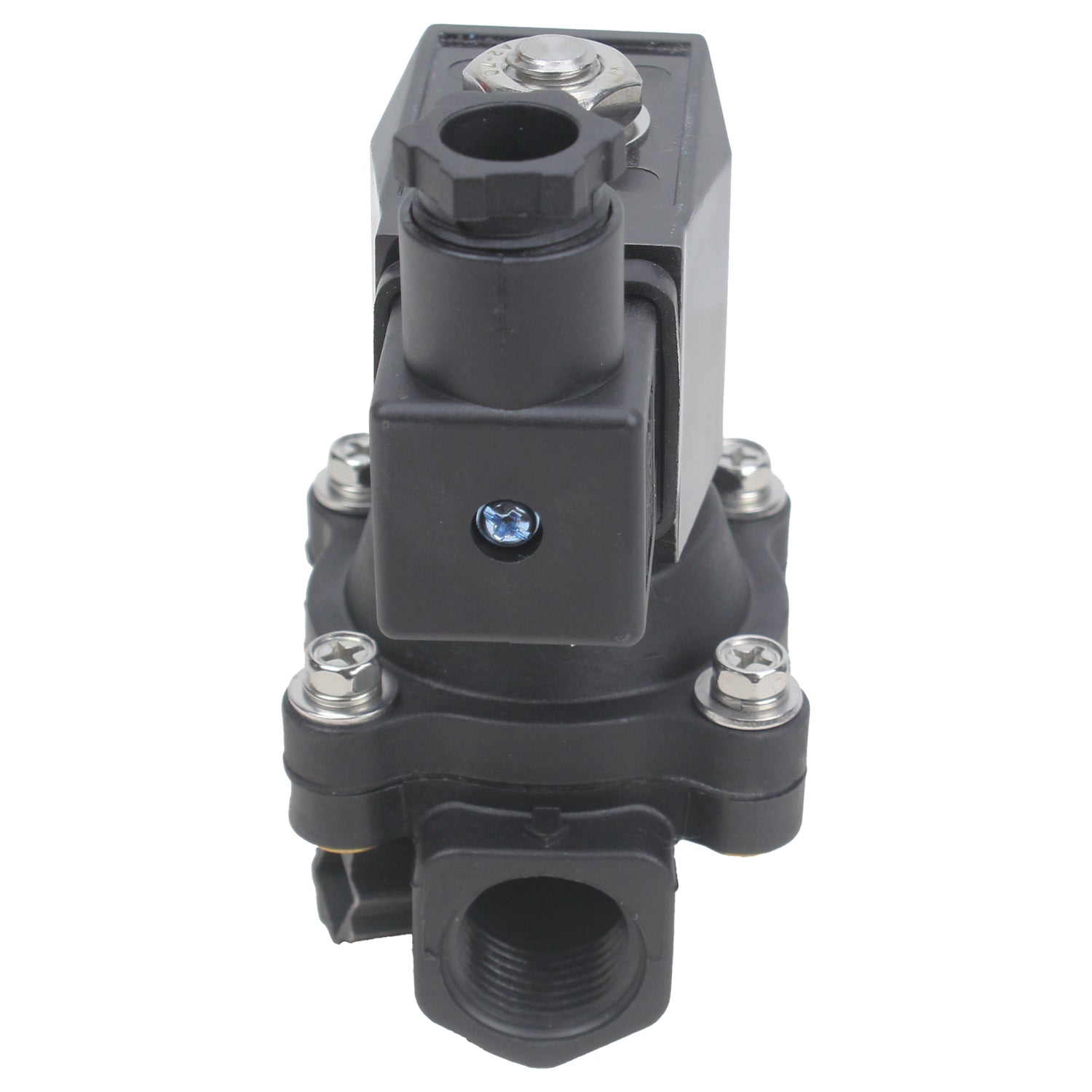

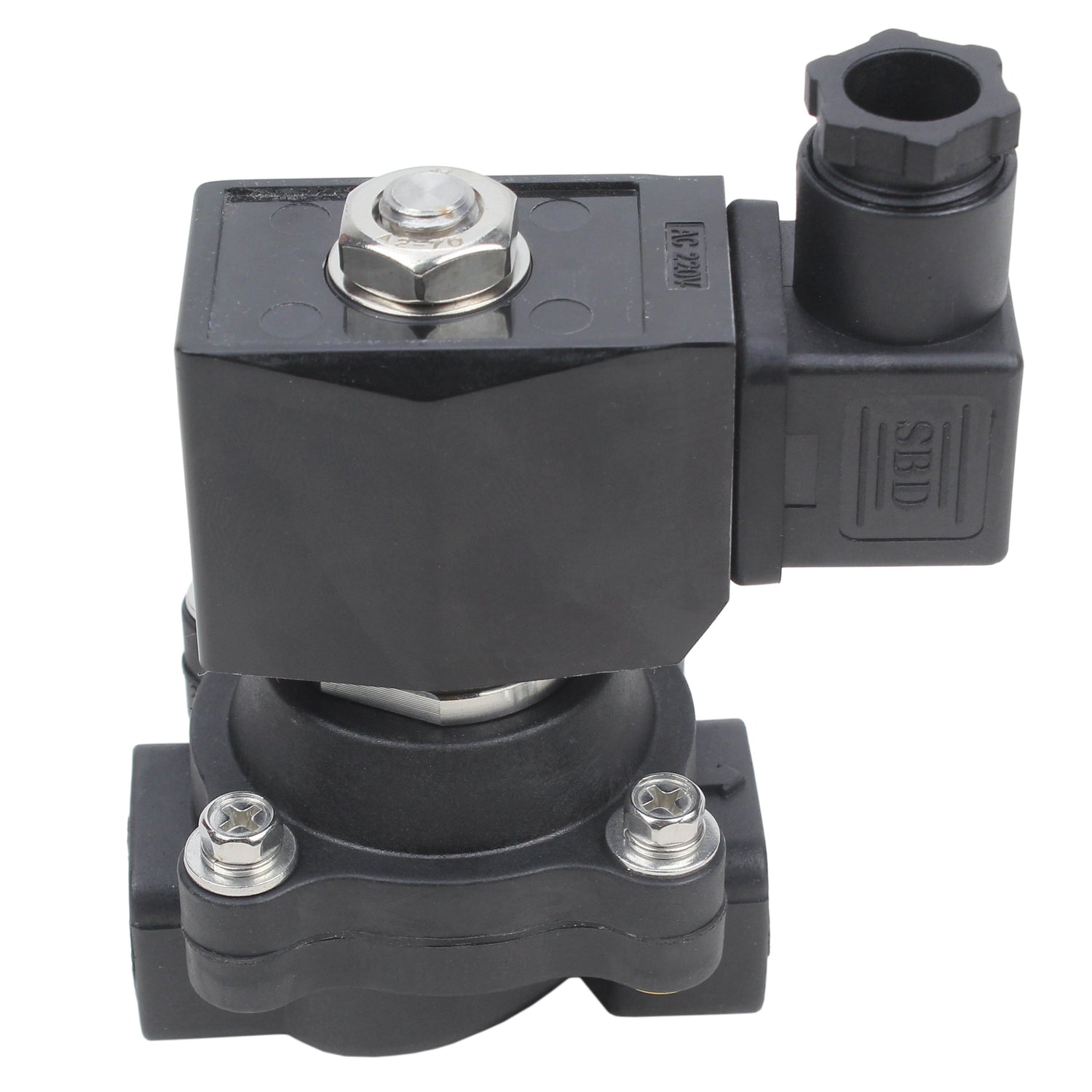

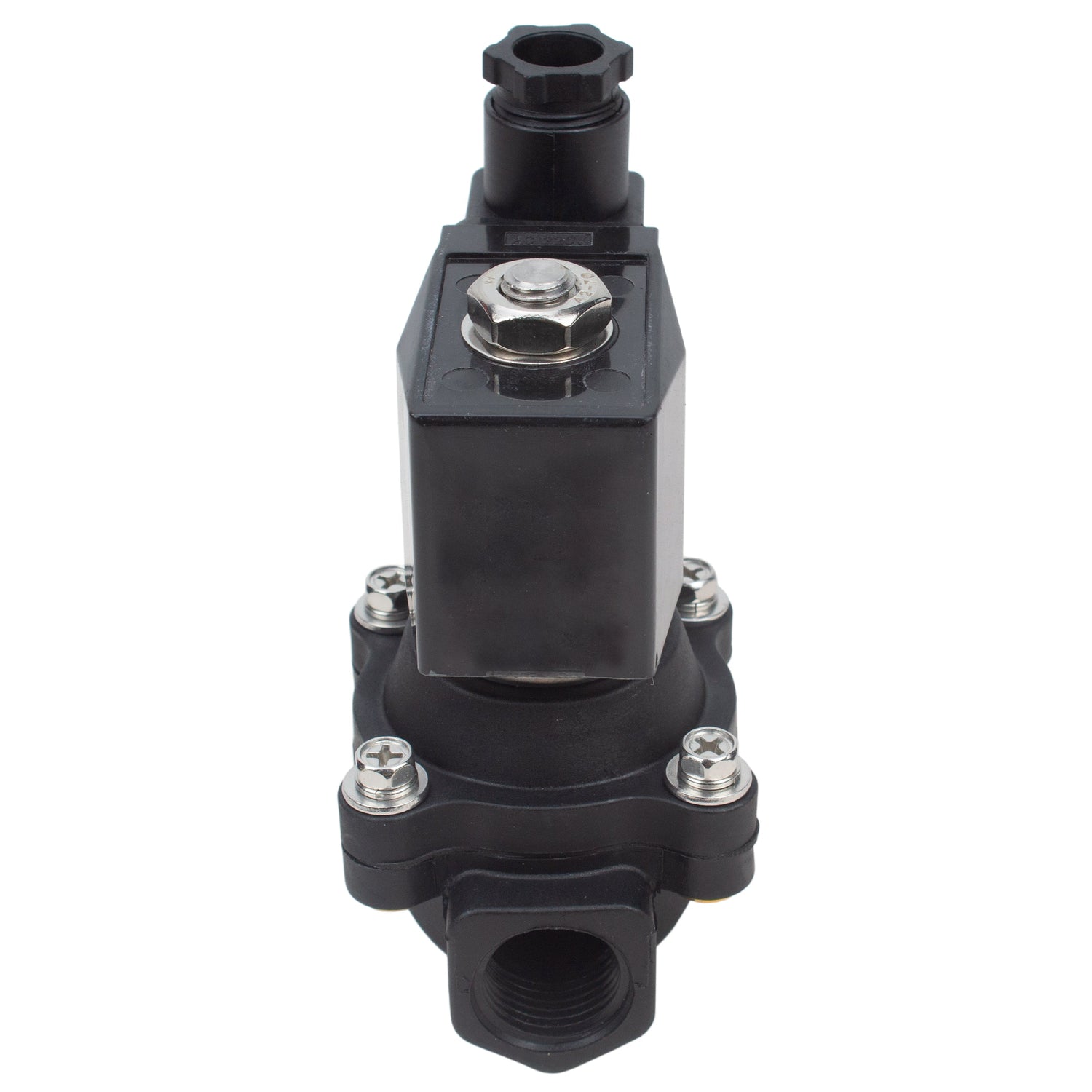

Solenoid valve Elephant VS541-NT-NC-24VAC, body material - polyamide PA66, seal - NBR, normally closed, coil - 24 VAC

€55,98
Tax included Shipping calculated at checkout.

Solenoid valve Elephant VS541-NT-NC-24VAC, body material - polyamide PA66, seal - NBR, normally closed, coil - 24 VAC - DN15 is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to the solenoid coil. When voltage is applied to the coil, the normally closed valve opens and allows the medium flow to pass through. When the control voltage is switched off, the valve closes automatically and cuts off the flow of medium in the pipeline. Solenoid valves are used in automobiles, special equipment, water supply systems and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.





General technical specifications Elephant VS541-NT-NC-24VAC, body material - polyamide PA66, seal - NBR, normally closed, coil - 24 VAC:

Nominal diameter, DN 15-50
Minimum pressure drop, bar 0
Working environment water, liquid, gas
Working environment temperature, °C NBR: from -5 to +80;
VITON: from -10 to +150;
EPDM: from -5 to +90
Ambient temperature, °C from -20 to +65
Compaction NBR, VITON, EPDM
Accession threaded
Body material Polyamide PA66
Valve type direct action
Coil power voltage, V 220VAC - AC voltage 220V
24VDC - constant voltage 24V
24VAC - AC voltage 24V
Valve execution normally closed /normally open
Coil structure with DIN43650A standard connectors
Coil protection IP65
Coil insulation H
Kinematic viscosity of the working medium, cSt ≤20
Average resource, open/close cycles 200 000 (with non-aggressive medium and mean pressure and temperature)





Nominal pressure PN of valves:

DN Nominal pressure valve PN, bar
for normally closed type valve (NC) for normally open type valve (NO)
AC220V DC24V, AC24V
15 7 6 6
20 7 6 6
25 7 6 6
32 6 5 4
40 6 5 4
50 6 5 4





Dimensions and dimensions Elephant VS541-NT-NC-24VAC, body material - polyamide PA66, seal - NBR, normally closed, coil - 24 VAC:

DN C, mm A, mm B, mm Weight, kg
15 107 76 68 0,5
20 111 80 68 0,5
25 117 107 82 0,6
32 160 140 112 1,2
40 170 140 112 1,3
50 190 159 130 1,5

Dimensional sketch of solenoid valves VS541-NT-NC-24VAC, body material - polyamide PA66, seal - NBR, normally closed, coil - 24 VAC





Technical parameters and electrical circuits

DN Thread connection, inch Cross-section, mm Valve flow rate, Cv Coil power
AC220V, VA AC24V, VA DC24V, W
15 1/2" 15 4.8 20 38 20
20 3/4" 20 7.6 20 38 20
25 1" 25 12 40 38 30
32 1 1/4" 32 22 30 30 38
40 1 1/2" 40 30 30 30 38
50 2" 50 48 30 30 38

Specifications
  • Country of origin
    China
  • Body material
    Polyamide PA66
  • Connection type
    Threaded
  • Operating environment
    Water, Liquid, Gas
  • Applications
    Water Supply, Chemical Industry, Oil And Gas Industry, Industry, Irrigation, Wastewater Systems, Utilities And Heating Networks
  • Type of seal
    NBR
  • Solenoid valve type
    normally closed
  • Solenoid valve working principles
    Direct action
  • Supply voltage
    24 V

Reviews (0)

Documentation
nullSolenoid valve ELEPHANT VS541-xT-x-x-x DN15-50 7 bar direct acting plastic threaded
