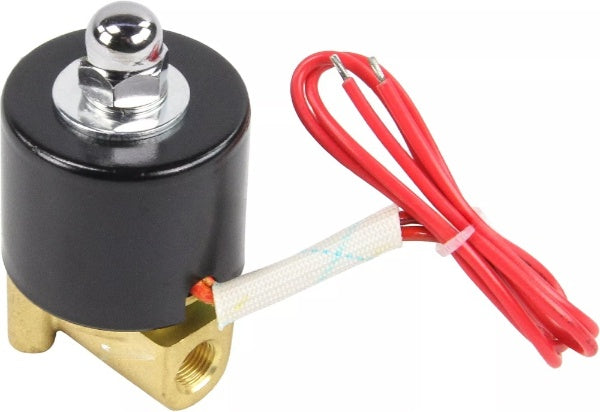

Solenoid valve Elephant VS100-NT-NC-24VAC, body material - Brass, seal - NBR, normally closed, coil - 24 VAC
Solenoid valve Elephant VS100-NT-NC-24VAC, body material - Brass, seal - NBR, normally closed, coil - 24 VAC - DN10 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to the solenoid coil. When voltage is applied to the coil, the normally closed valve opens and allows the medium flow to pass through. When the control voltage is switched off, the valve closes automatically and cuts off the flow of medium in the pipeline. Solenoid valves are used in automobiles, special equipment, water supply systems and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.
General technical specifications Elephant VS100-NT-NC-24VAC solenoid valves, body material - brass, seal - NBR, normally closed, coil - 24 VAC:
| № | Name | Value |
| 1 | Working medium temperature, ⁰C | -5 to + 80 |
| 2 | Working medium | water, air, oil |
| 3 | Operating principle | direct action |
| 4 | Device type | normally open |
| 5 | Connection to pipeline | threaded |
| 7 | Coil power supply, V | 24 AC |
| 8 | Housing material | brass |
| 9 | Seal | NBR |
| 10 | Degree of protection | IP65 |
| 11 | Working medium viscosity | <20CST |
Dimensions and dimensions of Elephant VS100-NT-NC-24VAC solenoid valves, body material - brass, seal - NBR, normally closed, coil - 24 VAC:
| DN | B, mm | C, mm | D, mm | Weight, kg |
| 6 | 30 | 75 | 40.5 | 0,33 |
| 8 | 30 | 75 | 40.5 | 0,32 |
| 10 | 57 | 110 | 66 | 0,7 |
| 15 | 57 | 110 | 66 | 0,7 |
| 20 | 57 | 115 | 70 | 0,74 |
| 25 | 73 | 122 | 99 | 1,1 |
| 32 | 90.5 | 167 | 124 | 2 |
| 40 | 90.5 | 167 | 124 | 2,2 |
| 50 | 124 | 186 | 164 | 3,1 |
Sketch of dimensions of solenoid valves VS100-NT-NC-24VAC, body material - Brass, seal - NBR, normally closed, coil - 24 VAC
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Solenoid valve type
-
Solenoid valve working principles
-
Supply voltage
