Elephant  |  SKU: D140-02086

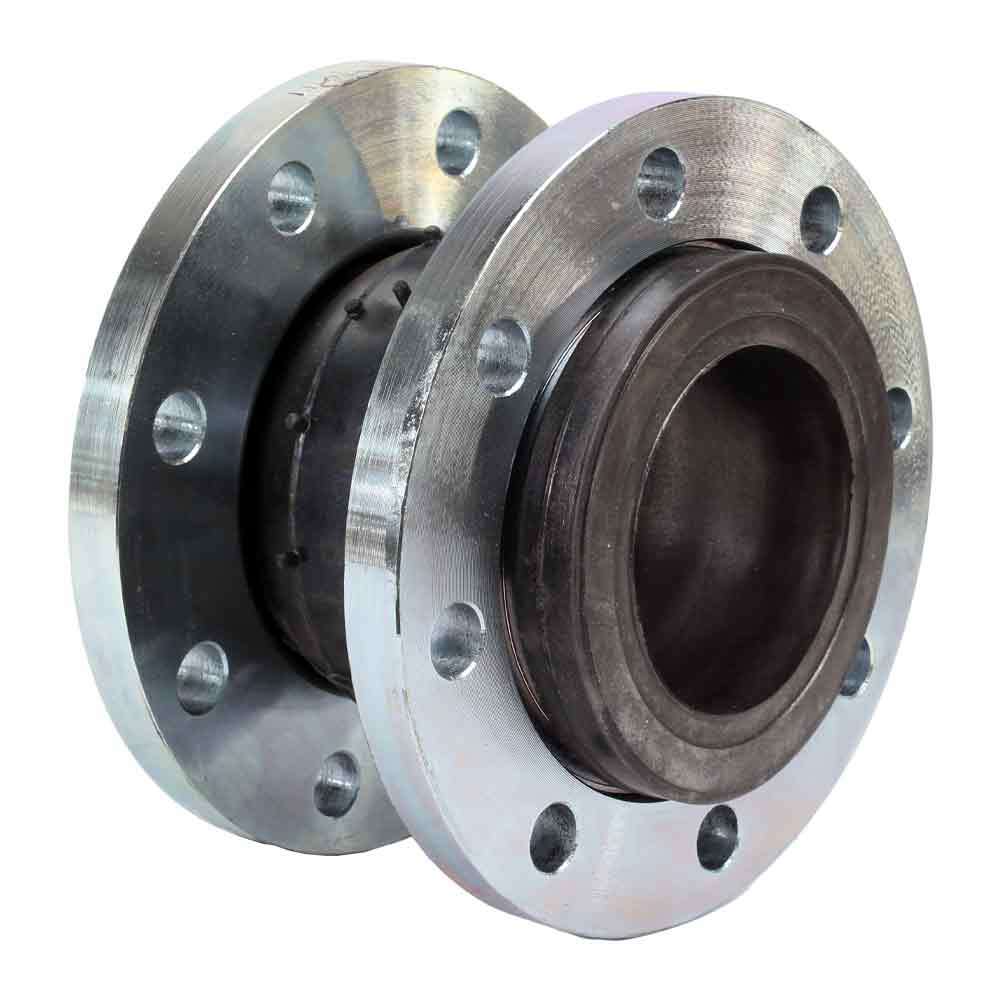

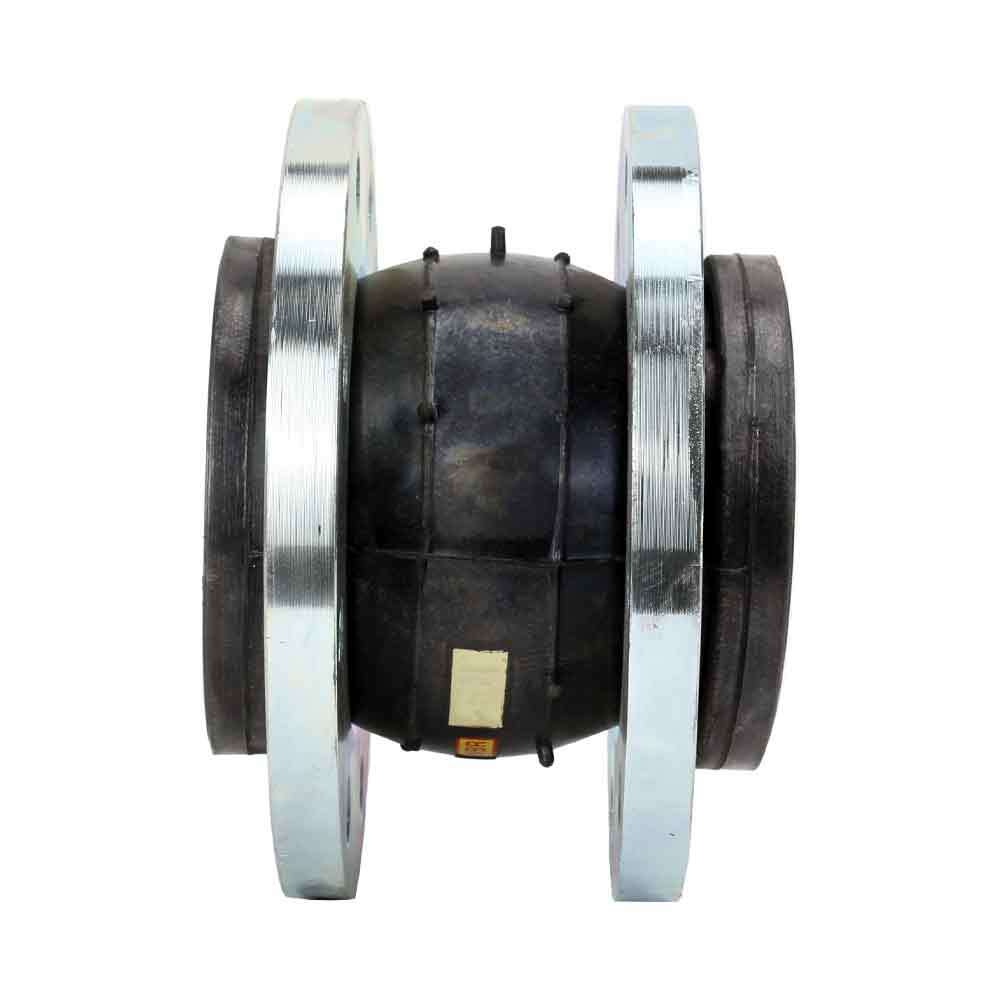

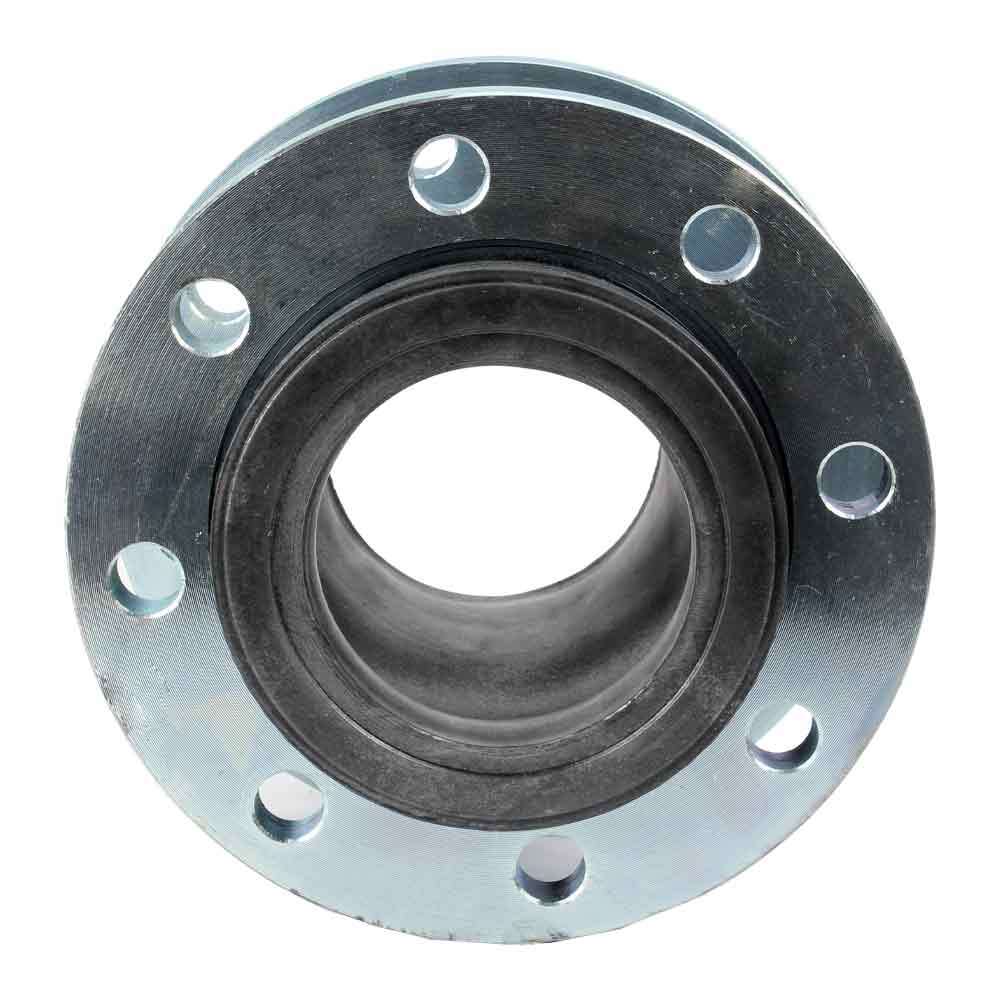

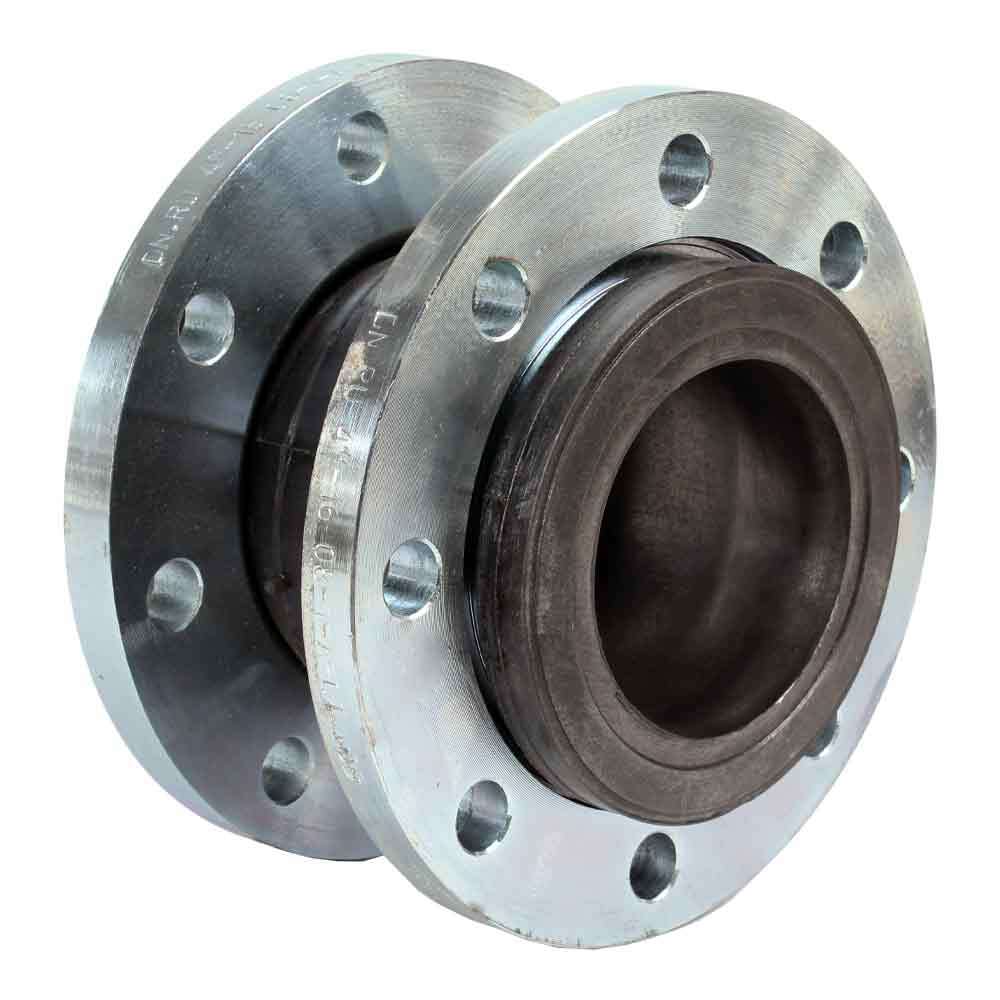

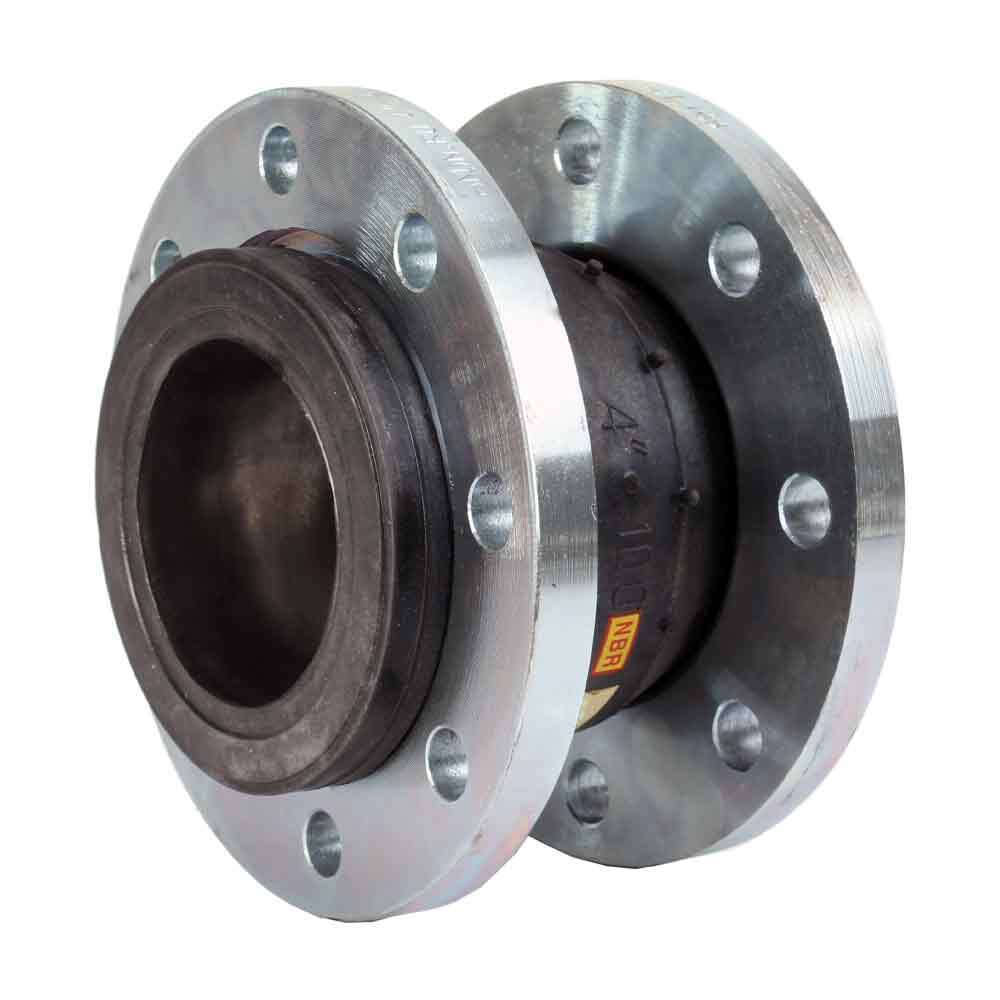

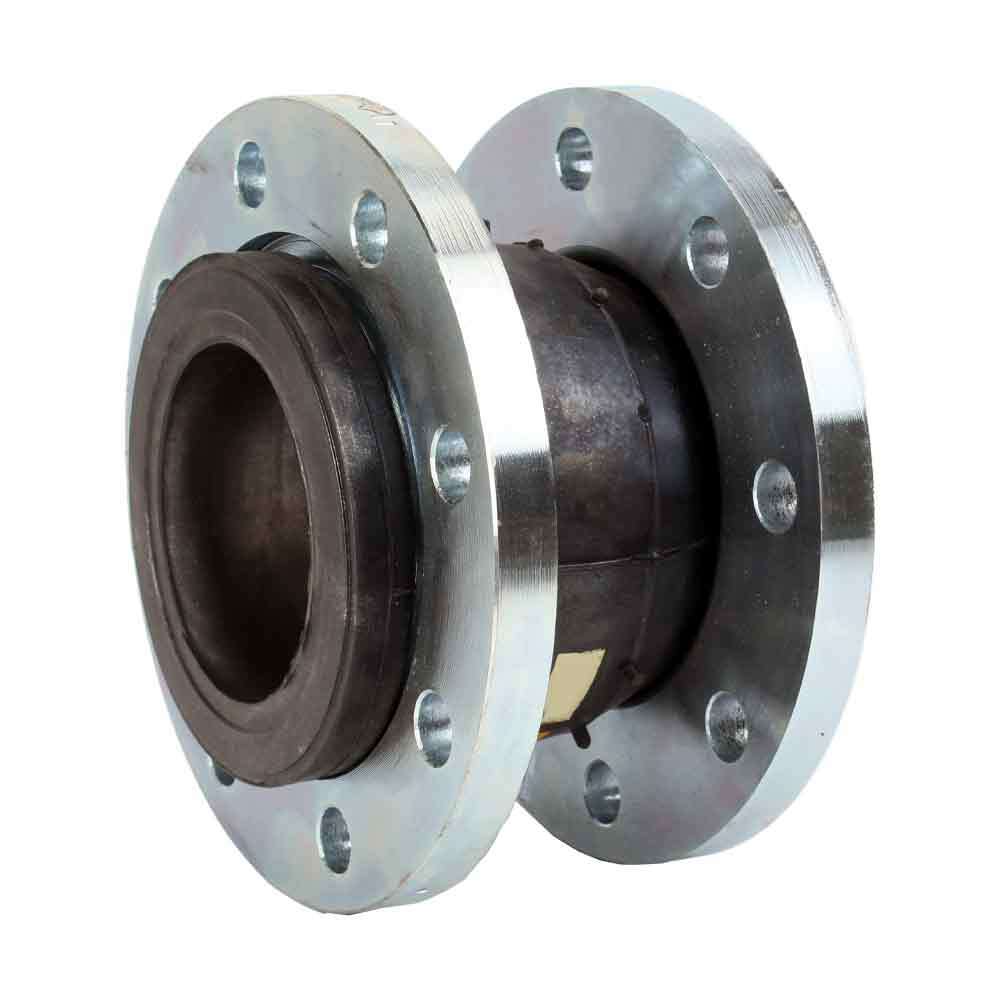

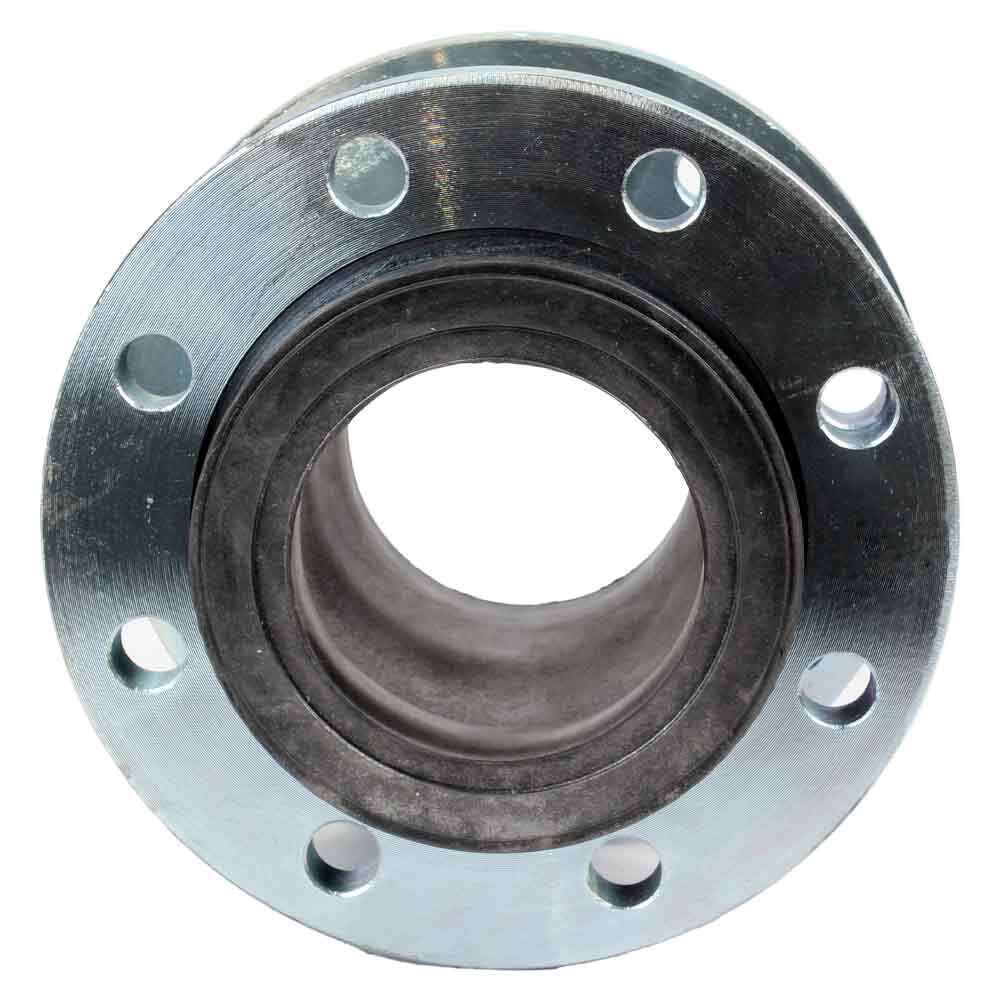

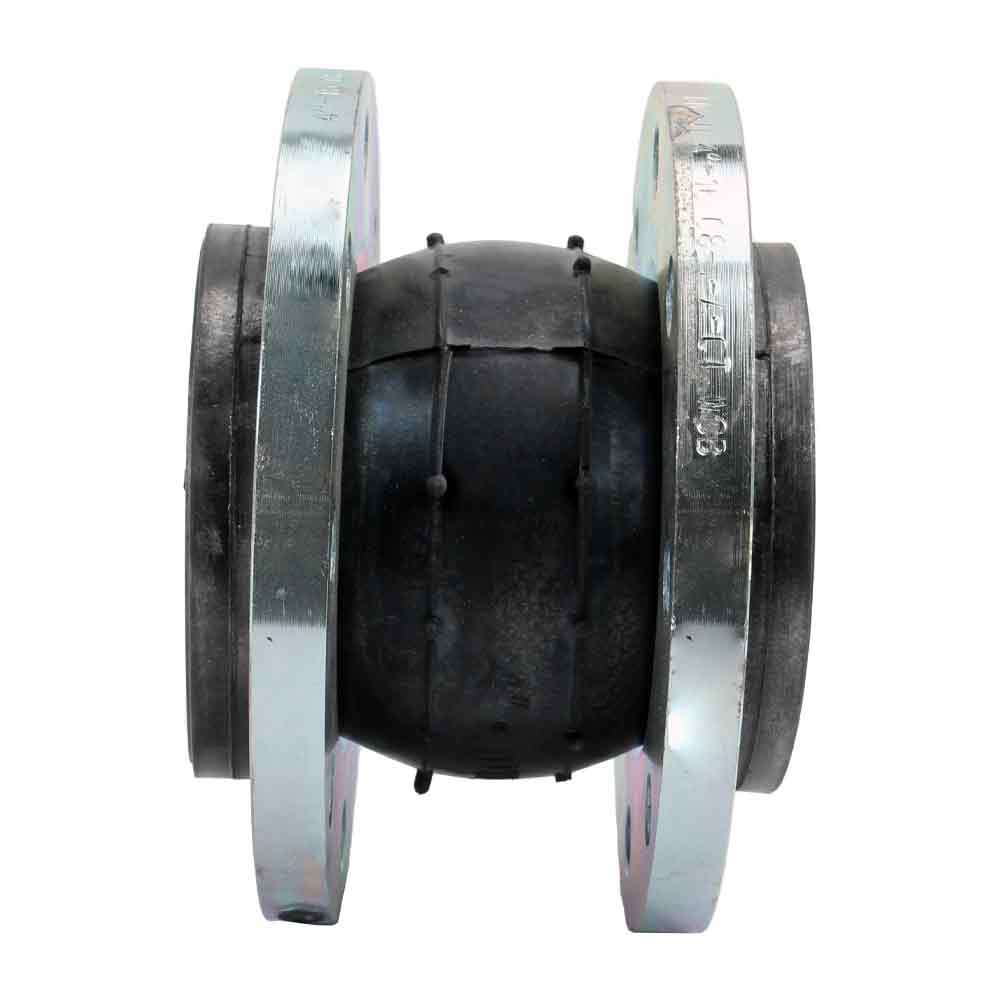

Rubber expansion joint Elephant CR-N34-F PN10, body material - NBR, cord material - NBR

€32,31
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A rubber expansion joint is a flexible pipe fitting designed to absorb movements, vibrations, and noise in a piping system. It comprises a rubber body and metal flanges or inserts, offering high flexibility to compensate for axial, lateral, and angular movements, preventing stress and damage caused by thermal expansion and vibrations. These joints absorb vibrations, reducing noise levels and extending equipment lifespan. They are corrosion-resistant, easy to install, and low maintece, finding applications in industries like HVAC, power plants, and chemical facilities where compensating for thermal movements and vibrations in pipelines is crucial. Various types, such as single sphere and multiple arch designs, cater to specific movement requirements and are chosen based on factors like temperature, pressure, and application needs.





 Overall dimensions of rubber compensators Elephant CR-N34-F PN10, body material - NBR, cord material - NBR

DN a, permissible angular displacement L1, permissible compression, mm L2, allowable extension, mm L3, permissible linear displacement (shift), mm Weight, kg
25 15° 8 4 8 2,0
32 8 4 8 3,0
40 8 4 8 4,5
50 8 5 8 5,0
65 12 6 10 6,0
80 12 6 10 7,5
100 18 10 12 9,0
125 18 10 12 12,0
150 18 10 12 15,0
200 25 14 22 20,0
250 25 14 22 25,0
300 25 14 22 30,0



DN D, outer diameter of flange, mm D1, center distance of connecting holes, mm b, flange thickness, mm L, construction length, mm Number and diameter d of connecting holes, mm
25 115 85 13 95 4-16
32 140 100 14 95 4-18
40 150 110 14 95 4-18
50 165 125 16 105 4-18
65 185 145 16 115 4-18
80 200 160 16 130 8-18
100 220 180 18 135 8-18
125 250 210 18 170 8-18
150 285 240 20 180 8-22
200 340 295 20 205 8-22
250 405 350 21 240 12-22
300 460 400 21 260 12-22

 Sketch of dimensions of rubber compensators Elephant CR-N34-F PN10, body material - NBR, cord material - NBR



Specification of rubber compensators Elephant CR-N34-F PN10, body material - NBR, cord material - NBR

 Specification sketch for rubber expansion joints Elephant CR-N34-F PN10, body material - NBR, cord material - NBR

№ Part name Material
1 Body NBR
2 Hull reinforcement nylon tire cord
3 Flanges galvanized steel WCB
4 Wire rings steel

Specifications
  • Body material
    NBR
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Operating environment
    water (sea, demineralized, distilled, etc.), HFA refrigerants, HFB (water-based)
  • Applications
    Heating Systems, Irrigation Systems, Ventilation Systems
  • Nominal pressure
    10 bar
  • Type of seal
    None
  • Cord material
    NBR
  • Compression
    25 mm

Reviews (0)

Documentation
nullRubber compensator ELEPHANT CR-N34-F DN25-300 16 bar NBR flanged

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D140-02086DN2510 bar €32,31 Sold out
    D140-02087DN3210 bar €26,26 5 In stock
    D140-02088DN4010 bar €29,10 10 In stock
    D140-02089DN5010 bar €34,03 10 In stock
    D140-02090DN6510 bar €43,20 5 In stock
    D140-02091DN8010 bar €55,62 10 In stock
    D140-02092DN10010 bar €71,11 10 In stock
    D140-02093DN12510 bar €85,64 5 In stock
    D140-02094DN15010 bar €112,03 2 In stock
    D140-02095DN20010 bar €172,72 2 In stock
    D140-02096DN25010 bar €223,37 Sold out
    D140-02097DN30010 bar €297,61 Sold out
