Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, di – Valve Elephant
Elephant  |  SKU: D050-81749

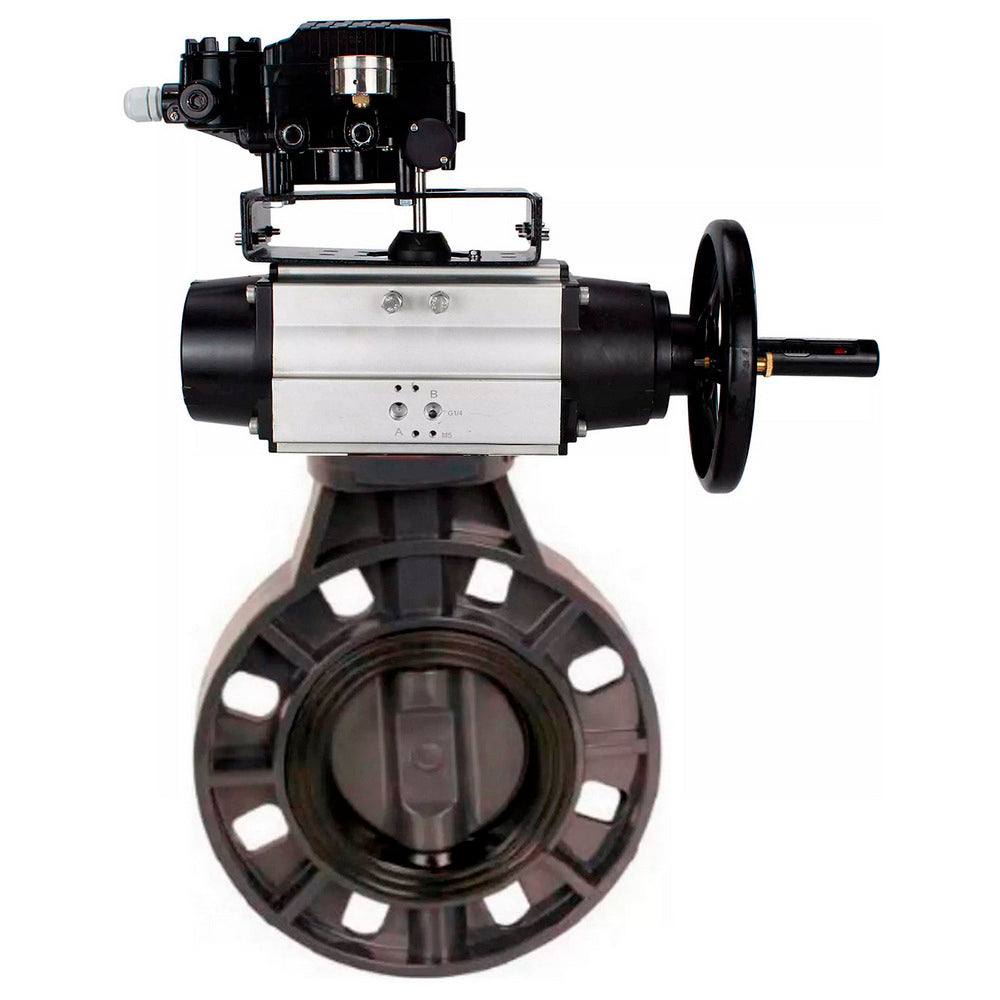

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1 and electro-pneumatic rotary positioner YT-1000RSN without feedback

€630,18
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.

The electropneumatic rotary positioner is used for controlling pneumatic rotary actuators by means of an electric controller or a control system with an analog DC output signal with a range from 4 to 20 mA.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA-105-1:

Characteristic Meaning
Pneumatic drive type double acting
Control pressure 2-8 bar
Operating temperature from -20 to +80 °C
Angle of rotation 90±5°
Visual position indicator open / closed
Manual control flywheel
Air supply connection thread G1/4

Pneumatic drives Elephant PA-DA-105-1



Dimensions of Elephant pneumatic drives PA-DA-105-1:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 G,
mm		 W,
mm
PA-DA-105-1 495 133 109.5 153 26 200

Sketch Pneumatic drives Elephant PA-DA-105-1



Technical parameters of Elephant electropneumatic rotary positioner YT1000RSN:

Characteristic Meaning
Control input signal 4 ~ 20 mA
Protection Class IP66
Lever travel angle 0-90°
Input pressure 1,4~7 bar / 20~100 psi
Operating temperature from -20 to +70 °C
Cable gland G1/2"
Compressed air
connection thread		 1/4"
Pressure gauge
connection thread		 1/8"
Body material aluminum casting

Electropneumatic rotary positioner Elephant YT1000RSN



Dimensions of Elephant electropneumatic rotary positioner YT1000RSN:

A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
R, mm 80.25
S, mm 62.5
Q, mm 33
T, mm 8

Sketch Electropneumatic rotary positioner Elephant YT1000RSN

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    UPVC
  • Electropneumatic positioner
    Yes
  • Pneumatic actuator
    Yes
  • Manual override
    Steering wheel
  • Limit switches
    No
  • Manual understudy
    No
  • Type of pneumatic actuator
    Double acting
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullButterfly valves Elephant WBV4242E-2W-Fb-ISO
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-81749DN10010 bar €630,18 Sold out
    D050-81751DN12510 bar €657,10 Sold out
    D050-81753DN15010 bar €673,58 Sold out
    D050-81755DN20010 bar €719,29 Sold out
    D050-81757DN5010 bar €659,09 Sold out
    D050-81759DN6510 bar €661,84 Sold out
    D050-81761DN8010 bar €670,56 Sold out
