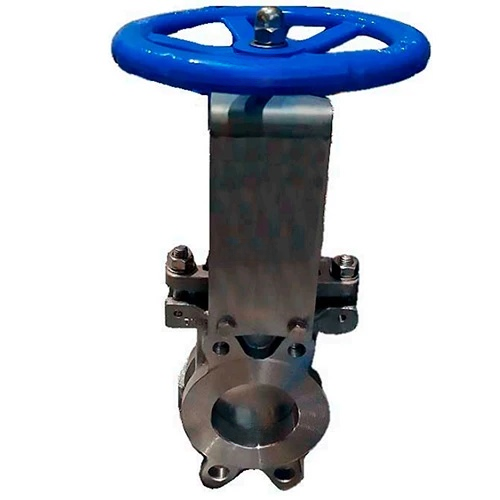

Gate valve Elephant GVKN3131M-1W-Fb-S DN80 16 bar single-sided, wafer, non-rising spindle, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - handwheel, WENZ
Gate valve Elephant GVKN3131M-1W-Fb-S DN80 16 bar single-sided, wafer, non-rising spindle, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - handwheel, WENZ - DN80 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Gate valves are designed for installation on pipelines as a shut-off device and for regulating the flow of the working medium in water supply systems (except for drinking water supply systems) and the chemical industry.
Main technical characteristics of gate valves GVKN3131M-1W-Fb-S DN80 16 bar
| Parameter | Value |
| Nominal diameter DN, mm | 80 |
| Nominal pressure, bar | 16 |
| Working fluid temperature t, °C | -60 to +500 |
| Working fluid | water, pulp, viscous, powdered and crystallized media, acids, wastewater |
| Flow direction | single-sided |
| Tightness class | A |
| Control type | steering wheel |
| Pipeline connection | wafer |
| Body material | AISI 304 stainless steel |
| Applications | water treatment and sewerage systems, utility networks (except drinking water systems) |
| Average service life, years | 10 |
| Average life, closing/opening cycles | 20,000 – 50,000 |
Overall and installation dimensions of gate valves GVKN3131M-1W-Fb-S DN80 16 bar
| Параметр | Model |
| DN80 | |
| L, mm | 51 |
| D, mm | 200 |
| D1, mm | 160 |
| D2, mm | 132 |
| D0, mm | 200 |
| H1, mm | 348 |
| N-Th | 8-M16 |
| T, mm | 12 |
| Ød, mm | 18 |
| ⚫, pcs | 2 |
| ⊕, pcs | 6 |
| Weight | 9 |
Sketch of the dimensions of the Elephant GVKN3131M-1W-Fb-S gate valves
Materials for Elephant GVKN3131M-1W-Fb-S gate valves
| № | Part Name | Material |
| 1 | Housing | AISI 304 stainless steel |
| 2 | Gate | AISI 304 stainless steel |
| 3 | Guide Seal | PTFE |
| 4 | Packaging | PTFE |
| 5 | Gland Packing | AISI 304 stainless steel |
| 6 | Nut | Brass |
| 7 | Rod | AISI 304 stainless steel |
| 8 | Rack | Q235 steel |
| 9 | Bearing | GCr15 steel |
| 10 | Steering Wheel | GGG40 cast iron |
| 11 | Cap | Q235 steel |
| 12 | Wedge | AISI 304 stainless steel |
Sketch of materials for Elephant GVKN3131M-1W-Fb-S gate valves
Specifications
Specifications
-
Operating environmentWater, Pulp, Viscous, Powder and crystallized media, Acids, Wastewater
