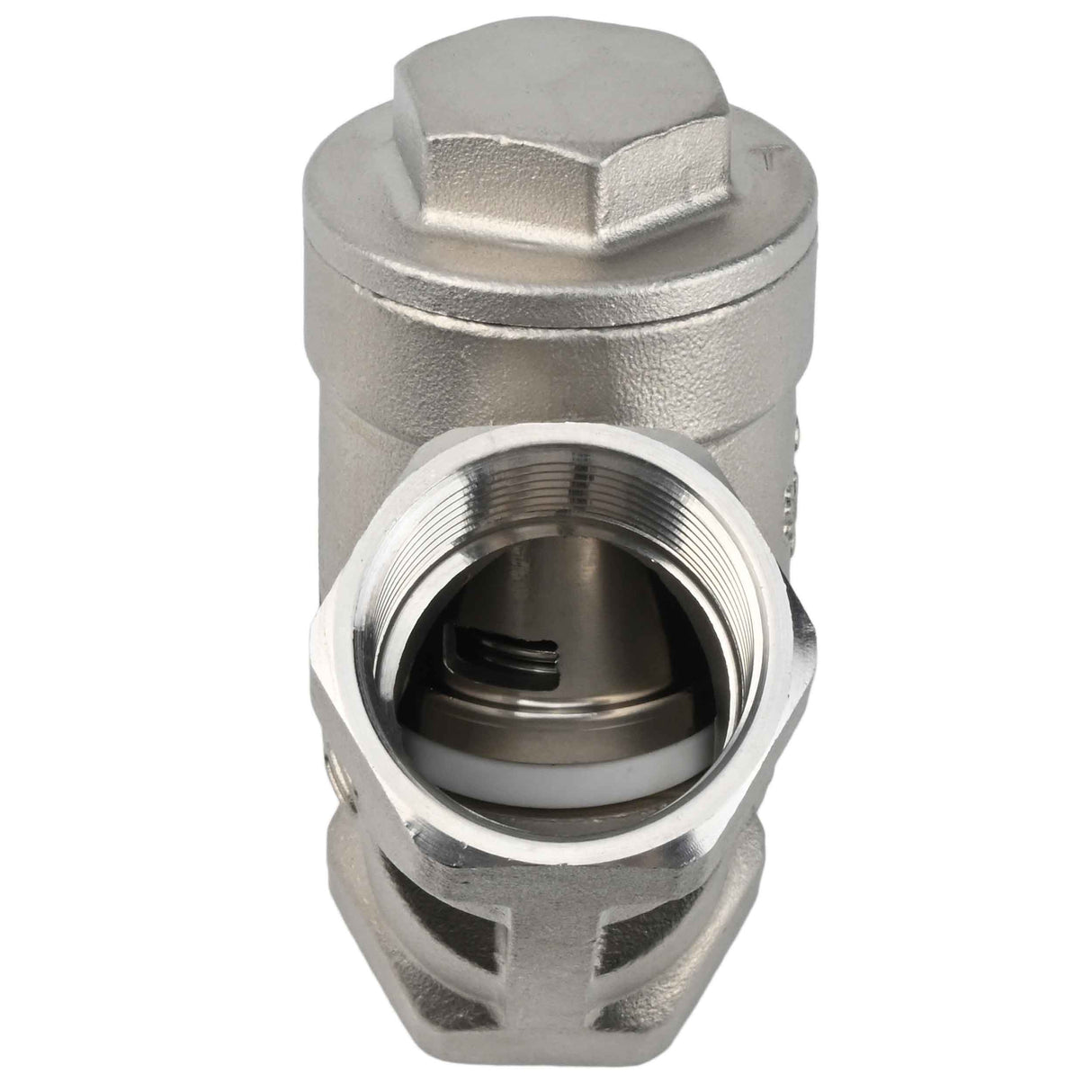

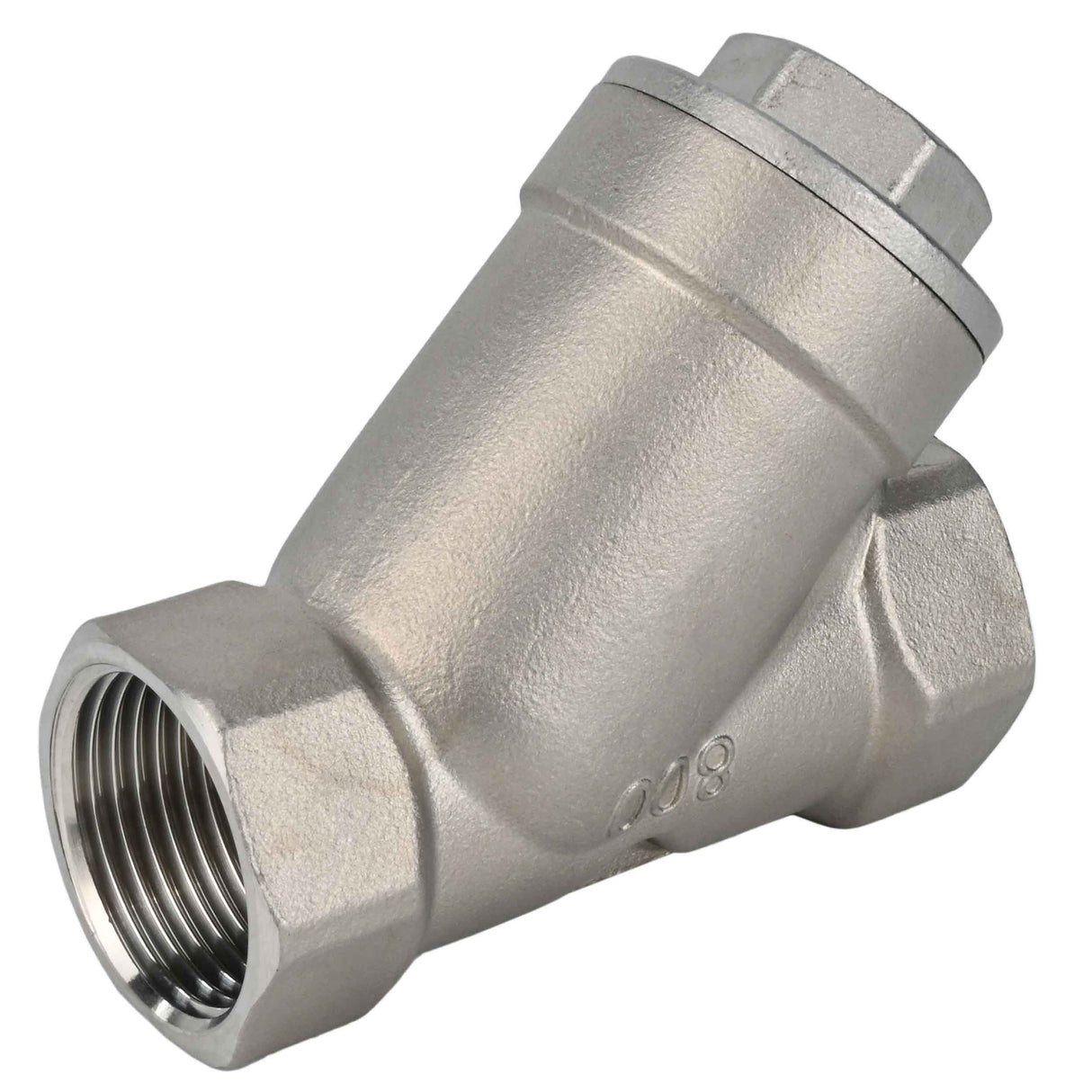

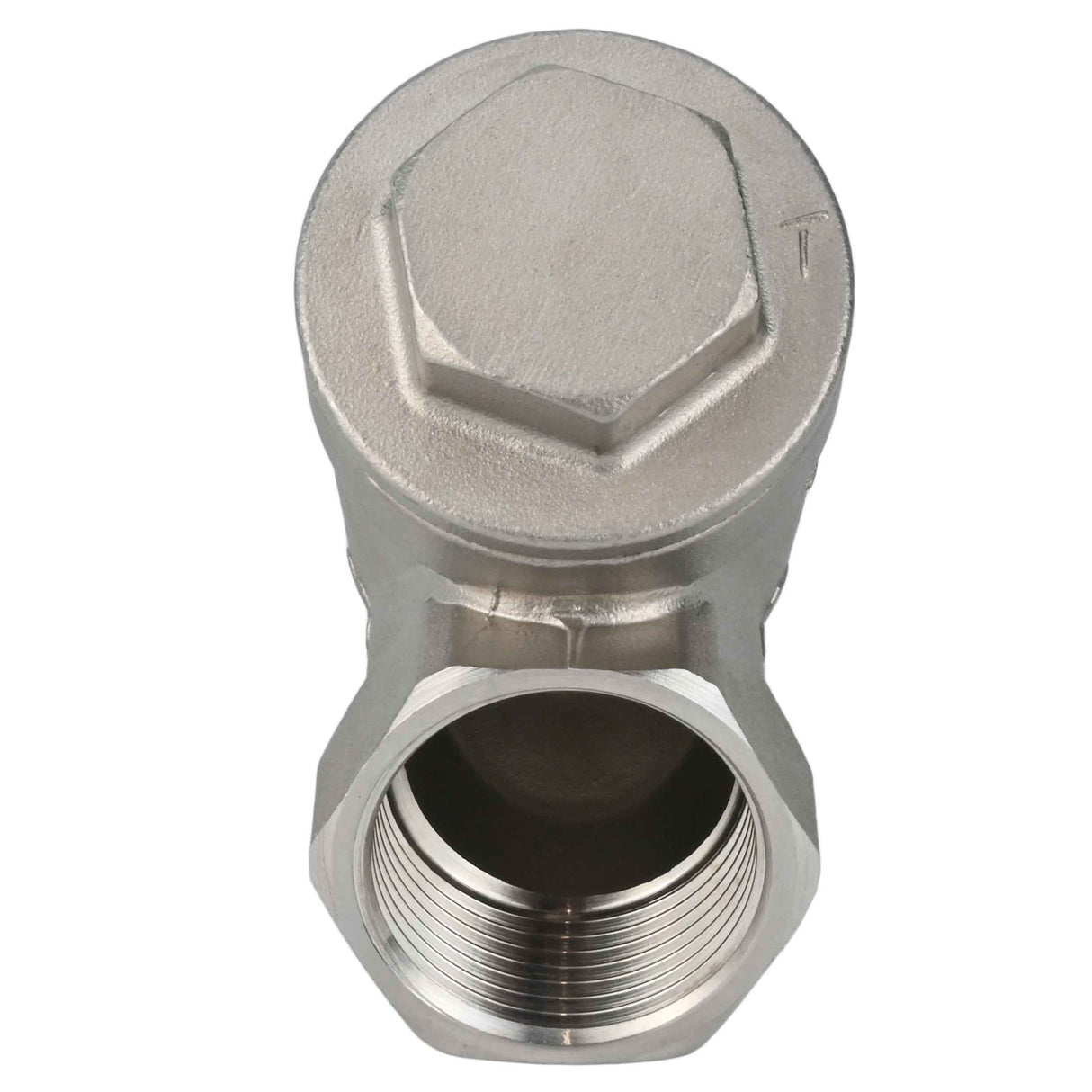

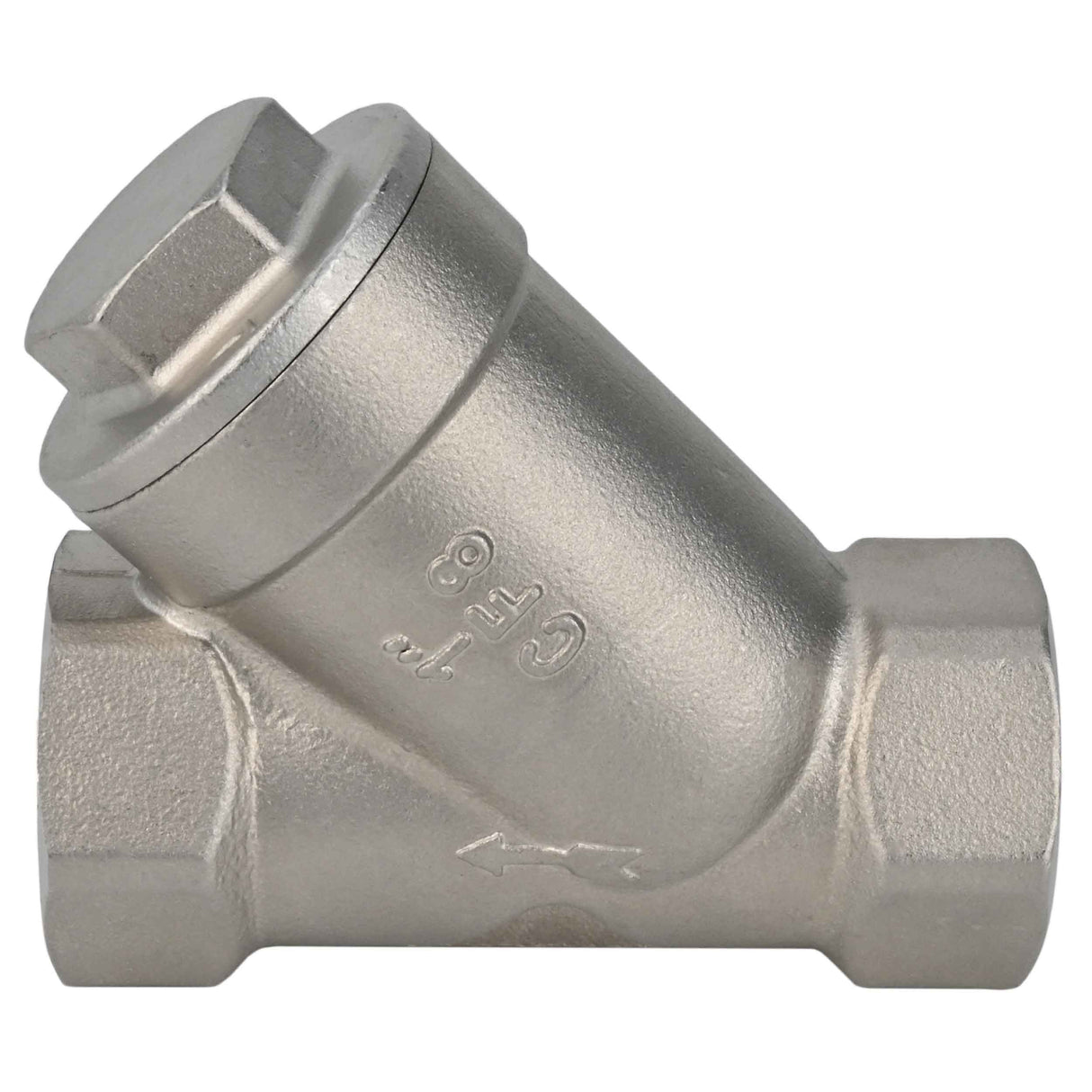

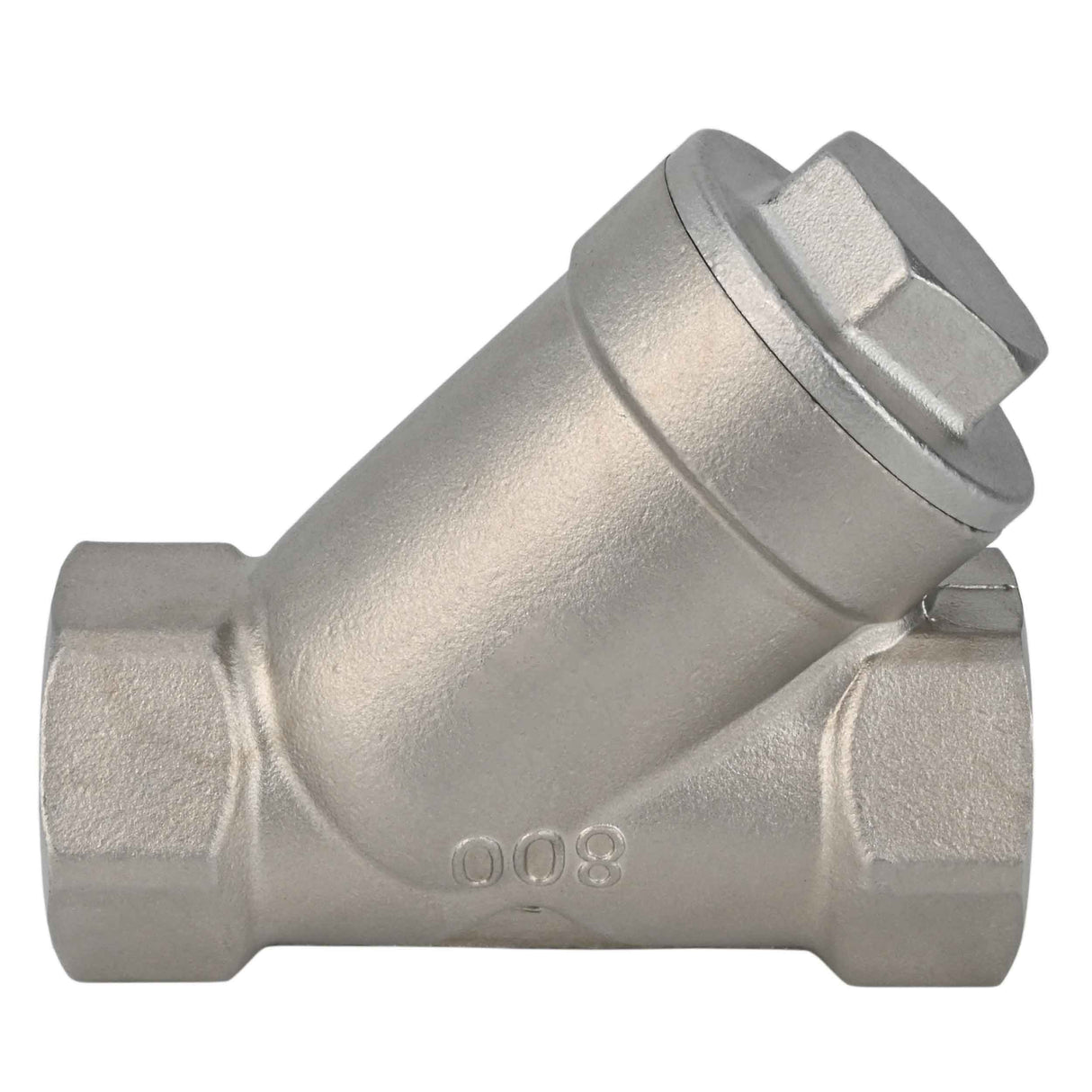

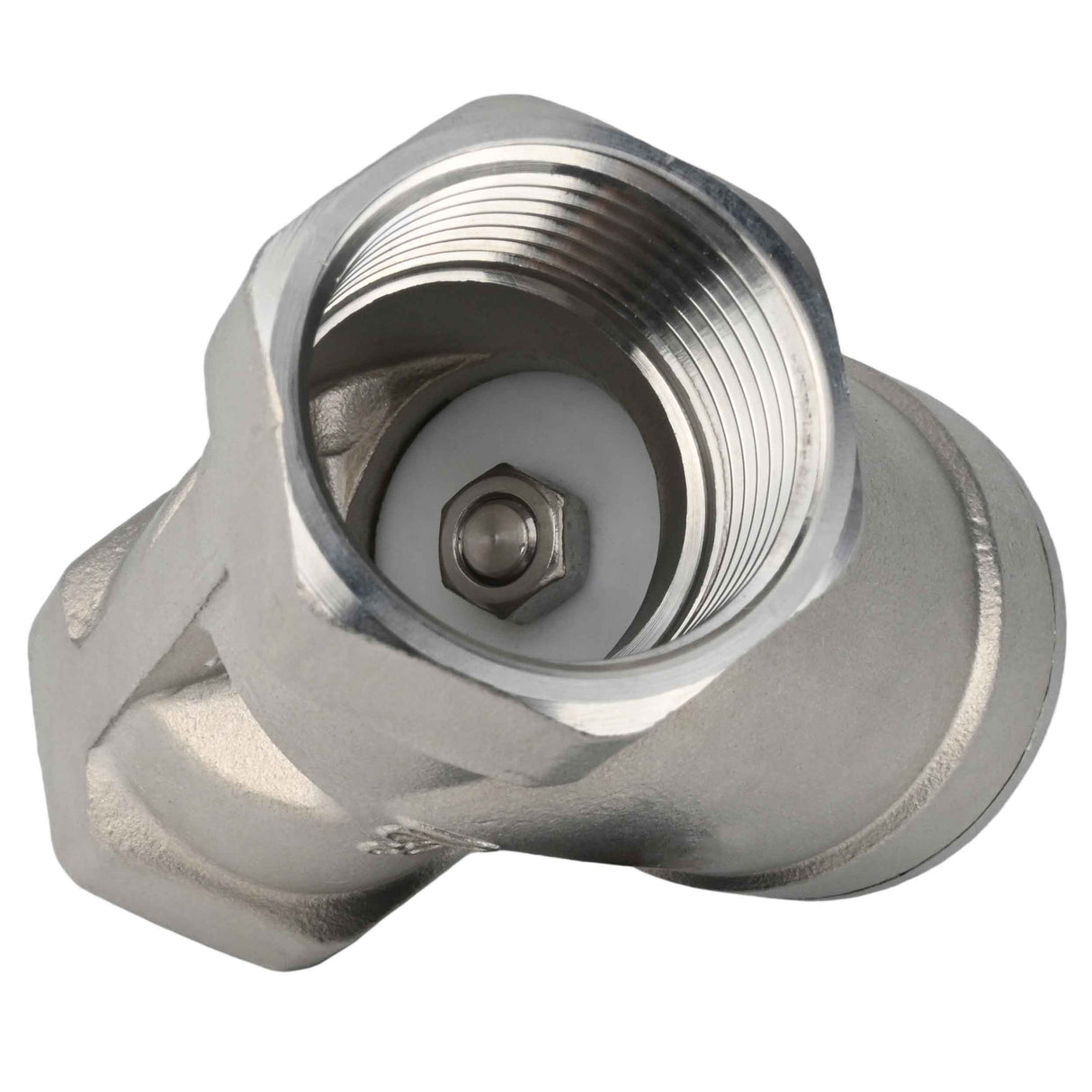

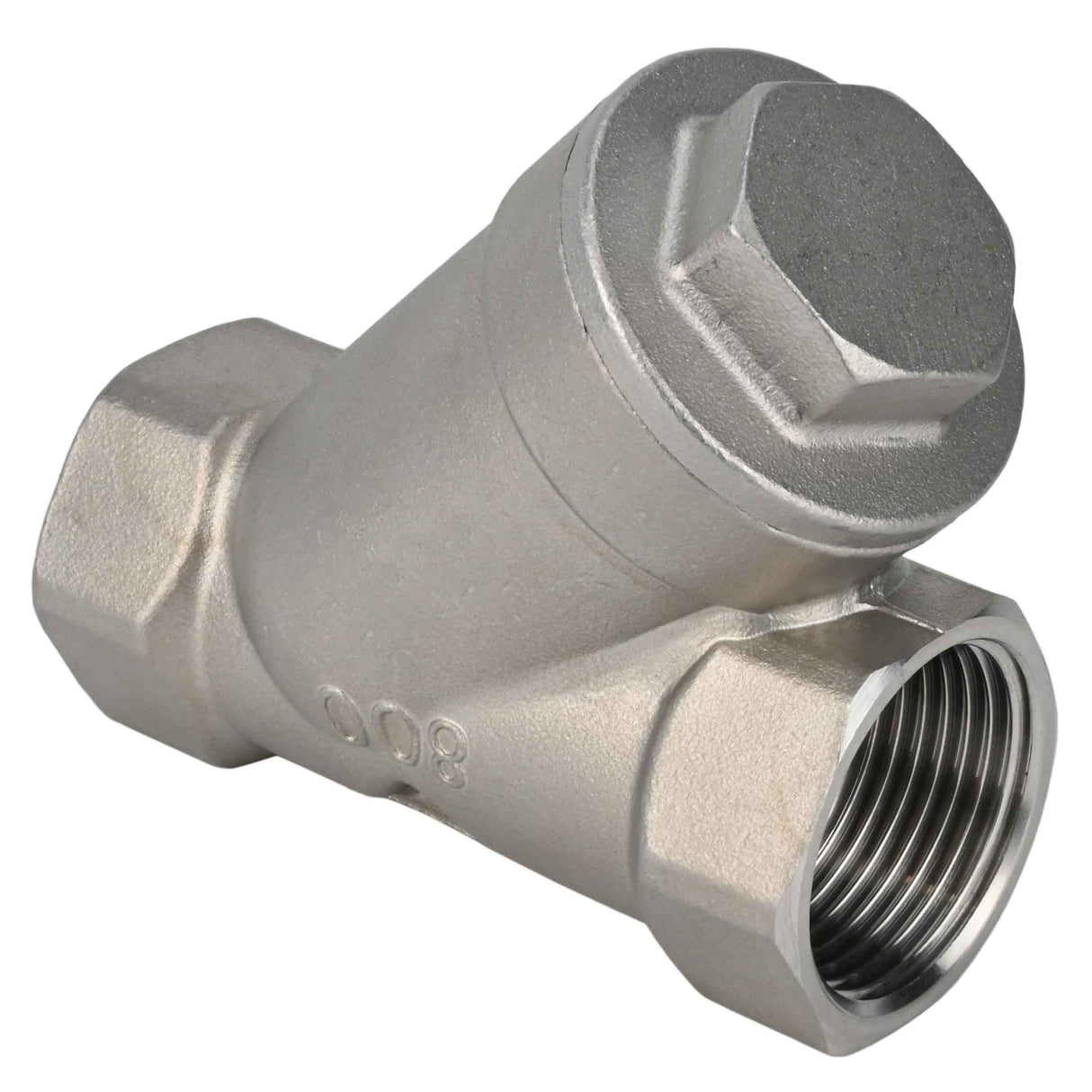

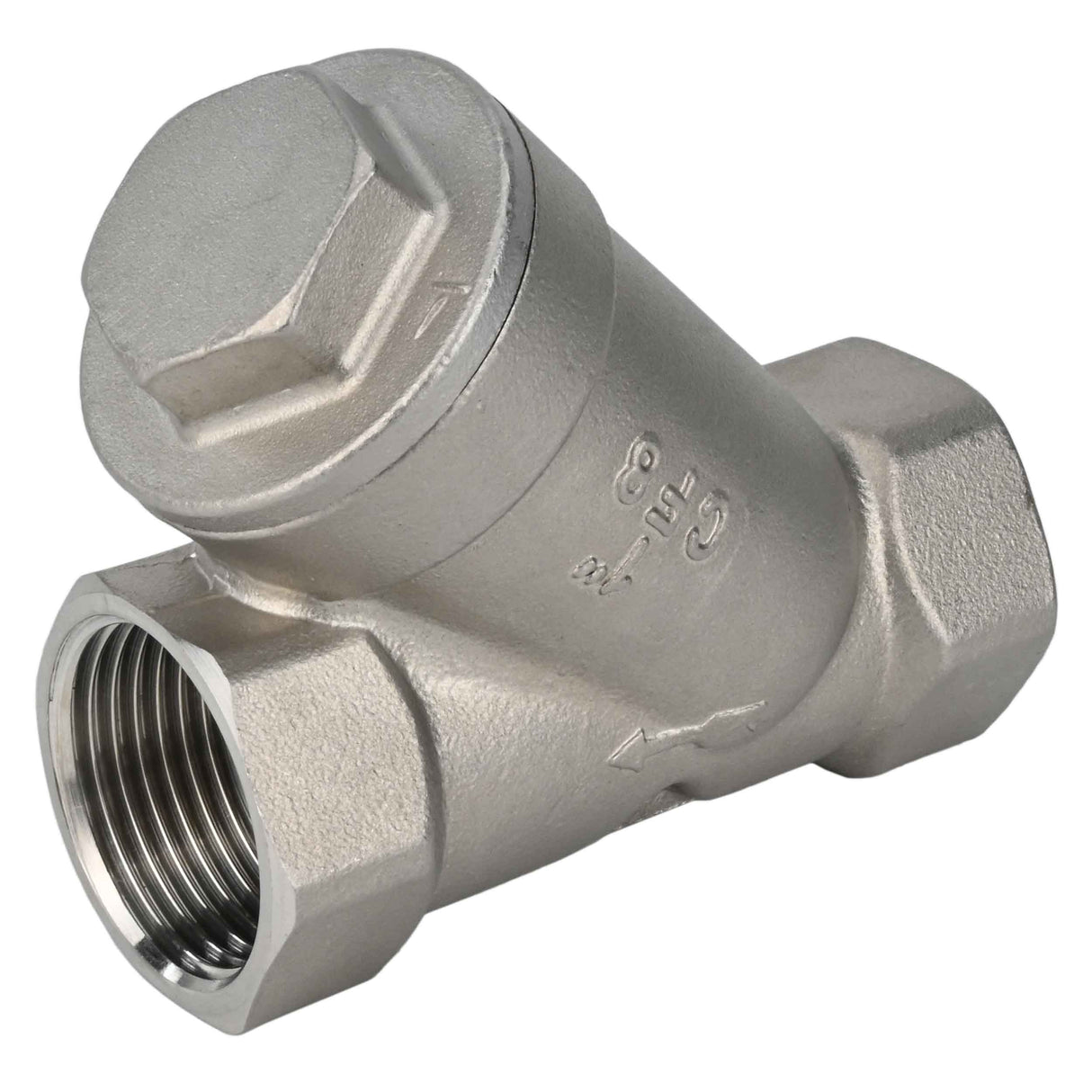

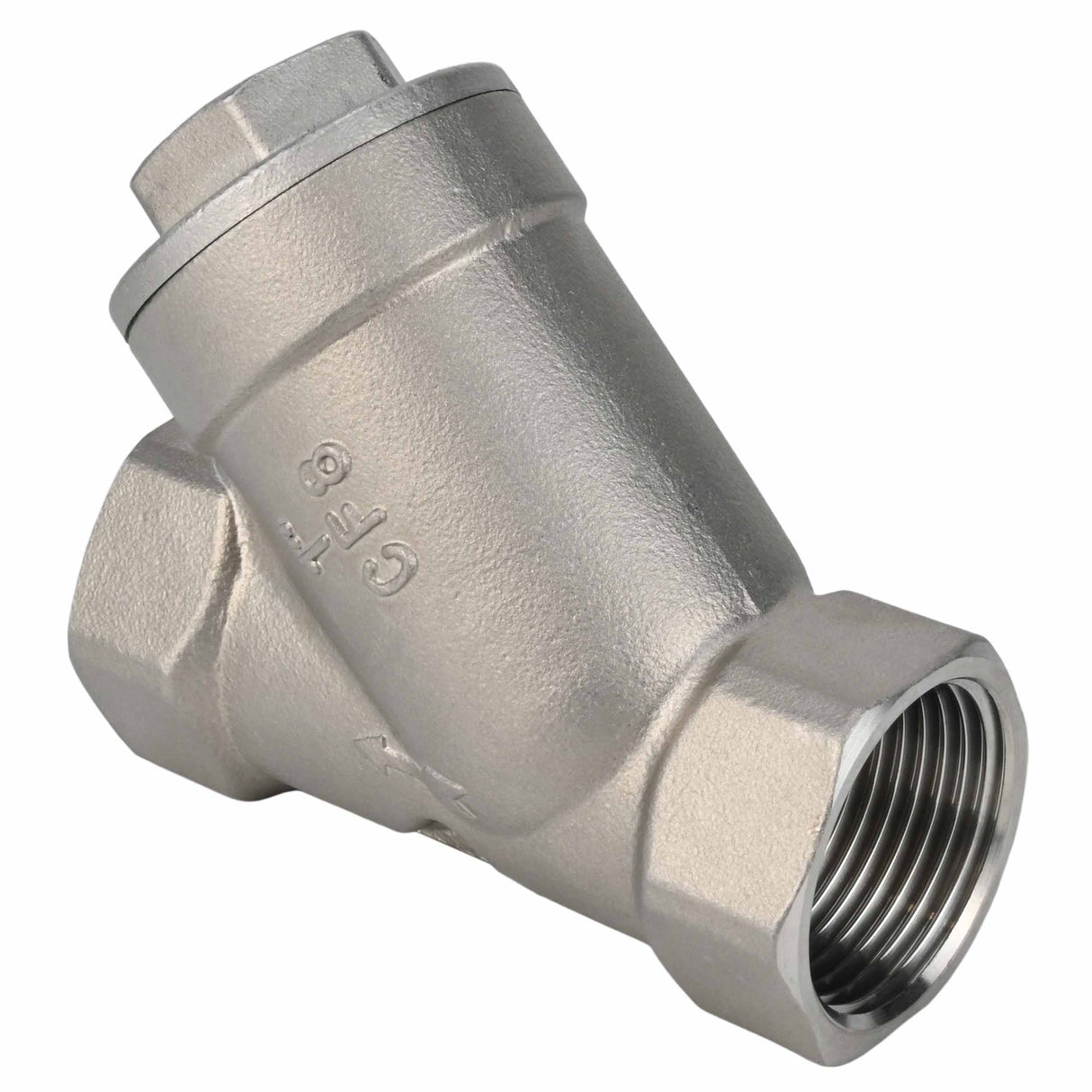

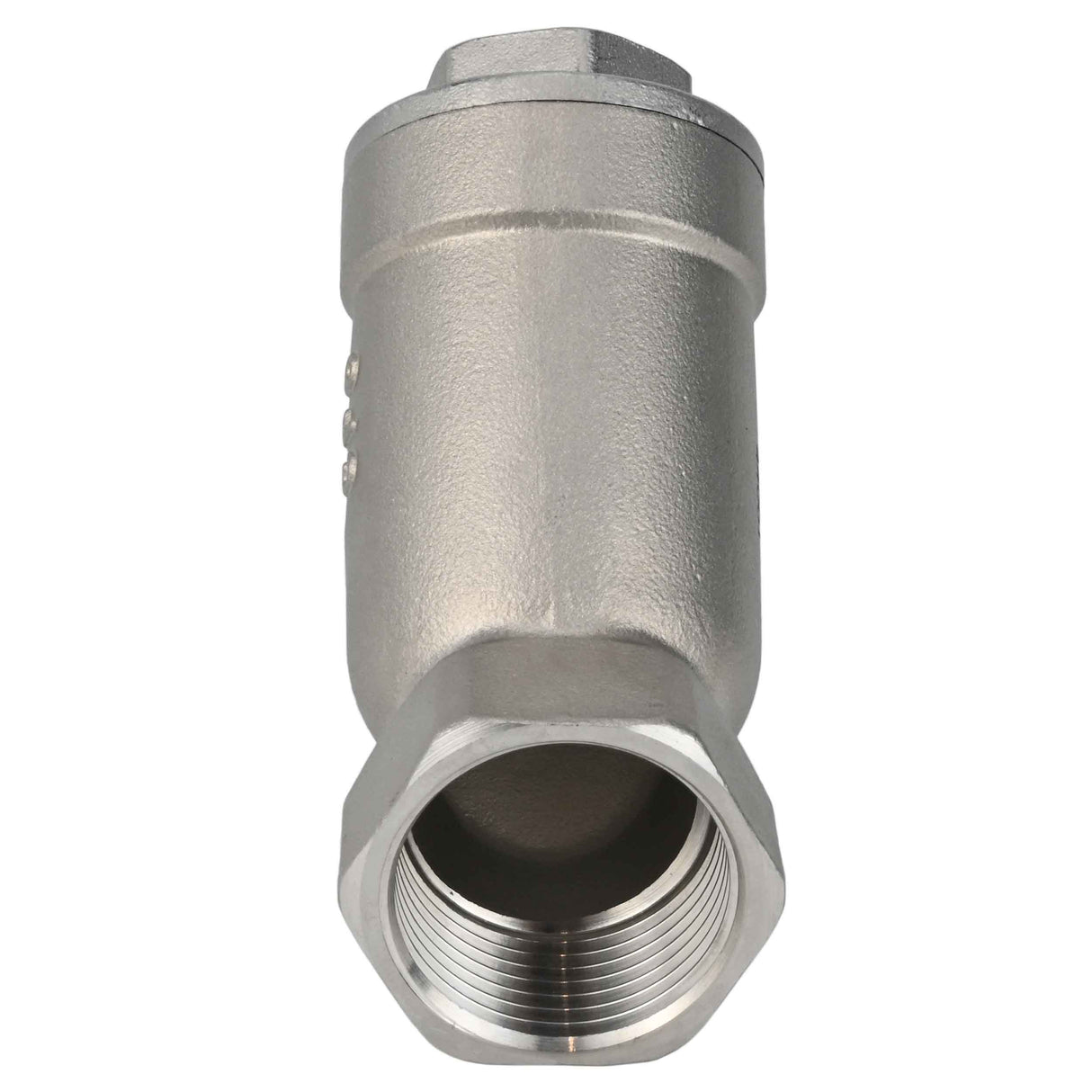

Spring check valve Elephant VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
Spring check valve Elephant VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded - DN8 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Spring check valves VCSY3131P-T Y-shaped stainless steel, threaded are designed to prevent reversal of the direction of flow of the working medium in the pipeline.
General technical data of Elephant VCSY3232P-T Y-shaped spring check valves, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded:
| Parameters | Values |
| Diameter range DN, mm | 8-50 |
| Nominal pressure PN, bar | 40 |
| Working medium temperature, °C | from -40 to + 250 |
| Connection type | coupling (threaded) |
| Tightness class according to GOST 9544-2015 | “A” |
| Body material | Stainless steel AISI/SS 316/08Х17Н13М2 |
| Material of shut-off body | Stainless steel 316 |
| Body material class | stainless steel |
| Seal type | PTFE |
| Working medium | liquid media, gaseous media |
| Application | water supply, industry, pumping systems |
| Direction of medium flow | arrow on valve body |
| Warranty, months | 12 |
| Service life, years | 10 |
| Manufacturer's country | China |
Spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
Dimensions and dimensions of check valves Elephant VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, closing body material - Stainless steel 316, seal - PTFE, threaded:
| DN | d, mm | L, mm | H, mm |
| 8 | 15 | 64.5 | 48 |
| 10 | 15 | 64.5 | 48 |
| 15 | 15 | 64.5 | 48 |
| 20 | 20 | 79.5 | 55 |
| 25 | 25 | 88 | 65 |
| 32 | 32 | 104 | 75 |
| 40 | 40 | 117.5 | 80 |
| 50 | 49 | 134 | 95 |
Dimensional sketch of spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
Materials of check valves Elephant VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, closing body material - Stainless steel 316, sealing - PTFE, threaded:
| № | Name | Material |
| 1 | Cover | Stainless steel AISI/SS 316/08Х17Н13М2 |
| 2 | Sealing ring | PTFE |
| 3 | Spring | stainless steel 304 |
| 4 | Valve core | Stainless steel 316 |
| 5 | Seal | PTFE |
| 6 | Nut | stainless steel 304 |
| 7 | Body | Stainless steel AISI/SS 316/08Х17Н13М2 |
Material sketch of spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
