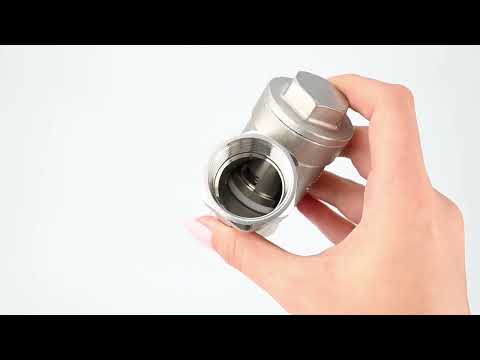

Spring check valve Elephant VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, locking body material - Stainless steel 304, seal - PTFE, threaded
Spring check valve Elephant VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, locking body material - Stainless steel 304, seal - PTFE, threaded - DN8 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Spring check valves VCSY3131P-T Y-shaped stainless steel, threaded are designed to prevent reversal of the direction of flow of the working medium in the pipeline.
General technical data of Elephant VCSY3131P-T Y-shaped spring check valves, body material - Stainless steel AISI 304, closing body material - Stainless steel 304, seal - PTFE, threaded:
| Parameters | Values |
| Diameter range DN, mm | 8-50 |
| Nominal pressure PN, bar | 40 |
| Working medium temperature, °C | from -40 to + 250 |
| Connection type | coupling (threaded) |
| Tightness class according to GOST 9544-2015 | “A” |
| Body material | Stainless steel AISI/SS 304/08X18H10 |
| Material of shut-off body | Stainless steel 304 |
| Body material class | stainless steel |
| Seal type | PTFE |
| Working medium | liquid media, gaseous media |
| Application | water supply, industry, pumping systems |
| Direction of medium flow | arrow on valve body |
| Warranty, months | 12 |
| Service life, years | 10 |
| Manufacturer's country | China |
Spring check valves VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, locking body material - Stainless steel 304, seal - PTFE, threaded
Dimensions and dimensions of Elephant VCSY3131P-T Y-shaped spring check valves, body material - Stainless steel AISI 304, closing body material - Stainless steel 304, sealing - PTFE, threaded:
| DN | d, mm | L, mm | H, mm |
| 8 | 15 | 64.5 | 48 |
| 10 | 15 | 64.5 | 48 |
| 15 | 15 | 64.5 | 48 |
| 20 | 20 | 79.5 | 55 |
| 25 | 25 | 88 | 65 |
| 32 | 32 | 104 | 75 |
| 40 | 40 | 117.5 | 80 |
| 50 | 49 | 134 | 95 |
Dimensional sketch of spring check valves VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, locking body material - Stainless steel 304, seal - PTFE, threaded
Materials of check valves Elephant VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, closing body material - Stainless steel 304, sealing - PTFE, threaded:
| № | Name | Material |
| 1 | Cover | Stainless steel AISI/SS 304/08X18H10 |
| 2 | Sealing ring | PTFE |
| 3 | Spring | stainless steel 304 |
| 4 | Valve core | Stainless steel 304 |
| 5 | Seal | PTFE |
| 6 | Nut | stainless steel 304 |
| 7 | Body | Stainless steel AISI/SS 304/08X18H10 |
Material sketch of spring check valves VCSY3131P-T Y-shaped, body material - Stainless steel AISI 304, locking body material - Stainless steel 304, seal - PTFE, threaded
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Check valve type
