Ball check valve Elephant VCB1414N-F PSI232, body material - cast iron – Valve Elephant
1 4
Elephant  |  SKU: D100-03547

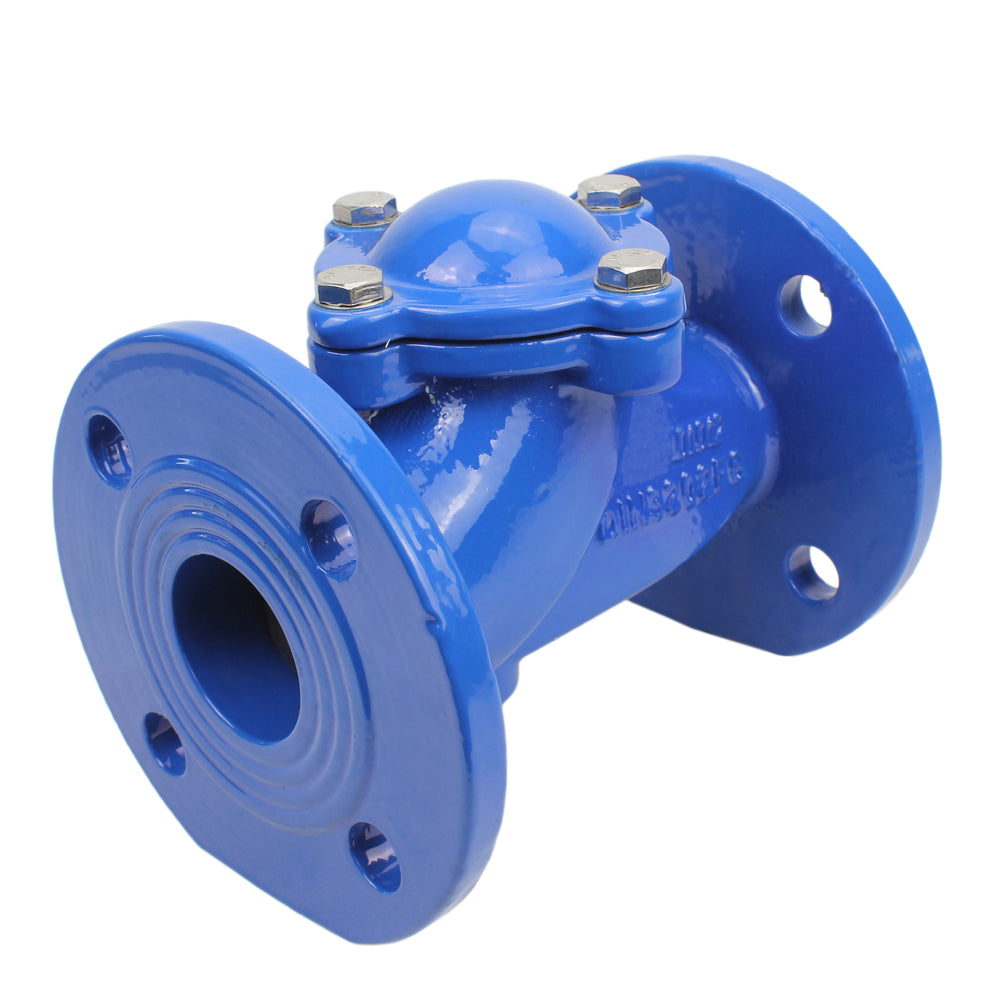

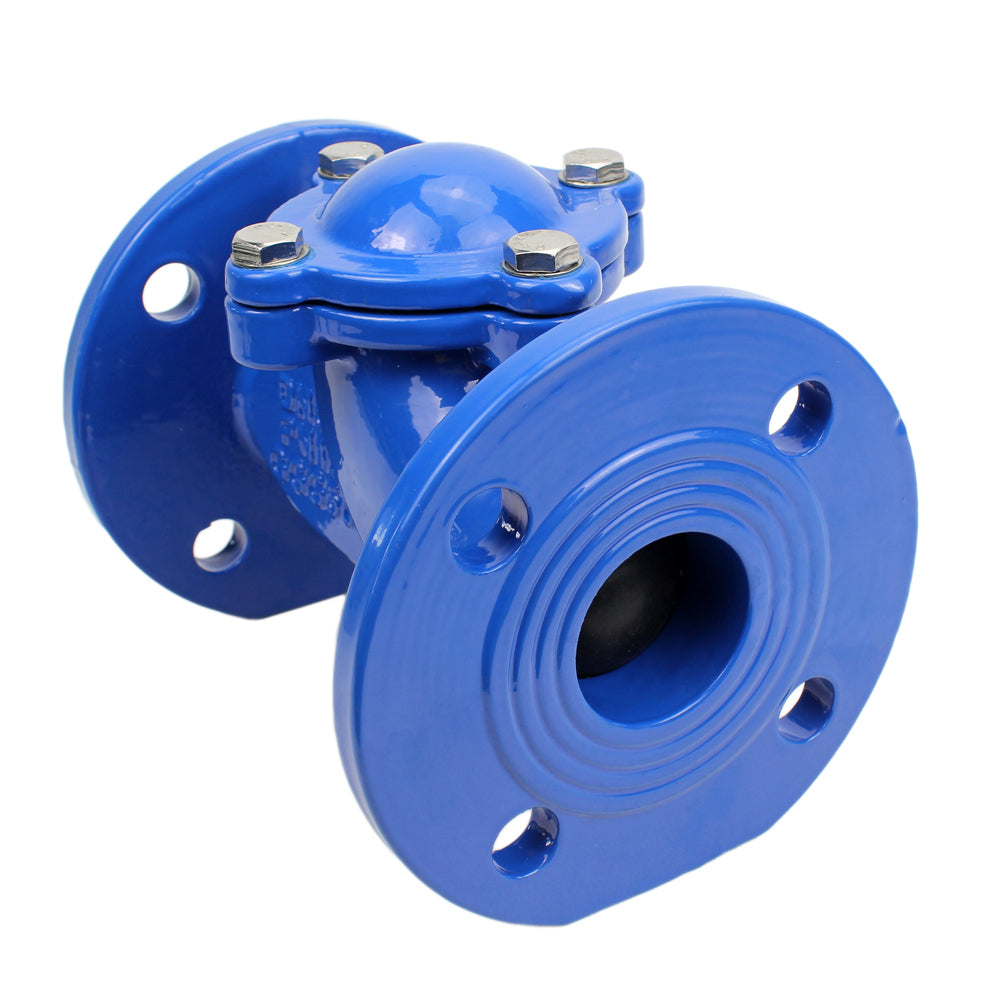

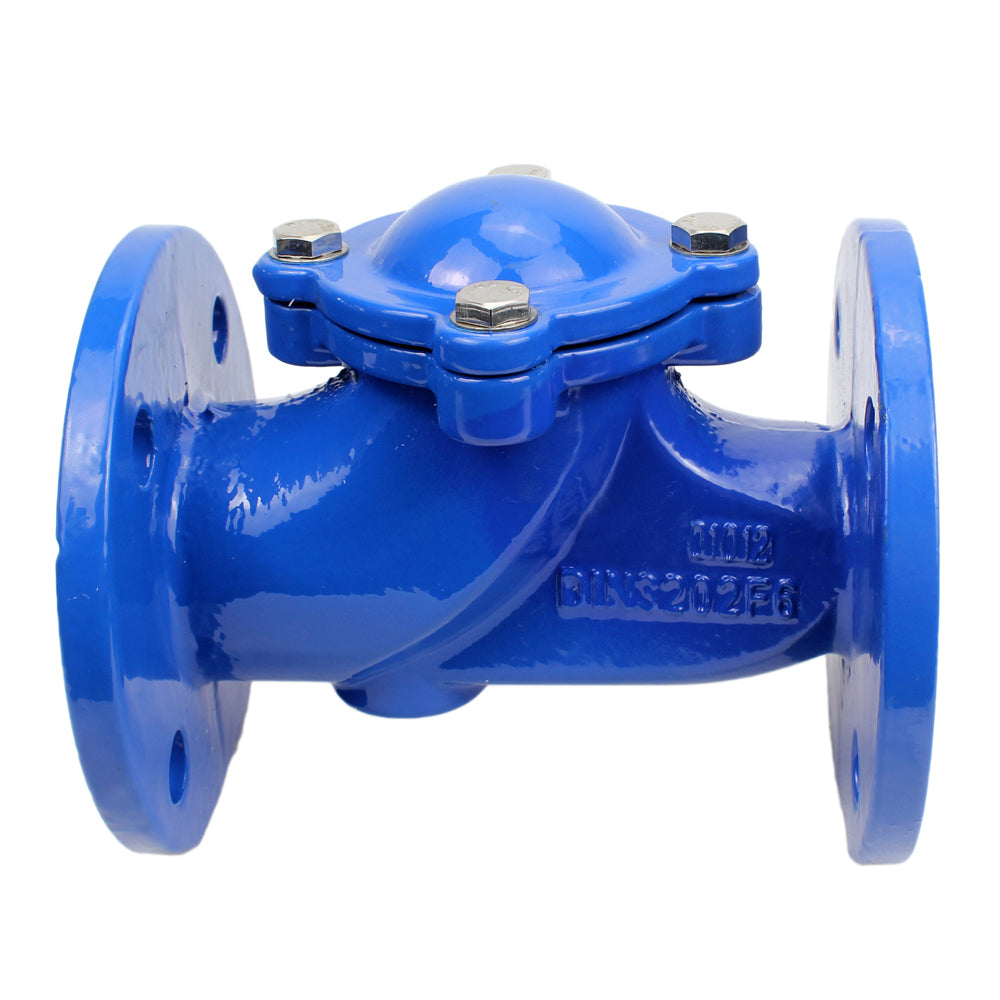

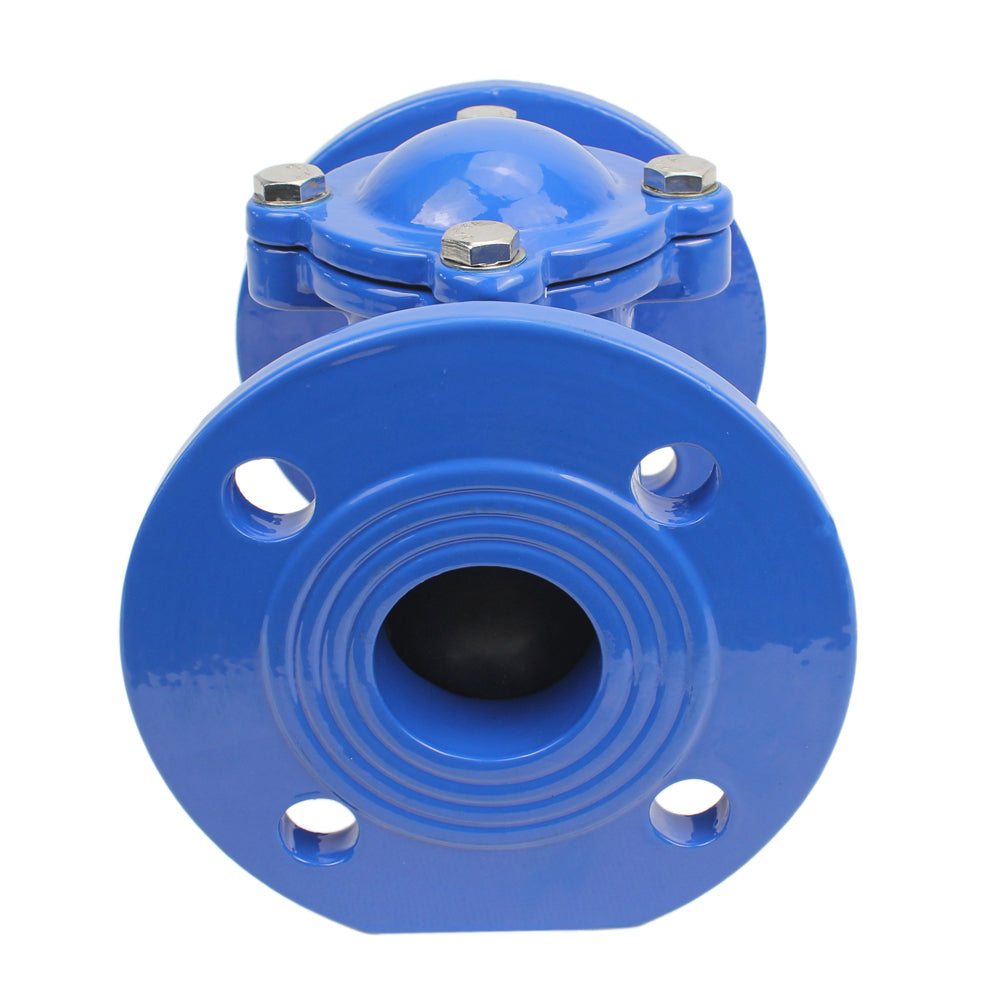

Ball check valve Elephant VCB1414N-F PSI232, body material - cast iron GGG50, seal - NBR, shortened, flanged, without drain plug

€73,15
Tax included Shipping calculated at checkout.

Ball check valve Elephant VCB1414N-F PSI232, body material - cast iron GGG50, seal - NBR, shortened, flanged, without drain plug - DN40 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Shortened ball check valves are used to protect the pipeline system from possible flows of the working medium in the opposite direction. The backflow limiter is a cast iron ball covered with a protective layer of NBR rubber.





Dimensions and mounting dimensions of shortened ball check valves Elephant VCB1414N-F PSI232, body material - cast iron GGG50, seal - NBR, shortened, flanged, without drain plug

Dn L H Z - Ød Weight, kg
40 219 150 4 – Ø19 7.5
50 219 165 4 – Ø19 7.5
65 222 185 8 – Ø19 9
80 257 200 8 – Ø19 11.5
100 280 220 8 – Ø19 15.5
125 320 250 8 – Ø19 28
150 355 285 8 – Ø23 32
200 435 340 12 – Ø23 53
250 498 405 12 – Ø28 83
300 555 455 12 – Ø28 133

Sketch of check valves Elephant VCB1414N-F PSI232, body material - cast iron GGG50





Materials of check valves Elephant VCB1414N-F PSI232, body material - cast iron GGG50, seal - NBR, shortened, flanged, without drain plug

№ Name Material
1 Case Cast iron GGG50
2 Char Cast iron GGG50 + NBR
3 Sealing NBR
4 Cover Cast iron GGG50
5 Bolt Steel SS304
6 Washer Steel SS304

Sketch of check valves Elephant VCB1414N-F PSI232, body material - cast iron GGG50

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Check valve type
    Ball

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D100-03547DN4016 bar €73,15 0 in stock
    D100-03548DN6516 bar €82,36 0 in stock
    D100-03550DN12516 bar €142,29 0 in stock
    D100-03549DN25016 bar €668,52 0 in stock
