Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar – Valve Elephant
Elephant  |  SKU: D160-61330

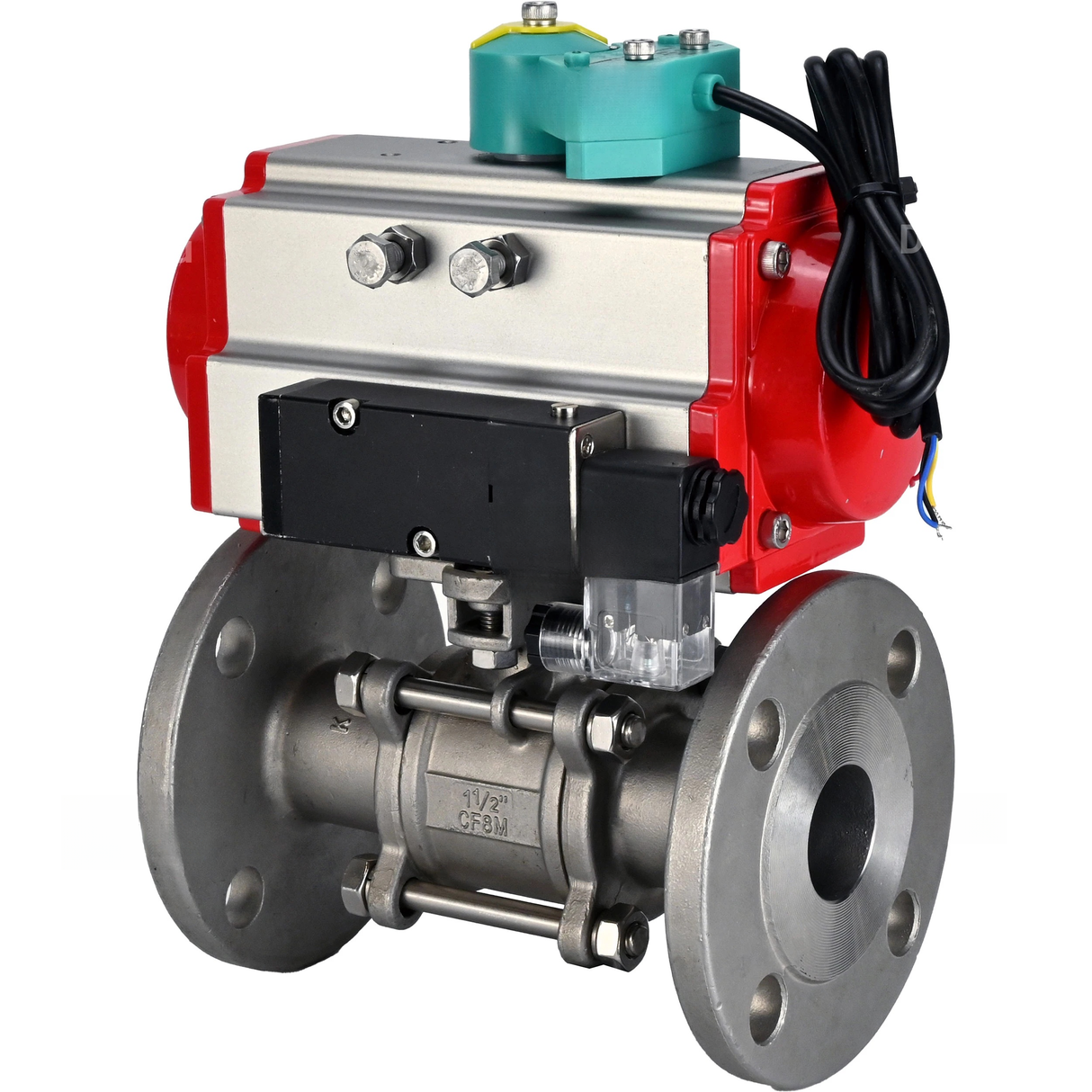

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar full bore, flanged, body - 316 stainless steel, seal - PTFE, with PA-DA pneumatic actuator, pneumatic distributor 4M310-08 24V and ALS200D magnetic switch

€1.147,59
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Applications
    Water Supply, Heat supply, Pneumatic systems
  • Type of seal
    PTFE / Fluoroplastic / Teflon
  • Locking material
    Stainless steel
  • Explosion-proof
    No
  • Limit switches
    No
  • Type of pneumatic actuator
    double-acting
  • Angle of rotation
    90°

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-61330DN10016 bar €1.147,59 Sold out
    D160-62395DN100 22х22, F1016 bar €872,13 Sold out
    D160-61331DN1540 bar €224,76 Sold out
    D160-61332DN2040 bar €242,81 Sold out
    D160-61333DN2540 bar €254,15 Sold out
    D160-61334DN3240 bar €322,00 Sold out
    D160-61335DN4040 bar €347,79 Sold out
    D160-61336DN5040 bar €448,65 Sold out
    D160-61337DN6525 bar €598,66 Sold out
    D160-61338DN8025 bar €667,21 Sold out
