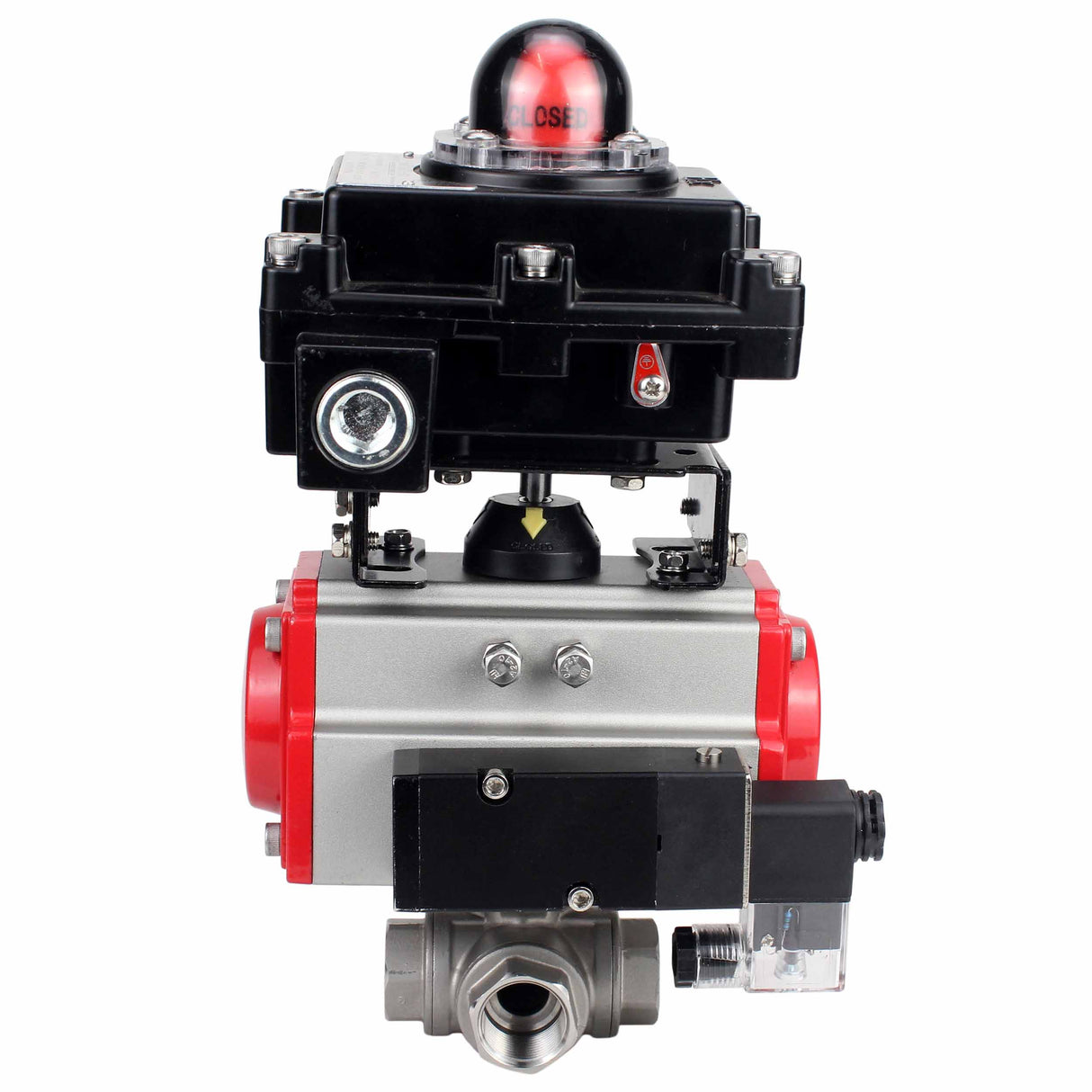

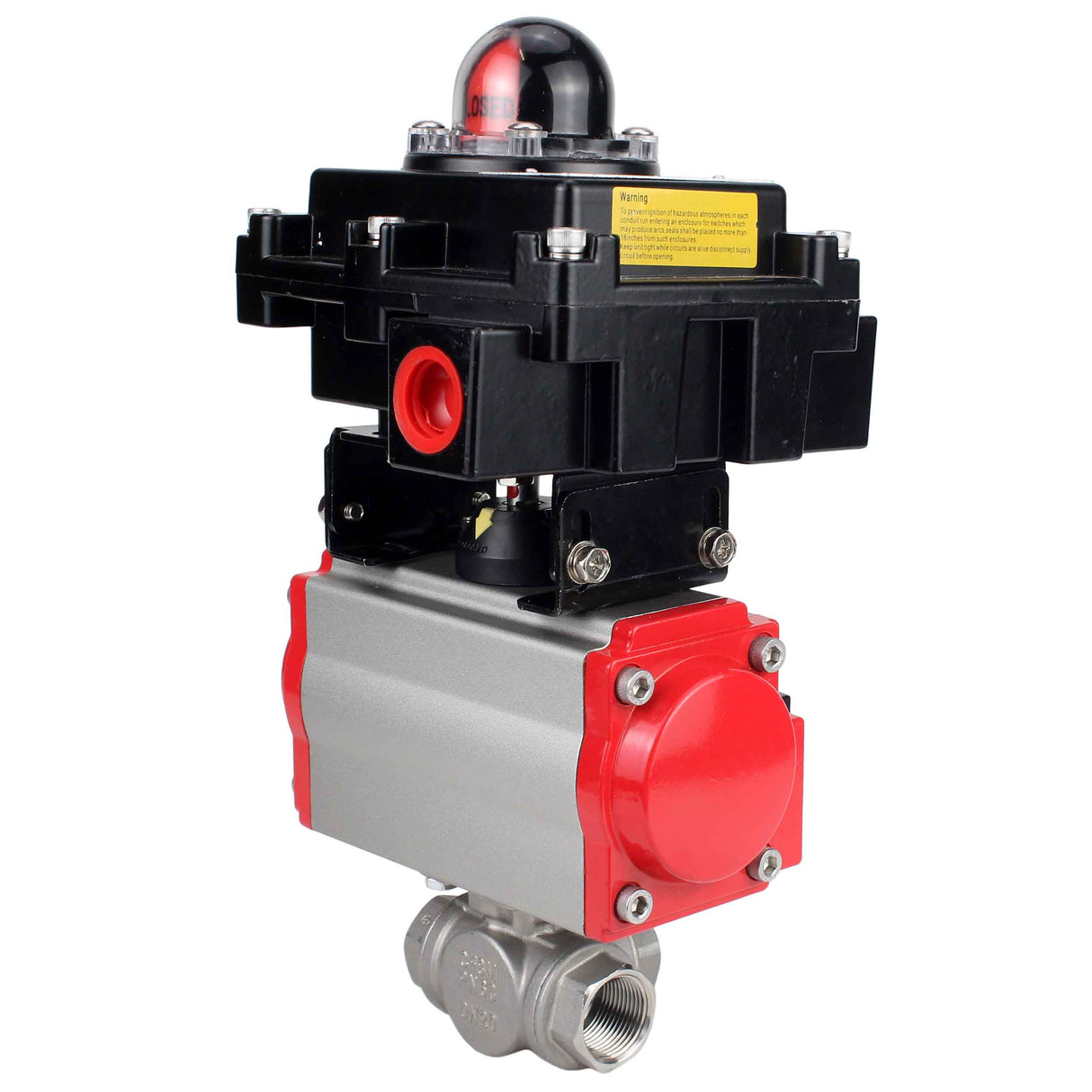

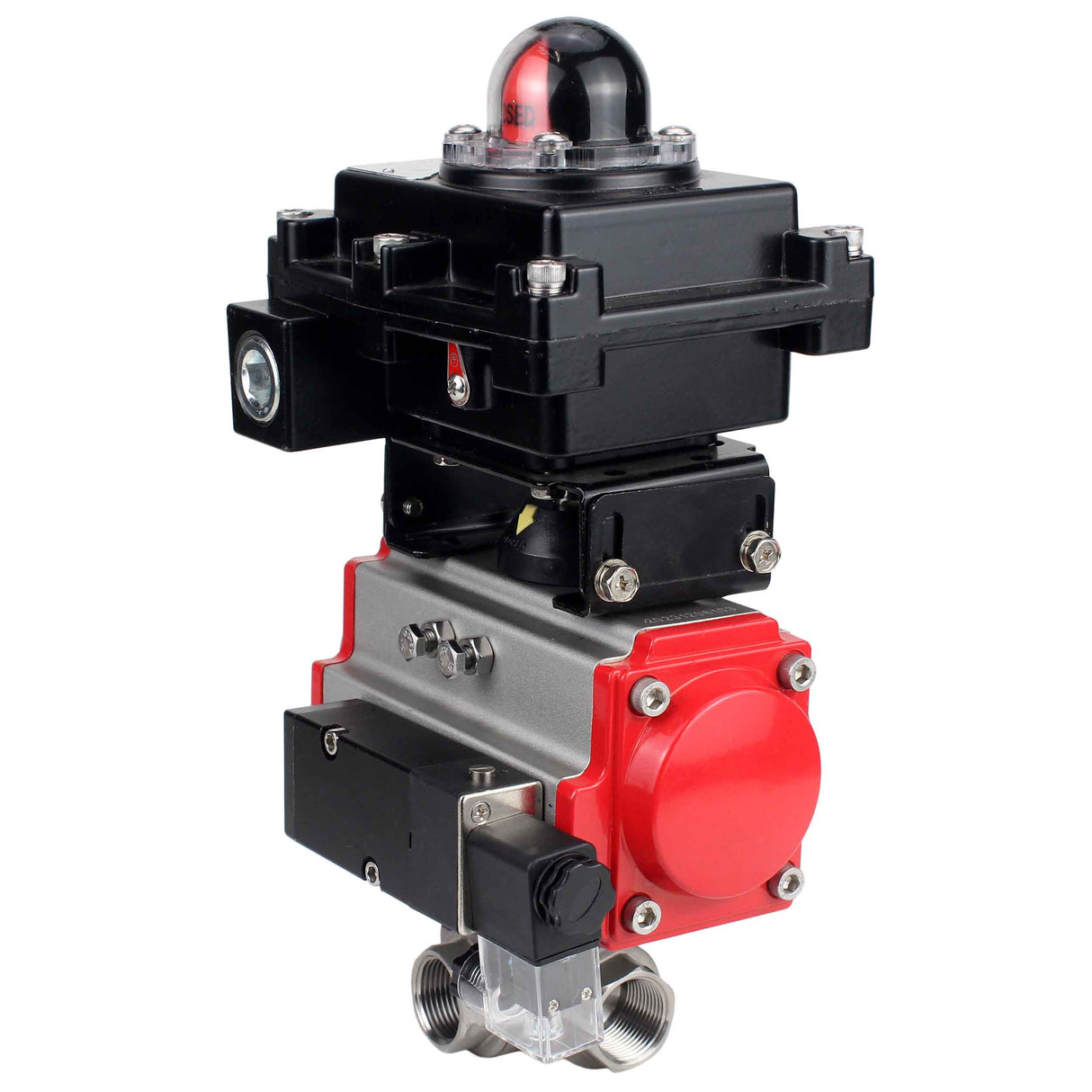

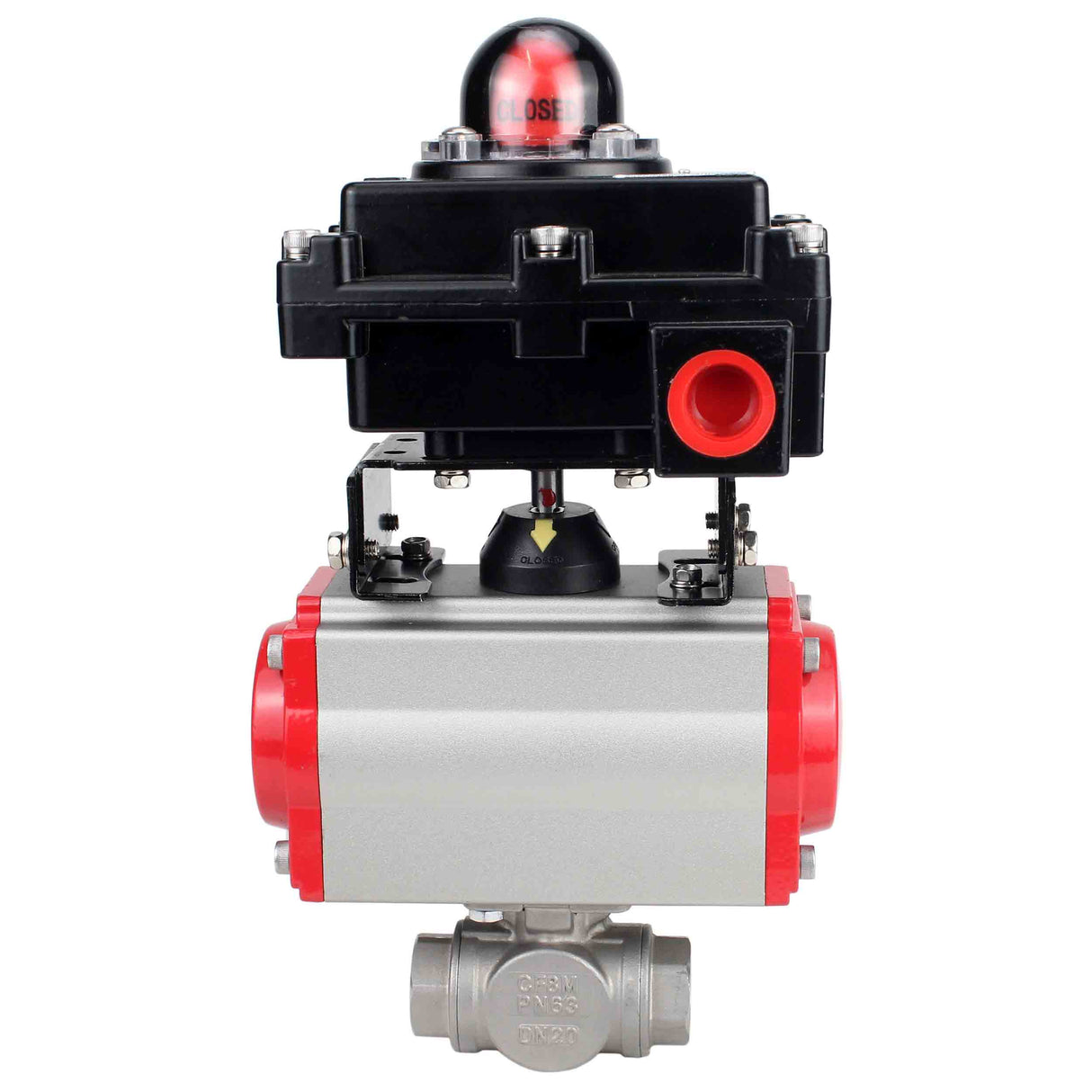

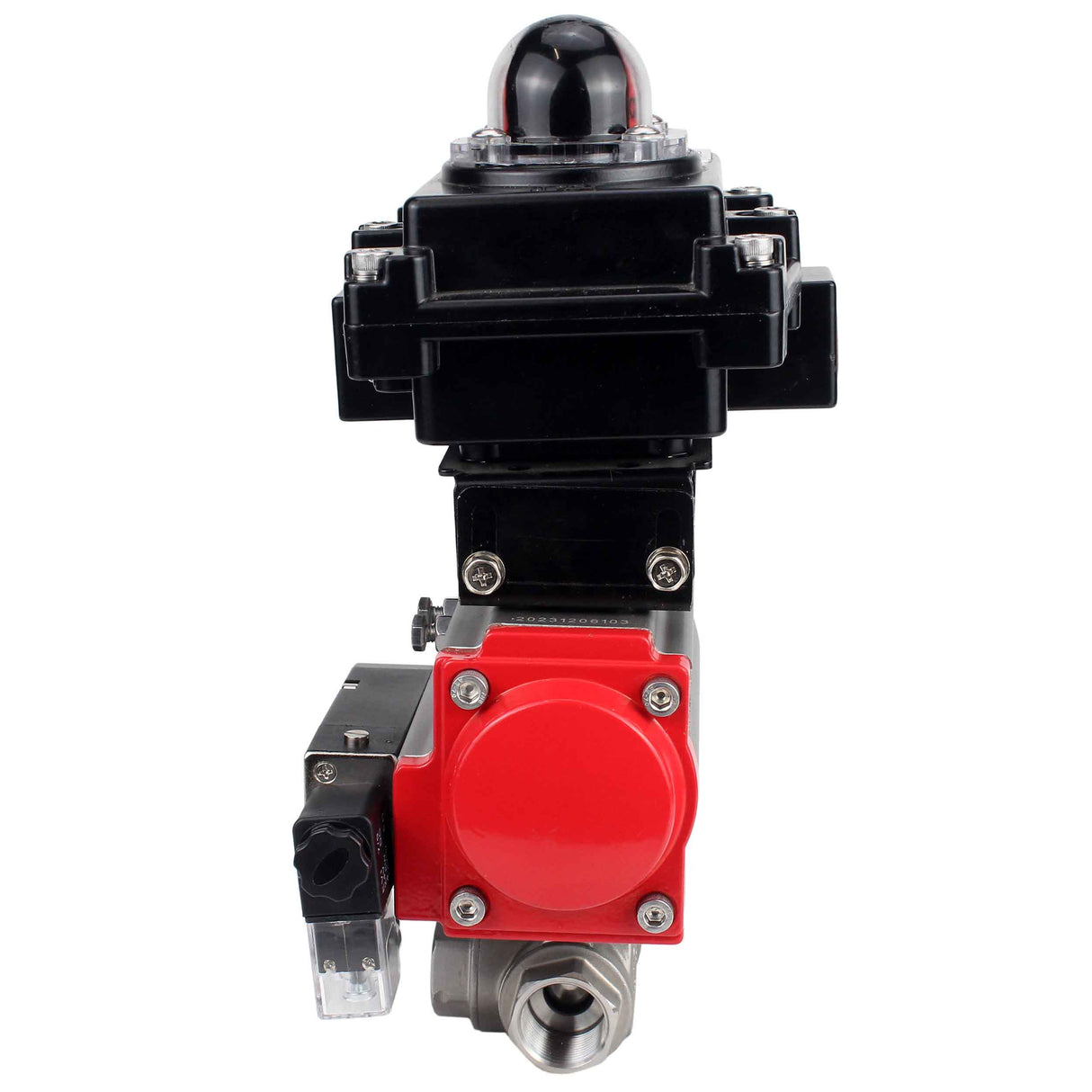

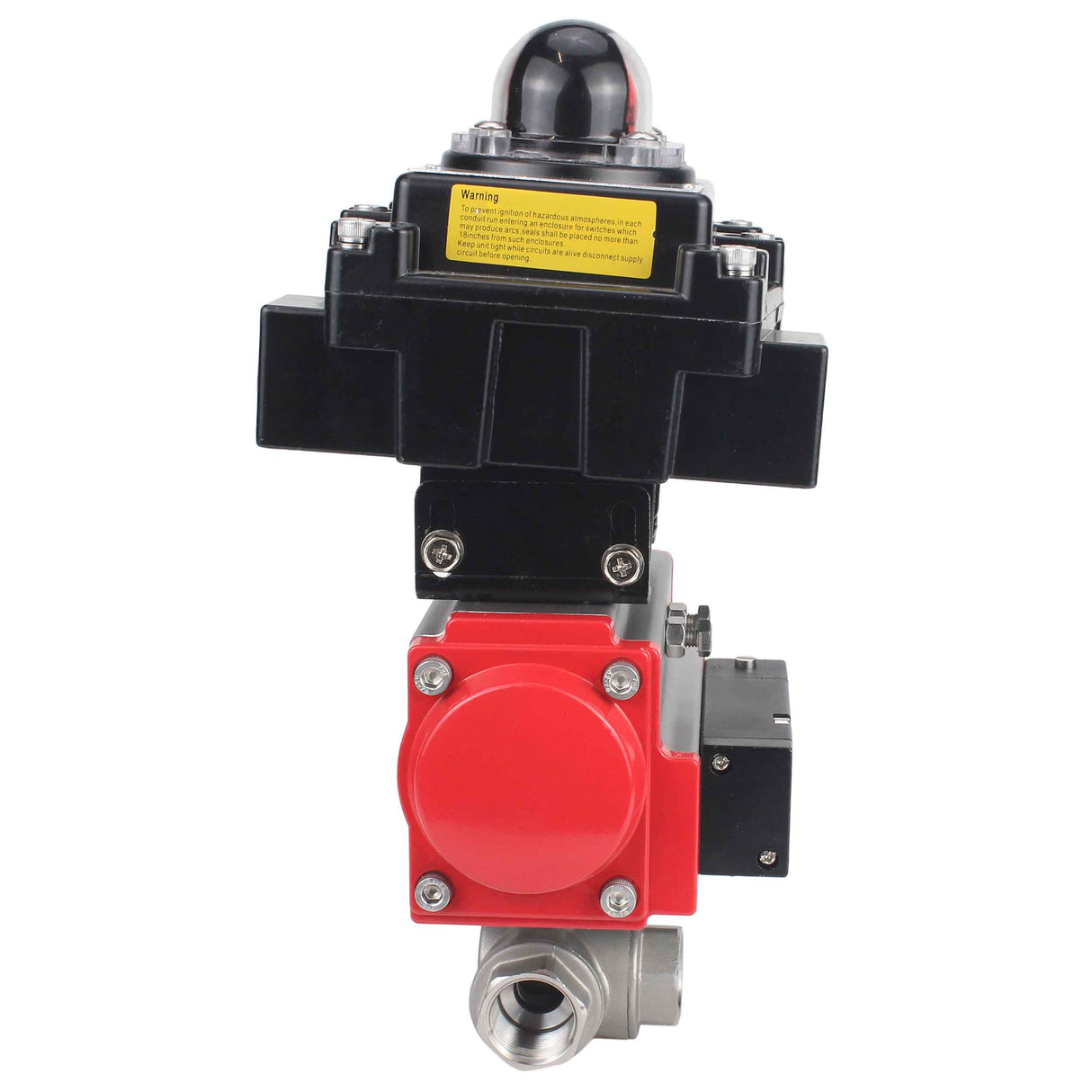

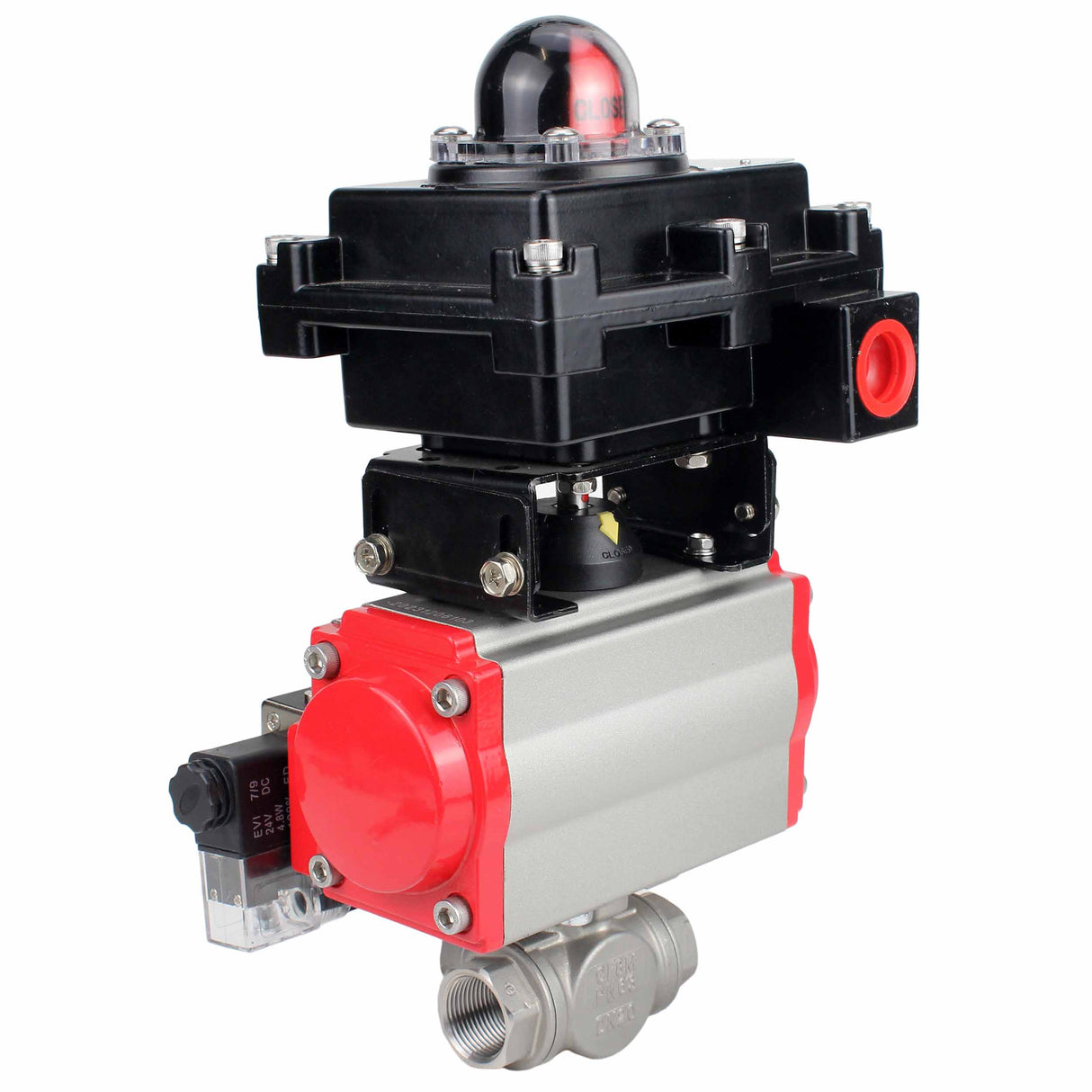

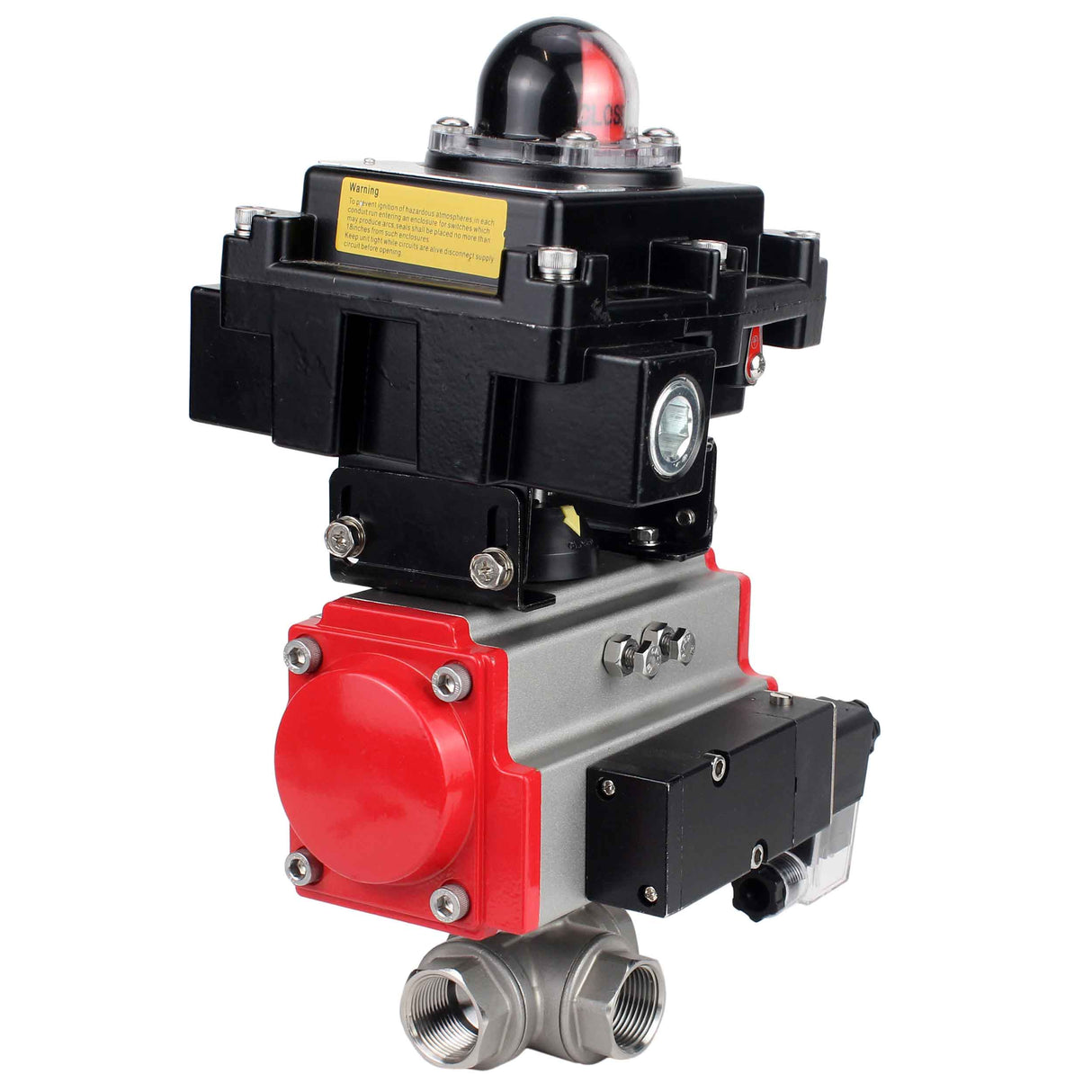

Stainless steel ball valve Elephant RP.SS316.200.MM.ISO 914 PSI threaded, standard port, three way, L-type, body material - stainless steel AISI 316, pneumatic actuator DA, pneumatic distributor 4M310-08 24V, limit switch block APL-410N EX
Stainless steel ball valve Elephant RP.SS316.200.MM.ISO 914 PSI threaded, standard port, three way, L-type, body material - stainless steel AISI 316, pneumatic actuator DA, pneumatic distributor 4M310-08 24V, limit switch block APL-410N EX - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.
Technical data of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-DA 4M310-08 24V APL-410N Ex
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, ⁰C | from -20 to +200 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | threaded |
| Type of flow section | standard pass |
| Control type | manual (handle) |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Material sketch of ball valve Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-DA 4M310-08 24V APL-410N Ex
Materials of parts for ball valve Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-DA 4M310-08 24V APL-410N Ex
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Technical data of pneumatic actuators
| Design | Double action |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Working environment | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | • from –20 to +80 • from –40 to +80 (low-temperature version) • from –20 to +160 (with dry air) |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Manual duplication | There is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have anti-corrosion coating) |
Material sketch of the pneumatic actuator
Materials of pneumatic actuator parts
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical data of pneumatic valve 4M310-08 24 V
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Technical characteristics of limit switch unit APL-410N EX
| Frame | All-weather IP65 explosion-proof Exd IIB T6 |
| Cable entries | 2 x NPT1/2” |
| Terminal blocks | 8 points (0.05 – 2.5) mm2 |
| Position indicator | 0 - 90° (free rotation 90°) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Materials of limit switch unit APL-410N EX:
| Name | Materials |
| Case cover and body | aluminum die casting |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Housing cover bolts | stainless steel |
| Sealing ring | NBR |
| Sleeve | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| bracket | stainless steel |
Passports and certificates
Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
Data sheet for Elephant pneumatic valve 4m310-08
Data sheet for limit switch unit Elephant APL-410N EX
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsHeat Supply
-
Voltage
-
Valve feedback
-
Explosion-proof
-
Torque
-
Pneumatic actuator
-
Manual override
-
Limit switches
