Elephant  |  SKU: D040-03113

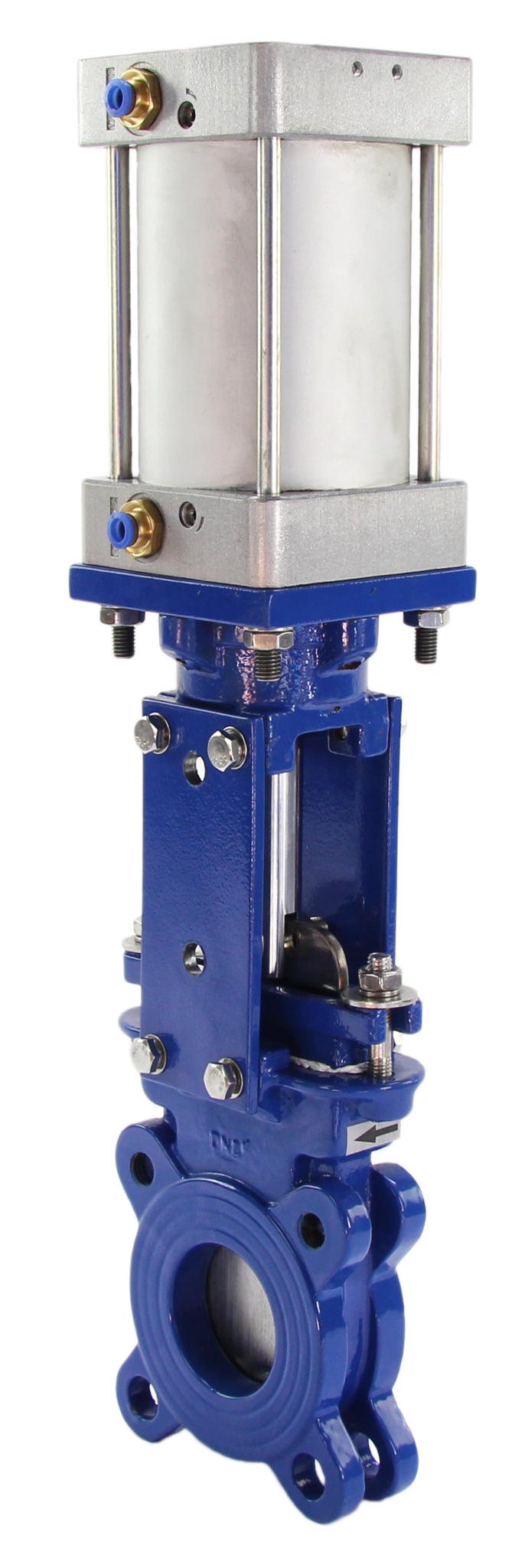

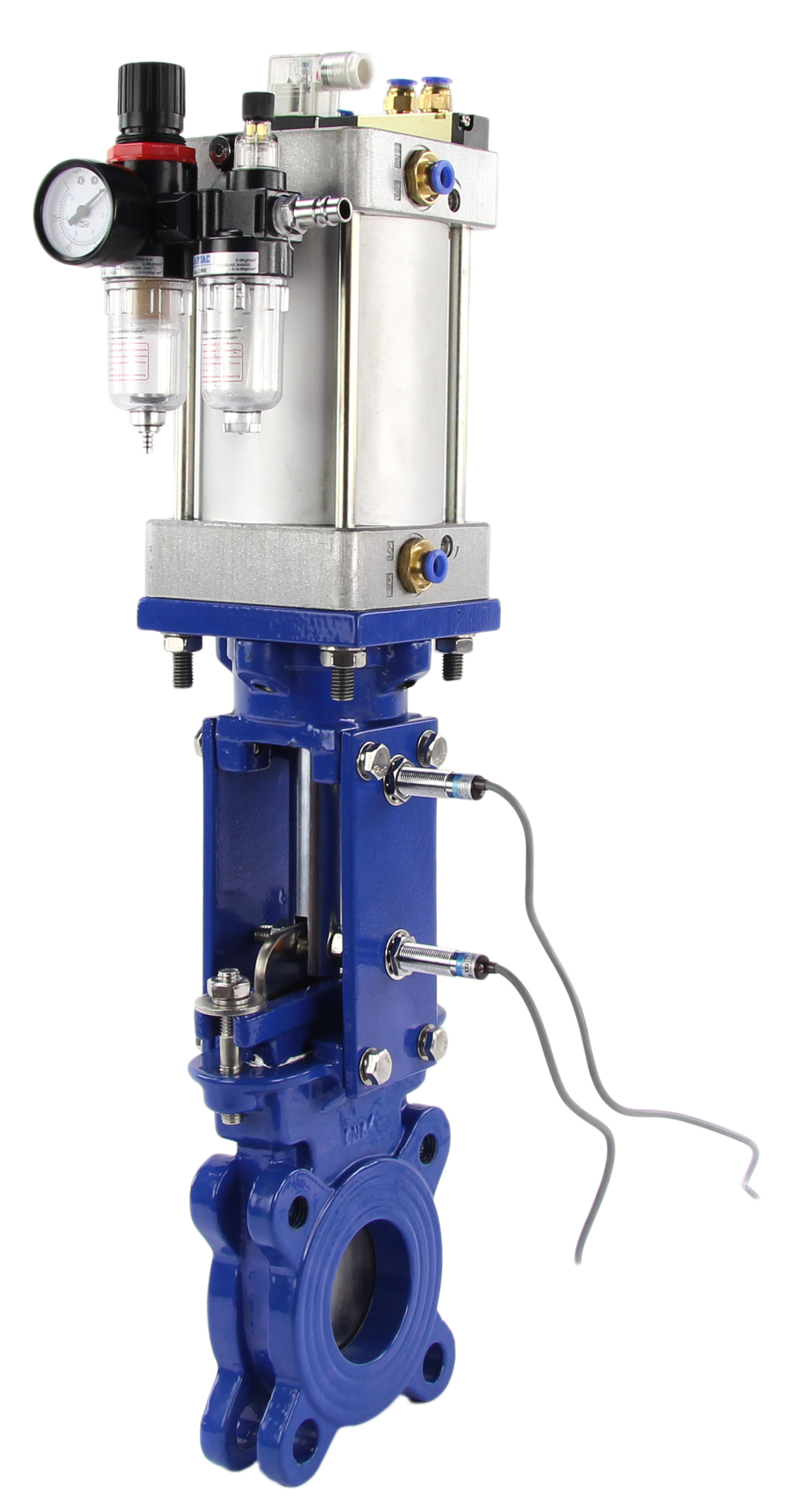

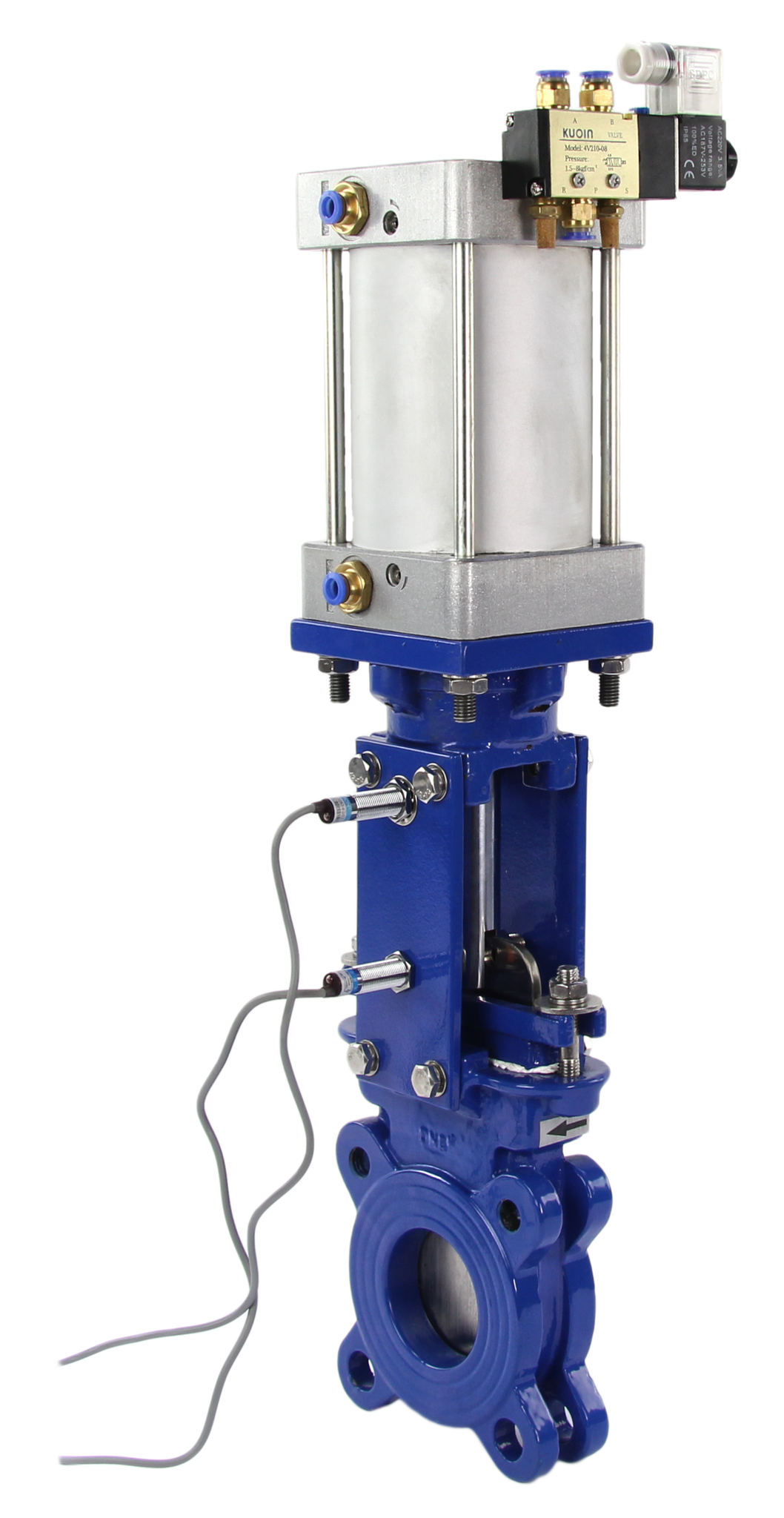

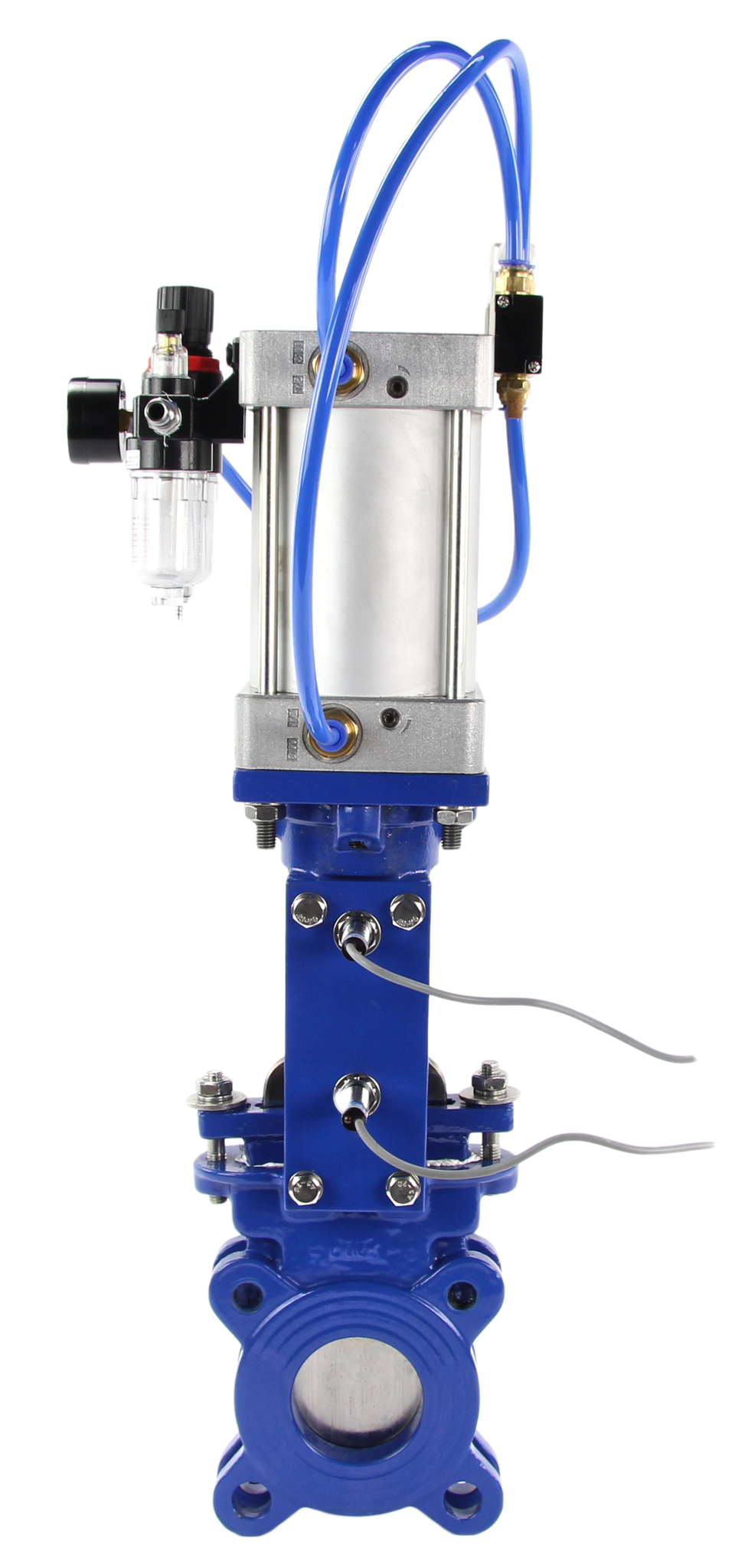

Knife Gate Valve wafer type Elephant WCB-SS304-1W-DA PSI145 METAL Class 125 with pneumatic actuator, 4V210-08 110/220V pneumatic solenoid valve, LJ12A3-4-J/EZ 110/220V inductive sensors and AFC2000 air filter

€743,00
Shipping calculated at checkout.

Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions. Thank you!

Description

Knife Gate Valve wafer type Elephant WCB-SS304-1W-DA PSI145 METAL Class 125 with pneumatic actuator, 4V210-08 220V pneumatic solenoid valve, LJ12A3-4-J/EZ 220V inductive sensors and AFC2000 air filter designed to shut off the flow of the working medium in pipelines in sewerage systems and treatment facilities, food and mining industries. A 4v210-08-220 pneumatic distributor is installed on the pneumatic drive housing and is designed to change the direction, start, and stop of compressed air flows in the pneumatic system depending on external control input. An inductive sensor is a non-contact type sensor designed to monitor the position of metal objects. They are manufactured with normally open and normally closed contacts, but there are options with both types of contacts at the same time. It works by changing the parameters of the magnetic field created by the inductor inside the sensor.

Specifications

  • Country of origin
    China
  • Body material
    Carbon steel WCB
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    250 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Operating environment
    Viscous media, waste water, water, neutral liquids
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    Metal
  • Coating type
    Epoxy powder
  • Explosion-proof
    No
  • Pneumatic actuator
    Yes
  • ISO - flange type
    F10
  • Supply voltage
    110/220 V
  • Telescopic rod
    No
  • Control column
    No
  • Actuator model
    Pnevmo-DA

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Elephant

    Knife Gate Valve wafer type Elephant WCB-SS304-1W-DA PSI145 METAL Class 125 with pneumatic actuator, 4V210-08 110/220V pneumatic solenoid valve, LJ12A3-4-J/EZ 110/220V inductive sensors and AFC2000 air filter

    From €743,00

    Knife Gate Valve wafer type Elephant WCB-SS304-1W-DA PSI145 METAL Class 125 with pneumatic actuator, 4V210-08 220V pneumatic solenoid valve, LJ12A3-4-J/EZ 220V inductive sensors and AFC2000 air filter designed to shut off the flow of the working medium in pipelines in sewerage systems and treatment facilities, food and mining industries. A 4v210-08-220 pneumatic distributor is installed on the pneumatic drive housing and is designed to change the direction, start, and stop of compressed air flows in the pneumatic system depending on external control input. An inductive sensor is a non-contact type sensor designed to monitor the position of metal objects. They are manufactured with normally open and normally closed contacts, but there are options with both types of contacts at the same time. It works by changing the parameters of the magnetic field created by the inductor inside the sensor.

    Connection size

    • DN50
    • DN65
    • DN80
    • DN100
    • DN125
    • DN150
    • DN200
    • DN250
    • DN300

    Pressure

    • 10 bar
    • 6 bar
